Conductive Polymer Hybrid Capacitors
HBW Series
Features
‧125℃,
4,000 hours assured
‧Low
ESR and High ripple current
‧RoHS
Compliance
HBW
Specifications
Items
Category Temperature Range
Capacitance Tolerance
Leakage Current (at 20℃)
Tanδ (at 120Hz, 20℃)
Performance
-55℃ ~ +125℃
±20%
I = 0.01CV or 3 (μA) whichever is greater (after 2 minutes)
Where,
C = rated capacitance in μF,
V = rated DC working voltage in V
See Standard Ratings
Test Time
Capacitance Change
Tanδ
4,000 Hrs
Within ±30% of initial value
Less than 200% of specified value
Marking color: Dark Green
(at 120Hz, 20℃)
Endurance
Shelf Life Test
ESR
Less than 200% of specified value
Leakage Current
Within specified value
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage applied with rated
ripple current for 4,000 hours at 125℃.
* After storage for 1,000 hours at 125
±
2℃ with no voltage applied and then being stabilized at 20℃,capacitors shall meet the
limits specified in Endurance. (With voltage treatment)
Capacitance Change
Tanδ
ESR
Leakage Current
120
≦
f < 1k
0.10
Within ±10% of initial value
Within specified value
Within specified value
Within specified value
1k
≦
f < 10k
0.3
10k
≦
f < 100k
0.6
100k
≦
f < 500k
1.0
Hybrid
Resistance to Soldering Heat
(Please refer to page 25 for
reflowsoldering conditions)
Ripple Current and
Frequency Multipliers
Frequency (Hz)
Multiplier

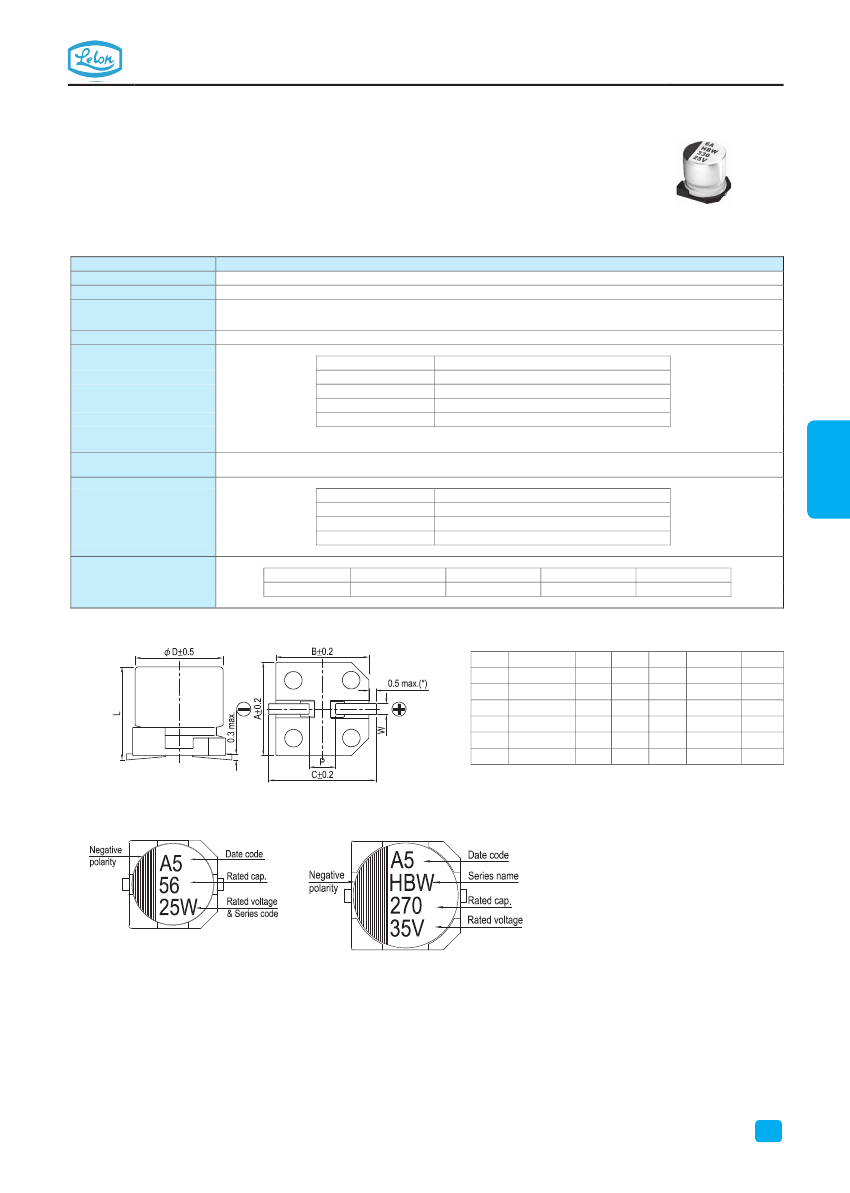

Diagram of Dimensions
φ
D
±
0.5
B
±
0.2
0.5 max.(*)
A
±
0.2
Lead Spacing and Diameter
φD
6.3
6.3
8
8
10
L
5.8 ± 0.3
7.7 ± 0.3
10.0 ± 0.5
12.0 ± 0.5
10.0 ± 0.5
A
6.6
6.6
8.3
8.3
10.3
B
6.6
6.6
8.3
8.3
10.3
10.3
C
7.2
7.2
9.0
9.0
11.0
11.0
W
0.5 ~ 0.8
0.5 ~ 0.8
0.7 ~ 1.1
0.7 ~ 1.1
0.7 ~ 1.3
0.7 ~ 1.3
Unit: mm
P ± 0.2
2.0
2.0
3.1
3.1
4.7
4.7
L
0.3 max.
W
P
C
±
0.2
10
12.5 ± 0.5
10.3
(*): For 6.3φ is 0.4 max.
Marking
φD
= 6.3 mm
Negative
polarity
φD
= 8 ~ 10 mm
Date code
Rated cap.
Rated voltage
& Series code
A5
56
25W
Negative
polarity
A5
HBW
270
35V
Date code
Series name
Rated cap
.
Rated voltage
All product specifications in the catalog are subject to change without notice. (CAT. 2018E1)
All product specifications in the catalog are subject to change without notice. (CAT. 2018E1)
85
85
Conductive Polymer Hybrid Capacitors
HBW
Dimension:
φD×L(mm)
Ripple Current: mA/rms at 100k Hz, 125℃
Standard Ratings
Rated Volt.
(V)
Surge Voltage
(V)
Capacitance
(μF)
82
16V (1C)
18.4
150
270
470
56
25V (1E)
28.8
100
220
330
27
35V (1V)
40.3
68
150
270
22
50V(1H)
57.5
33
68
100
10
22
63V(1J)
72.5
27
33
56
56
Size
φD×L(mm)
6.3 × 5.8
6.3 × 7.7
8 × 10
10 × 10
6.3 × 5.8
6.3 × 7.7
8 × 10
10 × 10
6.3 × 5.8
6.3 × 7.7
8 × 10
10 × 10
6.3 × 5.8
6.3 × 7.7
8 × 10
10 × 10
6.3 × 5.8
6.3 × 7.7
8 × 12
8 × 10
10 × 10
10 × 12.5
Tanδ
(120Hz, 20℃)
0.16
0.16
0.16
0.16
0.14
0.14
0.14
0.14
0.12
0.12
0.12
0.12
0.10
0.10
0.10
0.10
0.08
0.08
0.08
0.08
0.08
0.08
LC
(μA)
13.1
24
43.2
75.2
14
25
55
82.5
9.5
23.8
52.5
94.5
11
16.5
34
50
6.3
13.9
17
20.8
35.3
35.3
ESR
(mΩ/at 100kHz, 20℃ max.)
50
30
27
20
50
30
27
20
60
35
27
20
80
40
30
28
120
80
40
40
30
26
Rated R. C.
(mA/rms at 100k Hz, 125℃)
900
1,400
1,600
2,000
900
1,400
1,600
2,000
900
1,400
1,600
2,000
750
1,100
1,250
1,600
700
900
1,100
1,100
1,400
1,500
Hybrid
Part Numbering System
HBW Series
220μF
±20%
Capacitance
Tolerance
25V
Rated
Voltage
HBW
Series Name
221
Capacitance
M
1E
Carrier
Tape
Package
Type
8φ×10L
Terminal
Type
TR
-
0810
Case size
Pb-free and PET
coating case
Lead Wire and
Coating Type
Note: For more details, please refer to “Part Numbering System (SMD Type)” on page 15.
86
86
All product specifications in the catalog are subject to change without notice. (CAT. 2018E1)
