FD TYPE CONNECTOR FOR RIBBON CABLE
(1.27-millimeter pitch for standard ribbon cable)

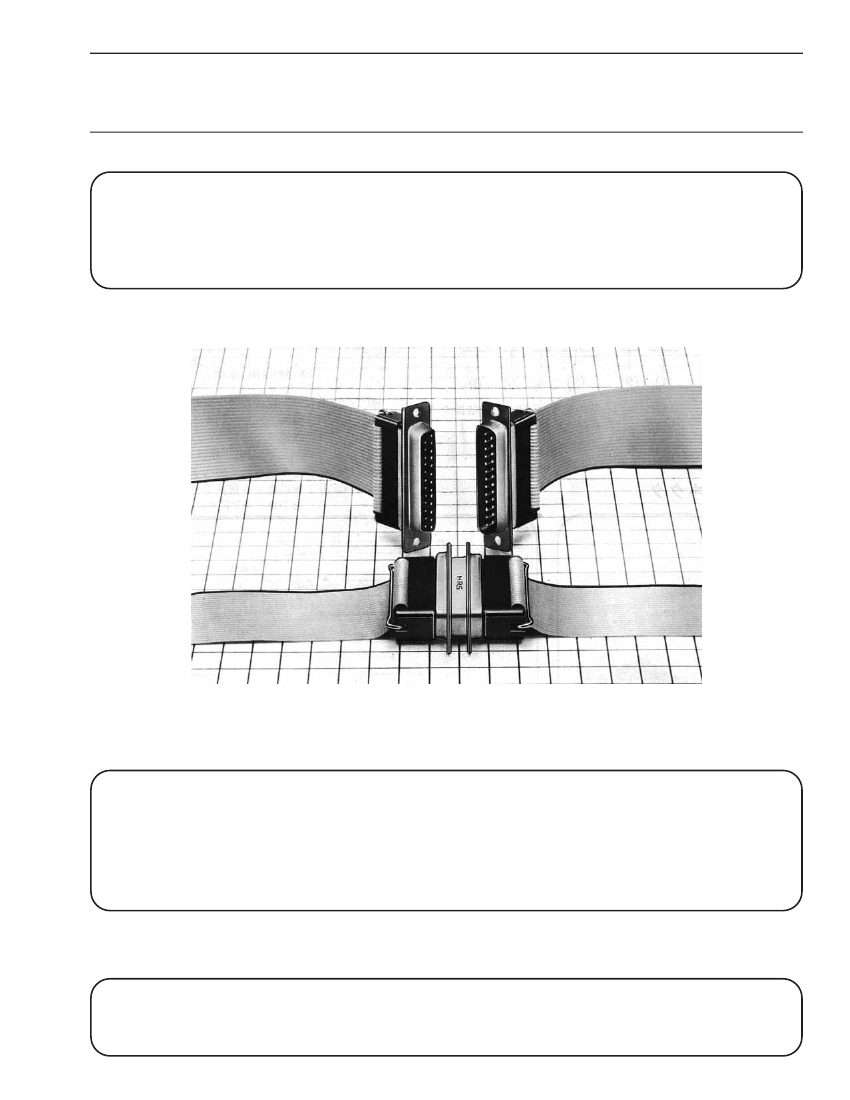

General
The FD Series connectors are designed for ribbon
cable IDC termination. Connecting wires are grouped,
so the FD Series are useful for labor-saving in connec-
tion work and enhancing wiring reliability.
Being compatible with 1.27-mm (standard) ribbon
cables, the FD Series are general-purpose, high-per-
formance connectors that are capable of being inter-
acing with connectors for other types of ribbon cables.
9, 15, 25 and 37-contact models available.
Dec.1.2018
Nov.1.2016 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2018
Features
(1) Compact and sturdy due to metal shell.
(2) Can be mounted on the front or back of a panel or
chasis as necessary.
(3) Fixes the cable securely by fixing the ribbon cable
clamp with a metal plate in the connector.
(4) Can be easily connected to a standard ribbon
cable, having a cable IDC pitch of 1.27mm (stan-
dard).
(5) Easy to connect cables by following the same IDC
termination and connecting procedures as those
for our other ribbon cable connectors.
Application
Most suitable for modems in communications equip-
ment such as computers, peripherals and terminals,
control equipment, and measuring instruments, and ex-
port equipment.
04/2009
67
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
Electrical and Environmental
Electrical and Environmental Characteristics
Current rating
Voltage rating
Insulation
resistance
Contact
resistance
Withstand
voltage
1A
200V AC
Insulator
1,000MΩ min.
at 500V DC
25mΩ max.
at 100mA DC
650Vr.m.s. AC
for 1 minute
Contacts
PBT
（GE Valox）
Copper alloy
Black
Nickel-plating + Gold plating
Shell
Steel
Material and Finish
Nickel plating
Cable specifications
Dec.1.2018
Nov.1.2016 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2018
Ordering Informations
FD
B
−
25
P
F
（05）
(1)
(2)
(3)
(4)
Series Name FD: Insulation displacement termination
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

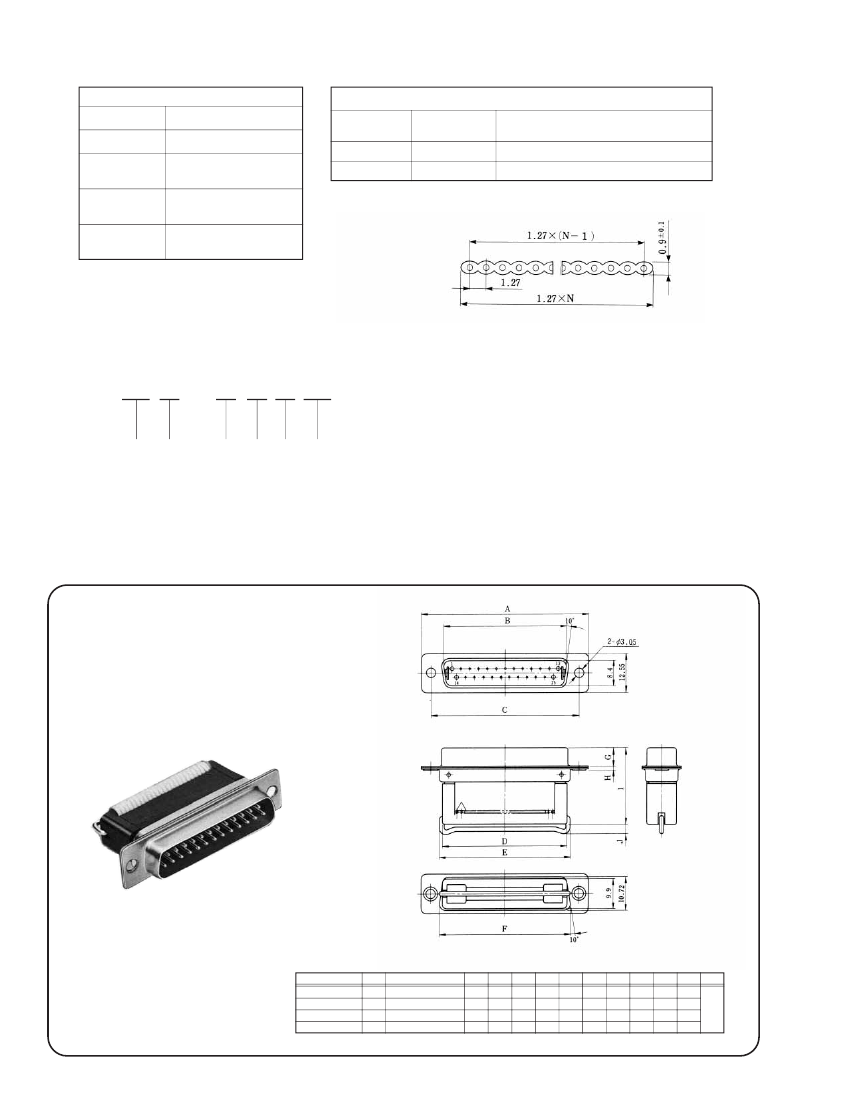

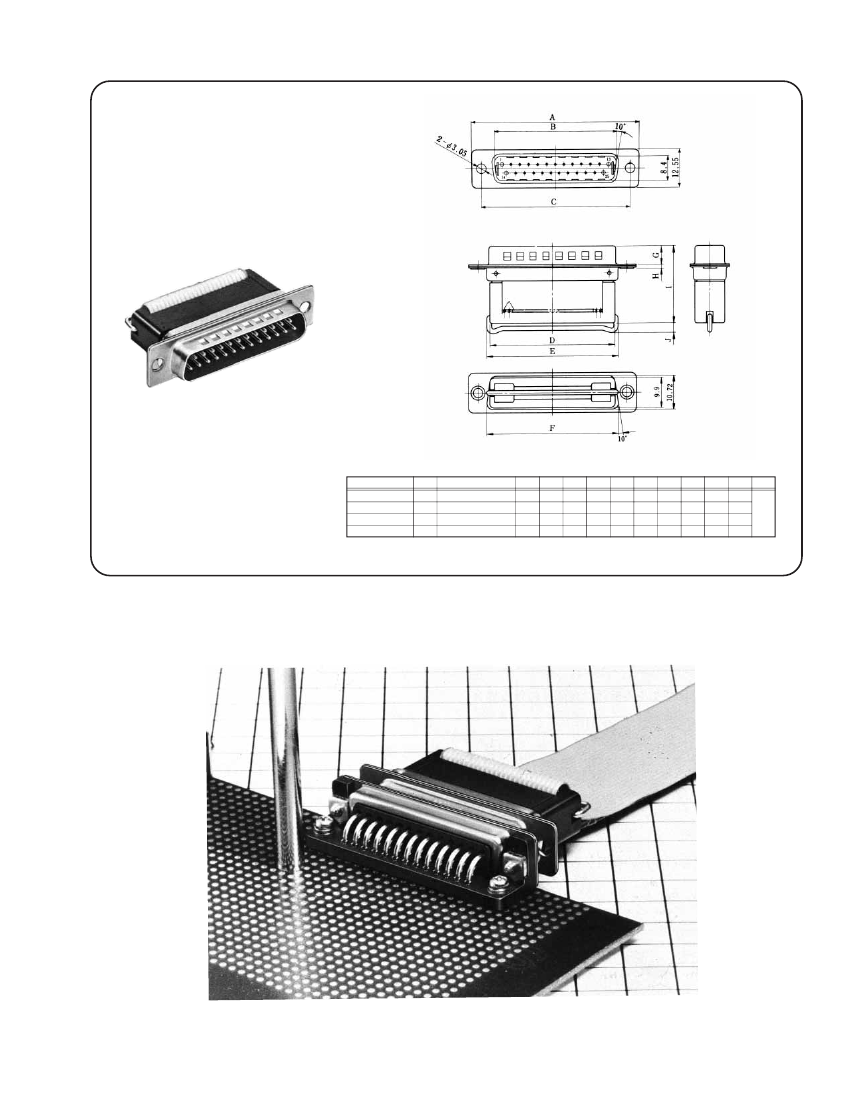

D Subminiature IDC, Male with Grounding Dimples
Dec.1.2018
Nov.1.2016 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2018
FDB-25PF
（05）
Unit: mm
HRS No
CL211-0721-2-05
CL211-0722-5-05
CL211-0723-8-05
CL211-0724-0-05
No.of pin
9
15
25
37
Part No.
FDE-9PF
（05）
FDA-15PF
（05）
FDB-25PF
（05）
FDC-37PF
（05）
A
B
C
D
17.6
25.8
39.6
56.14
E
19
27.2
41.4
57.9
F
19.28
27.55
41.28
57.71
G
5.99
5.99
5.87
5.87
H
1.2
1.2
1.3
1.4
I
24.39
24.39
24.37
24.47
J
2.7
2.7
3.2
3.2
RoHS
30.81 16.9 24.99
39.14 25.24 33.32
53.04 39.01 47.04
69.32 55.47
63.5
YES
04/2009
69
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
D Subminiature IDC, Male with Grounding Dimples
Dec.1.2018
Nov.1.2016 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2018
FDB-25S
（05）
Unit: mm
HRS No
CL211-0144-0-05
CL211-0146-6-05
CL211-0136-2-05
CL211-0148-1-05
No.of pin
9
15
25
37
Part No.
FDE-9S
（05）
FDA-15S
（05）
FDB-25S
（05）
FDC-37S
（05）
A
30.81
B
16.4
C
24.99
D
17.6
25.8
39.6
56.14
E
19
27.2
41.4
57.9
F
19.28
27.55
41.28
57.71
G
6.17
6.17
6.17
6.17
H
1.2
1.2
1.2
1.2
I
24.37
24.37
24.37
24.37
J
2.7
2.7
3.2
3.2
YES
RoHS
39.14 24.59 33.32
53.04 38.3 47.04
69.32 54.76
63.5

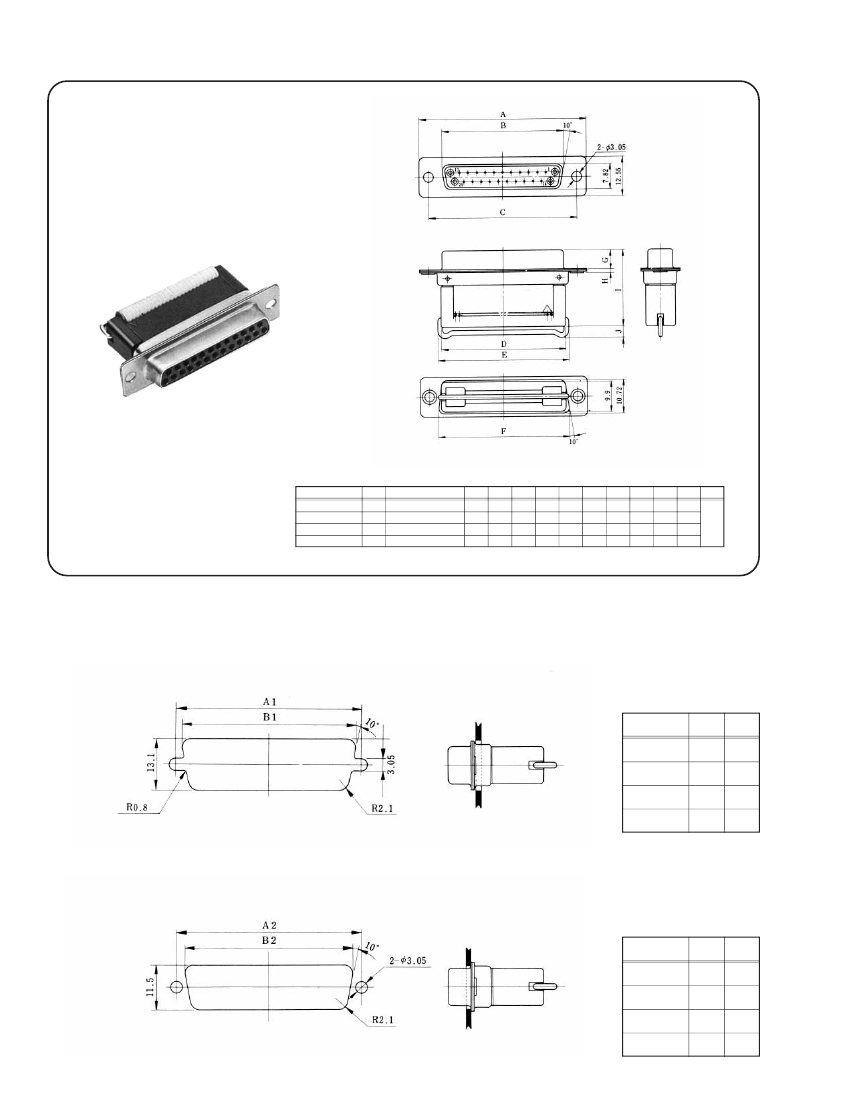

Connector Mounting Method and Mounting Dimensions
s
Connector mounted on the face of the panel (front mounting)
Unit: mm
Shell size
E
A
B
C
A1
24.99
33.32
47.04
63.5
B1
22
30.3
44
60.5
s
Connector mounded on the back of the panel (rear mounting)
Unit: mm
Shell size
E
A
B
C
A2
24.99
33.32
47.04
63.5
B2
20.2
28.6
42.5
59.2
04/2009
70
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
s

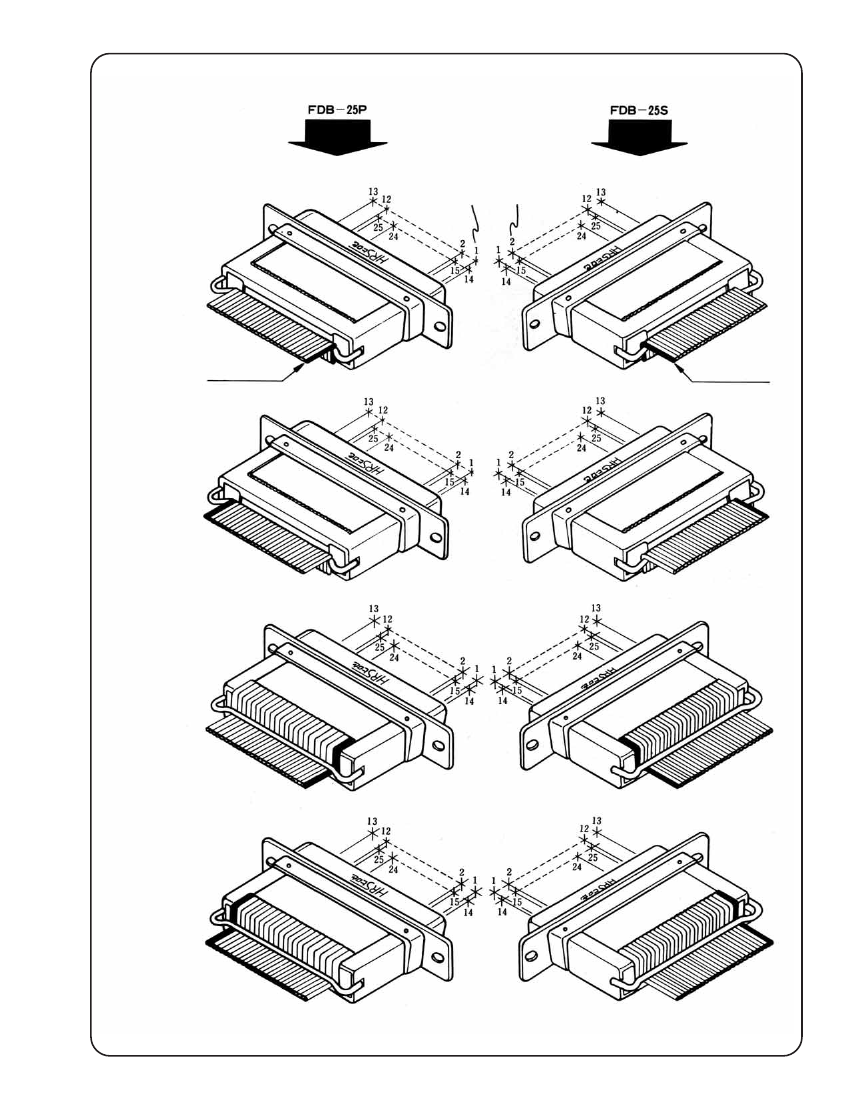

Connecting Type
