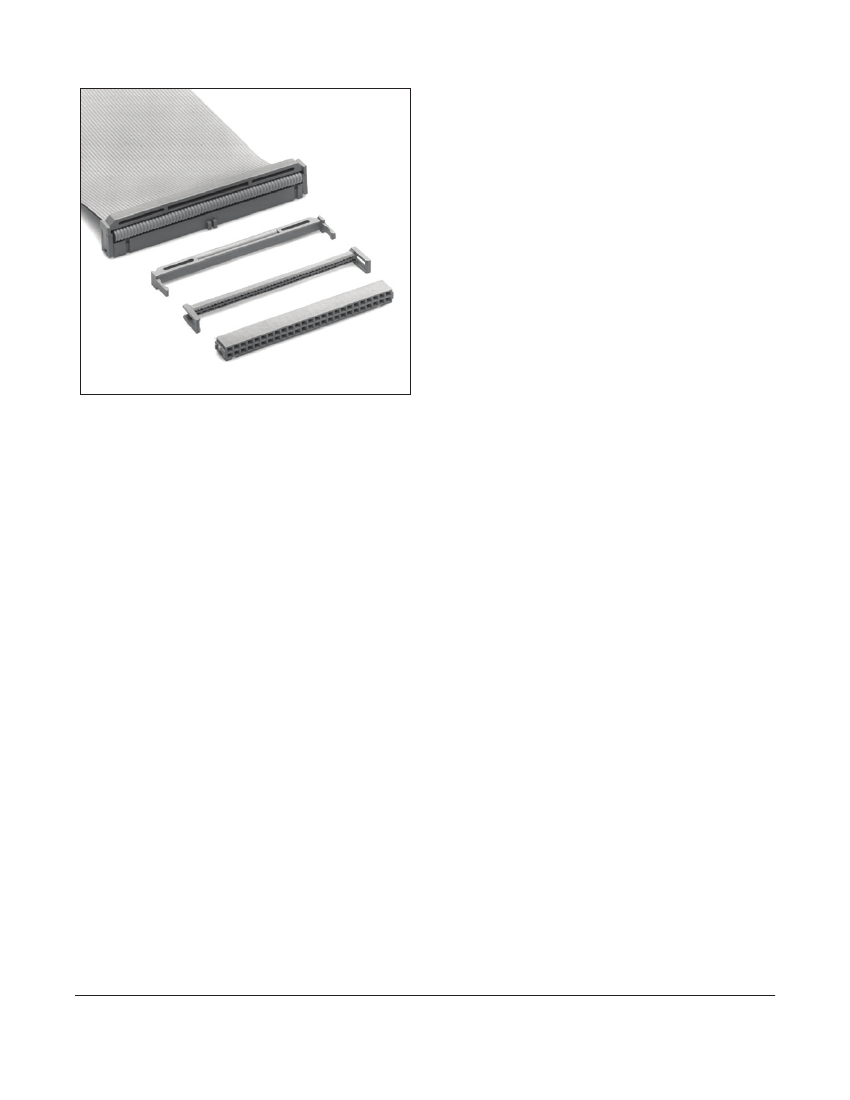

• Preassembled, packaging on swords for easy loading of
manual and semi-automatic assembly equipment
• “Bumps” are designed to prevent premature latch locking
during shipment
• Optional double-sided adhesive pull tab for easy
unplugging
• Double-recessed cover for cable terminating from either
side virtually eliminating the need for single-recessed
cover connectors
• Military polarization, with or without centerbump
• See the Regulatory Information Appendix (RIA) in
the “RoHS compliance” section of
www.3Mconnectors.com for compliance information
(RIA E1 & C1 apply)
Date Modified: July 18, 2012
TS-0449-L
Sheet 1 of 3
Insulation:
Material: Glass Filled Polyester (PBT)
Flammability: UL 94V-0
Color: Gray
Contact:
Material: Phosphor Bronze
Plating:
Underplating: 50 μ” [ 1.27 μm ] Nickel
Wiping Area: 30 μ” [ 0.76 μm ] Gold
Wire Accommodation: 26 and 28 AWG Stranded
Marking:
3M Logo and Orientation Triangle
Current Rating:
28 AWG
26 AWG
1 line
4.25
4.50
6 Adjacent Lines
1.75
2.25
All Lines
1.25
1.50
Rating Conditions: EIA-364-070 Method 2, 30°C maximum temperature rise, 20%
derated. Reference appropriate 3M Product Specification for detailed current
derating curves.
Insulation Resistance:
> 1 × 10
9
Ω
at 500 V
DC
Withstanding Voltage:
1,000 V
RMS
at Sea Level
Temperature Rating:
-55°C to +105°C
UL File No.: E68080
3
Electronic Solutions Division
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
IDC Ribbon Cable Socket
.100” × .100” for .050” Pitch Cable
C
891 Series
Contact
Quantity
8
10
14
A
Dimensions
B
0.58 [ 14.7 ]
0.68 [ 17.3 ]
0.88 [ 22.4 ]
0.98 [ 24.9 ]
1.18 [ 30.0 ]
1.38 [ 35.1 ]
1.48 [ 37.6 ]
1.68 [ 42.7 ]
1.88 [ 47.8 ]
1.98 [ 50.3 ]
2.18 [ 55.4 ]
2.38 [ 60.5 ]
2.68 [ 68.1 ]
3.18 [ 80.8 ]
0.43 [ 10.9 ]
0.53 [ 13.5 ]
0.73 [ 18.5 ]
0.83 [ 21.1 ]
1.03 [ 26.2 ]
1.23 [ 31.2 ]
1.33 [ 33.8 ]
1.53 [ 38.9 ]
1.73 [ 43.9 ]
1.83 [ 46.5 ]
2.03 [ 51.6 ]
2.23 [ 56.4 ]
2.53 [ 64.3 ]
3.03 [ 77.0 ]
A
.240
[ 6.10 ]
16
20
24
26
30
.53
[ 13.5 ]
Strain Relief
.22
[ 5.6]
.15
[ 3.8 ]
34
36
40
44
50
60
.240
[ 6.10 ]
A
Recessed for
Cable Exit
B
.57 Ref
[ 14.5 ]
.53
[ 13.5 ]
.64 Ref
[ 16.3 ]

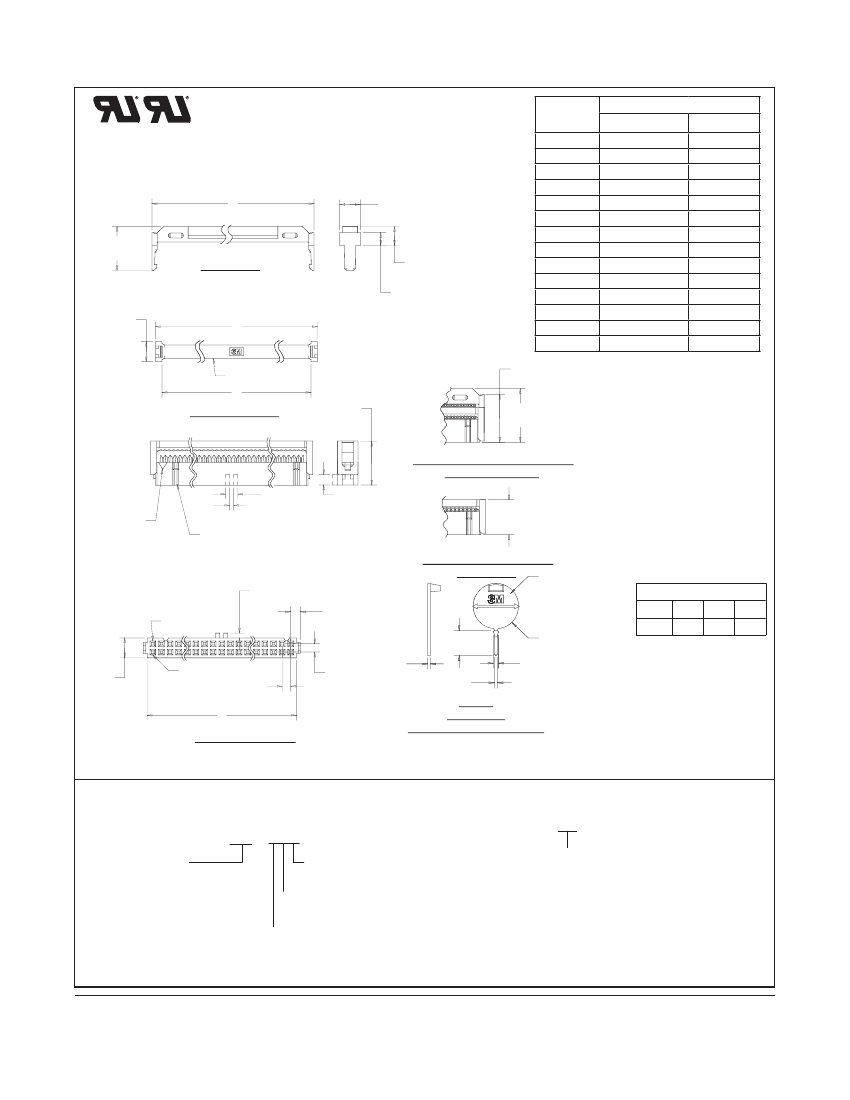

Top View of Cover
Assembled Height with Standard
Plastic Strain Relief
.032
[ 0.81 ]
.14
[ 3.6 ]
.200
[ 5.08 ]
.42 Ref
[ 10.7 ]
Triangle
Indicates
Position 1
Dual Polarization
Slots
No left slot on 10 & 14 position
No slots on 8 position
Preassembled View
.06 Centerbump
[ 1.5 ] (Optional)
Position 1
Assembled Height Without
Strain Relief
Breakaway
Tab
.11
[ 2.8 ]
.24
[ 6.1 ]
Tolerance Unless Noted
.0
.00
Inch
± .1
Inch
(mm)
3435
Color: Gray
.051
[ 1.30 ]
.000
± .01 ± .005
.240
[ 6.10 ]
Position 2
.100 Typ
[ 2.54 ]
B
.100
[ 2.54 ]
Typ
.032
[ 0.81 ]
[ ] Dimensions for
Reference only
Bottom View of Body
3435-0
Keying Plug
(Optional: Order Separately)
Material: Gray Polyester (PBT)
.026
[ 0.66 ]
Ordering Information
Sockets
891XX-0X0X
Contact Quantity
See Table
1 = No Strain Relief
3 = Strain Relief
Package Style Options:
0 = Preassembled
Polarization Options:
0 = Without Centerbump
1 = With Centerbump
Assembly tools: 3M
™
Press (or equivalent) 3640 , 3M
™
Locator Plate 3443-107N, 3M
™
Platen 3442-9.
Strain Relief
(Order Separately)
3448-891XX
Contact Quantity:
See Table
Pull Tabs
(Order Separately)
See TS-0496
TS-0449-L
Sheet 2 of 3
3
Electronic Solutions Division
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
IDC Ribbon Cable Socket
.100” × .100” for .050” Pitch Cable
891 Series
-B-
Typ
.100
[2.54]
-A-
Typ
.100
[2.54]
Typ
Space Occupied
by Socket
.30 Min
[7.6]
.20 Min
[5.1]
.30 Min
[7.6]
.14
[3.6]
.025 ± .001
[0.64] Square or Round Typ
(See Note 1)
.025
A B
Space for
Cable Exit
See Note 2
.018 Max
[0.46]
.230 Min
[5.84]
Recommended Post
Post Pattern
Stacked Configurations
Recommended
Pattern for
Note 1: Measured at tip.
Note 2: Tapered pin tip configuration recommended.
TS-0449-L
Sheet 3 of 3
3
Electronic Solutions Division
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
