SZ5836 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SZ5836

SZ5836: Description5.0 WATT 6.8 - 270 VOLTS ZENER DIODES; CategoryDiscrete semiconductor diode; File Size84KB，2 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric View All

SZ5836 Overview

5.0 WATT 6.8 - 270 VOLTS ZENER DIODES

SZ5836 Parametric

Parameter Name	Attribute value
Maker	SSDI
package instruction	O-LALF-W2
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	O-LALF-W2
Number of components	1
Number of terminals	2
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.5 W
Certification status	Not Qualified
Nominal reference voltage	36 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Maximum voltage tolerance	10%
Working test current	30 mA
Base Number Matches	1

Preview

Download Datasheet

View All

Solid State Devices, Inc.

14701 Firestone Blvd * La Mirada, Ca 90638

Phone: (562) 404-4474 * Fax: (562) 404-1773

ssdi@ssdi-power.com * www.ssdi-power.com

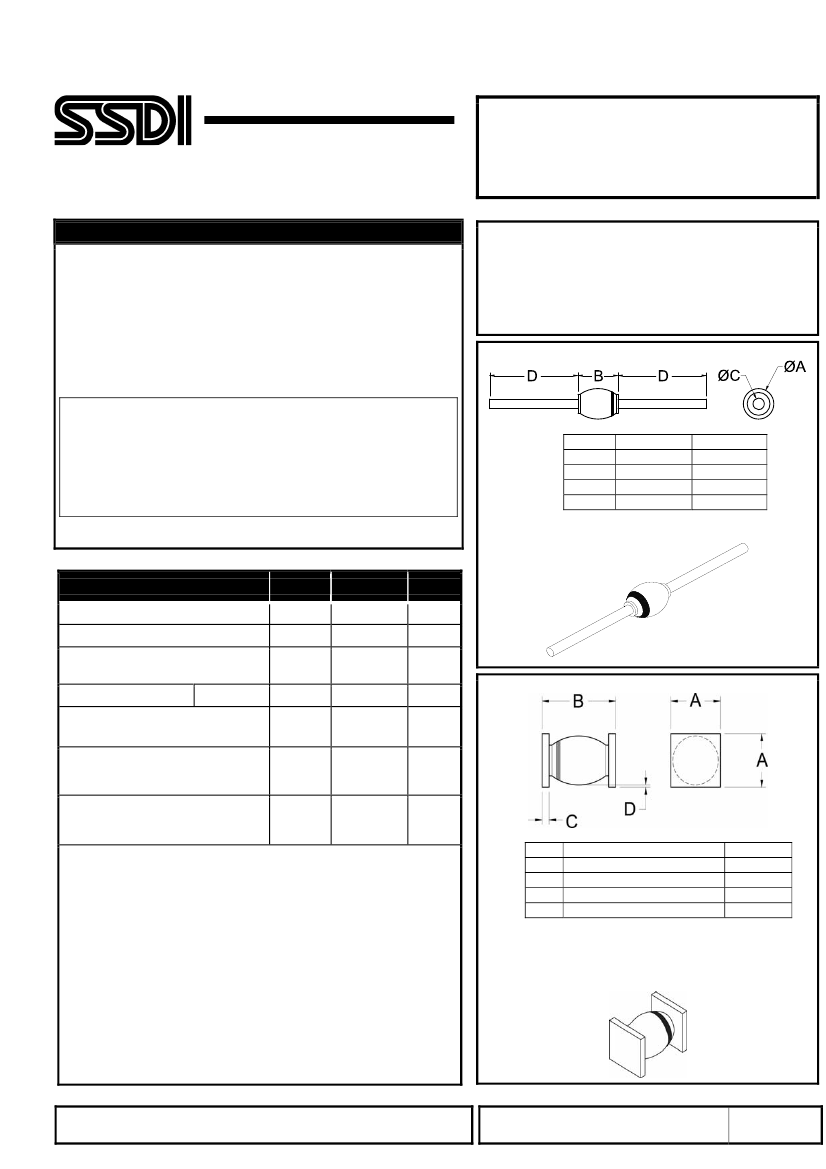

SZ5706 thru SZ5890

And

SZ5110 thru SZ5227

5.0 WATT

6.8 – 270 VOLTS

ZENER DIODES

DESIGNER’S DATA SHEET

FEATURES:

Hermetically Sealed in Glass

Rated at 5 W

Available in Axial and Square Tab Surface Mount

(SMS) version

Available to TX, TXV, and Space Levels

Replacement for Microsemi UZ5706 and UZ5806 Series.

Note:

SSDI’s Zeners offer standard Voltage

Tolerance of ±10% and ±5%. For other Voltages and Voltage

Tolerances, contact SSDI’s Marketing Department.

DIM

MIN.

---

.047”

1.00”

MAX

.158”

.185”

.053”

---

AXIAL(L)

Maximum Ratings

Nominal Zener Voltage

Maximum Zener Current

Forward Surge Current

(8.3 msec Puls)

Continuous Power

Operating and Storage Temp.

Thermal Resistance,

Junction to Lead

L=3/8” (Axial)

Symbol

Value

Units

FSM

6.8 - 270

16 - 675

.30 - 40

ºC

ºC/W

DIM

MIN.

.155”

.190”

.020”

Body to Tab Clearance: .001”

All dimensions are prior to

soldering

5.0

Top

-65 to +175

&Tstg

θJL

θJE

Thermal Resistance,

Junction to End Cap

(SMS)

MAX.

.185”

.220”

.030”

SQUARE TAB (SMS)

NOTE:

All specifications are subject to change without notification.

SCD's for these devices should be reviewed by SSDI prior to release.

DATA SHEET #: Z00007C

DOC
