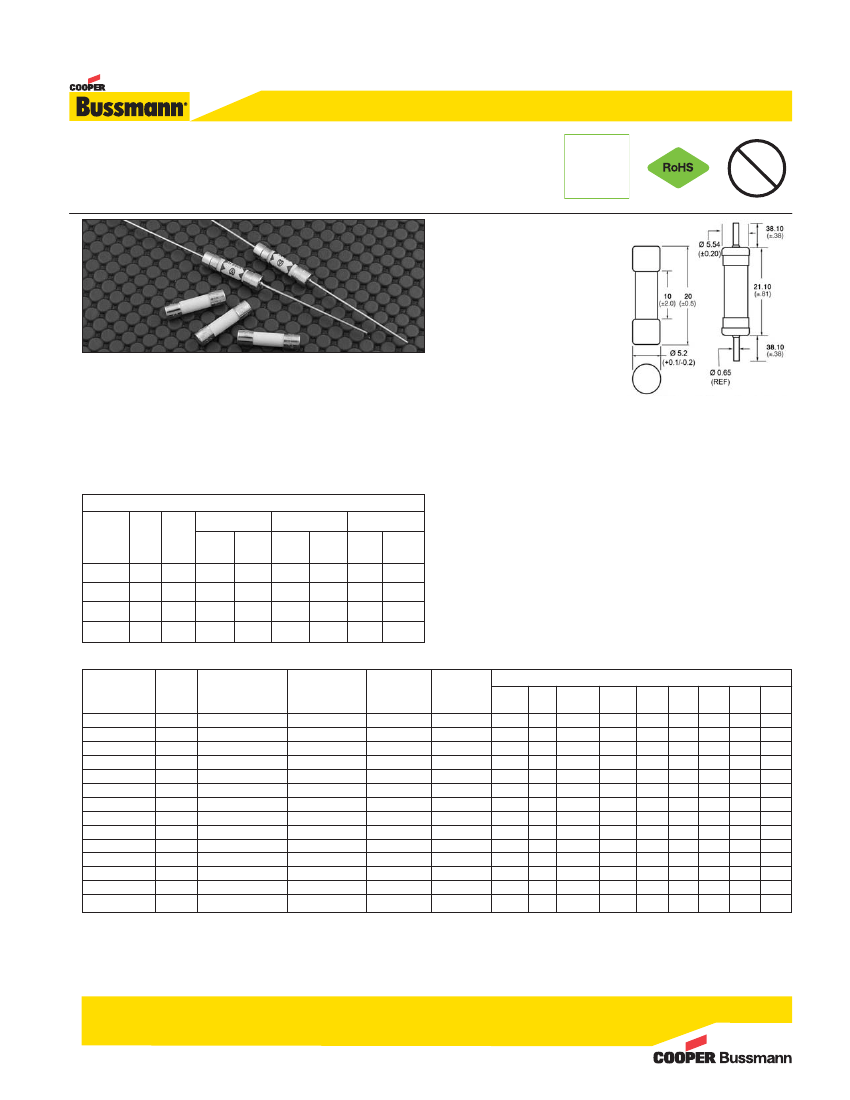

5 x 20mm Time-Delay, Ceramic Tube Fuses
S505 Series
5 x 20mm fuse with
optional axial leads
HF
FREE
HALOGEN
Pb
Dimensions - mm
• Ratings above 6.3A have a maximum
0.81mm diameter lead
• With TR2 packaging code, leadwire
length is 19.05mm
Description
• Time-delay, high breaking capacity
• Available with optional axial leads
• Ceramic tube, silver-plated endcap construction (500mA-800mA),
nickel-plated brass endcap construction (1-12A)
• Optional sleeve is flexible flouropolymer (UL flammability rating VW-1).
Consult factory for details.
• 5 x 20mm physical size
• Designed to IEC 60127-2 (500mA-10A) & extension 12A
Electrical Characteristics
1.5In
Amps
<1A
1A-3.15A
4A-6.3A
8A-12A
Min
min.
60
60
60
30
2.1In
Max
min.
30
30
30
30
2.75In
Min
ms
250
750
750
750
Max
s
80s
80s
80s
80s
Min
ms
50
95
150
150
4In
Max
s
5s
5s
5s
5s
Min
ms
5
10
10
10
10In
Max
ms
150
150
150
150
Agency Information
UL Recognized Card: Guide JDYX2, File E19180, JDYX8, File E19180
CSA Component Acceptance: File 53787
SEMKO: File 816547, 1119019
VDE: File 40014091, 40024352, 40023140
BSI: File KM55676
IMQ: File CA03.00100 and CA03.00529
PES+JET: File 1641-31003-1009, 1641-31003-1010,
1641-31003-1011, 1641-31003-1012, 1641-31003-2001,
1641-31003-2002
• CCC: File 2002010207011295, CQC11012061930
• KC-Mark: File SU05011-4012A, SU05011-5004A
•
•
•
•
•
•
•
Ordering
• Specify packaging code (insert packaging code prefix before part number)
e.g., BK- (or BK1-/TR2-) S505-1-R
• Specify option codes if desired (for axial leads, insert “V” between catalog
series and amp rating) e.g., BK-S505-V-1-R
Typical
Voltage
Drop (mV)
4
295
189
152.5
150
125
118.5
115
102.5
86.5
77.5
75
73
72
77
Agency Information
CCC/ PSE/
cURus CQC
5
JET CSA
5
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
6
X
X
X
X
6
X
X
X
Specifications
Product
Code
S505-500-R
S505-800-R
S505-1-R
S505-1.25-R
S505-1.6-R
S505-2-R
S505-2.5-R
S505-3.15-R
S505-4-R
S505-5-R
S505-6.3-R
S505-8-R
S505-10-R
S505-12-R
Voltage
Interrupting
Typical DC Cold
Typical
Rating
Rating at Rated
Resistance
Pre-arching
AC
Voltage (50Hz) AC
1
(Ω)
2
I
2
t (A
2
s)AC
3
250
1500
0.5070
0.188
X
250
1500
0.2370
0.632
X
250
1500
0.1401
1.28
250
1500
0.1075
2.22
250
1500
0.0700
6.78
250
1500
0.0545
9.60
250
1500
0.0395
16.60
250
1500
0.0305
36.60
250
1500
0.0185
38.45
X
250
1500
0.0131
71.30
X
250
1500
0.0102
111
X
250
1500
0.0077
228
X
250
1500
0.0061
397
250
1000
0.0053
713.7
X
IMQ
5
X
X
X
X
X
X
X
X
X
X
X
X
X
VDE SEMKO
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
KC
5
X
X
X
X
X
X
X
X
X
X
X
BSI
X
X
X
X
X
X
X
X
X
X
X
X
X
1. Interrupting ratings: 500mA to 10A were measured at 70% to 80% PF on AC,12A was measured
at 100% PF on AC.
2. Typical DC Cold Resistance (measured at <10% of rated current).
3. Typical Pre-Arching I
2
t (measured at listed interrupting rating and rated voltage if not specified);
With "X" specified, the typical I
2
t value is measured at 10 times of rated current under DC.
4. Typical Voltage Drop( Voltage Drop was measured at 20°C ambient temperature at rated current).
5. No room for "CSA" & "KC" on the fuse endcap for Non-V Rev. No room for "IMQ", "CQC' or "KC"
on fuse endcap for -V Rev.
6. CQC only.
1111 BU-SB11758
Page 1 of 2
Data Sheet 2037

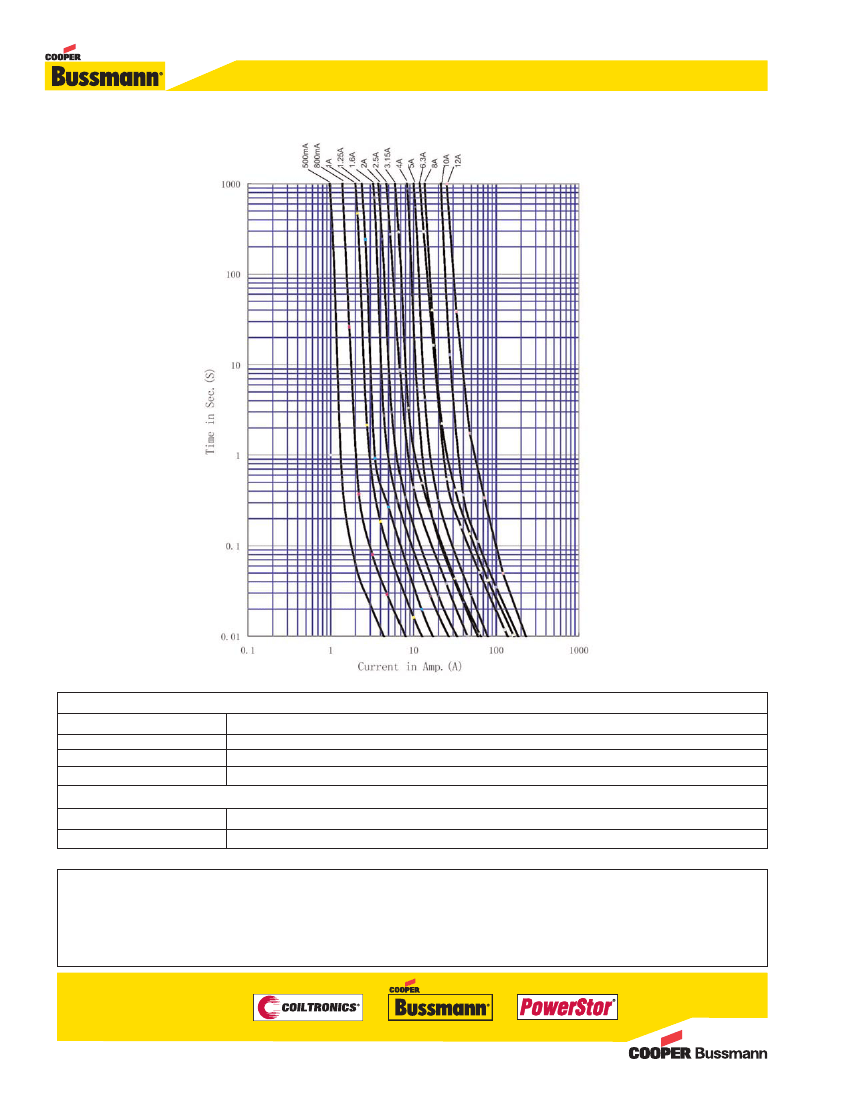

Time-Current Curves
Packaging Code
Packaging Code Prefix
BK-
BK1-
TR2-
Description
100 fuses packed into a cardboard carton
1000 fuses packed into a poly bag
1500 fuses on tape and reel (19.05mm leadwire length)
Option Code
Option Code
-V
Description
Axial leads – copper tinned wire with nickel-plated brass endcaps
