Alternating Input Module
VI-AIM™
Actual size:
2.28 x 2.4 x 0.5in
57,9 x 61,0 x 12,7mm
Universal AC Input Front End Module
Features & Benefits
•
RoHS compliant (VE versions)
•
Universal input: 85 – 264V
AC
•
Output power: 250W
•
Operating temperature: 100°C
•
Efficiency: 97%
•
Integral EMI filtering
•
Input transient protection
•
Inrush limiting
•
CE Marked
Normal mode
Absolute Maximum Ratings
Parameter
Maximum value of hold-up capacitance
Thermal resistance
Operating temperature
Storage temperature
Transient surge withstand
Common mode
1.2/50µS, 2kV pulse, 2 joules
0 to 360 degree phase angle
1.2/50µS, 1kV pulse, 2 joules
0 to 360 degree phase angle
EN61000-4-5
IEC 801-5
With external MOV
Rating
1200
0.4
–55 to +100
–65 to 100
Unit
µF
°C/Watt
°C
°C
Baseplate-to-sink
M-Grade
M-Grade
Notes
Product Highlights
The AIM (Alternating Input Module) is an
AC front-end module which interfaces
directly with worldwide AC mains. The AIM
provides line rectification, EMI/RFI filtering,
transient protection and inrush limiting in a
half brick package measuring
2.28” x 2.4” x 0.5”.
The AIM is used in conjunction with Vicor
VI-200 or VI-J00 DC-DC converters to
realize a universal AC input, high-density,
low-profile switching power supply with
outputs from 1 – 95V
DC
and a total
power rating up to 200W. An external
capacitor is used to satisfy system hold-
up requirements. Internal EMI filtering
meets EN55022 and FCC Part 15, Class A
emissions limits.
VI-AIM Input Voltage
85 – 132 Vac
180 – 264 Vac
85 – 264 Vac
Compatible
DC-DC Converter
VI-x5x-xx
VI-x6x-xx
VI-x7x-xx
Notes
Used with a 100 – 200V
IN
converter
Used with a 200 – 400V
IN
converter
Used with a 100 – 375V
IN
converter
Part Numbering
VI
Compliance
VI
= Non RoHS
VE
= RoHS
-
AIM
*
-
E
1
AC Input Module
Product Name
Product Grade Temperatures (°C)
Grade Operating
Storage
E = - 10 to +100 - 20 to +100
C = - 25 to +100 - 40 to +100
I = - 40 to +100 - 55 to +100
M = - 55 to +100 - 65 to +100
*
For Mega Module packaging option add an L before the product name.
Example: Vx-LAIM-xx
VI-AIM™
Page 1 of 4
Rev 2.9
06/2017
vicorpower.com
800 927.9474
VI-AIM™
Specifications
(typical at T
BP
= 25°C, nominal line and 75% load, unless otherwise specified)
INPUT SPECIFICATIONS
Parameter
AC line input
Min
Typ
85 – 264
[1]
47 – 440
Inrush current
[1]
Max
Unit
V
AC
Hz
Notes
No strapping; no damage below low line
<40A at peak line (264V
RMS
)
Dependent upon input range of compatible DC-DC converter.
OUTPUT SPECIFICATIONS
Parameter
Output voltage
Output power
Hold-up time
Efficiency
Min
Typ
120 – 373
250
Application specific
97%
%
Max
Unit
V
DC
W
Notes
Peak of AC line
Delivered to converter(s)
A function of external capacitance and power
SAFETY SPECIFICATIONS
Parameter
Dielectric withstand
Input to output
Input/output to baseplate
Min
Typ
None
1,500
V
RMS
Max
Unit
Notes
Provided by DC-DC converter
AGENCY APPROVALS
Safety Standards
Conducted EMI/RFI
UL1950, CSA 22.2-950, EN60950
Agency Markings
VDE 0871/FCC Part 15, Class A
EN55022, Class A
Notes
With compatible DC-DC converter modules
External 0.47µF capacitor required
GENERAL SPECIFICATIONS
Parameter
Size
Weight
Min
Typ
Max
Unit
in (mm)
Ounces (Grams)
Notes
Mega Module, SlimMod and FinMod packages available
2.28” x 2.4” x 0.5” (57,9 x 61,0 x 12,7)
3.0 (85)
Storage
Vicor products, when not installed in customer units, should be stored in ESD safe packaging in accordance with ANSI/ESD S20.20,
“Protection of Electrical and Electronic Parts, Assemblies and Equipment” and should be maintained in a temperature controlled factory/
warehouse environment not exposed to outside elements controlled between the temperature ranges of 15°C and 38°C. Humidity shall not
be condensing, no minimum humidity when stored in an ESD compliant package.
VI-AIM™
Page 2 of 4
Rev 2.9
06/2017
vicorpower.com
800 927.9474
VI-AIM™

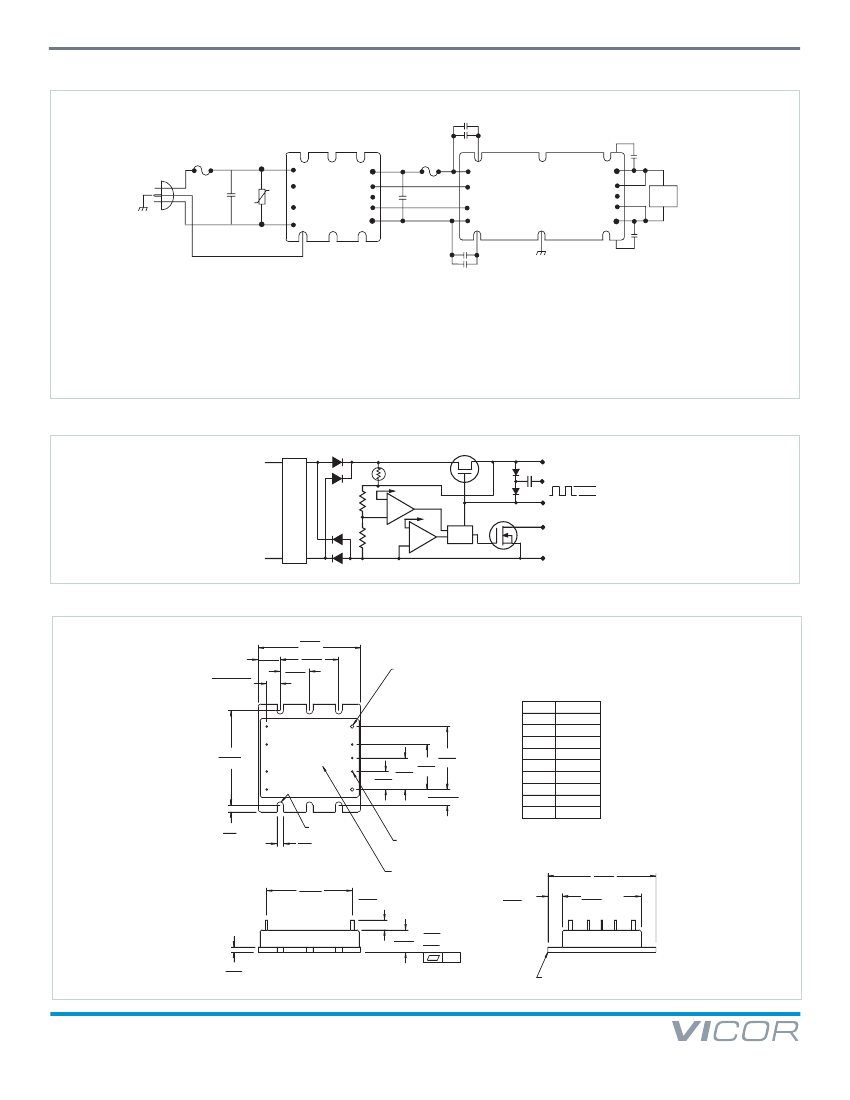

VI-AIM Connection Diagram, Typical Application
0.01µF (Two 4,700pF)
Y-Rated Capacitors
Universal
AC In
F1
0.47µF
Z1
L1
NC
GATE IN
PAR
NC GATE OUT
–OUT
L2/N
AIM
+OUT
F2
[a]
C1
+IN
GATE
IN
GATE
OUT
–IN
VI-200/J00
Driver
+OUT
+S
TRIM
–S
–OUT
0.01µF Ceramic
Load
0.01µF Ceramic
0.01µF (Two 4,700 pF)
Y-Rated Capacitors
[a]
Consult factory or refer to Selecting Capacitors for AIM Modules on page 34 of the VI-200 and VI-J00 Design Guide .
Z1: MOV Part #30076
Fuse 1: 6.3A/250V (IEC 5X20mm) Buss GDB-6.3 or 7A / 250V (3AG 1/4" x 1 1/4") Littlefuse 314-007
Fuse 2: For VI-X7X-XX — Buss PC-Tron 2.5A (250V)
For VI-X6X-XX — Buss PC-Tron 3A (250V)
For VI-X5X-XX — Buss PC-Tron 5A
VI-AIM Block Diagram
L1
Q1
V
REF
1
U2
OV
D2
D1
V
REF
2
U1
C2
+OUT
GATE OUT
10V
PARALLEL
GATE IN
EMI
Filter
OC
L2/N
Level
Shift
Q2
–OUT
Mechanical Diagram
2.28
(57,9)
VI-AIM Mechanical
.30.015
(7,6)(0,38)
.49
(12,4)
1.30
(33,0)
.65
(16,5)
.080 Dia (2) places
Solder plate
over copper alloy
Pin #
1
2
3
4
5
6
7
8
9
Function
L1
NC
NC
L2/N
+OUT
Gate In
Parallel
Gate Out
–OUT
4
2.10
(53,4)
3
2
1
9
VI-AIM
8
6
7
5
1.40
1.00 (35,6)
.70 (25,4)
.40 (17,8)
(10,2)
.35 .015
(8,9)(0,38)
.15
(3,8)
FULL R
.15
(3,8)
.040 (1,0) Dia (7) places
Solder plate
over copper alloy
Product ID
this surface
.22
(5,6) Min.
.50
(12,7)
+.030
(0,76)
-.000
(0)
1.90
(48,3)
2.40
(61,0)
.30 Min.
(7,6)
1.75 Max.
(44,4)
.12
(3,0)
.01
Aluminum Base
VI-AIM™
Page 3 of 4
Rev 2.9
06/2017
vicorpower.com
800 927.9474
VI-AIM™
Vicor’s comprehensive line of power solutions includes high density AC-DC and DC-DC modules and
accessory components, fully configurable AC-DC and DC-DC power supplies, and complete custom
power systems.
Information furnished by Vicor is believed to be accurate and reliable. However, no responsibility is assumed by Vicor for its use. Vicor
makes no representations or warranties with respect to the accuracy or completeness of the contents of this publication. Vicor reserves
the right to make changes to any products, specifications, and product descriptions at any time without notice. Information published by
Vicor has been checked and is believed to be accurate at the time it was printed; however, Vicor assumes no responsibility for inaccuracies.
Testing and other quality controls are used to the extent Vicor deems necessary to support Vicor’s product warranty. Except where
mandated by government requirements, testing of all parameters of each product is not necessarily performed.
Specifications are subject to change without notice.
Visit
http://www.vicorpower.com/ac-input-front-end-module
for the latest product information.
Vicor’s Standard Terms and Conditions and Product Warranty
All sales are subject to Vicor’s Standard Terms and Conditions of Sale, and Product Warranty which are available on Vicor’s webpage
(http://www.vicorpower.com/termsconditionswarranty)
or upon request.
Life Support Policy
VICOR’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE
EXPRESS PRIOR WRITTEN APPROVAL OF THE CHIEF EXECUTIVE OFFICER AND GENERAL COUNSEL OF VICOR CORPORATION. As used
herein, life support devices or systems are devices which (a) are intended for surgical implant into the body, or (b) support or sustain life and
whose failure to perform when properly used in accordance with instructions for use provided in the labeling can be reasonably expected to
result in a significant injury to the user. A critical component is any component in a life support device or system whose failure to perform
can be reasonably expected to cause the failure of the life support device or system or to affect its safety or effectiveness. Per Vicor Terms
and Conditions of Sale, the user of Vicor products and components in life support applications assumes all risks of such use and indemnifies
Vicor against all liability and damages.
Intellectual Property Notice
Vicor and its subsidiaries own Intellectual Property (including issued U.S. and Foreign Patents and pending patent applications) relating
to the products described in this data sheet. No license, whether express, implied, or arising by estoppel or otherwise, to any intellectual
property rights is granted by this document. Interested parties should contact Vicor’s Intellectual Property Department.
Vicor Corporation
25 Frontage Road
Andover, MA, USA 01810
Tel: 800-735-6200
Fax: 978-475-6715
email
Customer Service:
custserv@vicorpower.com
Technical Support:
apps@vicorpower.com
VI-AIM™
Page 4 of 4
Rev 2.9
06/2017
vicorpower.com
800 927.9474
