eBOX530-830-FL-N2600-1.6G-PGA-EU-AT Overview

Embedded box computer Fanless Embedded System with Intel ATOM N2600 1.6GHZ processor AT LAN*1 DP AC-DC adapter CFast & HDD support power cord

eBOX530-830-FL-N2600-1.6G-PGA-EU-AT Parametric

Parameter Name	Attribute value
Maker	Axiomtek
Product Category	Embedded box computer
Processor brand	Intel
Processor type	Intel Atom
chipset	NM10
frequency	1.6 GHz
Working power voltage	100 VAC to 240 VAC
Interface Type	Serial
Minimum operating temperature	- 10 C
Maximum operating temperature	+ 50 C
size	132 mm x 95.4 mm x 47.5 mm
storage	2 GB
storage type	DDR3-800
series	eBOX530-830-FL
Processor series	N2600
Factory packaging quantity	1

Preview

Download Datasheet

View All

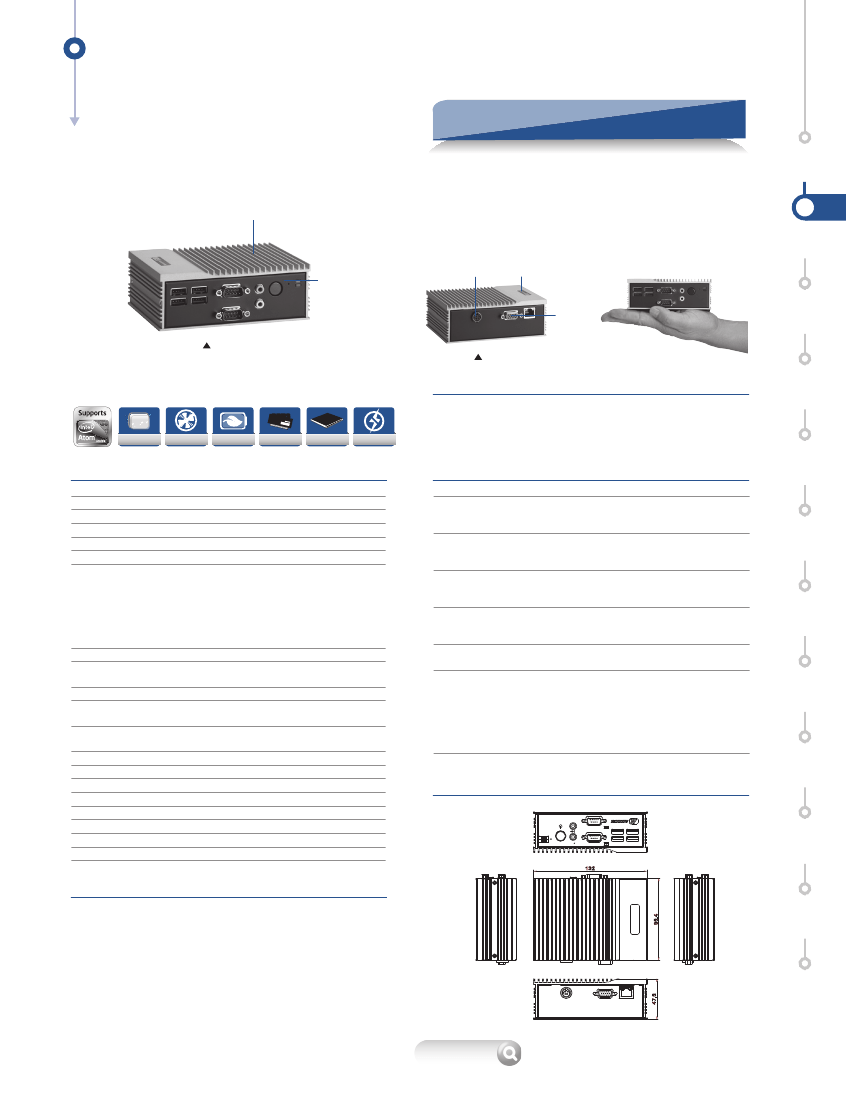

eBOX530-830-FL

Fanless Embedded System with Intel®

Atom™ Processor N2600 1.6 GHz, VGA or

DisplayPort, GbE LAN, 4 USB and 2 COM

Intel

Atom

processor

N2600 1.6 GHz

Features

●

Intel® Atom™ Cedarview processor N2600 1.6 GHz dual core

●

Fanless operation design with full feature I/O

●

204-pin DDR3-800 SO-DIMM max. up to 2 GB

●

One 2.5” SATA drive bay and 1 CFast™ slot

●

Supports Jumbo Frame (9k), WoL, PXE Remote Boot

Lockable DC-in

Compact size

Overview

Embedded

Systems

Reset access

button

Front view

VGA

(DisplayPort

optional)

Rear view

Embedded

Systems for

Transportation

Power Protection

DDR3

IP40

Fanless

Low Power

DDR3

CFast

AiRD

AC Version

OVP (over voltage protection)

SCP (short circuit protection)

OPP (over power protection)

Embedded

Field

Controllers

ast

Specifications

Standard Color

Construction

CPU

System Memory

Chipset

BIOS

System I/O Outlet

Silver-Black

Aluminum extrusion and heavy-duty steel, IP40

Intel® Atom™ processor N2600 1.6 GHz

1 x 204-pin DDR3-800 SO-DIMM max. up to 2 GB

Intel® NM10

AMI

1 x RS-232/422/485 (COM 1)

1 x RS-232 (COM 2)

1 x VGA or 1 x DisplayPort

1 x Audio (Mic-in/Line-out)

1 x 10/100/1000Mbps Ethernet (Intel® 82583V)

4 x USB 2.0

1 x VDC 5V power input connector

255 levels, 1 ~ 255 sec.

1 x 2.5” SATA HDD drive bay

1 x CFast™ slot

N/A

1 x green LED for system power-on

1 x orange LED for HDD active

Input AC 100-240V, AC 40W adapter with lock

Output: DC 5V @ 8A

-10°C ~ +50°C (14°F ~ 122°F) (with W.T. SSD)

-20°C ~ +80°C (-4°F ~ +176°F)

10% ~ 90% , non-condensing

3 Grms with CFast™ (5-500Hz, X, Y, Z directions)

132 mm (5.19") (W) x 95.4 mm (3.75") (D) x 47.5 mm (1.87") (H)

0.5 kg (1.1 lb)/ 0.6 kg (1.32 lb)

WES7, WE8S, Linux

Ordering Information

Standard

eBOX530-830-FL-N2600- Fanless embedded system with Intel® Atom™ processor

VGA-RC-US

N2600 1.6 GHz, VGA, 1 GbE LAN, 4 USB, 2 COM, 40W

AC/DC adapter and US power cord

eBOX530-830-FL-N2600- Fanless embedded system with Intel® Atom™ processor

VGA-RC-EU

N2600 1.6 GHz, VGA, 1 GbE LAN, 4 USB, 2 COM, 40W

AC/DC adapter and EU power cord

eBOX530-830-FL-N2600- Fanless embedded system with Intel® Atom™ processor

DP-RC-US

N2600 1.6 GHz, DisplayPort, 1 GbE LAN, 4 USB, 2 COM,

40W AC/DC adapter and US power cord

eBOX530-830-FL-N2600- Fanless embedded system with Intel® Atom™ processor

DP-RC-EU

N2600 1.6 GHz, DisplayPort, 1 GbE LAN, 4 USB, 2 COM,

40W AC/DC adapter and EU power cord

Optional

2.5” SATA HDD

40 GB or above

4 GB or above

2.5” SATA SSD

DDR3 SO-DIMM

1 GB ~ 2 GB

CFast™

512 MB or above

Din-rail kit

VESA mount kit

Power cord

*Specifications and certifications are based on options and may vary.

Industrial

Firewall

Digital Signage

Solutions

Embedded

MicroBoxes

Watchdog Timer

Storage

Expansion Interface

System Indicator

Power Supply

Operating Temperature

Storage Temperature

Humidity

Vibration Endurance

Dimensions

Weight (net/gross)

Certificate

EOS Support

Industrial

Barebone

Systems

Industrial

Chassis

Dimensions

Backplanes

Packing List

1 x quick manual

1 x driver cd

1 x screw pack

4 x foot pad

1 x power adapter

1 x wall mount kit

1 x power cord

1 x HDD mylar

Power

Supplies

Peripherals &

Accessories

* All specifications and photos are subject to change without notice.
