Water-proof shielded 220A connector
EV2 Series
■Features
1.The connection is made using a multi-
purpose crimp contact.
The EV2 connector replaces conventional screw terminated
connections creating a stable electrical connection.
2.Rated current of 220A using 40mm² cables.
(Ambient Temperature 25˚C)
This product is mainly used for power supply.
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
3.Resistant to random vibration
(ISO 16750-3, JASO D 014-3)
4. Water-proof design, meets IP68
Oil-resistant through use of specialized rubber.
5. Shield design for noise reduction
Designed to connect the braided shield of the
cable with the connector body.
6. TÜV pending
7. RoHS supported.

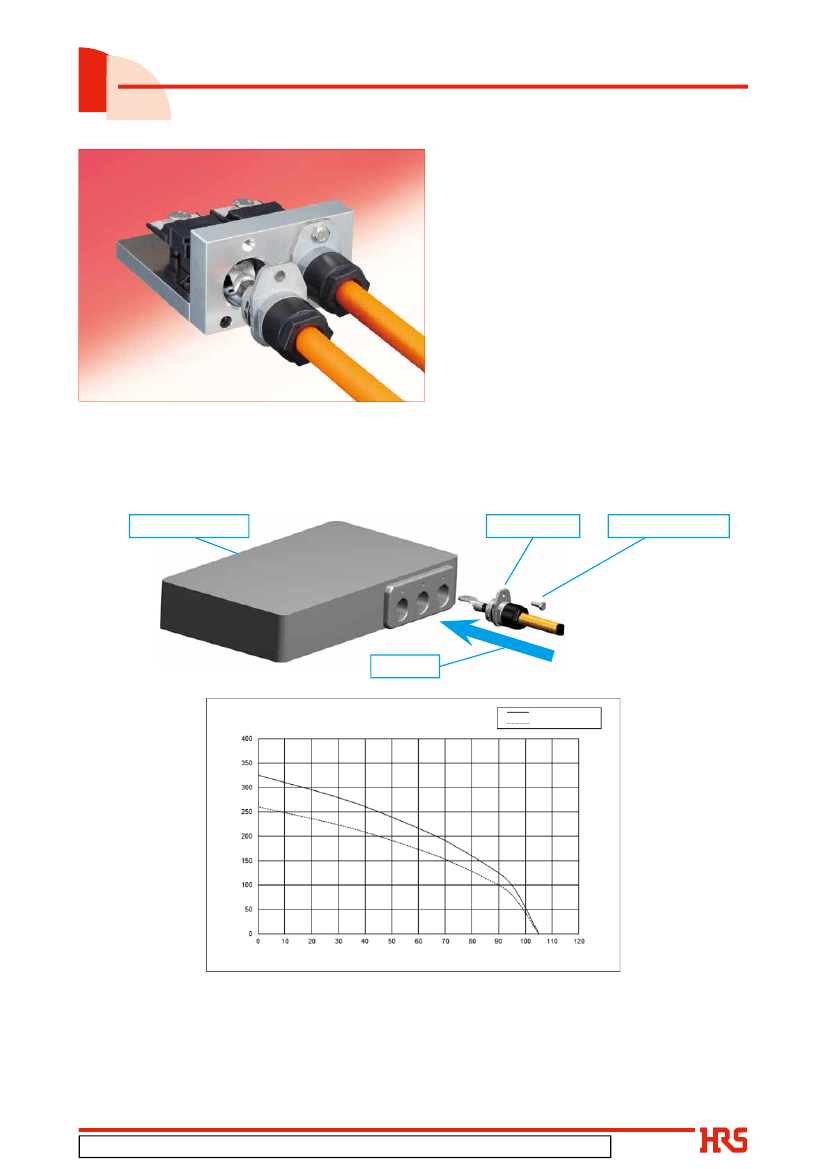

■Connector
connection is possible.
Using a multi-purpose crimp contact, mating operation and bolt fastening completes the connection.
Inverter housing
EV2 connector
Front panel fastener
Mating
[Reference] Derating curve
EV2 Connector
[Derating Curve]
Basic Curve
Derating Curve
Current [A]
Ambient Temperature [ç]
Note 1 : The derating curve is derived from the basic curve multiplied by the derating factor of 0.8.
Note 2 : The value of rated current varies with the ambient temperature. It is recommended to use the product within the
derating curve zone.
When using a TÜV approved product, please use the product within the specified range as well as the derating curve
aera.
Note 3 : The measurement method of the derating curve is shown below.
Test specimen : This product, unused prior to testing.
2
Test cable conductor cross sectional area : Receptacle side (38mm )
2
Plug side (40mm )
Test condition : Power supplied while the specimen is in a stationary state and then measured.
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2018.11③
1
EV2 Series●Water-proof shielded 220A connector
■Applications
Hybrid construction equipment , power conditioners, machine tools, small generators, and other inverter sections.
■Product
Specifications
Ratings
T
Ü
V
Pending
Rated voltage
AC 800V, DC 800V
Operating temperature range -40
℃
to +105
℃
(Note 1)
-10
℃
to +60
℃
Rated current (Note 3) 220A (Ambient Temperature 25
℃
) Storage temperature range
Rated voltage
Rated current (Note 3)
AC 1000V, DC 1000V
200A
Operating temperature range -40
℃
to +105
℃
(Note 1)
Storage temperature range
-10
℃
to +60
℃
Note 1 : Including temperature rise due to current carrying.
Note 2 : The value of rated current varies with the ambient temperature. It is recommended to use the product within the derating curve zone.
When using a TÜV approved product, please use the product within the specified range as well as the derating curve aera.
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Item
1. Contact resistance
2. Insulation resistance
Specifications
Conditions
Contact part : 0.5m
Ω
or less
Between the exterior and the cable shield Measured at DC 1A
100m
Ω
or less
1000M
Ω
or more
Measured at DC 500V
Apply AC 4260V for 1 minute.
①
Contact resistance : Maximum of 1m
Ω
30 times of repeated operation
②
Insertion and removal force : Maximum of 200N
①
No electrical discontinuity of 10
μ
s or more
average acceleration 57.9m/s² in 3 directions for 8
②
No damage, crack or loosened parts.
3. Withstanding voltage No flashover or breakdown
4. Repeated operation
5. Vibration resistance
Testing conditions : frequency range : 10 to 2000Hz,
6. Shock resistance
7. Temperature cycles
8. Brine spraying
9. Moisture resistance
(Steady state)
hours each (ISO 16750-3, JASO D 014-3)
Testing conditions: acceleration : 490m/s²,
①
No electrical discontinuity of 10
μ
s or more
duration : 11ms, and half-sine wave in 3 directions,
②
No damage, crack or loosened parts.
3 cycles for each
-40
℃
: 30 minutes
→
Room temperature : 2 to 3
Insulation resistance : Minimum of 100M
Ω
minutes
→
125
℃
: 30 minutes
→
Room
temperature : 2 to 3 minutes, 5 cycles
No considerable corrosion impairing
Left in the brine of 5% concentration for 48 hours.
electric/mechanical functions.
Left at a temperature of 40
°
and in humidity of 90
C
to 95% for 96 hours.
No air bubbles generated from the internals of the
connector.
Insulation resistance : Minimum of 100M
Ω
(When dried)
While the connector is mated with the applicable
10. Pressure-resistance panel, apply an air pressure of 17.6kPa in the
internals of the connector for 30 seconds.
■Materials
/ Finish
Item
Resin parts
Contact spring
Conductor section
Nut
O-ring
Gasket
Materials
PPS resin (Black)
Stainless steel
Copper alloy
Iron
Nitrile hydride rubber
Fluororubber
Finish
----------------------
----------------------
Tin plated
Nickel plated
----------------------
----------------------
Remarks
UL94V-0
----------------------
----------------------
----------------------
----------------------
----------------------
※
Use commercially available M6 bolts, crimp contacts, and electric wires.
Recommended crimping contact : R38-8 manufactured by JST
■Product
Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
EV2 − 30 R
*
− 1 S
* (**)
❹
❺ ❻ ❼
½
❺
Number of contacts : 1
❻
Connector structure : S=With a contact spring
❶
Series name : EV2
❷
Connector size : Indicates the outer diameter of the
mated plug section.
❸
Connector type : R
＝
Receptacle
P
＝
Plug
❹
Serial symbols : Modification types are indicated by A, B, C,
・
.
・
・
P=Without contact spring
❼
Contact connection method : B=Screw-fastened connection
C=Crimp connection
½
When different types of specifications are provided,
・
・
attach (01), (02),
・
for identification.
2
EV2 Series●Water-proof shielded 220A connector

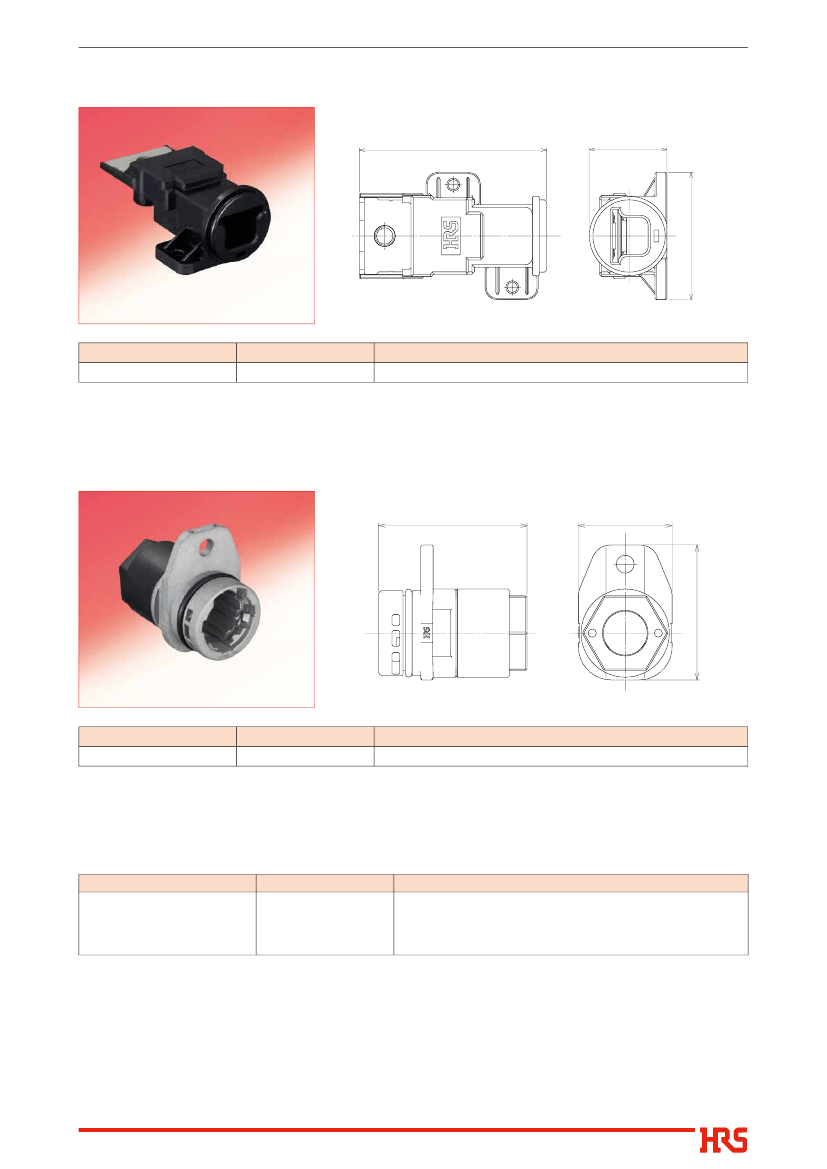

■Receptacle
79.2
32.8
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Part No.
EV2-30R-1SB
HRS No.
139-0200-7 00
Remarks
̶̶̶
■Plug
53.8
34
Part No.
EV2-30P-1PC
HRS No.
139-0201-0
Remarks
̶̶̶
B
Applicable Cable
Electric Cable Manufacturer
NISSEI ELECTRIC CO., LTD.
Product Name
FM-MY 40mm
2
Support for product inquiries and purchase
NISSEI ELECTRIC CO., LTD.
Electric Dir. Sales Group
Machida Sales Dept.
Phone +81-42-729-2531
16
49
53.9
3
EV2 Series●Water-proof shielded 220A connector
B

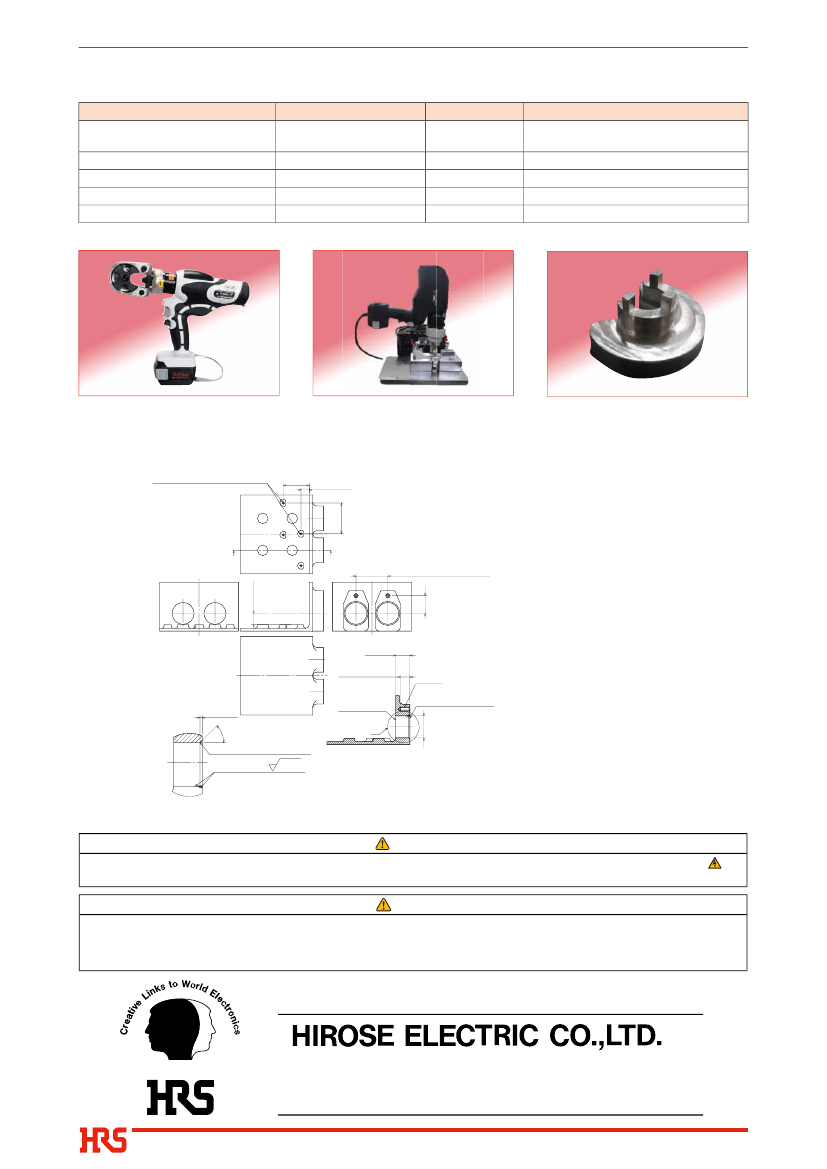

Applicable Tools
Tool / Jig
Crimp tools for round-form contacts
Part No.
HRS No.
902-1516-5 00
902-1521-0 00
902-1521-0 61
902-1521-0 62
902-1522-0 10
HT112/REC-Li150
Cable crimp tools
EV2-30P-1PC/CKED
Cable crimp tools : Crimpers only EV2-30P-1PC/CKED(61)
Cable crimp tools : Anvil only
EV2-30P-1PC/CKED(62)
Spring ring pressor jigs
EV2-30P-1PC/PRMD
Remarks
Equivalent product :
REC-Li150 made by IZUMI Product Company
̶̶̶
̶̶̶
̶̶̶
̶̶̶
HT112/REC-Li150
EV2-30P-1PC/CKED
EV2-30P-1PC/PRMD
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Note : Please perform maintenance of crimping tools according to the instructions of the tool manufacturer.
Diagram of the panel mounting slot dimension
※
Please refer to the specification for details.
M4×0.7, blind hole is required
36.5±0.1
11.5±0.1
43.4±0.1
B
16±0.05
B
Minimum pitch 45±0.1
25±0.05
C
※Features
without dimensions are for reference only.
B-B
20±0.1
13mm minimum,
blind bag hole is required
Reference
mating surface
(Receptacle)
1.5±0.1
Please ensure surface is free from burr.
Water-proof Rz3.2
surface
BSafety
Precautions
Warning
●Do
not touch the exposed conductor while it is energized, failing to follow this warning may cause an electric shock and injury.
●The
power should be in the OFF position when inserting or extracting this connector.
Caution
●Use
dedicated tools with applicable cables.
Use of non-applicable items, could lead to an accident due to the insufficient performance.
●Please
only use Hirose approved contacts, using unapproved contacts can result in a lowering of the product’s
performance and cause a serious accident. Please contact your local Hirose representative for additional information.
®
2-6-3,Nakagawa Chuoh,Tsuzuki-Ku,Yokohama-Shi 224-8540,JAPAN
TEL: +81-45-620-3526 Fax: +81-45-591-3726
http://www.hirose.com
http://www.hirose-connectors.com
4
Powered by TCPDF (www.tcpdf.org)
The characteristics and the specifications contained herein are for reference purpose. Please refer to the latest customer drawings prior to use.
The contents of this catalog are current as of date of 11/2018. Contents are subject to change without notice for the purpose of improvements.
