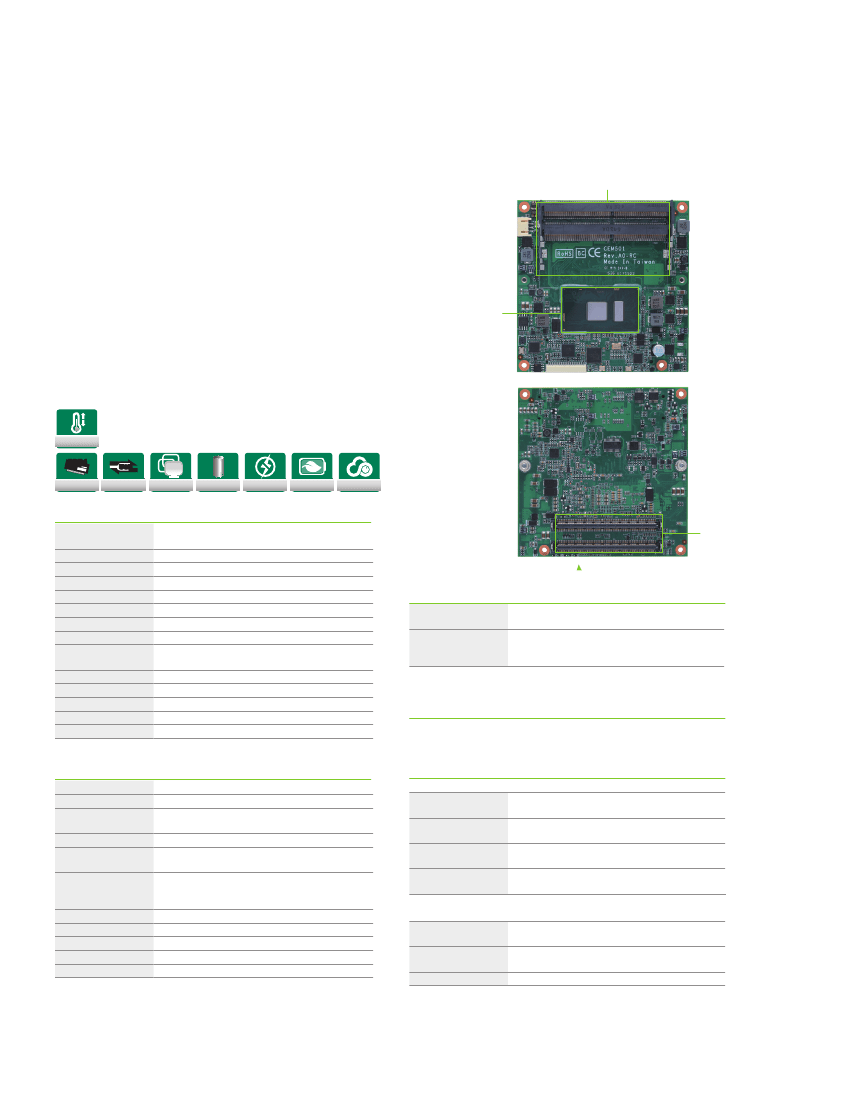

CEM511
COM Express Type 6 Compact Module with 7th Gen Intel® Core™ & Celeron® Processor
Features
●
7th gen Intel® Core™ i7/i5/i3 and Celeron® processors
(Kaby Lake-U)
●
2 DDR4-2133 SO-DIMM for up to 32GB of memory
●
Max. up to 6 lanes of PCI Express
●
3 SATA-600
●
4 USB 3.0 and 8 USB 2.0
●
TPM 1.2 supported
●
AXView 2.0 intelligent remote management software
2 x DDR4 SO-DIMM
7th gen Intel® Core™
processor
Ext. Temp
DDR4
USB
DDR4
USB 3.0
TripleView
Full Solid
Cap Design
AiRD
Low Power
AXView
Core System
CPU
System Memory
Chipset
BIOS
SSD
Watchdog Timer
Expansion Interface
Battery Lithium
Power Input
Dimensions
Board Thickness
Operating Temperature
Humidity
Vibration Endurance
Intel® Core™ i7-7600U/i5-7300U/i3-7100U processor
(Kaby Lake-U) & Intel® Celeron® processor 3965U
2 x 260-pin DDR4-2133 SO-DIMM, up to 32GB
SoC integrated
AMI uEFI (Legacy free)
N/A
65536 levels, 0 to 65535 sec.
6 x PCI Express Gen3
N/A
ATX: +12V, +5VSB
AT: +12V
95 x 95 mm
2.0 mm
-40°C to +85°C (-40°F to +185°F)
10% to 95% relative humidity, non-condensing
3.5 Grms
COM Express
connector
Rear view
Display
Chipset
Display Interface
Intel® gen 9 Graphics Engine
Supports Gfx - DX12.0, OCL2.0, OGL4.3
2 x DDI (DP/HDMI/DVI); the 2nd DDI could be configured
to VGA (optional)
1 x LVDS; 18/24-bit dual channel (eDP optional)
Packing List
Quick installation guide
I/O
SATA
Hardware Monitoring
Ethernet
Audio
USB
Serial
3 x SATA-600
Yes
1 x 10/100/1000 Mbps Ethernet with Intel® i219-LM;
supports Wake-on-LAN, PXE Boot ROM
HD link interface to baseboard for Codec
4 x USB 3.0
8 x USB 2.0
1 x LPC
1 x SPI
2 x TX/RX
TPM 1.2
Yes
1 x I
2
C
4-CH in & 4-CH out (SDIO optional)
Yes
Ordering Information
Standard
CEM511PG-i7-7600U
(P/N: E38D511102)
CEM511PG-i5-7300U
(P/N: E38D511101)
CEM511PG-i3-7100U
(P/N: E38D511100)
CEM511PG-Cel-3965U
(P/N: E38D511103)
Optional
CEB94011
(P/N: E394011100)
7108D511000E
5078D501200E
COM Express Type 6 Compact module with Intel® Core™
i7-7600U, DDI, LVDS, GbE LAN, USB 3.0 and TPM
COM Express Type 6 Compact module with Intel® Core™
i5-7300U, DDI, LVDS, GbE LAN, USB 3.0 and TPM
COM Express Type 6 Compact module with Intel® Core™
i3-7100U, DDI, LVDS, GbE LAN, USB 3.0 and TPM
COM Express Type 6 Compact module with Intel® Celeron®
3965U, DDI, LVDS, GbE LAN, USB 3.0 and TPM
TPM
SMBus
Others
GPIO
Smart Battery
COM Express Type 6 application board
CEM511 heat sink with fan
CEM501 heat spreader
43
* All specifications and photos are subject to change without notice.
w w w. a xi o m te k. c o m
© 2019 Axiomtek Co., Ltd. All rights reserved.
