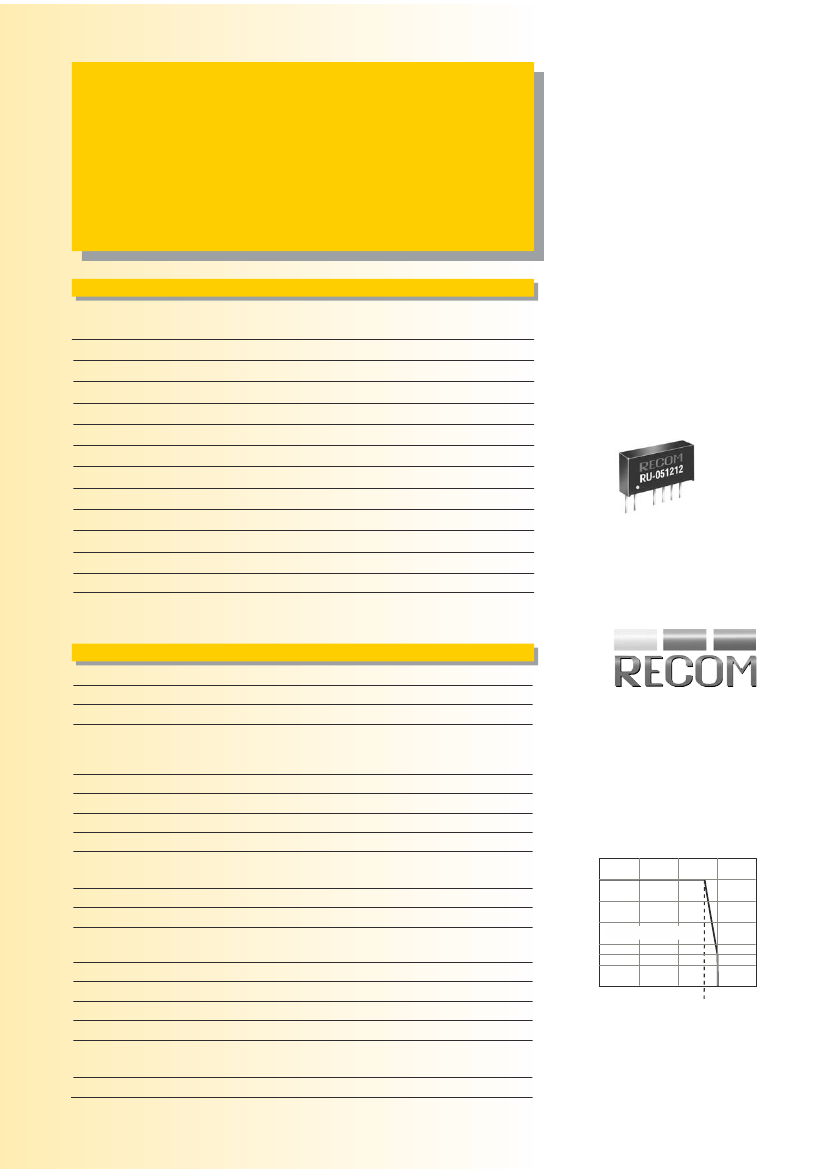

RU-1.83.33.3P: Description1 Watt SIP7 Isolated Dual Output; File Size87KB，3 Pages; ManufacturerRECOM Power GmbH; Websitehttps://www.recom-power.com/

Download Datasheet View All

RU-1.83.33.3P Overview

1 Watt SIP7 Isolated Dual Output

Preview

Download Datasheet

View All

Features

Unregulated

Converters

●

Twin Independent Outputs

Output/Output Isolation 1kVDC

Power Sharing on Outputs

Input/Output Isolation 1kVDC

No Heatsink Required

UL94V-0 Package Material

Optional Continuous Short Circuit Protected

No External Components Required

Custom Solutions Available

Efficiency to 84%

ECONOLINE

DC/DC-Converter

Series

1 Watt

SIP7

Isolated

Dual Output

Selection Guide

Part

Number

SIP 7

RU-xx1.81.8

RU-xx3.33.3

RU-xx053.3

RU-xx0505

RU-xx0509

RU-xx0512

RU-xx0515

RU-xx0909

RU-xx1212

RU-xx1515

Input

Voltage

(VDC)

1.8, 3.3, 5, 9, 12, 24

Output

Voltage

(V1VDC)

1.8

3.3

Output

Voltage

(V2VDC)

1.8

3.3

Output

Current

(mA)

278/278

152/152

100/152

100/100

100/55

100/42

100/33

55/55

42/42

33/33

21/21

Efficiency

(%)

70-78

75-80

78-80

80-82

80-84

RU-xx2424

1.8, 3.3, 5, 9, 12, 24

xx = Input Voltage

* add Suffix “P” for Continuous Short Circuit Protection, e.g. RU-050505

Specifications

(Core Operating Area)

Input Voltage Range

Output Voltage Accuracy

Line Voltage Regulation

Load Voltage Regulation

(10% to 100% full load)

Output Ripple and Noise (20MHz limited)

Operating Frequency

Efficiency at Full Load

No Load Power Consumption

Isolation Voltage

Rated Working Voltage

Isolation Capacitance

Isolation Resistance

Short Circuit Protection

P-Suffix

Operating Temperature Range (free air convection)

Storage Temperature Range

Relative Humidity

Package Weight

MTBF (+25°C)

(+85°C)

±10%

±5%

1.2%/1% of Vin typ.

1.8V, 3.3V output types

5V output type

9V, 12V, 15V, 24V output types

20% max.

15% max.

10% max.

75mVp-p max.

50kHz min. / 100kHz typ. / 105kHz max.

70% min. / 80% typ.

87mW min. / 130mW typ. / 220mW max.

(tested for 1 second)

(long term isolation)

1000VDC min.

see Application Notes

20pF min. / 94pF max.

Output Power (%)

100

Derating-Graph

(Ambient Temperature)

10 GΩ min.

1 Second

Continuous

-40°C to +85°C (see Graph)

-55°C to +125°C

95% RH

2.7g

Safe Operating Area

Operating Temperature °C

-40

100

150

}

Detailed Information see

Application Notes chapter "MTBF"

using MIL-HDBK 217F

1012 x 10

hours

151 x 10

hours

Input/Output and Output V1/Output V2

July-2006

www.recom-international.com
