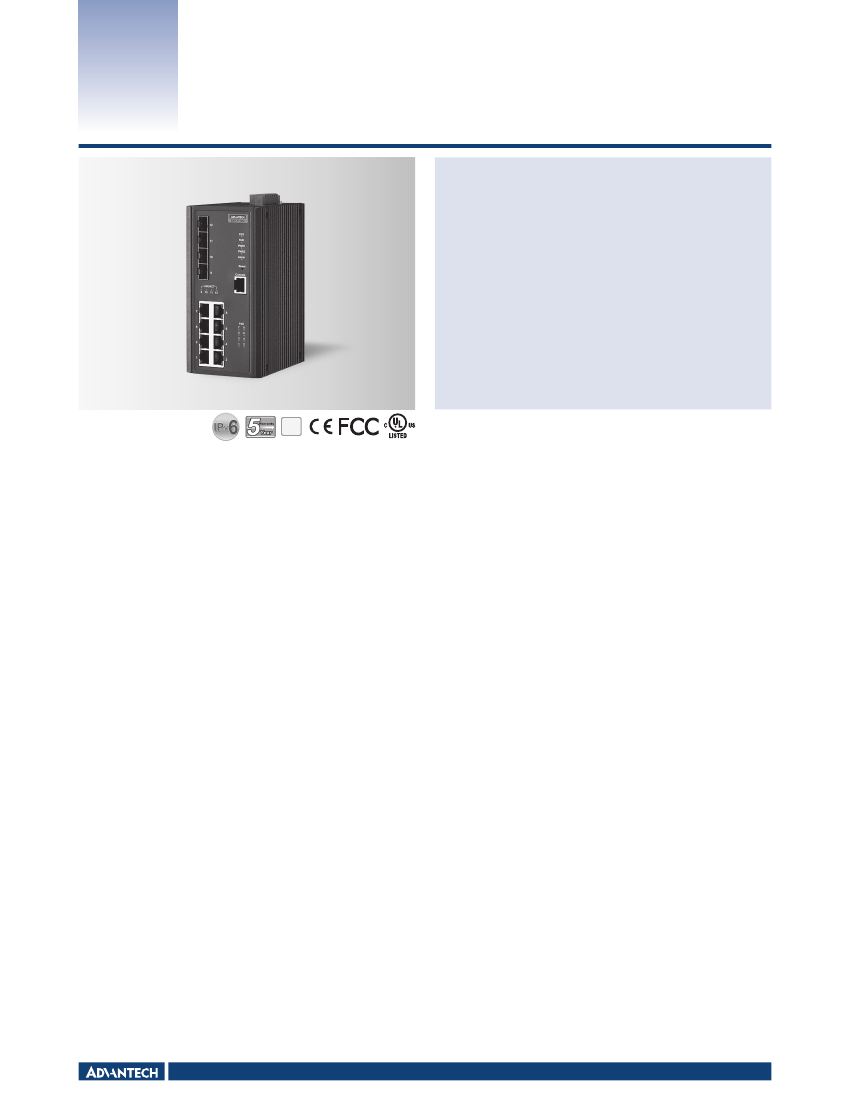

EKI-7712E-4FP
EKI-7712E-4FPI
8FE+4SFP Port Gigabit Managed
Redundant Industrial PoE Switch
Features
8 x IEEE 802.3 af/at PoE Fast Ethernet ports + 4 SFP ports
SFP socket for Easy and Flexible Fiber Expansion
Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP
(802.1w/1D)
IXM function enables fast deployment
Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
NEMA TS2 for Traffic Control
EN50121-4 approval for Railway trackside deployment
-40 ~ 75°C wide-range operating temperature (EKI-7712E-4FPI)
Dual 48 V
DC
power input and 1 relay output
RoHS
COMPLIANT
2011/65/EU
Introduction
EKI-7712E-4FP/4FPI supports 8 Fast Ethernet IEEE 802.3 af/at PoE ports and 4 SFP (mini-GBIC) ports. They can provide up to 30 watts per port to fulfill high power consumption
PD (Power Device) requirements. They are embedded with Advantech’s IXM function, which can benefit users for fast deployment and can dramatically save engineers time and cost.
The EKI-7712E series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7712E series is equipped with X-Ring Pro which
can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature (EKI-7712E-4FPI)
and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications. EKI-7712E-4FP/4FPI has successfully passed the EN50121-4 European railway standard
requirements for emissions and railway platform and trackside deployment.
Specifications
Interface
I/O Port
Console port
Power Connector
8 x 10/100Base-T/TX RJ-45
4 x SFP (mini-GBIC) port
RS-232 (RJ45)
6-pin screw Terminal Block (including relay)
Certification
EMI
Safety
EMC
CE, FCC Class A
UL61010-2-201
IEC60950*
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN50121-4
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6
NEMA TS2
http://www.advantech.com/legal/patent
Physical
Enclosure
Protection Class
Installation
Dimensions (W x H x D)
Metal Shell
IP 30
DIN-Rail
74 x 152 x 105 mm (2.91" x 5.98" x 4.13")
LED Display
System LED
Port LED
PWR1, PWR2, SYS, Alarm and R.M.
Link / Speed / Activity
Shock
Freefall
Vibration
Traffic control
*= Compliant
Patent
Environment
Operating Temperature
Storage Temperature
Ambient Relative Humidity
Humidity
-40 ~ 75°C (-40 ~ 167°F) (7712E-4FPI)
-10 ~ 60°C (-40 ~ 140°F) (7712E-4FP)
-40 ~ 85°C
10 ~ 95% (non-condensing)
10 ~ 95% (non-condensing)
L2 Features
L2 MAC Address
Jumbo Frame
VLAN Group
VLAN Arrange
Port Mirroring
IP Multicast
8K
9216 Bytes
256 (VLAN ID 1 ~ 4094)
Port based VLAN, Q-in-Q (VLAN Stacking), GVRP
Per port, Multi-source port,
IGMP Snooping v1/v2/v3, MLD
Snooping, IGMP Immediate leave
Broadcast, Multicast, Unknown unicast
IEEE 802.1D-STP, IEEE 802.1s-MSTP, IEEE
802.1w-RSTP, X-Ring Pro, with ultra high-speed
recovery time less than 20ms
Power
Power Consumption
Power Input
12.1W @ 48V
DC
(System)
48 V
DC
(46 to 57 V
DC
),
53 -57 V
DC
is recommended for 802.3at,
redundant dual power input
240W
1 Relay Output
Storm Control
Redundancy
Power Budget
Fault Output
Industrial Ethernet Soultions
All product specifications are subject to change without notice
Last updated : 24-Nov-2016
EKI-7712E-4FP/4FPI
Dimensions
56 [2.222]
15
[0.591] 45 [1.781]
56 [2.209]
Unit: mm [inch]
36
38
[1.485] [1.400]
84 [3.287]
114 [4.488]
105 [4.134]
41
35
[1.385] [1.600]
74 [2.913]
37 [1.457]
35
20
[1.378]
[0.768]
74 [2.913]
10
[0.390]
105 [4.134]
55 [2.165] 47 [1.850]
152 [5.984]
152 [5.984]
130 [5.118]
110 [4.331]
162 [6.374]
6-M3xP0.5
Panel Cut-out Dimensions: 105 x 152 x 74 (4.134" x 5.98" x 2.913")
QoS
Priority Queue
Scheduling
Class of Service
Rate Limiting
Link Aggregation
WRR (Weighted Round Robin), SP (Strict Scheduling
Priority) Hybrid Priority
IEEE 802.1p Based CoS, IP TOS, DSCP based CoS
Ingress Rate limit, Egress Rate limit
IEEE 802.3ad Dynamic Port Trunking, Static Port
Trunking
Ordering Information
EKI-7712E-4FPI-AE
EKI-7712E-4FP-AE
8FE + 4SFP Port Managed PoE Ethernet Switch
w/Wide Temp
8FE + 4SFP Port Managed PoE Ethernet Switch
Security
Port Security
Authentication
Static, Dynamic
802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption)
Management
DHCP
Access
Security access
Software upgrade
NTP
Client, Server, Option66/67/82
SNMP v1/v2c/v3, WEB, Telnet, RMON, Standard MIB,
Private MIB
SSH2.0, SSL
TFTP, HTTP, Dual Image
SNTP client
Online Download
www.advantech.com/products
11 [0.433]
21 [0.827]
152 [5.984]
