MCP6L94T-E/ST amplifier basic information:
MCP6L94T-E/ST is an operational amplifier - Operational Amplifiers (Op Amps - Operational Amplifiers) from Microchip. It belongs to the MCP6L94 series of products.
MCP6L94T-E/ST amplifier core information:
The minimum operating temperature of the MCP6L94T-E/ST is - 40 C and the maximum operating temperature is + 125 C. The corresponding working power supply current is 850 uA. The output current of each channel is: 25 mA.
The MCP6L94T-E/ST has a power supply rejection ratio of 89 dB. (Power supply rejection ratio (PSRR): An indicator used to determine the impact of the amplifier output on the power supply. PSRR = 20log[(Ripple(in) / Ripple(out))], that is, the larger the value, the less the amplifier output is affected by the power input. The smaller it is. ) Its voltage gain is 105 dB. The gain bandwidth product (GBP, gain bandwidth product) of the MCP6L94T-E/ST is 10 MHz. As a parameter to simply measure the performance of the amplifier, if you are not only choosing your amplifier, you can use this as a relatively simple measure. index. The corresponding input voltage noise density is 9.4 nV/sqrt Hz and the corresponding input noise current density is 0.003 pA/sqrt Hz.
When a voltage difference of 4 mV is applied between the input pins of the MCP6L94T-E/ST, the output voltage of this amplifier is 0V. (That is, its input bias voltage is 4 mV)
Related dimensions of MCP6L94T-E/ST:
The width of MCP6L94T-E/ST is: 4.4 mm, the length is 5 mm, and the total number of channels (Number of chanels): 4 Channels.
MCP6L94T-E/ST amplifier additional information:
Its more detailed single package form is: TSSOP-14. When suppliers on the market sell MCP6L94T-E/ST, they use the form: Reel.
MCP6L94T-E/ST amplifier basic information:
MCP6L94T-E/ST is an operational amplifier - Operational Amplifiers (Op Amps - Operational Amplifiers) from Microchip. It belongs to the MCP6L94 series of products.
MCP6L94T-E/ST amplifier core information:
The minimum operating temperature of the MCP6L94T-E/ST is - 40 C and the maximum operating temperature is + 125 C. The corresponding working power supply current is 850 uA. The output current of each channel is: 25 mA.
The MCP6L94T-E/ST has a power supply rejection ratio of 89 dB. (Power supply rejection ratio (PSRR): An indicator used to determine the impact of the amplifier output on the power supply. PSRR = 20log[(Ripple(in) / Ripple(out))], that is, the larger the value, the less the amplifier output is affected by the power input. The smaller it is. ) Its voltage gain is 105 dB. The gain bandwidth product (GBP, gain bandwidth product) of the MCP6L94T-E/ST is 10 MHz. As a parameter to simply measure the performance of the amplifier, if you are not only choosing your amplifier, you can use this as a relatively simple measure. index. The corresponding input voltage noise density is 9.4 nV/sqrt Hz and the corresponding input noise current density is 0.003 pA/sqrt Hz.
When a voltage difference of 4 mV is applied between the input pins of the MCP6L94T-E/ST, the output voltage of this amplifier is 0V. (That is, its input bias voltage is 4 mV)
Related dimensions of MCP6L94T-E/ST:
The width of MCP6L94T-E/ST is: 4.4 mm, the length is 5 mm, and the total number of channels (Number of chanels): 4 Channels.
MCP6L94T-E/ST amplifier additional information:
Its more detailed single package form is: TSSOP-14. When suppliers on the market sell MCP6L94T-E/ST, they use the form: Reel.

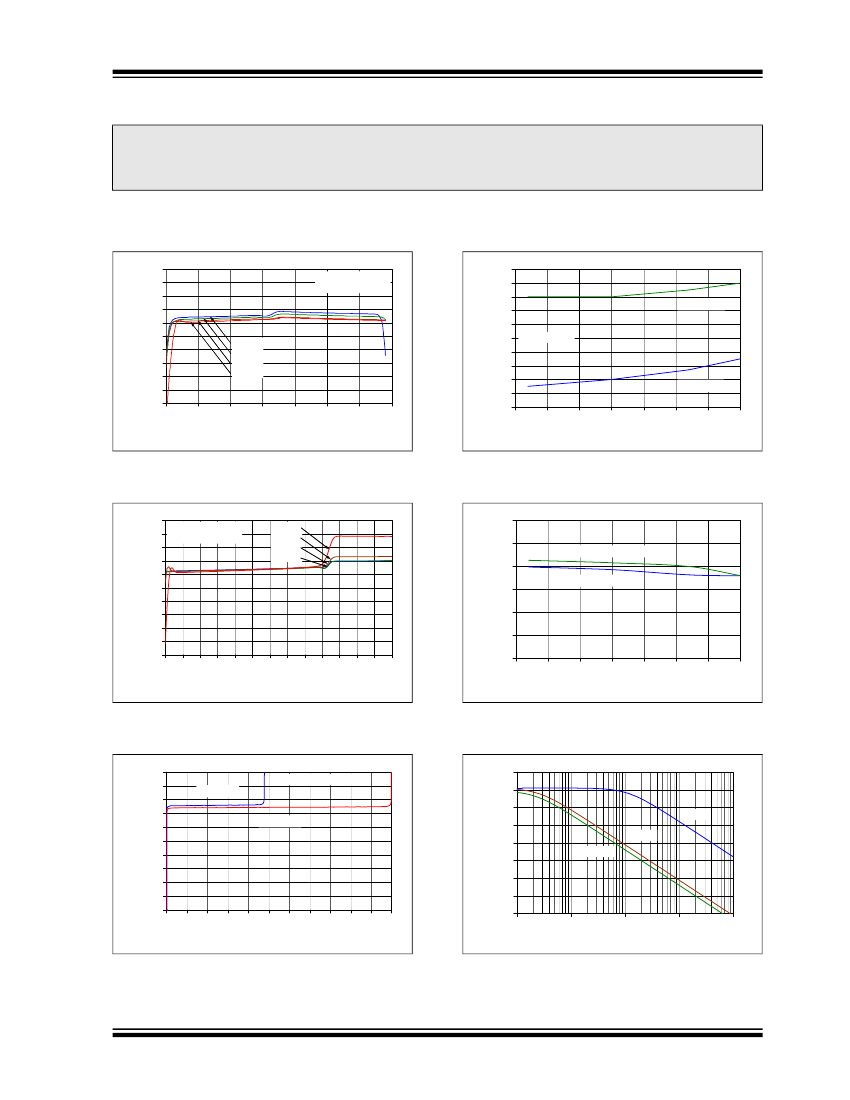

| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Microchip |
| Parts packaging code | TSSOP |
| package instruction | TSSOP, |
| Contacts | 14 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Factory Lead Time | 17 weeks |
| Is Samacsys | N |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Nominal Common Mode Rejection Ratio | 91 dB |
| Maximum input offset voltage | 4000 µV |
| JESD-30 code | R-PDSO-G14 |
| JESD-609 code | e3 |
| length | 5 mm |
| Humidity sensitivity level | 1 |
| Number of functions | 4 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | TSSOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Celsius) | 260 |
| Maximum seat height | 1.2 mm |
| Nominal slew rate | 7 V/us |
| Supply voltage upper limit | 7 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | AUTOMOTIVE |
| Terminal surface | Matte Tin (Sn) - annealed |
| Terminal form | GULL WING |
| Terminal pitch | 0.65 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | 40 |
| Nominal Uniform Gain Bandwidth | 10000 kHz |
| width | 4.4 mm |
| Base Number Matches | 1 |
| MCP6L94T-E/ST | MCP6L92T-E-SN | MCP6L91T-E/MS | |
|---|---|---|---|
| Description | Op Amp - Op Amp Quad 10 MHz OP E temp | Operational Amplifiers - Op Amps Dual 10 MHz OP E temp | Op Amp - Op Amp Single 10 MHz OP E temp |
| Is it Rohs certified? | conform to | - | conform to |
| Maker | Microchip | - | Microchip |
| Parts packaging code | TSSOP | - | MSOP |
| package instruction | TSSOP, | - | TSSOP, |
| Contacts | 14 | - | 8 |
| Reach Compliance Code | compliant | - | compliant |
| ECCN code | EAR99 | - | EAR99 |
| Factory Lead Time | 17 weeks | - | 8 weeks |
