FMPT-04-01-T-S-V datasheet, PDF

Datasheet> All Categories > The connector> The connector> FMPT-04-01-T-S-V

FMPT-04-01-T-S-V: DescriptionPower to board 5.00 mm PowerStrip /30 A "Hinging" Power Terminal Strip; CategoryThe connector The connector; File Size673KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric Compare View All

FMPT-04-01-T-S-V Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FMPT-04-01-T-S-V	-	-	View	Buy Now

FMPT-04-01-T-S-V Overview

Power to board 5.00 mm PowerStrip /30 A "Hinging" Power Terminal Strip

FMPT-04-01-T-S-V Parametric

Parameter Name	Attribute value
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
Other features	POWER STRIP
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL (50)
Contact completed and terminated	MATTE TIN OVER NICKEL (50)
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	LIQUID CRYSTAL POLYMER
Termination type	SOLDER
Total number of contacts	4

Preview

Download Datasheet

View All

F-219

FMPT–06–01–L–S–V

FMPS–06–01–L–S–RA–SD

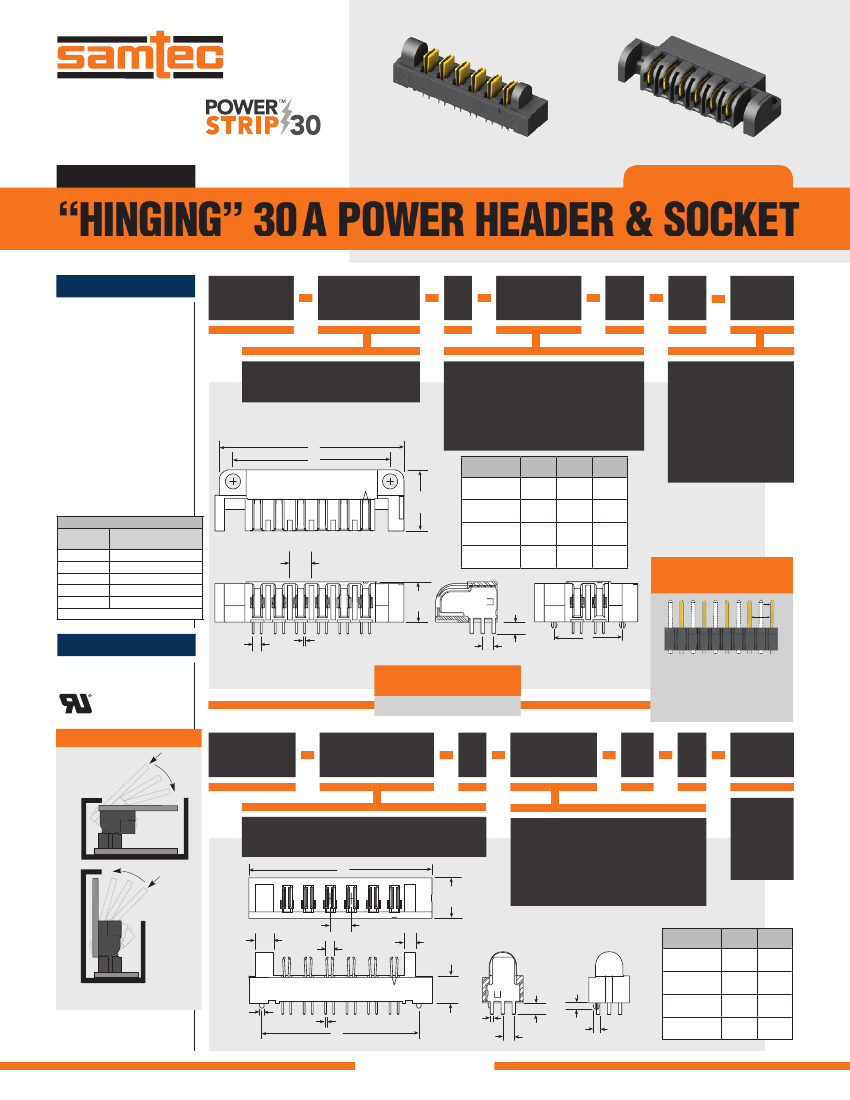

(5.00 mm) .1969"

FMPS, FMPT SERIES

“HINGING” 30 A POWER HEADER & SOCKET

SPECIFICATIONS

For complete specifications

see www.samtec.com?FMPS

or www.samtec.com?FMPT

Insulator Material:

Black LCP

Terminal Material:

Copper Alloy

Plating:

Sn or Au over

50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +105 °C with Tin;

-55 °C to +125 °C with Gold

Voltage Rating:

525 VAC/742 VDC

Standard Creepage:

FMPS: (3.67 mm) .144"

FMPT: (6.53 mm) .257"

Standard Clearance:

(2.71 mm) .106"

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

FMPT/FMPS

CURRENT RATING

PINS

(PER CONTACT)

26.7 A

22.9 A

19.1 A

17.6 A

15.8 A

–L PLATING

FMPS

NO. OF

POSITIONS

PLATING

OPTION

02, 04, 06, 08

(Standard sizes)

= 10 µ" (0.25 µm) Gold on contact,

Matte Tin on tail

–L

–T

= Screw Down

(Not Available with –LC)

–SD

–LC

= Matte Tin

NUMBER OF

POSITIONS

(22.63)

.891

(32.63)

1.285

(42.63)

1.678

(52.63)

2.072

(16.28)

.641

(26.28)

1.035

(36.28)

1.428

(46.28)

1.822

(15.63)

.615

(25.63)

1.009

(35.63)

1.403

(45.63)

1.796

= Locking Clip

(Manual placement

required)

(Not Available with –SD)

(14.17)

.558

–02

–04

–06

(5.00)

.1969

TYP

(9.27)

.365

–08

CREEPAGE

AND CLEARANCE

(2.72)

.107

(2.54)

.100

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

FILE NO. E111594

(1.87)

.074

(0.41) .016

–SD OPTION

(6 POSITIONS SHOWN)

ALSO AVAILABLE

(MOQ Required)

• Other sizes

–LC OPTION

(2 POSITIONS SHOWN)

Selectively loading

contacts achieves customer

specific creepage and

clearance requirements.

Contact asp@samtec.com

APPLICATION

FMPT

NO. OF

POSITIONS

PLATING

OPTION

02, 04, 06, 08

(Standard sizes)

(9.40)

.370

(5.00) .1969 TYP

(1.87)

.074

(2.54)

.100

= 10 µ" (0.25 µm) Gold on contact,

Matte Tin on tail

–L

–T

= Locking

Clip

(Manual

placement

required)

–LC

= Matte Tin

(4.24)

.167

NUMBER OF

POSITIONS

(22.63)

.891

(32.63)

1.285

(42.63)

1.678

(52.63)

2.072

(16.53)

.651

(26.53)

1.044

(36.53)

1.438

(46.53)

1.832

–02

(6.30)

.248

(2.72)

.107

(1.42)

.056

–04

–06

Ideal for blind mating applications.

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

(1.00)

.039

DIA

(0.41) .016

(0.79)

.031

(2.54)

.100

(1.42)

.056

–08

–LC

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

FMPT-04-01-T-S-V Related Products

	FMPT-04-01-T-S-V	FMPT-06-01-L-S-V	FMPT-08-01-L-S-V-LC	FMPT-02-01-L-S-V-LC	FMPT-04-01-L-S-V-LC	FMPT-06-01-T-S-V	FMPT-08-01-L-S-V	FMPT-06-01-L-S-V-LC	FMPT-04-01-L-S-V
Description	Power to board 5.00 mm PowerStrip /30 A "Hinging" Power Terminal Strip	Power to board 5.00 mm PowerStrip /30 A "Hinging" Power Terminal Strip	Power to board 5.00 mm PowerStrip /30 A "Hinging" Power Terminal Strip	Power to board 5.00 mm PowerStrip /30 A "Hinging" Power Terminal Strip	Power to board 5.00 mm PowerStrip /30 A "Hinging" Power Terminal Strip	Power to board 5.00 mm PowerStrip /30 A "Hinging" Power Terminal Strip	Power to board 5.00 mm PowerStrip /30 A "Hinging" Power Terminal Strip	Power to board 5.00 mm PowerStrip /30 A "Hinging" Power Terminal Strip	Power to board 5.00 mm PowerStrip /30 A "Hinging" Power Terminal Strip
Maker	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Factory Lead Time	2 weeks	2 weeks	3 weeks	2 weeks	2 weeks	2 weeks	2 weeks	2 weeks	2 weeks
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	NOT SPECIFIED	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN OVER NICKEL (50)	MATTE TIN OVER NICKEL (50)	MATTE TIN OVER NICKEL (50)	MATTE TIN OVER NICKEL (50)	Matte Tin (Sn) - with Nickel (Ni) barrier	MATTE TIN OVER NICKEL (50)	MATTE TIN OVER NICKEL (50)	Matte Tin (Sn) - with Nickel (Ni) barrier	MATTE TIN OVER NICKEL (50)
Contact point gender	MALE	MALE	FEMALE	FEMALE	FEMALE	MALE	MALE	FEMALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	6	8	2	4	6	8	6	4
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
Other features	POWER STRIP	POWER STRIP	-	-	-	POWER STRIP	POWER STRIP	-	POWER STRIP
Base Number Matches	-	1	1	1	1	-	-	1	-
