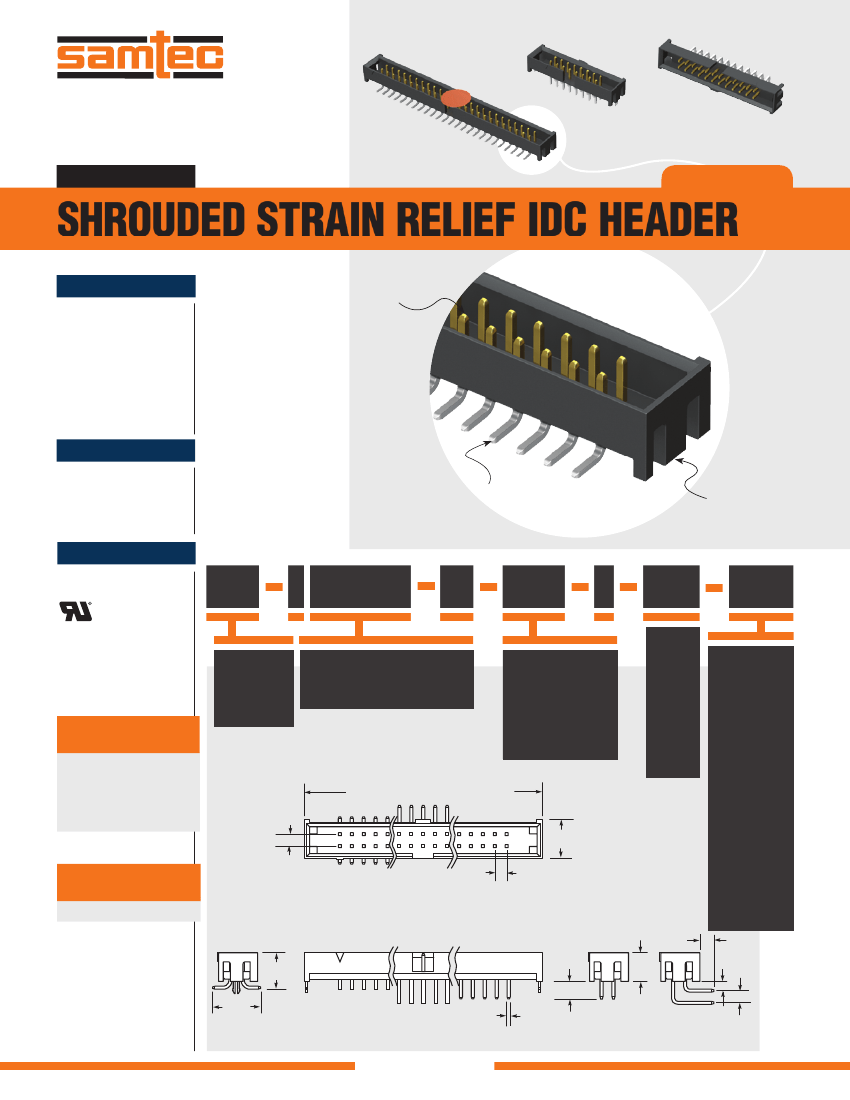

F-219
ETMM–108–02–F–D–TH–LC
ETMM–112–02–F–D–RA
ETMM–125–02–L–D–SM–K
(2.00 mm) .0787"
ETMM SERIES
SHROUDED STRAIN RELIEF IDC HEADER
SPECIFICATIONS
For complete specifications
see www.samtec.com?ETMM
Insulator Material:
Black Liquid Crystal Polymer
Terminal Material:
Phosphor Bronze
Plating:
Sn or Au over
50 µ" (1.27 µm) Ni
Operating Temp Range:
-55 °C to +125 °C
RoHS Compliant:
Yes
Mates with:
TCSD, TCMD
Shrouded pins
for protection
PROCESSING
Lead–Free Solderable:
Yes
SMT Lead Coplanarity:
(0.13 mm) .005" max*
*(.004" stencil solution
may be available; contact
IPG@samtec.com)
Surface Mount,
Through-hole and
Right-angle
Optional
Locking clips
RECOGNITIONS
For complete scope of
recognitions see
www.samtec.com/quality
FILE NO. E111594
TYPE
STRIP
1
NO. OF
POSITIONS
02
PLATING
OPTION
D
TAIL
OPTION
OTHER
OPTION
= Mates with
TCSD and
TCMD with
Strain Relief
ETMM
05, 08, 10, 12, 13,
15, 17, 20, 22, 25
(Standard sizes)
= Gold Flash on post,
Matte Tin on tail
–F
–L
=Through-
hole
–TH
–RA
= Polarized
Position
–“XX”
–LC
OTHER
SOLUTIONS
• TCSD mates without
Strain Relief.
See STMM Series
• Shrouded header for
mating with Connector Strips.
See LTMM Series
= 10 µ" (0.25 µm)
Gold on post,
Matte Tin on tail
= Right
-angle
= Surface
Mount
–SM
= Locking Clip
(Not available
for –RA)
(Manual
placement
required)
No. of positions x (2.00) .0787 + (9.97) .393
02 04
(6.54)
.257
= Tape &
Reel Packaging
(–SM only)
–TR
–K
ALSO AVAILABLE
(MOQ Required)
• Other sizes
(2.00)
.0787
SURFACE
MOUNT
01 03
RIGHT-
ANGLE
(2.00)
.0787
THROUGH-
HOLE
= (7.50 mm)
.295" DIA
Polyimide Film
Pick & Place Pad
(–SM only)
(2.29)
.090
(6.10)
.240
(8.00)
.315
(2.97)
.117
(0.50)
.020 SQ
(4.83)
.190
(2.00)
.0787
Note:
Some lengths, styles and
options are non-standard,
non-returnable.
–SM
–TH
–RA
(1.52)
.060
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
