ADP5-01SJ7-10SP9 datasheet, PDF

Datasheet> All Categories > The connector> Rf interconnection> Rf adapter> Rf adapter - series2> ADP5-01SJ7-10SP9

ADP5-01SJ7-10SP9: DescriptionRF Adapters - Between Series 50 Ohm Optimized Adapters; CategoryThe connector Rf interconnection Rf adapter Rf adapter - series2; File Size195KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ADP5-01SJ7-10SP9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ADP5-01SJ7-10SP9	-	-	View	Buy Now

ADP5-01SJ7-10SP9 Overview

RF Adapters - Between Series 50 Ohm Optimized Adapters

ADP5-01SJ7-10SP9 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Product Category	RF Adapters - Between Series
Shipping restrictions	Mouser does not currently sell this product.
Encapsulation	Tray
series	ADP5
Factory packaging quantity	72

Preview

Download Datasheet

View All

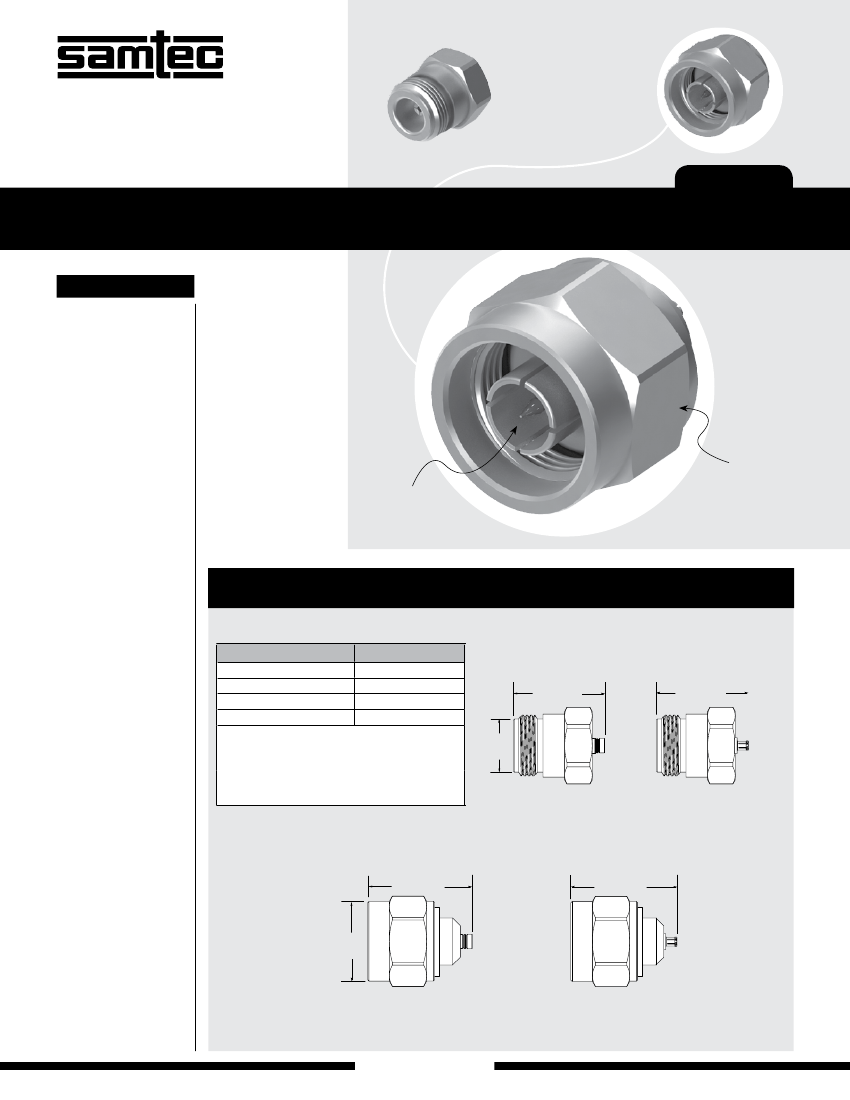

F-218 SUPPLEMENT

ADP5–06SP2–V3SP1

ADP5–06SJ2–V3SJ1

ADP5 SERIES

OPTIMIZED ADAPTORS

SPECIFICATIONS

For complete specifications and

recommended PCB layouts see

www.samtec.com?ADP5

Shell Material:

Brass

Contact Material:

BeCu, Copper Alloy,

Phosphor Bronze, or Brass

Impedance:

Frequency Range:

0-6 GHz

Insulator Resistance:

5,000 mW min.

Operating Temp Range:

-50 °C to +165 °C

Mates with:

RF174, RF316, RF178,

RF058, GRF1H-C

Performance

up to 6 GHz

Choice of Jack

or Plug

N TYPE TO MMCXV

ADP5 ADAPTOR

N Type Jack to MMCXV Jack

N Type Jack to MMCXV Plug

N Type Plug to MMCXV Jack

N Type Plug to MMCXV Plug

PART NUMBER

ADP5-06SJ2-V3SJ1

ADP5-06SJ2-V3SP1

ADP5-06SP2-V3SJ1

ADP5-06SP2-V3SP1

(13.49)

.531

DIA

(23.00) .906

(23.35) .919

Plating:

N Type jack/plug =

30 µ" (0.76 µm) Gold center contact,

100 µ" (2.54 µm) Nickel outer contact

MMCXV jack/plug =

30 µ" (0.76 µm) Gold center contact,

Gold flash outer contact

ADP5–06SJ2–V3SJ1

ADP5–06SJ2–V3SP1

(26.62) 1.048

(26.97) 1.062

(20.30)

.799

DIA

ADP5–06SP2–V3SJ1

ADP5–06SP2–V3SP1

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

ADP5-01SJ7-10SP9 Related Products

	ADP5-01SJ7-10SP9	ADP5-01SJ9-10SJ9	ADP5-01SJ7-10SP7	ADP5-06SP2-V3SP1	ADP5-01SJ7-10SJ7	ADP5-01SP1-13GJ1	ADP5-01SP1-13GP1	ADP5-06SJ2-V3SJ1
Description	RF Adapters - Between Series 50 Ohm Optimized Adapters	RF Adapters - Between Series 50 Ohm Optimized Adapters	RF Adapters - Between Series 50 Ohm Optimized Adapters	RF Adapters - Between Series 50 Ohm Optimized Adapters	RF Adapters - Between Series 50 Ohm Optimized Adapters	RF Adapters - Between Series 50 Ohm Optimized Adapters	RF Adapters - Between Series 50 Ohm Optimized Adapters	RF Adapters - Between Series 50 Ohm Optimized Adapters
Maker	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
Product Category	RF Adapters - Between Series	RF Adapters - Between Series	RF Adapters - Between Series	RF Adapters - Between Series	RF Adapters - Between Series	-	RF Adapters - Between Series	RF Adapters - Between Series
Shipping restrictions	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	-	Mouser does not currently sell this product.	Mouser does not currently sell this product.
Encapsulation	Tray	Tray	Tray	Tray	Tray	-	Bulk	Tray
series	ADP5	ADP5	ADP5	ADP5	ADP5	-	ADP5	ADP5
Factory packaging quantity	72	100	72	36	100	-	1	36
