F-219
IPL1–106–01–L–D–RE1–K
IPL1–110–02–L–S–K–TR
IPL1–105–02–L–D–K–TR
IPL1–120–01–L–D–RA–K
(2.54 mm) .100"

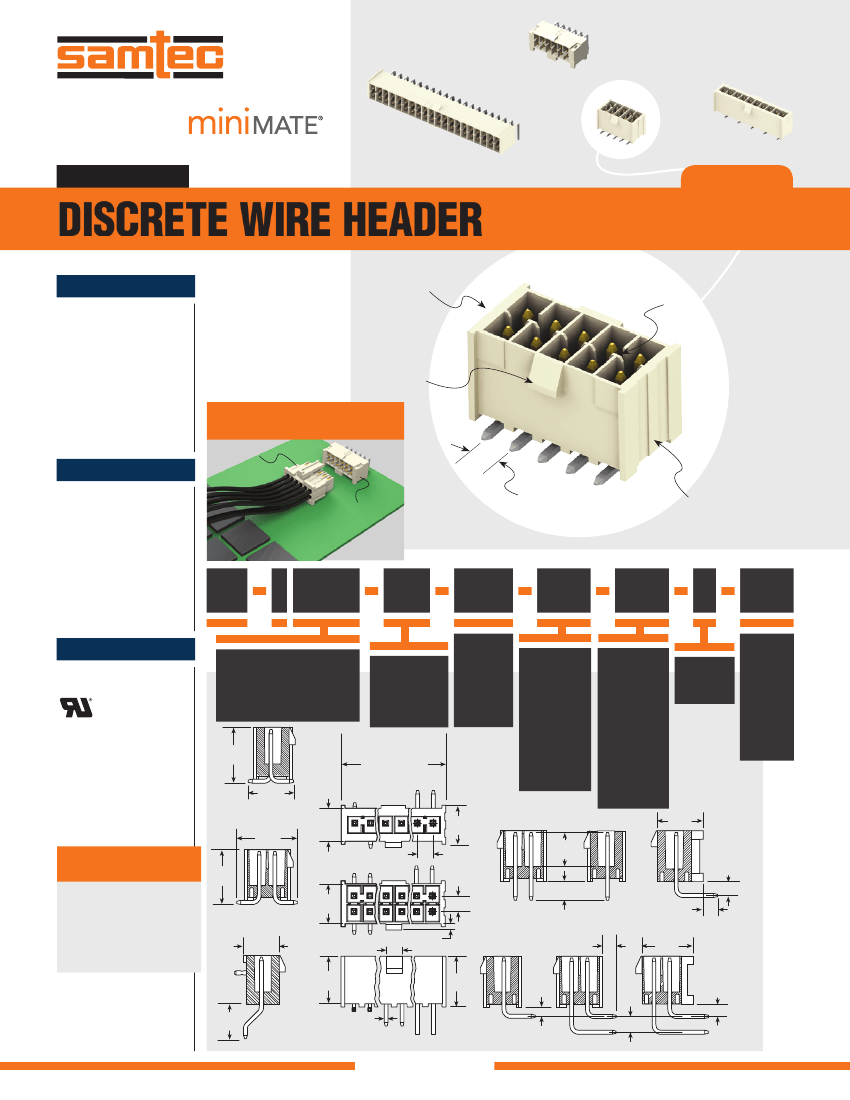

IPL1 SERIES
DISCRETE WIRE HEADER
SPECIFICATIONS
For complete specifications
www.samtec.com?IPL1
Insulator Material:
Natural LCP
Terminal Material:
Phosphor Bronze
Plating:
Sn or Au over
50 µ" (1.27 µm) Ni
Operating Temp Range:
-55 °C to +125 °C
Voltage Rating:
675 VAC/954 VDC
RoHS Compliant:
Yes
Mates with:
MMSD, MMSS,
MMSDT, MMSST
Mates with
discrete wire cable
assemblies
Keyed
polarization
Align &
Latch™
–RE1 APPLICATION
MMSD
PROCESSING
Lead–Free Solderable:
Yes
–S & –D (–02 Lead Style)
SMT Lead Coplanarity:
(0.10 mm) .004" max (02-05)
(0.13 mm) .005" max (06-10)*
(0.15 mm) .006" max (11-25)*
*(.004" stencil solution
may be available; contact
IPG@samtec.com)
–SH SMT Lead Coplanarity:
(0.15 mm) .006" max (02-25)*
*(.004" stencil solution
may be available; contact
IPG@samtec.com)
IPL1-RE1
(2.54 mm)
.100" pitch
Surface mount, right-angle,
right-angle elevated
and vertical through-hole
IPL1
1
NO. PINS
PER ROW
LEAD
STYLE
PLATING
OPTION
ROW
OPTION
TAIL
OPTION
K
OPTION
RECOGNITIONS
For complete scope of
recognitions see
www.samtec.com/quality
FILE NO. E111594
02, 03, 04, 05,
06, 08, 10, 12,
15, 16, 20, 25
(Standard sizes)
(8.76)
.345
(7.04)
.277
= Through-hole
–01
–02
= Surface Mount
–01. –02 & –RA =
No. of positions x
(2.54) .100 + (1.52) .060
–SH & –RE1 =
No. of positions x
(2.54) .100 + (4.06) .160
01
= 10 µ"
(0.25 µm)
Gold on
contact,
Matte Tin
on tail
–L
= Single Row
–S
= Single Row
Horizontal
(–02 lead
style only)
–SH
=Right-angle
(–01 lead
style only)
–RA
=Keyed
Polarization
–K
= Double Row
–D
–02–S
(9.58)
.377
(5.08)
.200
02
=Right-angle
Elevated
(–01 lead
style only)
(–K is a
required
callout)
(6.86)
.270
–RE1
= Tape &
Reel
(–02 lead
style only)
Comes
with
Polyimide
Pick &
Place Pad
–TR
(6.10)
.240
(2.54)
.100
(2.54)
.100
(5.46)
.215
ALSO AVAILABLE
(MOQ Required)
• Other sizes
• With or without plug
polarization
• Guide post holes
• Other platings
• Weld tab
(8.76)
.345
01 02
(2.03)
.080
–02–D
(5.59)
.220
(6.35)
.250
(1.02) .040
(2.54) .100
(7.62)
.300
(8.13)
.320
(3.05)
.120
–01–D
–01–S
(2.16)
.085
(2.16)
.085
–01–S–RE1
(8.26)
.325
(1.52)
.060
(2.54)
.100
(2.03)
.080
Note:
Some lengths, styles and
options are non-standard,
non-returnable.
(5.44)
.214
(0.64) .025 SQ
–02
–02–SH
–01
–01–S-RA
–RA
–01–D–RA
–01–D–RE1
