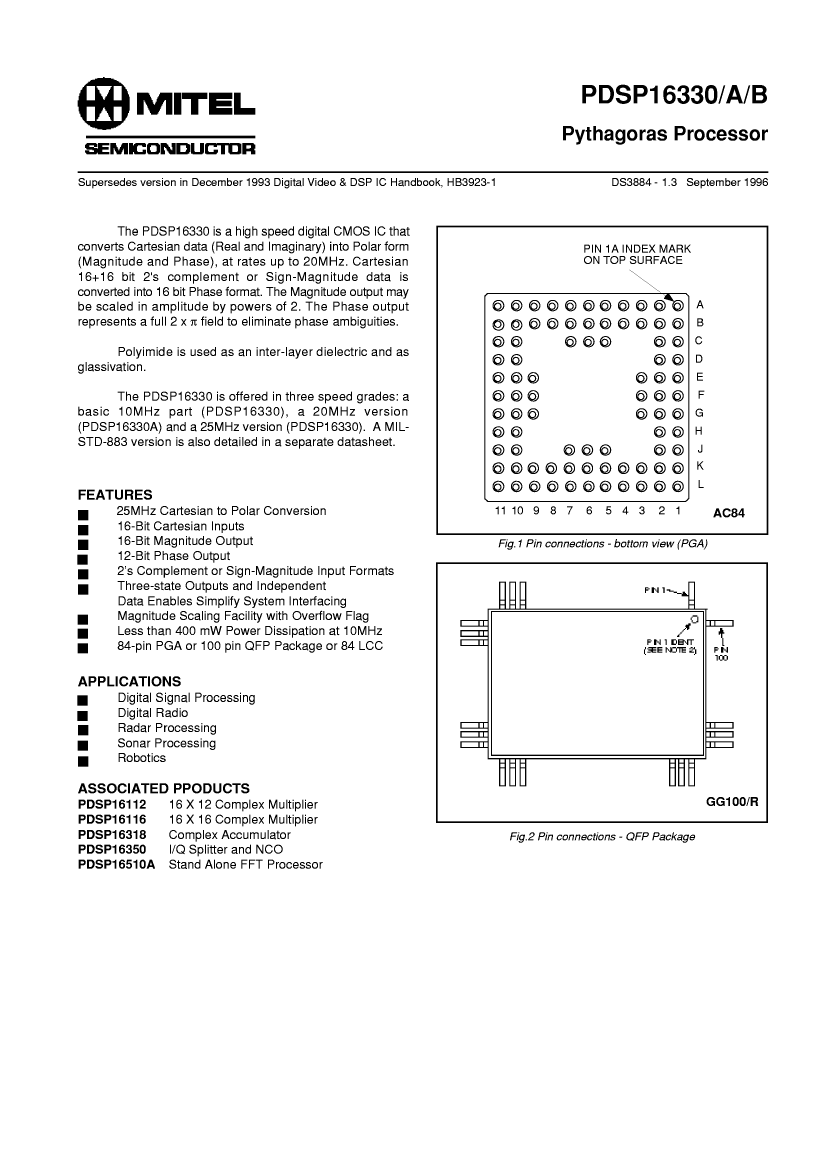

Analog Circuit, CMOS, CPGA84,

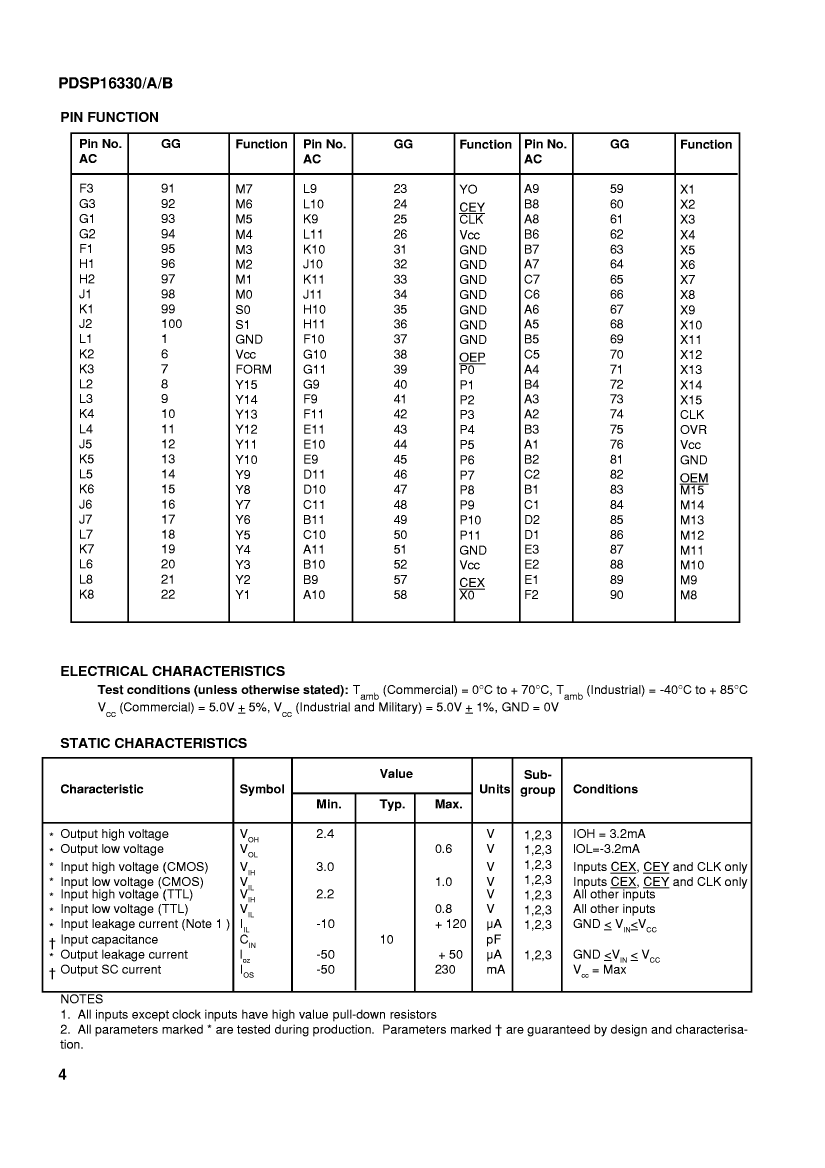

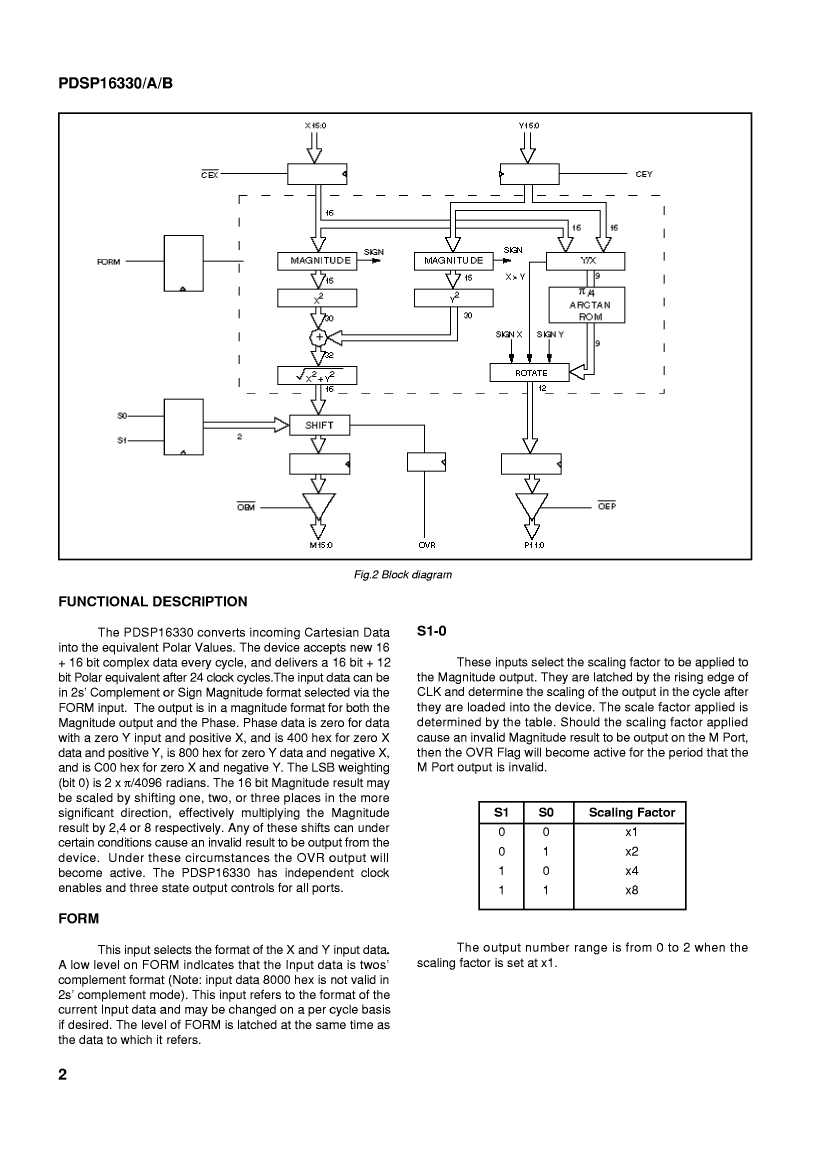

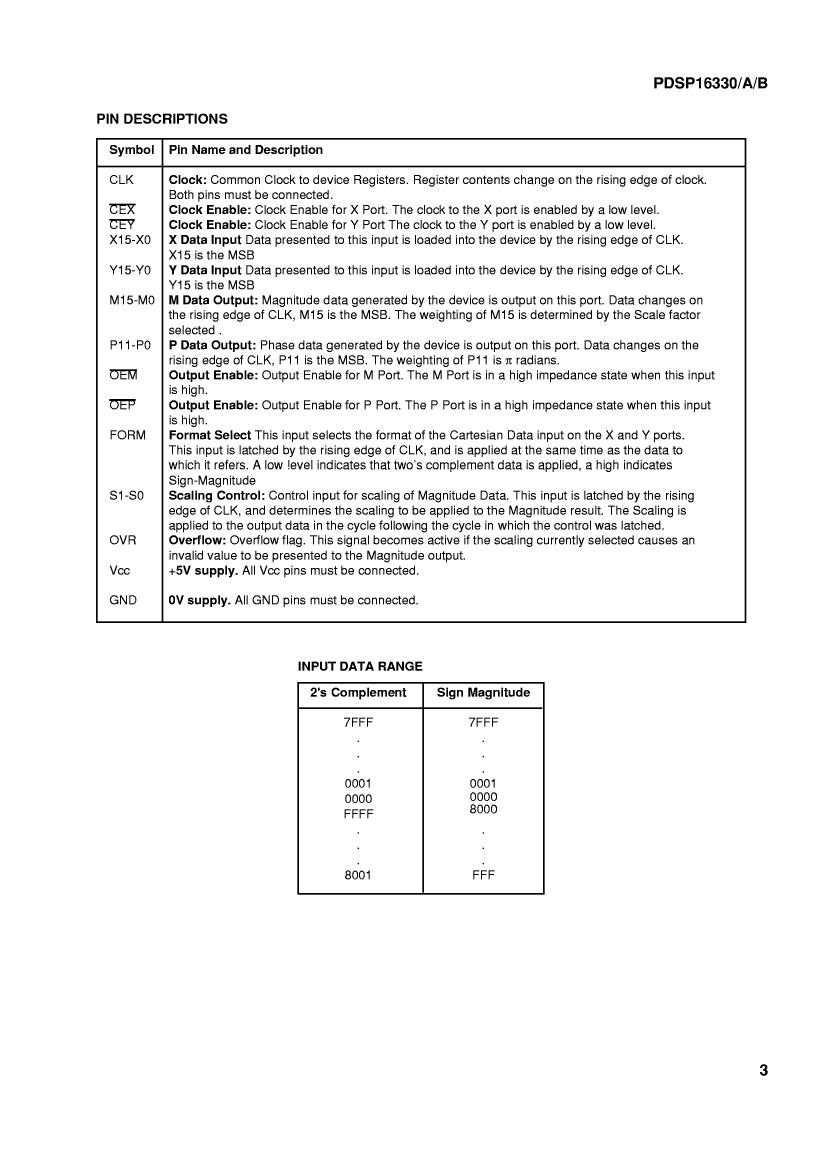

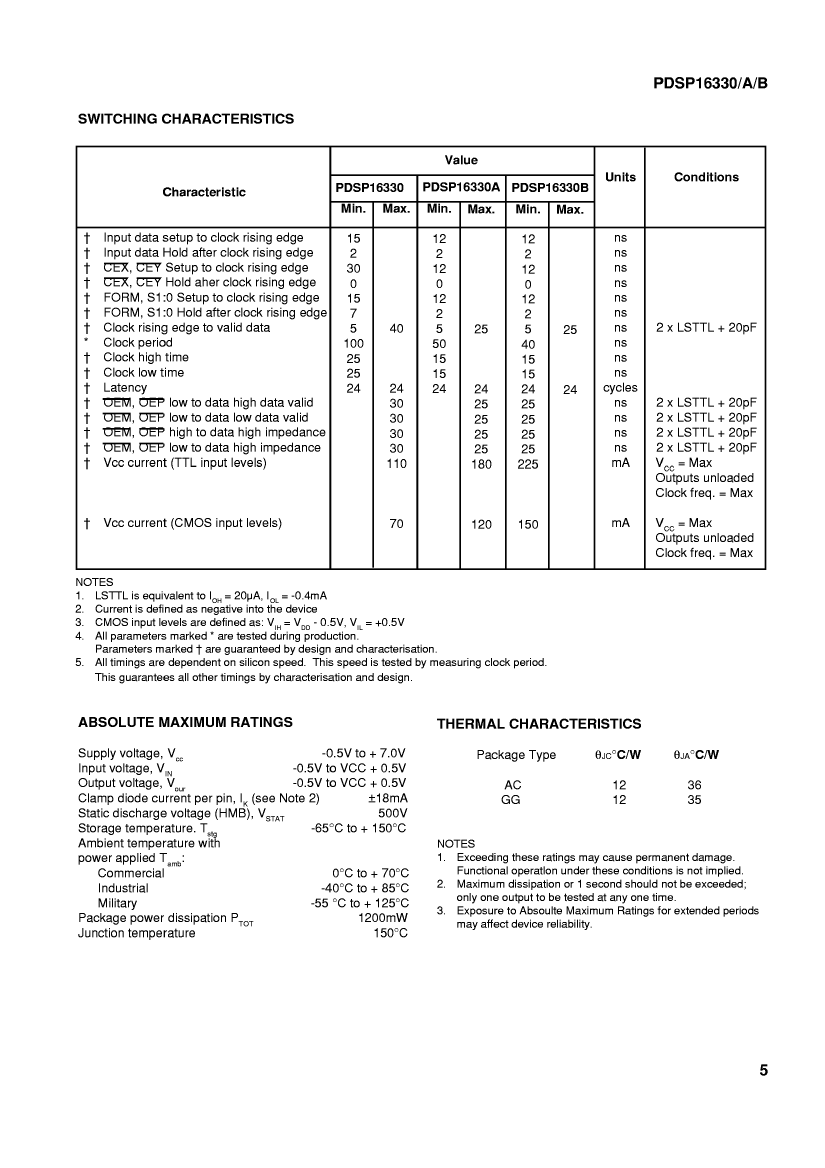

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | PGA |
| package instruction | PGA, PGA84M,11X11 |
| Contacts | 84 |
| Reach Compliance Code | unknow |
| Analog Integrated Circuits - Other Types | ANALOG CIRCUIT |
| JESD-30 code | S-XPGA-P84 |
| Number of terminals | 84 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC |
| encapsulated code | PGA |
| Encapsulate equivalent code | PGA84M,11X11 |
| Package shape | SQUARE |
| Package form | GRID ARRAY |
| power supply | 5 V |
| Certification status | Not Qualified |
| Filter level | MIL-STD-883 Class C |
| Maximum supply current (Isup) | 180 mA |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal form | PIN/PEG |
| Terminal pitch | 2.54 mm |
| Terminal location | PERPENDICULAR |
| Base Number Matches | 1 |
| PDSP16330AACAC | PDSP16330AAOGG | PDSP16330COAC | PDSP16330ACGG | PDSP16330ABOGG | PDSP16330BOAC | |
|---|---|---|---|---|---|---|
| Description | Analog Circuit, CMOS, CPGA84, | Coordinate Transform Processor, 16-Bit, CMOS, CQFP100, CERAMIC, QFP-100 | Coordinate Transform Processor, 16-Bit, CMOS, CPGA84, PGA-84 | Coordinate Transform Processor, 16-Bit, CMOS, CQFP100, CERAMIC, QFP-100 | Coordinate Transform Processor, 16-Bit, CMOS, CQFP100, CERAMIC, QFP-100 | Coordinate Transform Processor, 16-Bit, CMOS, CPGA84, PGA-84 |
| Parts packaging code | PGA | QFP | PGA | QFP | QFP | PGA |
| Contacts | 84 | 100 | 84 | 100 | 100 | 84 |
| Reach Compliance Code | unknow | unknown | unknown | unknown | unknown | unknown |
| JESD-30 code | S-XPGA-P84 | R-CQFP-G100 | S-CPGA-P84 | R-CQFP-G100 | R-CQFP-G100 | S-CPGA-P84 |
| Number of terminals | 84 | 100 | 84 | 100 | 100 | 84 |
| Maximum operating temperature | 125 °C | 125 °C | 70 °C | 125 °C | 85 °C | 85 °C |
| Minimum operating temperature | -55 °C | -55 °C | - | -55 °C | -40 °C | -40 °C |
| Package body material | CERAMIC | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| Package shape | SQUARE | RECTANGULAR | SQUARE | RECTANGULAR | RECTANGULAR | SQUARE |
| Package form | GRID ARRAY | FLATPACK | GRID ARRAY | FLATPACK | FLATPACK | GRID ARRAY |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | YES | NO | YES | YES | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | COMMERCIAL | MILITARY | INDUSTRIAL | INDUSTRIAL |
| Terminal form | PIN/PEG | GULL WING | PIN/PEG | GULL WING | GULL WING | PIN/PEG |
| Terminal location | PERPENDICULAR | QUAD | PERPENDICULAR | QUAD | QUAD | PERPENDICULAR |
| Maker | - | Microsemi | Microsemi | Microsemi | Microsemi | Microsemi |
| boundary scan | - | NO | NO | NO | NO | NO |
| maximum clock frequency | - | 20 MHz | 10 MHz | 10 MHz | 20 MHz | 10 MHz |
| External data bus width | - | 16 | 16 | 16 | 16 | 16 |
| low power mode | - | NO | NO | NO | NO | NO |
| Output data bus width | - | 16 | 16 | 16 | 16 | 16 |
| Maximum supply voltage | - | 5.05 V | 5.25 V | 5.05 V | 5.05 V | 5.05 V |
| Minimum supply voltage | - | 4.95 V | 4.75 V | 4.95 V | 4.95 V | 4.95 V |
| Nominal supply voltage | - | 5 V | 5 V | 5 V | 5 V | 5 V |
| uPs/uCs/peripheral integrated circuit type | - | DSP PERIPHERAL, COORDINATE TRANSFORM PROCESSOR | DSP PERIPHERAL, COORDINATE TRANSFORM PROCESSOR | DSP PERIPHERAL, COORDINATE TRANSFORM PROCESSOR | DSP PERIPHERAL, COORDINATE TRANSFORM PROCESSOR | DSP PERIPHERAL, COORDINATE TRANSFORM PROCESSOR |
