MEC1-170-02-L-D-EM1 datasheet, PDF

Datasheet> All Categories > The connector> The connector> MEC1-170-02-L-D-EM1

MEC1-170-02-L-D-EM1: DescriptionStandard card edge connector 1.00 mm Mini Edge Card Socket, Vertical; CategoryThe connector The connector; File Size719KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

MEC1-170-02-L-D-EM1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MEC1-170-02-L-D-EM1	-	-	View	Buy Now

MEC1-170-02-L-D-EM1 Overview

Standard card edge connector 1.00 mm Mini Edge Card Socket, Vertical

MEC1-170-02-L-D-EM1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	POLARIZED
body width	0.268 inch
subject depth	0.535 inch
body length	3.325 inch
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	CENTRONIC
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	10u inch
Rated current (signal)	1.8 A
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	140
Base Number Matches	1

Preview

Download Datasheet

View All

F-219

MEC1–130–02–L–D–EM2

MEC1–120–02–F–D–EM2

MEC1–120–02–L–D–RA1–SL

(1.00 mm) .0394"

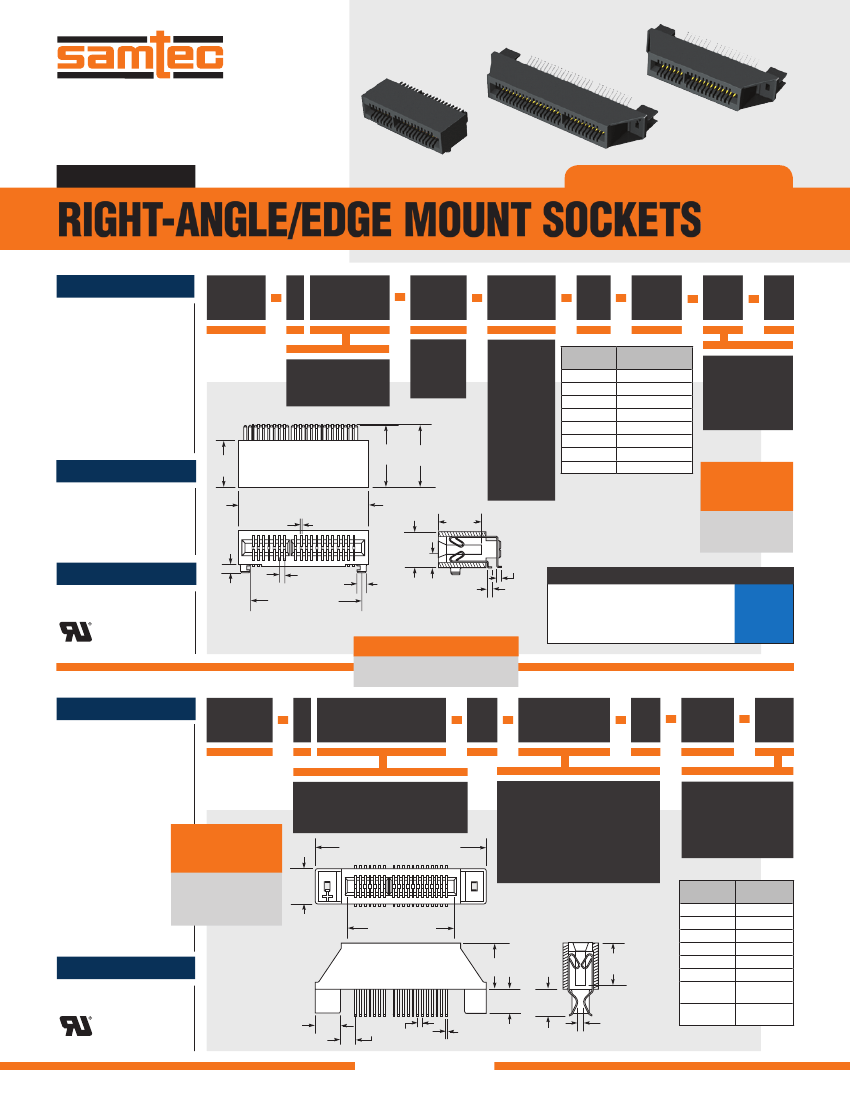

MEC1-RA, MEC1-EM SERIES

RIGHT-ANGLE/EDGE MOUNT SOCKETS

SPECIFICATIONS

For complete specifications and

recommended PCB layouts see

www.samtec.com?MEC1-RA

Insulator Material:

Black LCP

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Current Rating:

1.6 A per pin

(2 adjacent pins powered)

Operating Temp Range:

-55 °C to +125 °C

Insertion Depth:

(5.84 mm) .230" to (8.13 mm) .320"

RoHS Compliant:

Yes

MEC1

Mates with:

(1.60 mm)

.062" card

POSITIONS

PER ROW

CARD

SLOT

PLATING

OPTION

RA1

–NP

05, 08, 20, 30,

40, 50, 60, 70

= (1.60 mm)

.062"

thick card

– 02

= Gold flash

on contact,

Matte Tin

on tail

–F

PROCESSING

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max (05-40)

(0.15 mm) .006" max (50-70)*

*(.004" stencil solution

may be available; contact

IPG@samtec.com)

(8.89)

.350

(No. of Positions + 2) x

(1.00) .03937 + (2.54) .100

(0.36) .014

(11.68) (11.96)

.460

.471

= 10 µ"

(0.25 µm)

Gold on

contact,

Matte Tin

on tail

(8.13)

.320

–L

POSITIONS POLARIZED

PER ROW

POSITIONS

3, 4

5, 6

15, 16

21, 22

31, 32

41, 42

31, 32, 63 & 64

53, 54, 115 & 116

= No Polarization

(8 positions only)

Leave Blank for

polarization

(6.81)

.268

Note:

While optimized for 50

applications, this connector with

(MOQ Required)

alternative signal/ground patterns

• Elevated body

may also perform well in certain

height

applications.

• Other platings

ALSO

AVAILABLE

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

(1.52)

.060

(1.00)

.03937

(No. of Positions + 2)

x (1.00) .03937

(1.78)

.070

DIA

(0.91)

.036

(2.51) (0.91)

.036

.099

HIGH-SPEED CHANNEL PERFORMANCE

MEC1-RA

Rating based on Samtec reference channel.

For full SI performance data visit Samtec.com

or contact SIG@samtec.com

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

APPLICATION

Samtec recommends that pads

on the mating board be Gold plated.

G b p s

SPECIFICATIONS

For complete specifications and

recommended PCB layouts see

www.samtec.com?MEC1-EM

MEC1

POSITIONS

PER ROW

PLATING

OPTION

EM2

Insulator Material:

Mates with:

Black LCP

(1.60 mm)

Contact Material:

Phosphor Bronze

.062" card

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Current Rating:

ALSO

1.8 A per pin

(2 adjacent pins powered)

AVAILABLE

Operating

(MOQ Required)

Temp Range:

-55 °C to +125 °C

• Edge mount leads

Insertion Depth:

for (0.80 mm) .031"

(5.84 mm) .230" to

thick board

(8.13 mm) .320"

• Other platings

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

05, 08, 20, 30,

40, 50, 60, 70

(No. of Positions + 2) x

(1.00) .03937 + (12.45) .490

= Gold flash on contact,

Matte Tin on tail

–F

–L

= No Polarization

(8 positions only)

Leave Blank for

polarization

–NP

= 10 µ" (0.25 µm) Gold on contact,

Matte Tin on tail

Note:

While optimized for 50

applications,

this connector with alternative signal/ground

patterns may also perform well in certain

applications.

(8.13)

.320

(5.21)

.205

(6.81)

.268

(No. of Positions + 2)

x (1.00) .03937

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

(8.89)

.350

(4.70)

.185

(4.57)

.180

(3.15)

.124 (1.00)

.03937

(0.36)

.014

Note:

Some sizes,

styles and options

are non-standard,

non-returnable.

(1.19) ± (0.38)

.047

.015

POSITIONS POLARIZED

PER ROW POSITIONS

3, 4

5, 6

15, 16

21, 22

31, 32

41, 42

31, 32, 63

& 64

53, 54, 115

& 116

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
