SEI-120-02-GF-S-AT

Description
Board-to-Board and Mezzanine Connectors1.00 mm Single Row One-Piece Interface
CategoryThe connector    Surface plate and sandwich connector
File Size582KB,2 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Environmental Compliance
Download Datasheet Parametric View All

SEI-120-02-GF-S-AT Online Shopping

Suppliers Part Number Price MOQ In stock
SEI-120-02-GF-S-AT - - View Buy Now

SEI-120-02-GF-S-AT Overview

Board-to-Board and Mezzanine Connectors1.00 mm Single Row One-Piece Interface

SEI-120-02-GF-S-AT Parametric

Parameter NameAttribute value
MakerSAMTEC
Product CategoryBoard-to-Board and Mezzanine Connectors
Shipping restrictionsMouser does not currently sell this product.
productConnectors
Number of locations120 Position
Pitch1 mm
Number of rows1 Row
Termination typeSMD/SMT
Installation angleRight Angle
Current rating2.3 A
Voltage rating250 VAC
seriesSEI
EncapsulationTube
Contact platingGold
Shell materialLiquid Crystal Polymer (LCP)
Contact materialPhosphor Bronze
Installation styleMounting Peg
Maximum operating temperature+ 125 C
Minimum operating temperature- 55 C
Factory packaging quantity28
F-219
SEI–110–02–GF–S–E–TR
SEI–120–02–GF–S
SIBF–05–F–S–AD
(1.00 mm) .0394"
(SEI)
(1.27 mm) .050"
(SIBF)
SIBF–10–F–S–AD
SIBF–25–F–S–AD

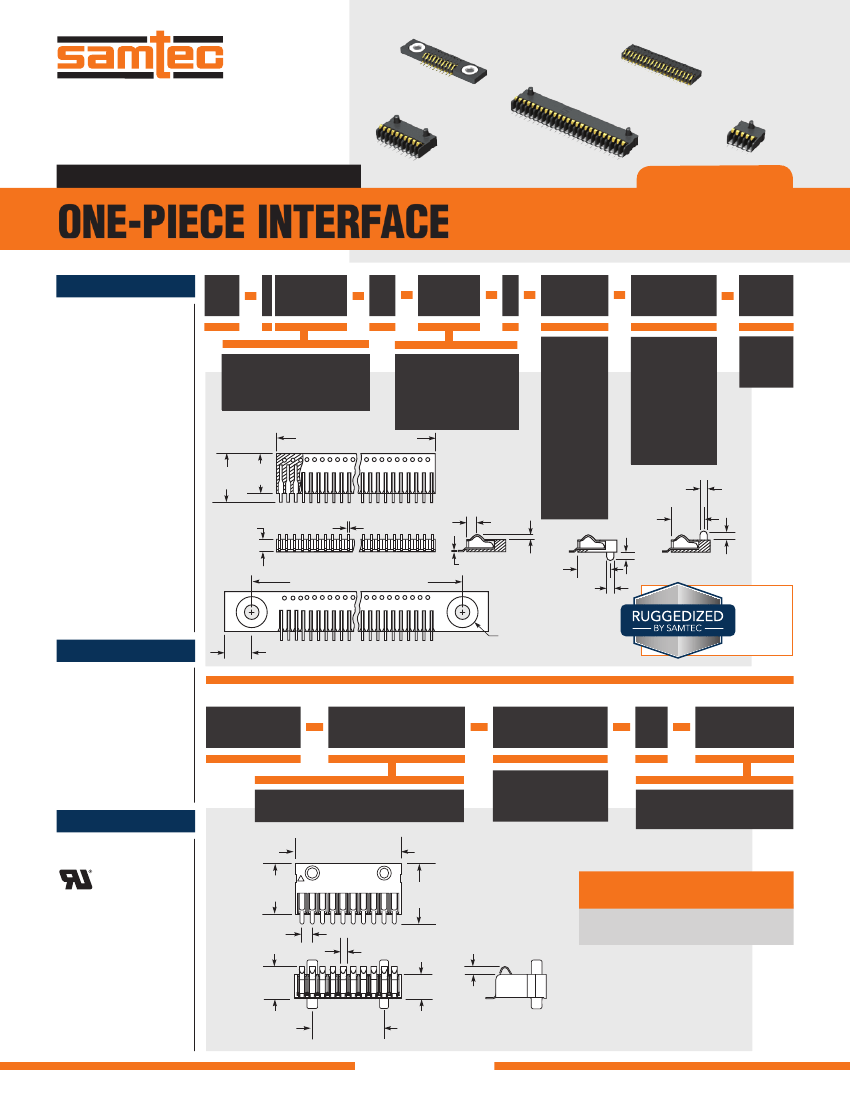

SEI, SIBF SERIES
ONE-PIECE INTERFACE
SPECIFICATIONS
For complete specifications and
recommended PCB layouts
see www.samtec.com?SEI or
see www.samtec.com?SIBF
Insulator Material:
SEI = Liquid Crystal Polymer
SIBF = Black Liquid
Crystal Polymer
Contact Material:
Phosphor Bronze
Plating:
SEI = Au over
50 µ" (1.27 µm) Ni
SIBF = Au or Sn over
50 µ" (1.27 µm) Ni
Current Rating:
SEI = 2.3 A per pin
(1 pin powered)
SIBF = 2.5 A per pin
(1 pin powered)
Operating Temp Range:
-55 °C to +125 °C
Mating Force:
SEI = 50 g (0.49 N) per contact
Voltage Rating:
SEI = 250 VAC
SIBF = 155 VAC
Cycles:
SEI = 100 min
Contact Deflection:
SEI = (0.46 mm) .018" nominal
RoHS Compliant:
Yes
SEI
NO. OF
1
POSITIONS
02
PLATING
OPTION
S
INSERT
OPTION
Leave blank
for Short
Version
(No screw
down inserts
or holes)
ALIGNMENT
OPTION
Leave blank for
no Alignment Pin
OTHER
OPTION
05, 10, 15,
20, 25, 30
(Standard sizes)
= 10 µ" (0.25 µm) Gold
–G
= 3 µ" (0.08 µm) Gold flash
–GF
= Alignment Pin
Top Side
–AT
= Tape &
Reel
–TR
No. of positions x
(1.00) .03937 + (0.41) .016
(6.10) (4.95)
.240 .195
01
= #2-56 x 1/16"
screw thread
–E
= Alignment Pin
Bottom Side
–AB
(0.89)
.035
DIA
SHORT VERSION
(1.65)
.065
(0.31) .012
(1.27)
.050
(0.15) .006 (0.46)
.018
= 2.00 mm
x 0.40 mm
screw thread
–M
(1.27)
.050
(4.32)
.170
(0.89)
.035 DIA
– AB OPTION
(4.32)
.170
(1.27)
.050
((No. of positions-1) x
(1.00) .03937) + (7.62) .300
– AT OPTION
PROCESSING
Lead-Free Solderable:
Yes
SMT Lead Coplanarity (SEI):
(0.10 mm) .004" max (05-25)
(0.15 mm) .006" max (30)*
*(.004" stencil solution
may be available; contact
IPG@samtec.com)
SMT Lead Coplanarity (SIBF):
(0.10 mm) .004" max (05-20)
(0.15 mm) .006" max (25)*
*(.004" stencil solution
may be available; contact
IPG@samtec.com)
(3.43)
.135
INSERT OPTIONS
Threaded
Insert (2)
• Threaded
insert
option
SIBF
NO. OF
POSITIONS
PLATING
OPTION
S
OPTION
RECOGNITIONS
For complete scope of
recognitions see
www.samtec.com/quality
FILE NO. E111594
–05, –10, –20, –25
No. of positions x
(1.27) .050 + (0.43) .017
(6.25)
.246
(1.27)
.050
= Flash Gold,
Matte Tin on tail
–F
= Top & Bottom Alignment Pin
–AD
(7.50)
.295
ALSO AVAILABLE
(MOQ Required)
• Additional positions
• Top or bottom side only alignment pin
(0.70)
.028
(3.00)
.118
No. of positions
x (1.27) .050
- (3.81) .150
(4.00)
.158
(1.00)
.040
–AD OPTION
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
WWW.SAMTEC.COM
