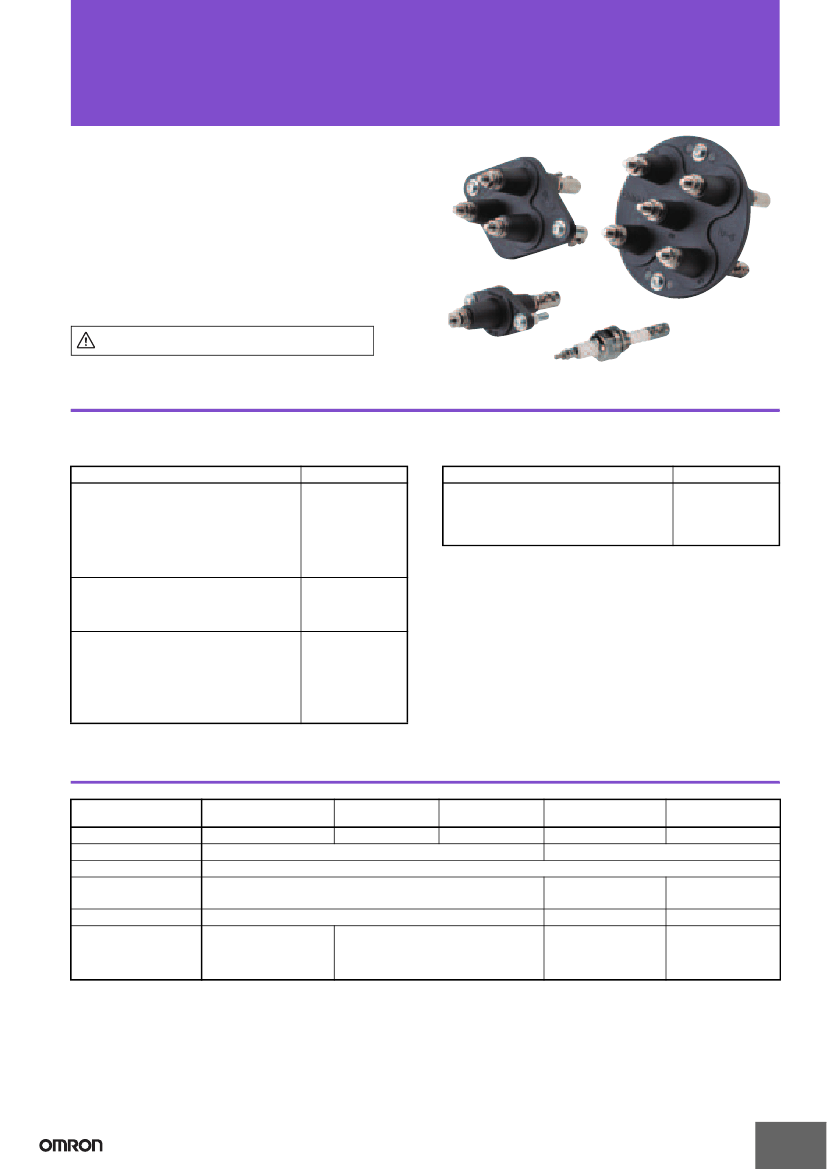

Electrode Holder

BF-@(R)/BS-1(T)

CSM_BF-_(R)_BS-1(T)_DS_E_7_1

Complete Lineup for Use in High-

temperature, High-pressure Environments or

Where Exposed to Chemicals

• The BF-1 is ideal for liquids with low specific resistance, such as

wastewater.

• The BF-@(R) is used when a strong mounting is required.

• The BS-1 is used when high-temperature, high-pressure

resistant is required.

• The BS-1T is used when corrosion resistance is required.

Refer to

Safety Precautions for Electrodes and

Electrode Holders.

Ordering Information

■

Electrode Holders

Application

• Liquid with low specific resistance

For 1-pole electrode

• When sturdy mounting is required

For 3-pole electrode

For 3-pole electrode (2-wire)

For 5-pole electrode

For 5-pole electrode (2-wire)

• Applications where resistance to high-

temperature, high-pressure is required

For 1-pole electrodes, 250°C, 1.96 MPa

• High-pressure application where resistance

to corrosion is required

For 1-pole electrode, SUS304 981 kPa

For 1-pole electrode, SUS316 981 kPa

For 1-pole electrode, Titanium 981 kPa

For 1-pole electrode, Hastelloy B 981 kPa

For 1-pole electrode, Hastelloy C 981 kPa

BF-1

BF-3

BF-3R

BF-5

BF-5R

BS-1

BS-1S

BS-1S-1

BS-1S2

Model

■

Accessories (Order Separately)

Application

Protective Cover (For PS-@S and BF-3/-4/-5)

Protective Cover (For B@-1 and B@-1S)

M18 Nut (For BS-1)

M18 Nut (For BS-1T)

Model

F03-11

F03-19

F03-17

F03-18

Note:

Refer to

Installing an Electrode Holder on a Tank

under Level

Controller Installation in the Technical Guide for Level

Controllers for information on Level Controller installation.

Refer to

PS-

S(R) Electrode Holder Accessories (Order

Separately)

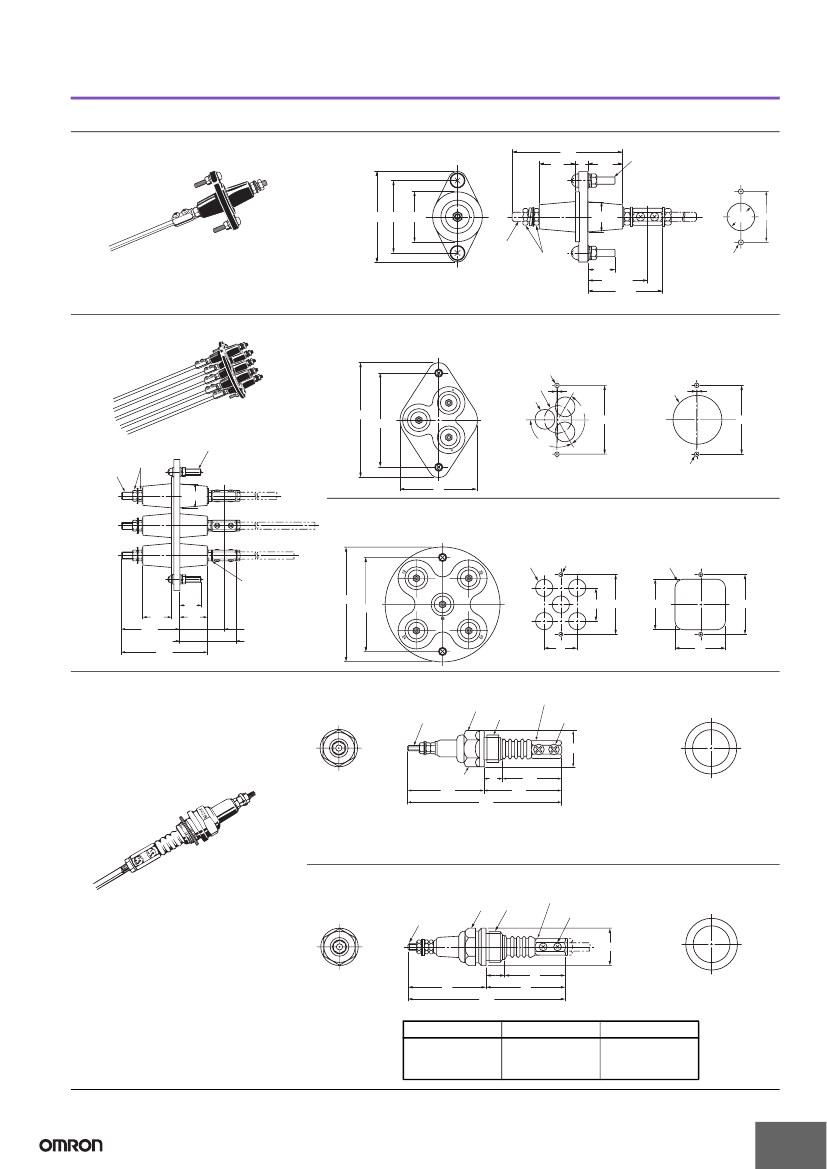

for dimensions.

BS-1T SUS304

BS-1T SUS316

BS-1T TITANIUM

BS-1T HAS B

BS-1T HAS C

Specifications

Model

Item

No. of Electrodes

Insulator material

Insulation resistance

100 MΩ

250°C max.

180°C max.

BF-1

BF-3 (R)

(See note 1.)

BF-5 (R)

(See note 1.)

---

BS-1

---

BS-1T

PPS resin (Metallic section is SUS.)

Fluorocarbon polymer (PFA)

Operating temperature

Electrode section:

−10

to 150°C (with no icing)

Terminal section:

−10

to 70°C (with no icing or condensation)

Operating pressure

Applications

Atmospheric pressure

Liquids with low specific

resistance, such as

wastewater and cloudy

water

General applications for purified water

and wastewater

1.96 MPa (See note 2.) 981 kPa (See note 2.)

Boiler water level

detection or high-

temperature tanks

Acid or alkaline

solution level

detection

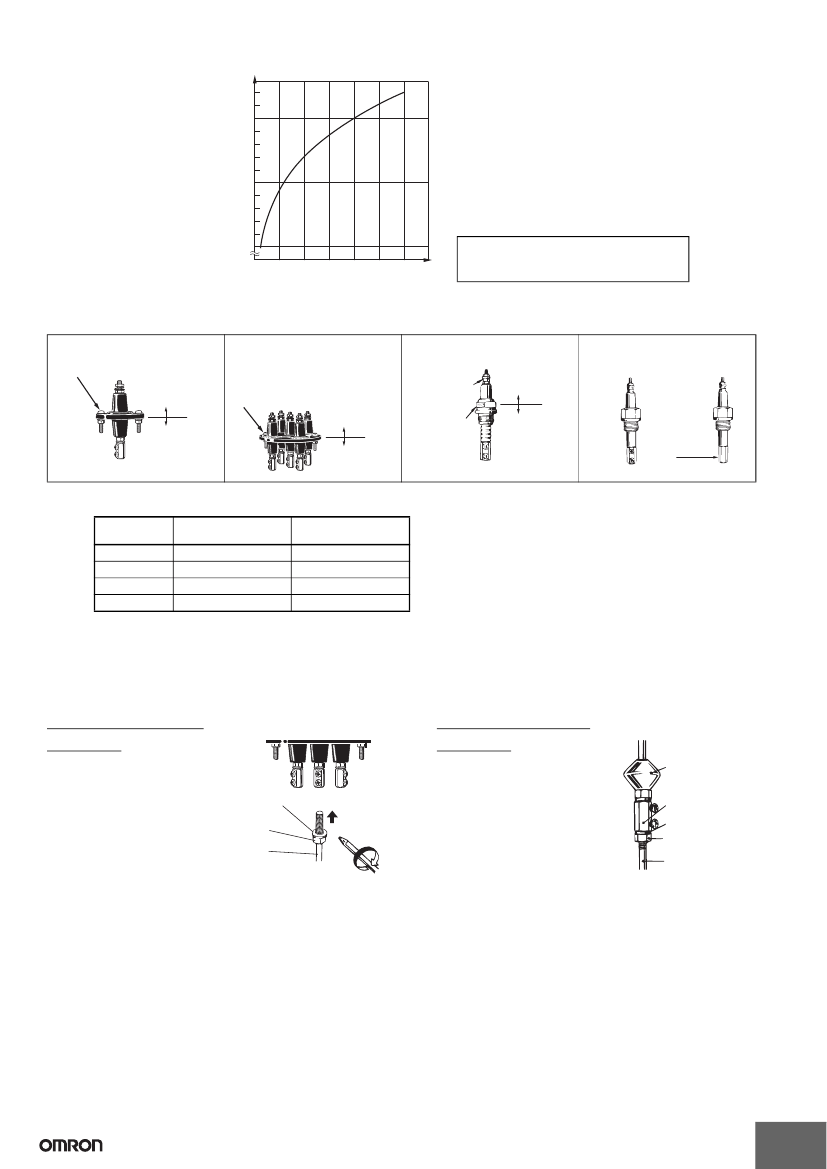

Note: 1.

Two-wire Electrode Holders (R models) have a built-in resistance of 6.8 kΩ. They should be used with the Two-wire 61F Controllers.

There must be a sufficient ambient temperature in a high-pressure environment to prevent vapor leakage. Use the Electrode Holder

according to the following pressure-temperature curve.

Terms and Conditions Agreement

Read and understand this catalog.

Please read and understand this catalog before purchasing the products. Please consult your OMRON representative if you

have any questions or comments.

Warranties.

(a) Exclusive Warranty.

Omron’s exclusive warranty is that the Products will be free from defects in materials and workmanship

for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron

disclaims all other warranties, express or implied.

(b) Limitations. OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, ABOUT

NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF THE PRODUCTS. BUYER

ACKNOWLEDGES THAT IT ALONE HAS DETERMINED THAT THE

PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE.

Omron further disclaims all warranties and responsibility of any type for claims or expenses based on infringement by the

Products or otherwise of any intellectual property right. (c) Buyer Remedy.

Omron’s sole obligation hereunder shall be, at

Omron’s election, to (i) replace (in the form originally shipped with Buyer responsible for labor charges for removal or

replacement thereof) the non-complying Product, (ii) repair the non-complying Product, or (iii) repay or credit Buyer an amount

equal to the purchase price of the non-complying Product; provided that in no event shall Omron be responsible for warranty,

repair, indemnity or any other claims or expenses regarding the Products unless Omron’s

analysis confirms that the Products

were properly handled, stored, installed and maintained and not subject to contamination, abuse, misuse or inappropriate

modification. Return of any Products by Buyer must be approved in writing by Omron before shipment. Omron Companies shall

not be liable for the suitability or unsuitability or the results from the use of Products in combination with any electrical or

electronic components, circuits, system assemblies or any other materials or substances or environments. Any advice,

recommendations or information given orally or in writing, are not to be construed as an amendment or addition to the above

warranty.

See

http://www.omron.com/global/

or contact your Omron representative for published information.

Limitation on Liability; Etc.

OMRON COMPANIES SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES,

LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS,

WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, NEGLIGENCE OR STRICT LIABILITY.

Further, in no event shall liability of Omron Companies exceed the individual price of the Product on which liability is asserted.

Suitability of Use.

Omron Companies shall not be responsible for conformity with any standards, codes or regulations which apply to the

combination of the Product in the Buyer’s application or use of the Product. At Buyer’s request, Omron will provide applicable

third party certification documents identifying ratings and limitations of use which apply to the Product. This information by itself

is not sufficient for a complete determination of the suitability of the Product in combination with the end product, machine,

system, or other application or use. Buyer shall be solely responsible for determining appropriateness of the particular Product

with respect to Buyer’s application, product or system. Buyer shall take application responsibility in all cases.

NEVER USE THE PRODUCT FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY OR IN LARGE

QUANTITIES WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS,

AND THAT THE OMRON PRODUCT(S) IS PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE

OVERALL EQUIPMENT OR SYSTEM.

Programmable Products.

Omron Companies shall not be responsible for the user’s programming of a programmable Product, or any consequence

thereof.

Performance Data.

Data presented in Omron Company websites, catalogs and other materials is provided as a guide for the user in determining

suitability and does not constitute a warranty. It may represent the result of Omron’s test conditions, and the user must correlate

it to actual application requirements. Actual performance is subject to the Omron’s

Warranty and Limitations of Liability.

Change in Specifications.

Product specifications and accessories may be changed at any time based on improvements and other reasons. It is our

practice to change part numbers when published ratings or features are changed, or when significant construction changes are

made. However, some specifications of the Product may be changed without any notice. When in doubt, special part numbers

may be assigned to fix or establish key specifications for your application.

Please consult with your Omron’s representative at

any time to confirm actual specifications of purchased Product.

Errors and Omissions.

Information presented by Omron Companies has been checked and is believed to be accurate; however, no responsibility is

assumed for clerical, typographical or proofreading errors or omissions.

2014.1

In the interest of product improvement, specifications are subject to change without notice.

OMRON Corporation

Industrial Automation Company

http://www.ia.omron.com/
