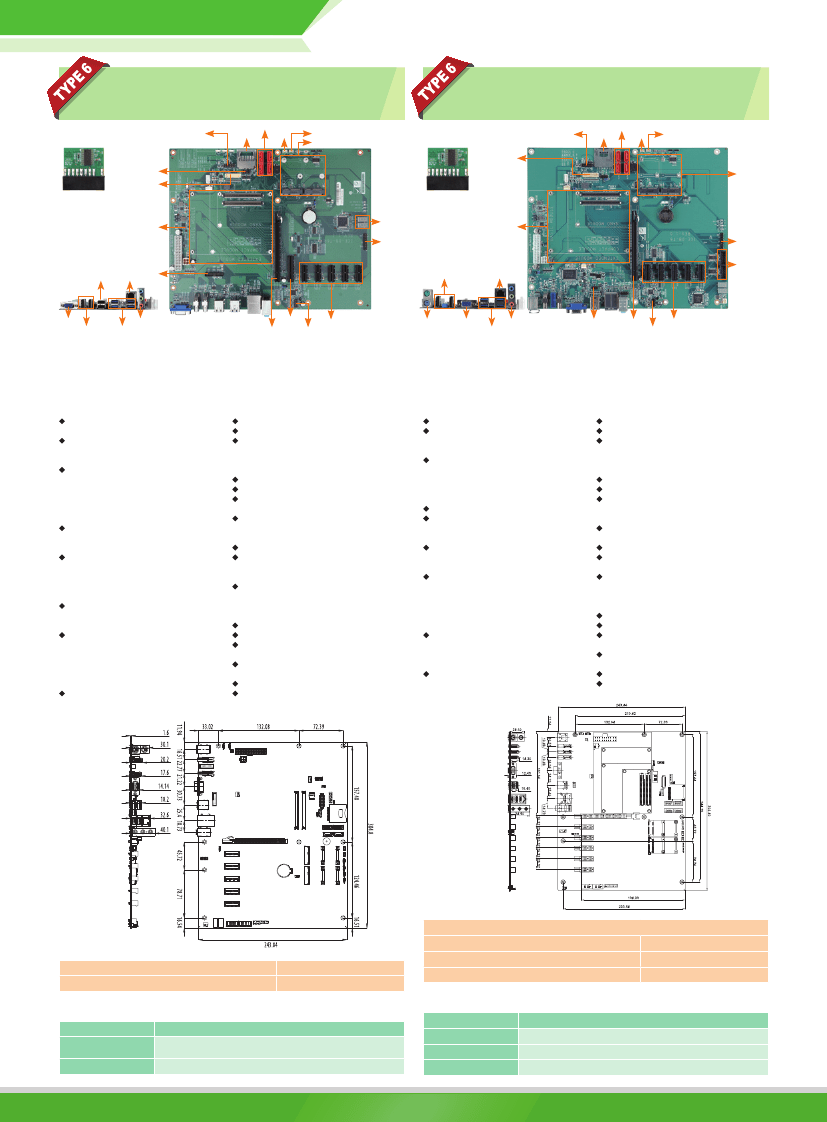

ICE-DB-T6R
Front panel
Baseboard for COM Express Type 6 Module COM.0 Rev. 2.1
(for ICE-ULT3, ICE-QM871 & ICE-BT-T6)
4 x SATA 3Gb/s
SD card
I²C
SMBus
2 x PCIe Mini
ICE-DB-T6
Front panel
Dual-channel
LVDS
DIO
Baseboard for COM Express Type 6 Module
(for ICE-QM770 & ICE-CV-D25501/N26001)
4 x SATA 3Gb/s
SD card
I²C
SMBus
DIO
2 x PCIe Mini
TPM 1.2
Support
Dual-channel
LVDS
TPM 1.2
Support
Port 80
TPM
COM Express
TPM
3 x RS-232
3 x DisplayPort
LAN
COM
Express
2 x USB 2.0 RJ-45 iDP
VGA
Audio
DisplayPort 4 x USB 3.0
Features
Specifications
Form Factor
ATX form factor baseboard
CPU
Supports COM Express Compact/Mini
module using connector pin out Type 6
Display Interfaces
1 x DisplayPort connectors
1 x LVDS 18/24-bit single or dual-channel
(with PWM back light controller)
1 x VGA
2 x DisplayPort pin-header
Audio
Realtek ALC662 HD Audio codec (Line-in,
Line-out, Mic)
Expansion
1 x LPC
1 x PCIe x4
1 x PCIe x16
5 x PCIe x1
2 x PCIe Mini (MINIPCIE1 with mSATA
support, colay with SATA_4)
Internal I/O Interface
1 x PS2 KB/MS 4 x SATA port
1 x SD card socket
External I/OInterface
1 x Audio jack (Line-in, Line-out, Mic)
1 x DisplayPort connectors
1 x HDMI
1 x VGA
1 x PS2 KB/MS 2 x USB 2.0
1 x RJ-45
4 x USB 3.0
Front Audio: 2 x 5-pin pin header
PCIe x4 5 x PCIe x1
PCIe x16 Front audio
KB/MS
Features
VGA
Audio
4 x USB 3.0
2 x USB 2.0 PCIe x16 6 x PCIe x1
Front audio
● ATX form factor baseboard for COM.0 Rev. 2.1, pin-out Type 6
● Support one PCIe x16, one PCIe x4, five PCIe x1, two PCIe Mini
● Support PICMG EAPI R1.0
● ATX form factor baseboard for COM Express Rev. 2, Pin-out Type 6
● Supports one PCIe x16, six PCIe x1 and two PCIe Mini
● Supports smart battery charger
Specifications
TPM: 1 x TPM (2x10 pin)
80 port: 2 x 7 segment display
Front Panel
1 x Front panel (2x7 pin, power LED, HDD
LED, speaker/buzzer, power button, reset
button)
I²C: 1 x 4-pin wafer
SMBus: 1 x 4-pin wafer
Internal storage
EEPROM (supports EAPI R1.0)
Watchdog Timer
Software programmable supports 1~255
sec system reset
GPIO: 8-bit GPIO
Power Supply
ATX / AT Power Supply
24+4 pins
Fan Connector
1 x 4-pin / 1 x 3-pin CPU module fan
connector
1 x 3-pin system fan connector by SIO
Operating Temperature: -20°C ~ 60°C
Storage Temperature: -30°C ~ 70°C
Operating Humidity
5% ~ 95 non-condensing
Dimensions
304.8 mm x 243.8 mm (12" x 9.6")
Weight: GW:650g / NW:430g
CE/FCC compliant
Form Factor: ATX form factor baseboard
CPU
Supports COM Express Compact/Mini
module using connector pin out Type 6
Display Interfaces
1 x 18/24-bit single/dual-channel LVDS
1 x VGA
3 x DisplayPort (2 x real connectors, 1 x pin
header)
Super I/O: W83627DHG
Audio
Realtek ALC892 HD Audio codec (Line-in,
Line-out, Mic)
Expansion
1 x LPC
2 x PCIe Mini (with USB)
1 x PCIe x16
6 x PCIe x1
Internal I/O Interface
1 x PS2 KB/MS 2 x RS-232 from SIO
1 x SD
2 x USB 2.0
4 x SATA port
2 x RS-232 from COM Express (only TX,
RX and GND)
External I/O Interface
1 x VGA
4 x USB 3.0
1 x RJ-45
3 x DisplayPort
1 x Audio jack (Line-in, Line-out, Mic)
Front Audio: 1 x Front audio (2x5 pin)
TPM: 1 x TPM (2x10 pin)
80 port: 2 x 7 segment display
Front Panel
1 x Front panel (2x7 pin, power LED, HDD
LED, speaker/buzzer, power button, reset
button)
I²C: 1 x 4-pin wafer
SMBus: 1 x 4-pin wafer
Watchdog Timer
Software programmable supports1~255
sec. system reset
GPIO: 8-bit GPIO (GPIO from iWDD co-lay
SDIO)
Power Supply: ATX/AT power supply
Battery: Supports smart battery charger
connector
Fan Connector
1 x 4-pin / 1 x 3-pin CPU module fan
connector
1 x 3-pin system fan connector by SIO
Operating Temperature: -10°C ~ 60°C
Storage Temperature: -20°C ~ 70°C
Operating Humidity
5% ~ 95%, non-condensing
Dimensions
304.8 mm x 243.8 mm (12" x 9.6")
Weight: GW:660g / NW:450g
CE/FCC compliant
Dimensions
(Unit: mm)
Dimensions
(Unit: mm)
Packing List
1 x COM Express baseboard
Packing List
1 x COM Express baseboard
2 x SATA cable
1 x Mini jumper pack
1 x QIG
1 x Dual-port RS-232 cable
2 x SATA cable
1 x One Key Recovery CD
1 x Mini jumper pack
1 x Utility CD
1 x QIG
Ordering Information
Part No.
ICE-DB-T6R-R11
32102-000100-200-RS
Description
Baseboard for COM Express Type 6 Module COM.0 Rev. 2.1,
support PICMG EAPI R1.0
SATA power cable, MOLEX 5264-4P to SATA15P
Ordering Information
Part No.
ICE-DB-T6-R10
19800-000082-RS
32102-000100-200-RS
Description
Baseboard for COM Express Type 6 modules
RS-232/422/485 cable, 14-pin to dual DB-9, 230mm, P=2.54
SATA power cable, MOLEX 5264-4P to SATA15P
ICE-DB-T6R-2018-V11
