135110-01-18.00 datasheet, PDF

Datasheet> All Categories > Wire/cable> Cable package> Radio frequency cable components> 135110-01-18.00

135110-01-18.00: DescriptionRF Cable Assembly SMA Blkhd Jck to SMA Strg PLG 18 inches; CategoryWire/cable Cable package Radio frequency cable components; File Size144KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

135110-01-18.00 Overview

RF Cable Assembly SMA Blkhd Jck to SMA Strg PLG 18 inches

135110-01-18.00 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Product Category	RF cable assemblies
Shipping restrictions	Mouser does not currently sell this product.
Encapsulation	Bulk
Factory packaging quantity	1

Preview

Download Datasheet

View All

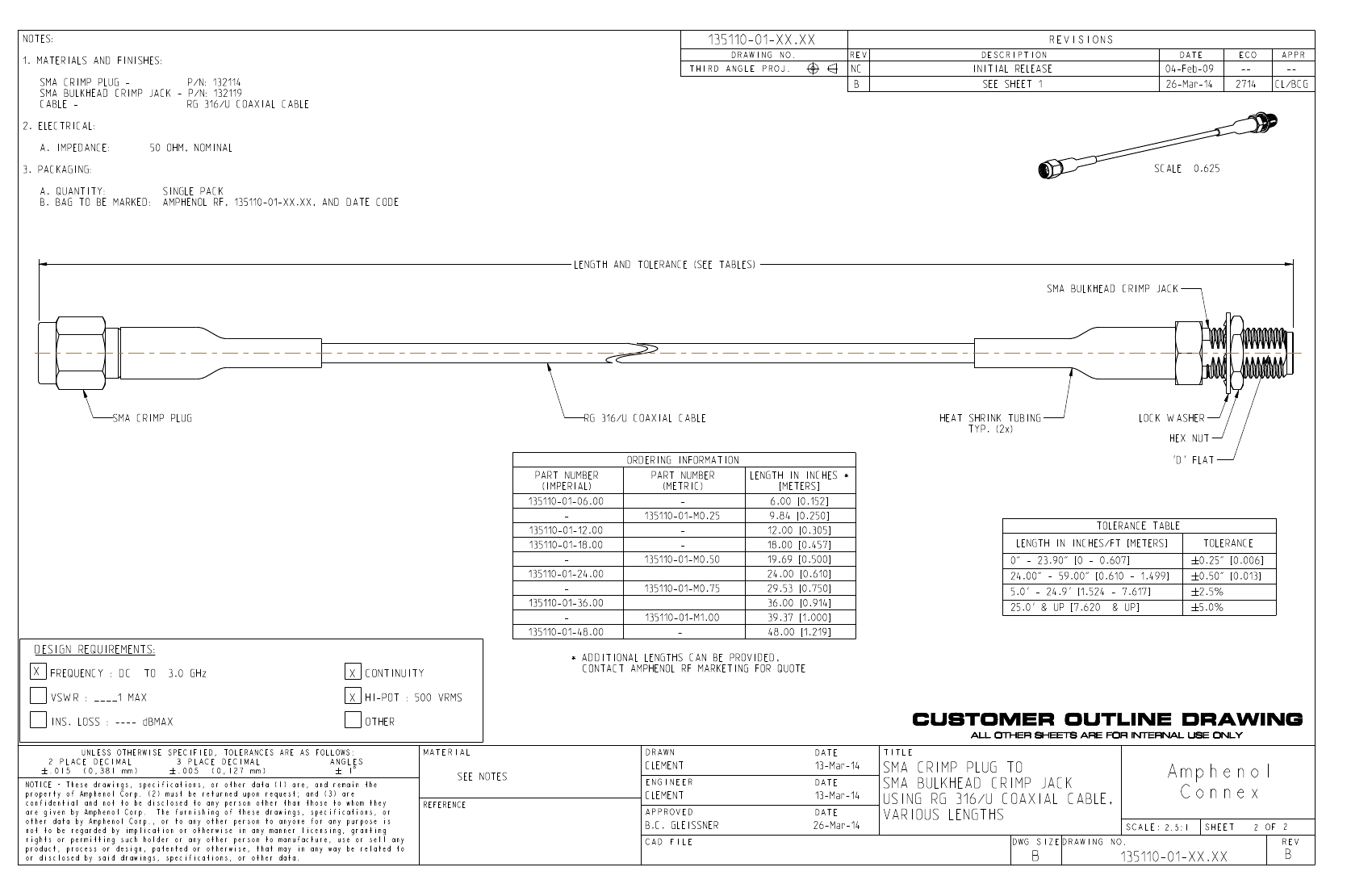

NOTES:

1. MATERIALS AND FINISHES:

SMA CRIMP PLUG -

P/N: 132114

SMA BULKHEAD CRIMP JACK - P/N: 132119

CABLE -

RG 316/U COAXIAL CABLE

2. ELECTRICAL:

A. IMPEDANCE:

3. PACKAGING:

A. QUANTITY:

B. BAG TO BE MARKED:

SINGLE PACK

AMPHENOL RF, 135110-01-XX.XX, AND DATE CODE

50 OHM, NOMINAL

135110-01-XX.XX

DRAWING NO.

THIRD ANGLE PROJ.

REVISIONS

REV

INITIAL RELEASE

SEE SHEET 1

DESCRIPTION

04-Feb-09

DATE

ECO

26-Mar-14

2714

APPR

CL/BCG

SCALE

0.625

LENGTH AND TOLERANCE (SEE TABLES)

SMA BULKHEAD CRIMP JACK

SMA CRIMP PLUG

RG 316/U COAXIAL CABLE

HEAT SHRINK TUBING

TYP. (2x)

LOCK WASHER

HEX NUT

'D' FLAT

135110-01-06.00

135110-01-12.00

PART NUMBER

(IMPERIAL)

ORDERING INFORMATION

PART NUMBER

(METRIC)

LENGTH IN INCHES *

[METERS]

6.00 [0.152]

9.84 [0.250]

135110-01-M0.25

135110-01-18.00

135110-01-24.00

135110-01-36.00

135110-01-48.00

12.00 [0.305]

TOLERANCE TABLE

LENGTH IN INCHES/FT [METERS]

0" - 23.90" [0 - 0.607]

24.00" - 59.00" [0.610 - 1.499]

5.0' - 24.9' [1.524 - 7.617]

25.0' & UP [7.620 & UP]

TOLERANCE

0.25" [0.006]

0.50" [0.013]

5.0%

2.5%

135110-01-M0.50

135110-01-M0.75

135110-01-M1.00

18.00 [0.457]

24.00 [0.610]

36.00 [0.914]

19.69 [0.500]

29.53 [0.750]

39.37 [1.000]

48.00 [1.219]

DESIGN REQUIREMENTS:

FREQUENCY : DC

VSWR : ____1 MAX

INS. LOSS : ---- dBMAX

UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE AS FOLLOWS:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

#.015 (0,381 mm)

#.005 (0,127 mm)

# 1$

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

hom they

tions, or

urpose is

granting

or sell any

e related to

3.0 GHz

CONTINUITY

HI-POT : 500 VRMS

OTHER

MATERIAL

* ADDITIONAL LENGTHS CAN BE PROVIDED,

CONTACT AMPHENOL RF MARKETING FOR QUOTE

DRAWN

SEE NOTES

REFERENCE

CLEMENT

13-Mar-14

26-Mar-14

DATE

TITLE

ENGINEER

APPROVED

CAD FILE

B.C. GLEISSNER

SMA CRIMP PLUG TO

SMA BULKHEAD CRIMP JACK

USING RG 316/U COAXIAL CABLE,

VARIOUS LENGTHS

Amphenol

Connex

SCALE: 2.5:1

SHEET

2 OF 2

REV

DWG SIZE DRAWING NO.

135110-01-XX.XX

135110-01-18.00 Related Products

	135110-01-18.00	135110-01-M0.50	135110-01-M0.75	135110-01-M0.25	135110-01-48.00
Description	RF Cable Assembly SMA Blkhd Jck to SMA Strg PLG 18 inches	RF cable assembly SMA Bulkhead JK/SMA STR Plug CBL 0.50MET	RF cable assembly SMA Bulkhead JK/SMA STR Plug CBL 0.75MET	RF cable assembly SMA BLKHD JK/SMA STR PLG	RF Cable Assembly SMA Blkhd Jack to St Plug RG-316 48in
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	RF cable assemblies	RF cable assemblies	RF cable assemblies	RF cable assemblies	RF cable assemblies
Encapsulation	Bulk	Bulk	Bulk	Bulk	Bulk
Factory packaging quantity	1	1	1	1	1
Shipping restrictions	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	-
Connector A series	-	SMA	SMA	SMA	SMA
Connector A Gender	-	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)
Connector A body type	-	Bulkhead	Bulkhead	Bulkhead	Bulkhead
Connector B series	-	SMA	SMA	SMA	SMA
Connector B sex	-	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)
Connector B body type	-	Straight	Straight	Straight	Straight
length	-	0.5 m	0.75 m	0.25 m	48 in
impedance	-	50 Ohms	50 Ohms	50 Ohms	50 Ohms
Frequency Range	-	DC to 3 GHz	DC to 3 GHz	DC to 3 GHz	DC to 12.4 GHz
Cable type	-	RG-316	RG-316	RG-316	RG-316/U
Connector A polarity	-	Normal	Normal	Normal	Normal
Connector B polarity	-	Normal	Normal	Normal	Normal
