Note: Unbalanced is measured between ground-signal-ground conductors.Balanced is measured between conductors within a pair.
Environmental
Flammability Rating:
USA: N.E.C. 725, CL2; Canada:FT1
UL File No.: E118773, Power Limited Circuit Cable: CL2
3
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Temperature Rating:
USA: CL2: 75°C; Canada: 80°C
PE – UL MARK
Laboratories Inc.
3M
™

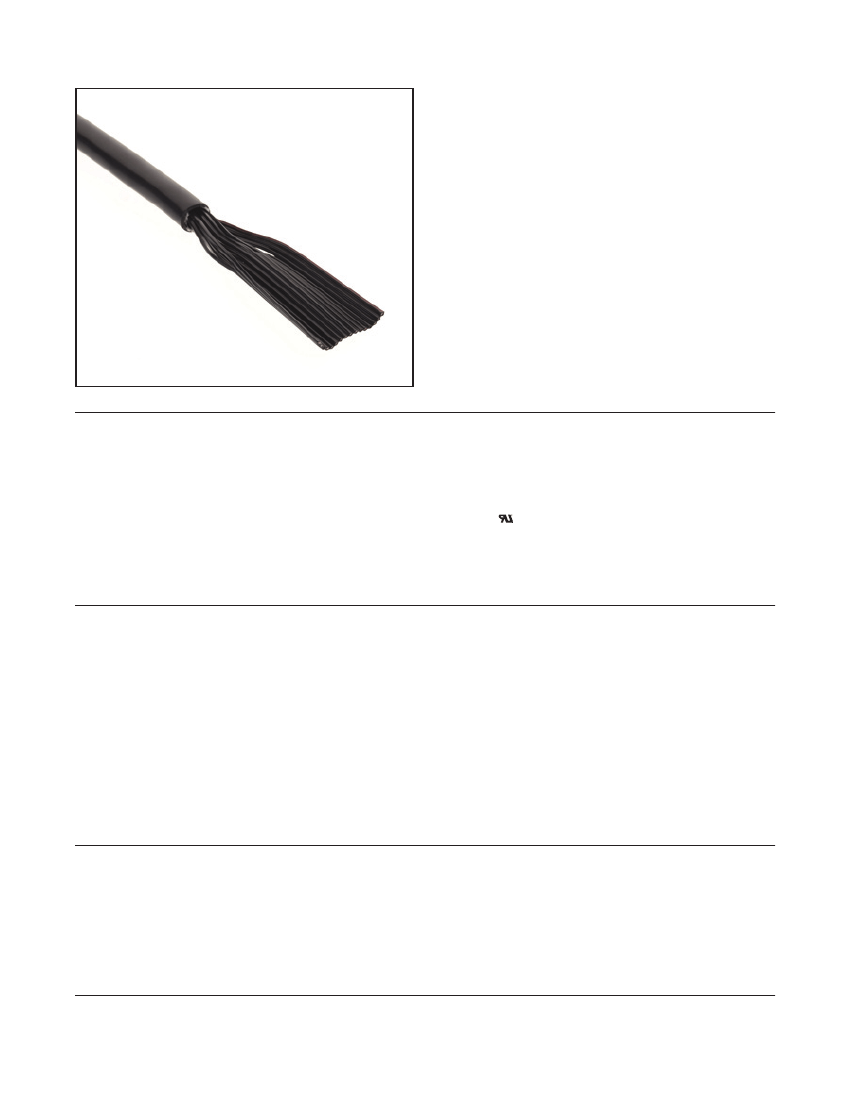

Round, Jacketed, Flat Cable
.050" 28 AWG Stranded, Mass-Term, PVC/PVC
C
Number of
Conductors
10
14
3834 Series
3M Part Number
3834/10
3834/14
3834/16
3834/20
3834/24
3834/26
3834/34
3834/40
3834/50
3834/60
3834/64
Dimension A ± .03
0.26 [ 6.6 ]
0.27 [ 6.9 ]
0.27 [ 6.9 ]
0.30 [ 7.6 ]
0.33 [ 8.4 ]
0.33 [ 8.4 ]
0.37 [ 9.4 ]
0.39 [ 9.9 ]
0.44 [ 11.2 ]
0.47 [ 11.9 ]
0.50 [ 12.7 ]
Dimension B
(See Note 2)
0.45 [ 11.4 ]
0.65 [ 16.5 ]
0.75 [ 19.1 ]
0.95 [ 24.1 ]
1.15 [ 29.2 ]
1.25 [ 31.8 ]
1.65 [ 41.9 ]
1.95 [ 49.5 ]
2.45 [ 62.2 ]
2.95 [ 74.9 ]
3.15 [ 80.0 ]
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.05
.000
±.010
16
20
24
26
34
40
50
60
64
[ ] Dimensions for Reference Only
2.40
61.0
SPLIT
TYP
BONDED
1.00
25.4
Ø "A"
"B"
r fonts are acceptable.
Paper [Mfg
Optional]
ademark symbol ® shall be 3/64 of an inch. When the overall diameter of the
trademark symbol may be omitted if
0.026 [0.66]
to the naked eye.
it is not legible
Min.
PVC Jacket
Condensed Black, except for the trademark symbol ®, which is
Thickness
Polyester Film
.050 TYP
1.27
PVC Primary Insulation
28 AWG, 19 X 40 AWG [19X Ø .079]
Notes:
1. Red marking on one edge of primary cable designates wire #1.
2. Dimension B pertains to bonded area only.
Ordering Information
3834/XX XX XX
Number of Conductors
(See Table)
Blank = Standard
SO = Continuously Bonded Wire (No Split)
Blank = Standard
SF = Splice Free
Note3:
Available in standard 275 ft. Contact 3M for availability of additional
conductor counts and/or custom roll lengths.
TS-1006-B
Sheet 2 of 2
3
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
