Note: Unbalanced is measured between ground-signal-ground conductors, with shield grounded. Balanced is measured between signal conductors within a pair, with the shield floating.
Environmental
Temperature Rating:
Flammability Rating:
USA: CL2; 75°C or AWM: -20°C to +80°C
USA: N.E.C. 725, CL2
Canada: 80°C
Canada: FT1
UL File No.: E118773, Power Limited Circuit Cable: CL2 (or AWM Style 20879)
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

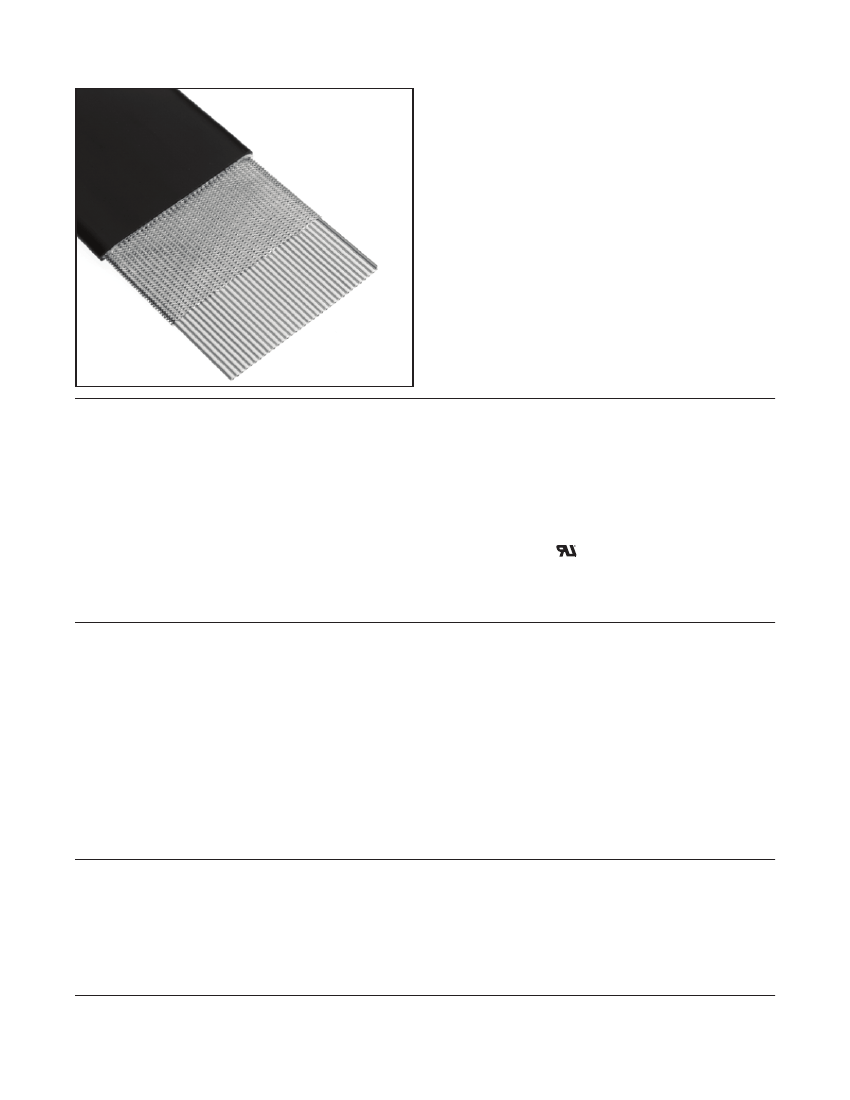

Shielded/Jacketed, Flat Cable
.050" 28 AWG Stranded, PVC/PVC
Number of
Conductors
09
10
C
14
15
16
3M Part Number
3517/09
3517/10
Dimension A
± .040"
.58 [ 14.7 ]
.63 [ 16.0 ]
.83 [ 21.1 ]
.88 [ 22.4 ]
.93 [ 23.6 ]
3517 Series
Dimension B
0.400 ± .007 [ 10.16 ]
0.450 ± .007 [ 11.43 ]
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.01
.000
±.005
[ ] Dimensions for Reference Only
20
24
25
26
30
34
36
37
40
50
60
64
3517/14
3517/15
3517/16
3517/20
3517/24
3517/25
3517/26
3517/30
3517/34
3517/36
3517/37
3517/40
3517/50
3517/60
3517/64
1.13 [ 28.7 ]
1.33 [ 33.8 ]
1.38 [ 35.0 ]
1.43 [ 36.3 ]
1.63 [ 41.4 ]
1.83 [ 46.5 ]
1.93 [ 49.0 ]
1.98 [ 50.3 ]
2.13 [ 54.1 ]
2.63 [ 66.8 ]
3.13 [ 79.5 ]
3.38 [ 85.9 ]
0.650 ± .007 [ 16.51 ]
0.700 ± .007 [ 17.78 ]
0.750 ± .011 [ 19.05 ]
0.950 ± .011 [ 24.13 ]
1.150 ± .011 [ 29.21 ]
1.200 ± .011 [ 30.48 ]
1.250 ± .011 [ 31.75 ]
1.450 ± .015 [ 36.83 ]
1.650 ± .015 [ 41.91 ]
1.750 ± .015 [ 44.45 ]
1.800 ± .015 [ 45.72 ]
1.950 ± .015 [ 49.53 ]
2.450 ± .015 [ 62.23 ]
2.950 ± .015 [ 74.93 ]
3.150 ± .015 [ 80.01 ]
A
B
.050 ± .002 Typ
[ 1.27 ]
.11 ± .03
[ 2.8 ]
Paper
(Mfgr. Option)
.005 [ 0.13 ] Ref
Expanded Copper
PVC Primary
Insulation
28 AWG 7 X 36 AWG [ 7 X Ø 0.127 ]
Tinned Stranded Copper Conductors
.030 Min [ 0.76 ]
PVC Jacket
Note: Red marking on edge of primary cable designates wire #1.
Ordering Information
3517/XX XX
Blank = Standard
C = Canadian Certified Version
Number of Conductors
(See Table)
Blank = Standard
SF = Splice Free
Note: Available in standard 100 ft or 300 ft rolls, please specify when
ordering. Contact 3M for availability of additional conductor
counts and/or custom roll lengths.
TS-0069-D
Sheet 2 of 2
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
