Note: Unbalanced is measured between ground-signal-ground conductors.
Environmental
Temperature Rating:
USA: -20°C to +105ºC
Flammability Rating:
USA: VW-1
Canada: -20°C to +80°C
Canada: FT1
UL File No.: E42769, Style No: 20462
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

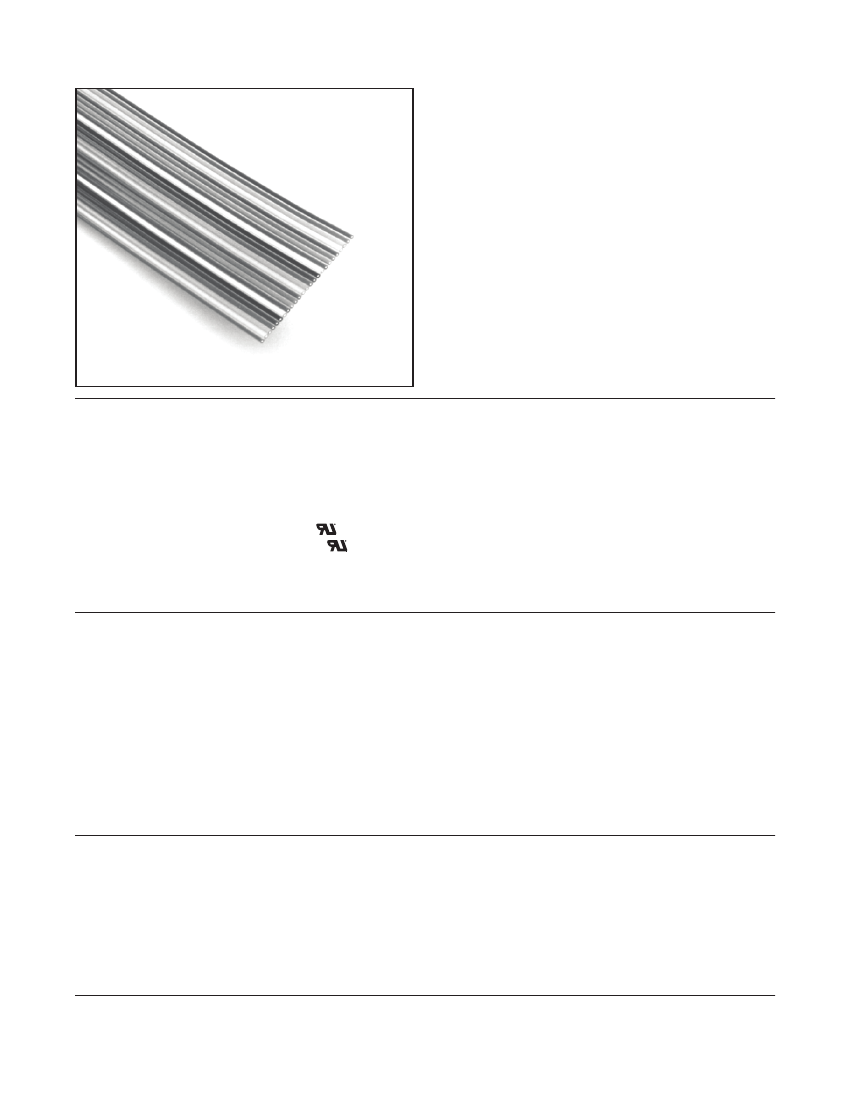

Color Coded Flat Cable
.050" 26 AWG Stranded, PVC
Number of
Conductors
09
C
10
14
* 10 Color Repeat
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
Black
3811 Series
3M Part
Number
3811/09
3811/10
3811/14
3811/15
3811/16
3811/18
3811/20
3811/24
3811/25
3811/26
3811/30
3811/34
3811/36
3811/37
3811/40
3811/50
3811/60
3811/64
Dimension A
0.450 ± .015 [ 11.43 ]
0.500 ± .015 [ 12.70 ]
0.700 ± .015 [ 17.78 ]
0.750 ± .015 [ 19.05 ]
0.800 ± .020 [ 20.32 ]
0.900 ± .020 [ 22.86 ]
1.000 ± .020 [ 25.40 ]
1.200 ± .020 [ 30.48 ]
1.250 ± .020 [ 31.75 ]
1.300 ± .020 [ 33.02 ]
1.500 ± .025 [ 38.10 ]
1.700 ± .025 [ 43.18 ]
1.800 ± .025 [ 45.72 ]
1.850 ± .025 [ 46.99 ]
2.000 ± .025 [ 50.80 ]
2.500 ± .025 [ 63.50 ]
3.000 ± .025 [ 76.20 ]
3.200 ± .025 [ 81.28 ]
Dimension B
0.400 ± .010 [ 10.16 ]
0.450 ± .010 [ 11.43 ]
0.650 ± .010 [ 16.51 ]
0.700 ± .010 [ 17.78 ]
0.750 ± .015 [ 19.05 ]
0.850 ± .015 [ 21.59 ]
0.950 ± .015 [ 24.13 ]
1.150 ± .015 [ 29.21 ]
1.200 ± .015 [ 30.48 ]
1.250 ± .015 [ 31.75 ]
1.450 ± .020 [ 36.83 ]
1.650 ± .020 [ 41.91 ]
1.750 ± .020 [ 44.45 ]
1.800 ± .020 [ 45.72 ]
1.950 ± .020 [ 49.53 ]
2.450 ± .020 [ 62.23 ]
2.950 ± .020 [ 74.93 ]
3.150 ± .020 [ 80.01 ]
15
16
18
20
24
25
26
30
34
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.01
.000
±.005
36
37
40
50
60
64
A
B
.050 Typ
[ 1.27 ]
[ ] Dimensions for Reference Only
.042
±
.003
[ 1.07 ]
Brown* PVC
Insulation
Clear PVC
Carrier
26 AWG 7 X 34 [ 7 X 0.160 ] Tinned
Stranded Copper Conductors
Ordering Information
3811/XX XX
Blank = Standard
C = Canadian Certified Version
Blank = Standard
SF = Splice Free
Number of Conductors
(See Table)
Note: Available in standard lengths of 100 feet or 300 feet per
roll, please specify when ordering.
TS-0122-B
Sheet 2 of 2
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Regulatory Information Appendix
