Note: Unbalanced is measured between conductors within a pair with one conductor connected to the shield. Balanced is measured between conductors within a pair with the shield floating.
Environmental
Temperature Rating:
USA: CL2; 75°C or AWM: -20°C to +80°C Canada: 80°C
Canada: FT1
Flammability Rating:
USA: N.E.C. 725, CL2
UL File No.: E118773, Power Limited Circuit Cable CL2: (or AWM Style 2912)
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

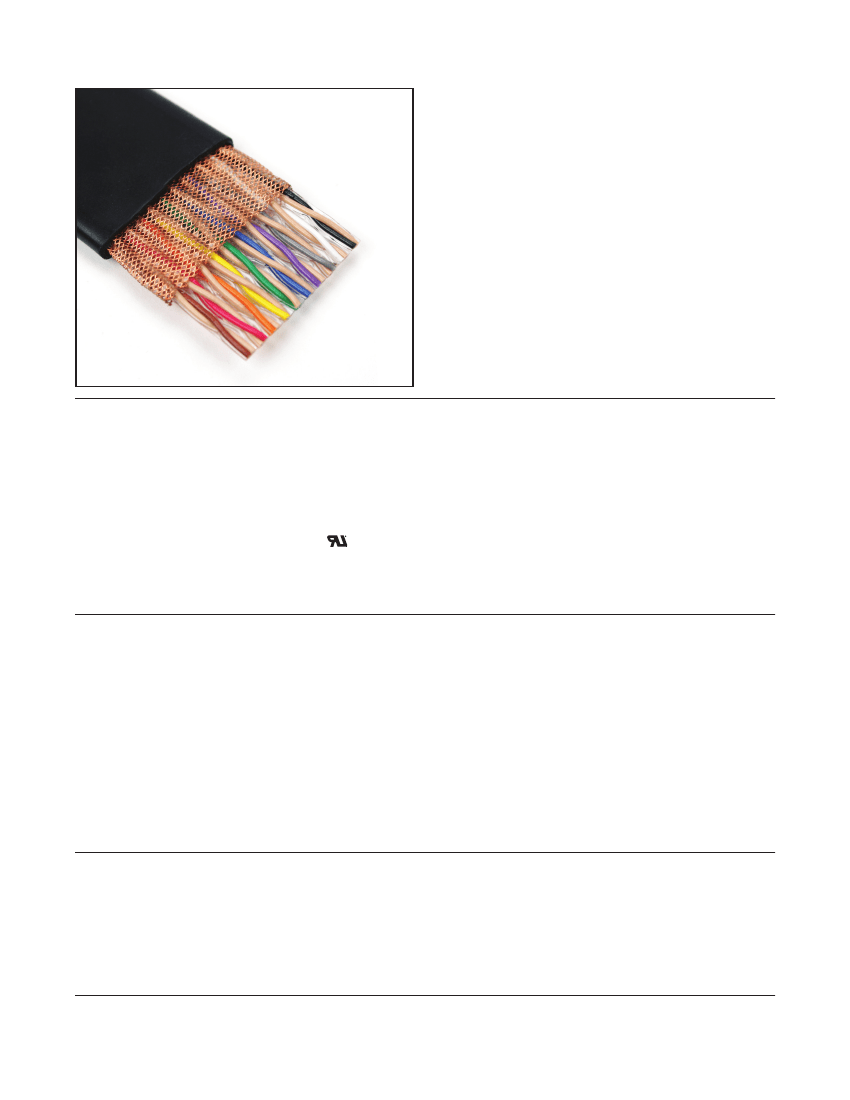

Shielded/Jacketed, Flat Cable
.050" 28 AWG Stranded, Twisted Pair, PVC/PVC
Number of
Conductors
10 (5 pair)
16 (8 pair)
20 (10 pair)
26 (13 pair)
34 (17 pair)
3M Part Number
1785/10
1785/16
Dimension A
0.63 [16.0]
0.93 [23.6]
1785 Series
Dimension B
0.450 ± .010 [11.43]
0.750 ± .015 [19.05]
C
36 (18 pair)
40 (20 pair)
50 (25 pair)
60 (30 pair)
64 (32 pair)
1785/20
1785/26
1785/34
1785/36
1785/40
1785/50
1785/60
1785/64
1.13 [ 28.7 ]
1.43 [ 36.3 ]
1.83 [ 46.5 ]
1.93 [ 49.0 ]
2.13 [ 54.1 ]
2.63 [ 66.8 ]
3.13 [ 79.5 ]
3.38 [ 85.9 ]
0.950 ± .015 [ 24.13 ]
1.250 ± .015 [ 31.75 ]
1.650 ± .020 [ 41.91 ]
1.750 ± .020 [ 44.45 ]
1.950 ± .020 [ 49.53 ]
2.450 ± .020 [ 62.23 ]
2.950 ± .020 [ 74.93 ]
3.150 ± .020 [ 80.01 ]

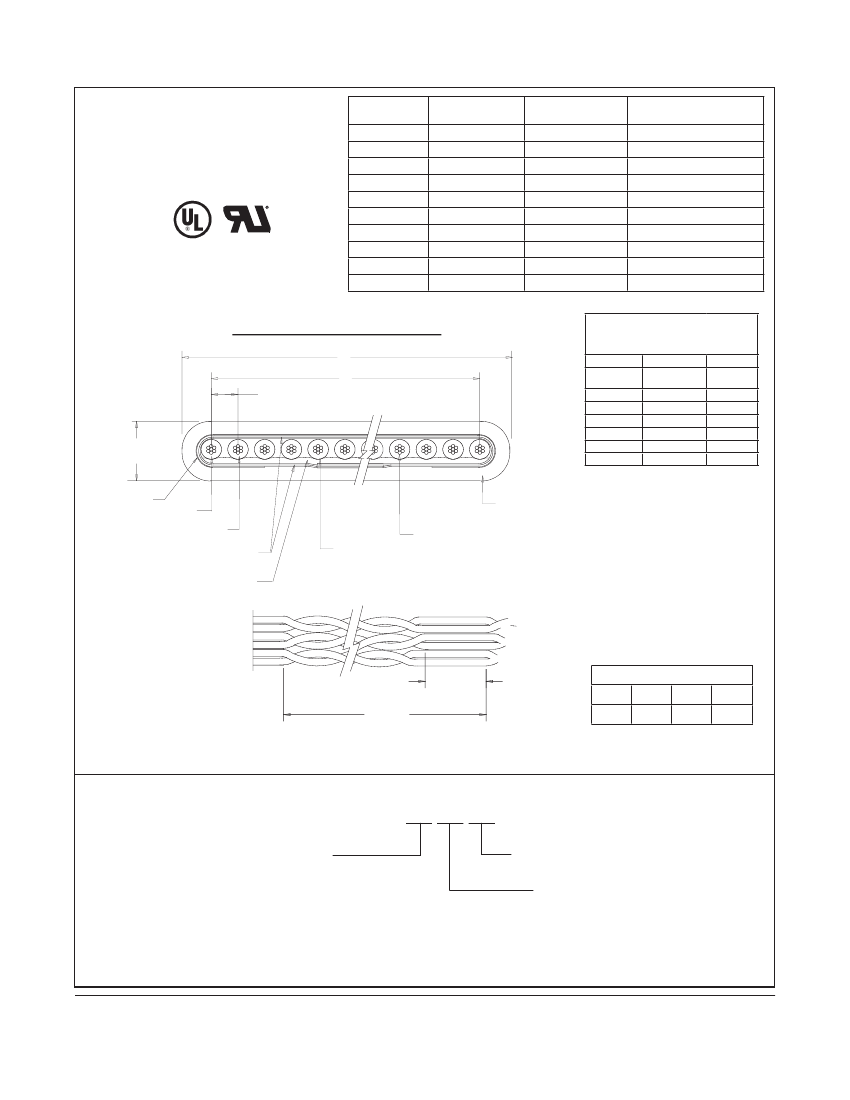

Example of alternate twist and flat repeats
Section Through Termination Area
A
B
.050
±
.002 Typ
[ 1.27 ]
Variable Flat-Repeat Length
Suffix Table
Alternative Twist and Flat Repeats
Suffix
Blank
TO
TB
TD
BP
BA
BW
Repeat (in.)
20.0
22.0
7.5
43.0
9.0
10.5
34.0
* 10 Color Repeat
Brown/Tan
Red /Tan
Orange /Tan
Yellow /Tan
Green /Tan
Blue /Tan
Violet /Tan
Gray /Tan
White /Tan
Black /Tan
Flat (in.)
2.0
4.0
1.0
3.0
1.5
2.0
2.0
(Standard)
*.12
±
.03
[ 3.0 ]
Paper
Brown
Tan
.005 [ 0.13 ] Ref
Expanded Copper
Clear PVC Carrier
PVC Primary
Insulation
.026 [ 0.66 ] Min
PVC Jacket
28 AWG, 7 X 36 AWG [ 7 X Ø 0.127]
Tinned Stranded Copper Conductors
Inch
[mm]
2.0
±
.3
[ 51 ]
20.0
±
.7
[ 508 ]
(See note 1)
Tolerance Unless Noted
.0
Inch
±.1
.00
±.05
.000
±.010
[ ] Dimensions for Reference Only
* Caliper in Twist Area is .15 ± .03 [ 3.8 ]
Ordering Information
1785/XX XX XX
Number of Conductors
(See Table)
Blank = Standard
SF = Splice Free
Blank = Standard
Variable Flat-Repeat Length
(See Variable Flat-Repeat Length Suffix Table)
Note:
1. The twist-flat repeat can be specified from 8.5 inches
(16.5 cm) to 48 inches (1.219 m), and the flat can be
specified as anything over 1 inch (2.54 cm)
2. Available in standard 100 ft and 200 ft rolls, please
specify when ordering. Contact 3M for availability of
custom roll lengths or other special requirements.
TS-0308-C
Sheet 2 of 2
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
