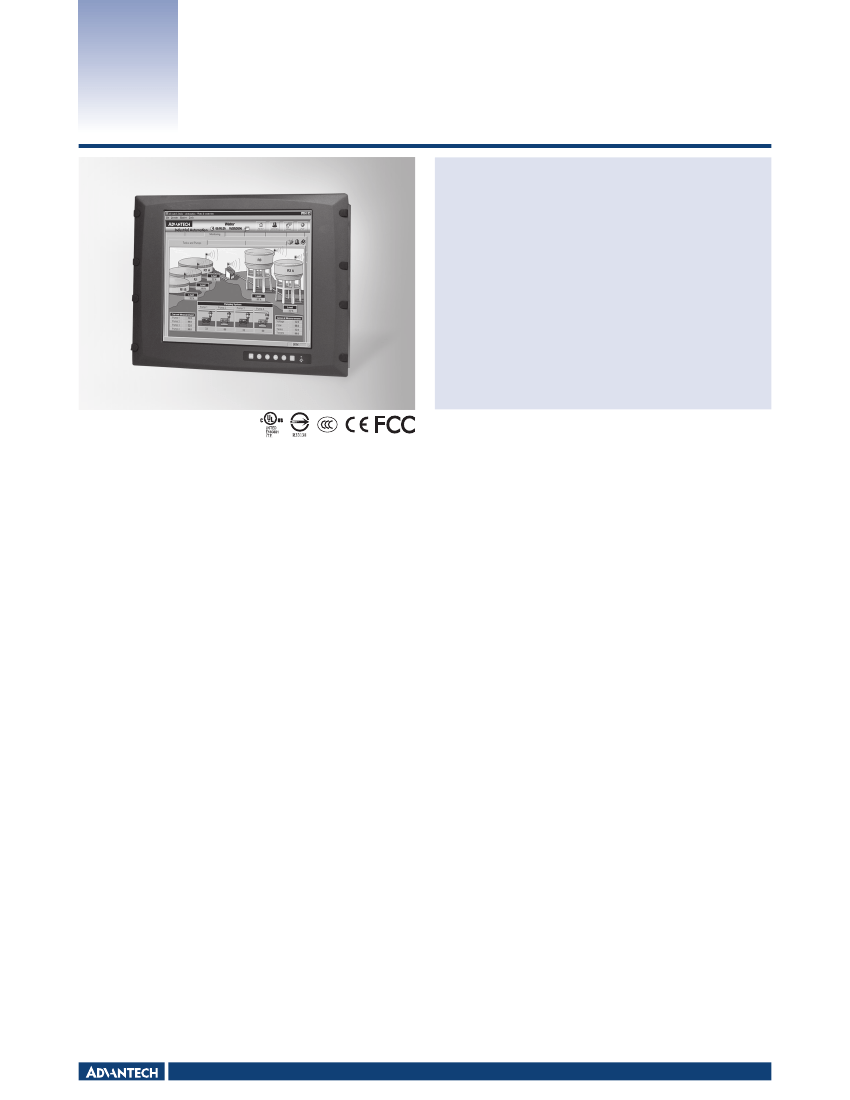

FPM-3171G
8U Rackmount 17" SXGA Industrial
Monitor with Resistive Touchscreen,
Direct-VGA and DVI Ports, and Wide
Operating Temperature Range
Features
17" SXGA TFT LED LCD with 50,000 hours of backlight life
Robust design with stainless steel chassis and aluminum front panel
Anti-glare screen with tempered glass and IP65 certified front panel
Lockable OSD control pad on rear cover
Supports industrial 24V
DC
power input
Supports panel, wall, desktop, rack or VESA arm mounting
Supports 8U pre-drill Rackmount mounting hole
Introduction
FPM-3171G is a 17"color TFT LCD flat panel monitor specifically designed for industrial applications. With a viewing size as large as 17", it presents an simple display area as well
as vivid and sharp images for your HMI. It features direct VGA signal transmission. You can thus upgrade the displays without making changes to the e x isting system. The onscreen
display function also makes it easy to adjust the images on the screen. The whole chassis is designed in stainless steel and the front panel is made of aluminum with front panel
IP65 compliance.
Specifications
General
Button Controls
OSD (Onscreen Display) control pad on front panel
Certification
BSMI, CCC, CE, FCC Class A, UL
Dimensions (W x H x D)
482 x 354.8 x 63.5 mm (18.98" x 13.97" x 2.52")
Enclosure
Front panel: Aluminum with coating
Rear cover: Stainless steel chassis
Mounting
Panel, wall, desktop, VESA arm & 19" rackmount
Power Input
Phoenix Jack: 24 V
DC
input
DC Jack: 12 V
DC
Input
Power Consumption
23W +20%
Video Port
VGA & DVI-D port
Weight (Net)
9.25 kg (20.39 Ibs)
Touchscreen
Driver
Interface
Lifespan
Light Transmission
OS Support
Penmount 6000
RS-232 and USB
35 million touches at a single point
> 80%
Windows XP,2000,Vista,7,8/8.1,10 , XP/7/8/10
Embedded,CE,Linux
+5 V @ 100 mA
Linearity
Power Consumption
Touch Resolution
Environment
Operation Temperature
Storage Temperature
Humidity (Storage)
Waterproof
Vibration
-20 ~ 60°C (-4 ~ 140°F)
-30 ~ 80°C (-22 ~ 176°F)
90% @ 50°C non-condensing
Front panel is IP65 compliant
5 ~ 500 Hz, 1 Grms (Operating, Random)
LCD Display
Display Type
Display Size
Max. Resolution
Max. Color
Viewing Angle (H/V°)
Luminance (cd/m
2
)
Backlight Life (hrs)
Contrast Ratio
'SXGA TFT LCD with LED backlight
17"
1280 x 1024
16.7 M
160/140
350
50,000
1000:1
Automation Panels
All product specifications are subject to change without notice
Last updated : 27-Jul-2016
FPM-3171G

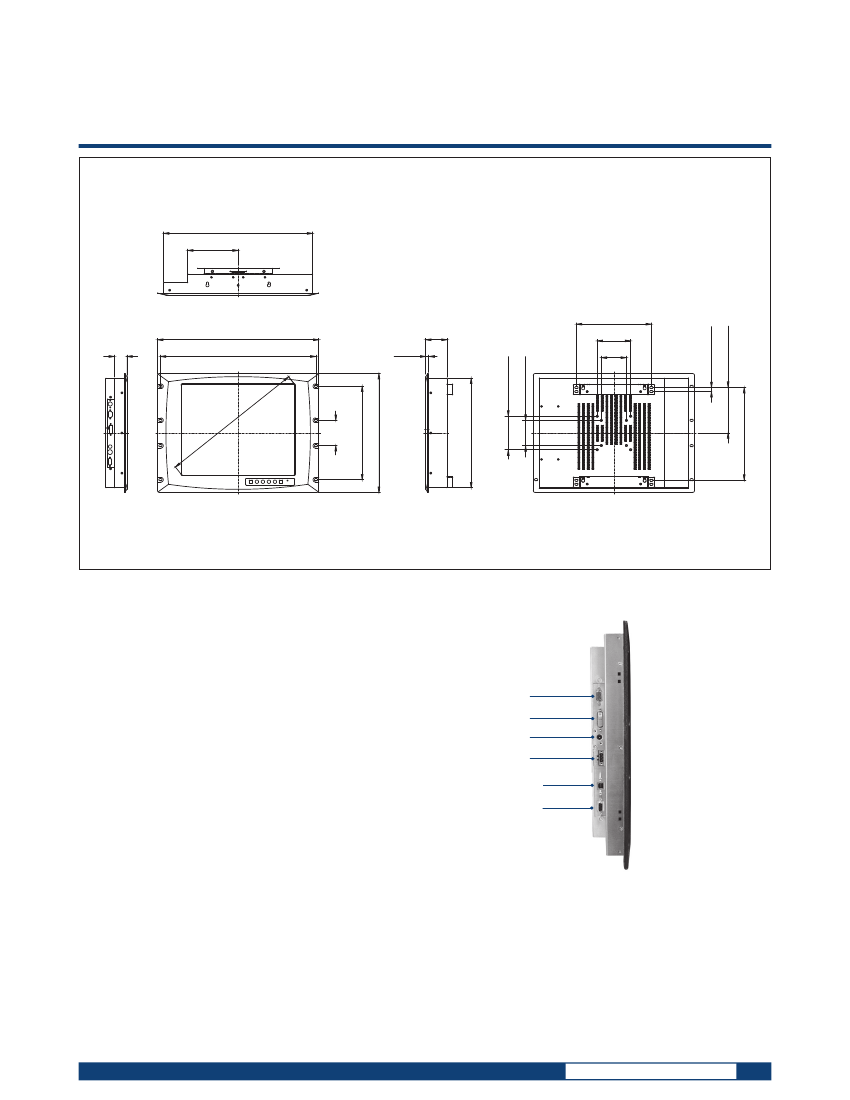

Dimensions
445.20 (17.52”)
151.00
(5.94”)
Unit: mm [inch]
Diameters of the rackmount holes:
Vertical: 6.5 mm
Horizontal: 9 mm
224.00 (8.82”)
465.00 (18.31”)
7.00
(0.27”)
75.00
(2.95”)
12.00 (0.47”)
37.50
(1.47”)
135.60 (5.33”)
276.20 (10.87”)
482.00 (18.98”)
63.50 (2.50”)
100.00 (3.94”)
75.00 (2.95”)
100.00 (3.94”)
279.40 (11.00”)
354.80 (13.97”)
Panel Cut-out Dimensions: FPM-3171G: 447.2 x 329.2 mm (17.6" x 12.96")
Ordering Information
FPM-3171G-R3BE
17"SVGA WT Ind. Monitor w/Resistive TS (Combo)
76.20
(3.00”)
1
2.9
43
I/O View
Optional Accessories
1702002600
1702002605
1702031801
1700000596
Power Cable US Plug 1.8 M
Power Cable EU Plug 1.8 M
Power Cable UK Plug 1.8 M
Power Cable China/Australia Plug 1.8 M
(Direct rack mounting, no need accessory)
Adapter 100-240V 60W 12V 5A
Adapter 100-240V 60W 24V 2.5A
Adapter bracket for FPM-3000 15"/17"/19"
VGA Port
DVI-D
DC-Jack 12V
DC
for
Power Adapter
Phoeni x Jack: 24 V
DC
T/S USB Port
T/S RS-232 Port
96PSA-A60W12V1-1
96PSA-A60W24T2
FPM-3001G-ADKE
327.20 (12.88”)
)
4”
7.0
(1
