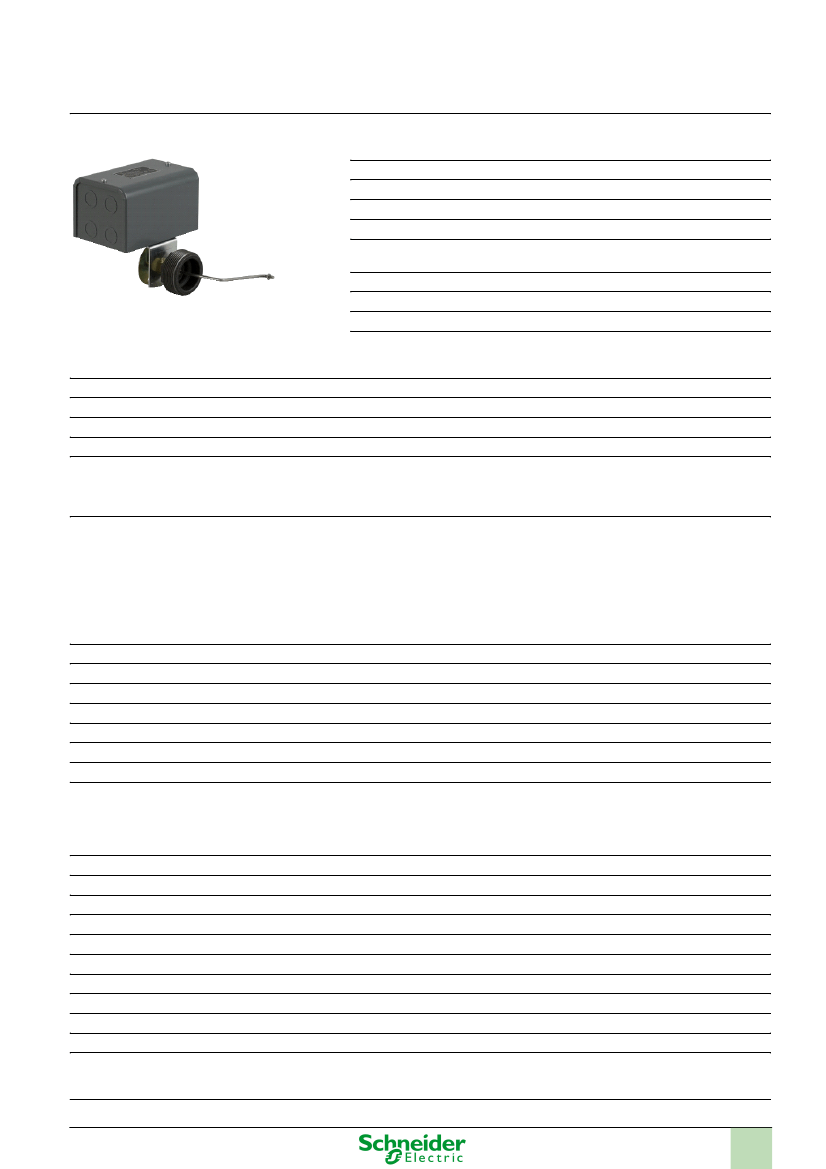

Product datasheet
Characteristics
9038CG36L
Main
Range of product
Product or component type
Device application
Device short name
Product specific application
Electrical circuit type
Quantity per set
Type of packing
Square D Pumptrol
Mechanical alternator
Closed tank with bushing
9038C
Mechanically alternating the operation of two
pumps or motors
Power circuit
Set of 1
Individual
Complementary
Product destination
Device mounting
Cable entry number
Contacts type and composition
Controlled fluid
For closed tank
Screw-in bushing
8 knock-outs for 1/2" or 3/4"conduit UL 508
4 NC snap action DPST-DB Form YY
Fresh water @ specific gravity of 0.85 in or higher 0...220 °F
Sea water @ specific gravity of 0.85 in or higher 0...220 °F
Hydraulic oil @ specific gravity of 0.85 in or higher 0...220 °F
Corrosive fluid @ specific gravity of 0.85 in or higher 0...220 °F
1.5 kW 2 hp @ 115 V AC 1 phase
2.2 kW 3 hp @ 115 V AC 3 phases
2.2 kW 3 hp @ 230 V AC 1 phase
3.7 kW 5 hp @ 230 V AC 3 phases
0.75 kW 1 hp @ 460 V AC 3 phases
0.75 kW 1 hp @ 475 V AC 3 phases
0.18 kW 0.25 hp @ 32 V DC
0.37 kW 0.5 hp @ 115 V DC
0.37 kW 0.5 hp @ 230 V DC
Screw-clamp terminals 10 AWG
Contacts close on liquid rise
4.75...9.25 in adjustable
Left
90° (offset)
Cartridge fuse gG
With external pointer
Cast iron
316 stainless steel
Nitrile (Buna-N) or equivalent rubber
Yellow brass
304 stainless steel
Painted cold-rolled steel
Vertical position only
100 cycles @ 60 cyc/mn
300 cycles
8 terminals
60 cyc/mn
575 V UL 508
8.22 lb(US)
Line-load-load-line
Omit float
Float
Rod
Float switch
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Motor power kW
Electrical connection
Contact operation
Float movement
Float position
Float rod angle
Short-circuit protection
Local signalling
Materials in contact with fluid
Enclosure material
Operating position
Electrical durability
Mechanical durability
Terminal block type
Operating rate
[Ui] rated insulation voltage
Product weight
Terminals description ISO n°1
Factory modification
Kit composition
1/2
Environment
standards
ambient air temperature for operation
ambient air temperature for storage
NEMA degree of protection
product certifications
CE
UL 508
-22...220 °F
-22...220 °F
NEMA 1 UL 50
UL listed file E12158
CSA file LR25490
Offer Sustainability
Not Green Premium product
Will not be Compliant
Reference not containing SVHC above the threshold
Available
Available
WARNING: This product can expose you to chemicals
including:
Not Green Premium product
Will not be Compliant
Reference not containing SVHC above the threshold
Available
Available
WARNING: This product can expose you to chemicals including:
Lead and lead compounds, which is known to the State Lead and lead compounds, which is known to the State of California to cause cancer
of California to cause cancer and birth defects or other and birth defects or other reproductive harm.
reproductive harm.
Di-isodecyl phthalate (DIDP) which is known to the State Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth
of California to cause birth defects or other reproductive defects or other reproductive harm.
harm.
For more information go to www.p65warnings.ca.gov
For more information go to www.p65warnings.ca.gov
Contractual warranty
Warranty period
18 months
2/2
