VW3A3202

Description
I/O module EXTENDED I/O OPTION CARD TV71
CategoryMechanical and electronic products    I/O module
File Size182KB,3 Pages
ManufacturerSCHNEIDER ELECTRIC
Download Datasheet Parametric View All

VW3A3202 Online Shopping

Suppliers Part Number Price MOQ In stock
VW3A3202 - - View Buy Now

VW3A3202 Overview

I/O module EXTENDED I/O OPTION CARD TV71

VW3A3202 Parametric

Parameter NameAttribute value
MakerSCHNEIDER ELECTRIC
Product CategoryI/O module
Shipping restrictionsMouser does not currently sell this product.
seriesVW3A32
Factory packaging quantity1
Product datasheet
Characteristics

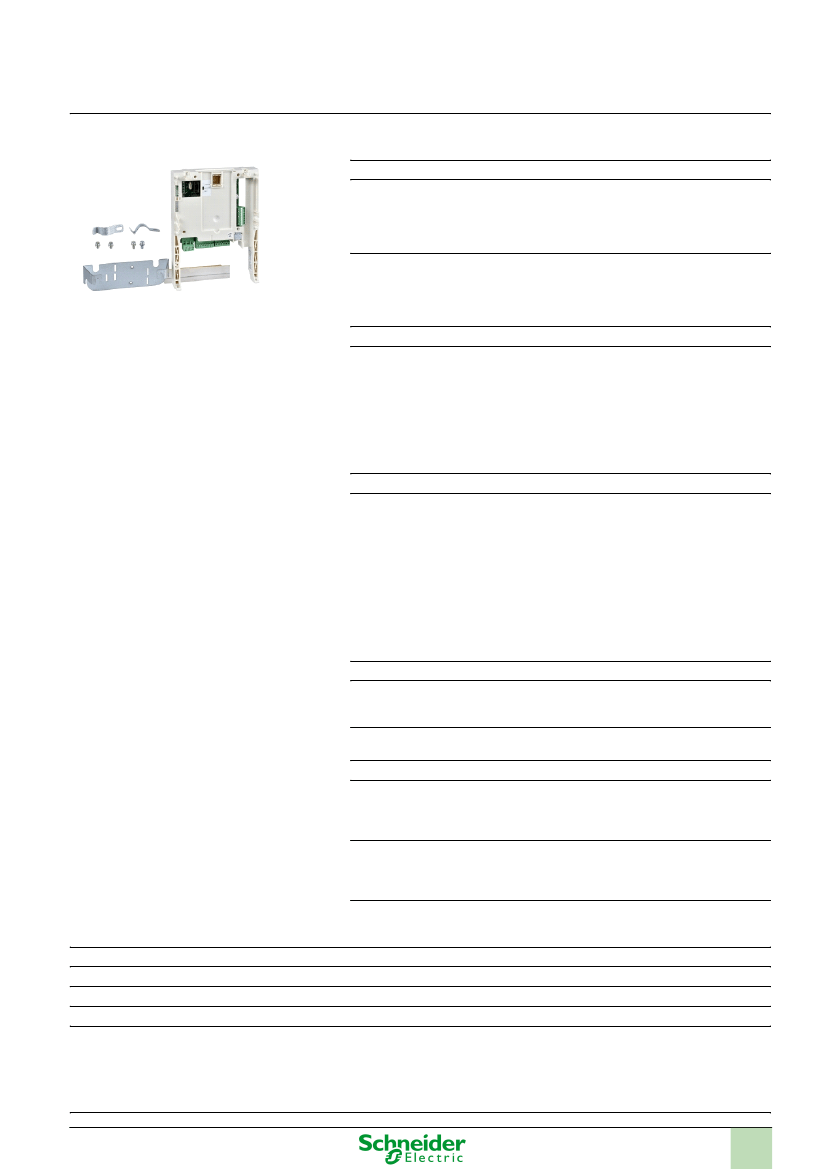

VW3A3202
Main
Product or component type
Range compatibility
Extended I/O card
Altivar 61
Altivar 71
Altivar Lift
Altivar 61Q
Altivar 71Q
Internal supply for reference potentiometer, 10.5 V
DC (10...11 V) , <= 0.01 A, impedance: 1...10
kOhmfor overload and short-circuit protection
Internal supply, 24 V DC (21...27 V) , <= 0.2 Afor
overload and short-circuit protection
2
AI3-/Al3+ differential current programmable: 0...20
mA, impedance: 250 Ohm, sampling time: 4...6
ms, resolution: 11 bits + sign
AI4 software-configurable current: 0...20 mA,
impedance: 250 Ohm, sampling time: 4...6 ms,
resolution: 11 bits
AI4 software-configurable voltage: 0...10 V DC, 24
V max, impedance: 30000 Ohm, sampling time:
4...6 ms, resolution: 11 bits
2
AO2 software-configurable current: 0...20 mA,
impedance: 500 Ohm, sampling time: 4...6 ms,
resolution: 10 bits
AO3 software-configurable current: 0...20 mA,
impedance: 500 Ohm, sampling time: 4...6 ms,
resolution: 10 bits
AO2 software-configurable voltage: +/- 10 V DC,
impedance: 470 Ohm, sampling time: 4...6 ms,
resolution: 10 bits
AO3 software-configurable voltage: +/- 10 V DC,
impedance: 470 Ohm, sampling time: 4...6 ms,
resolution: 10 bits
5
(LO3, LO4) assignable logic, sampling time: 4...6
ms, compatible with level 1 PLC
(R4A, R4B, R4C) configurable relay logic
(LO3, LO4) negative
(LO3, LO4) positive
6
(RP) frequency control, , sampling time: 4...6 ms
(LI11...LI14) programmable, , compatible with
level 1 PLC, impedance: 3.5 kOhm, sampling
time: 4...6 ms
(LI11...LI14) negative state 0 >= 16 V state 1 <= 10
V
(LI11...LI14) positive state 0 <= 5 V state 1 >= 11 V
(RP) positive state 0 < 1.2 V state 1 >= 3.5 V
Supply
Analogue input number
Analogue input type
Analogue output number
Analogue output type
Discrete output number
Discrete output type
Discrete output logic
Discrete input number
Discrete input type
Discrete input logic
Complementary
Electrical durability
Discrete output voltage
Maximum output current
Minimum switching current
Maximum switching current
100000 cyclesfor configurable relay logicoutput(s)
24 V DC (voltage limits:<= 30 V) assignable logic
0.2 A, assignable logic
Configurable relay logic 3 mAfor 24 V DC
Configurable relay logic 5 Aat 250 V AC on resistive load, cos phi = 1
Configurable relay logic 5 Aat 30 V DC on resistive load, cos phi = 1
Configurable relay logic 1.5 Aat 250 V AC on inductive load, cos phi = 0.4 and L/R = 7
ms
Configurable relay logic 1.5 Aat 30 V DC on inductive load, cos phi = 0.4 and L/R = 7
ms
1/2
