ROHS COMPLIANT

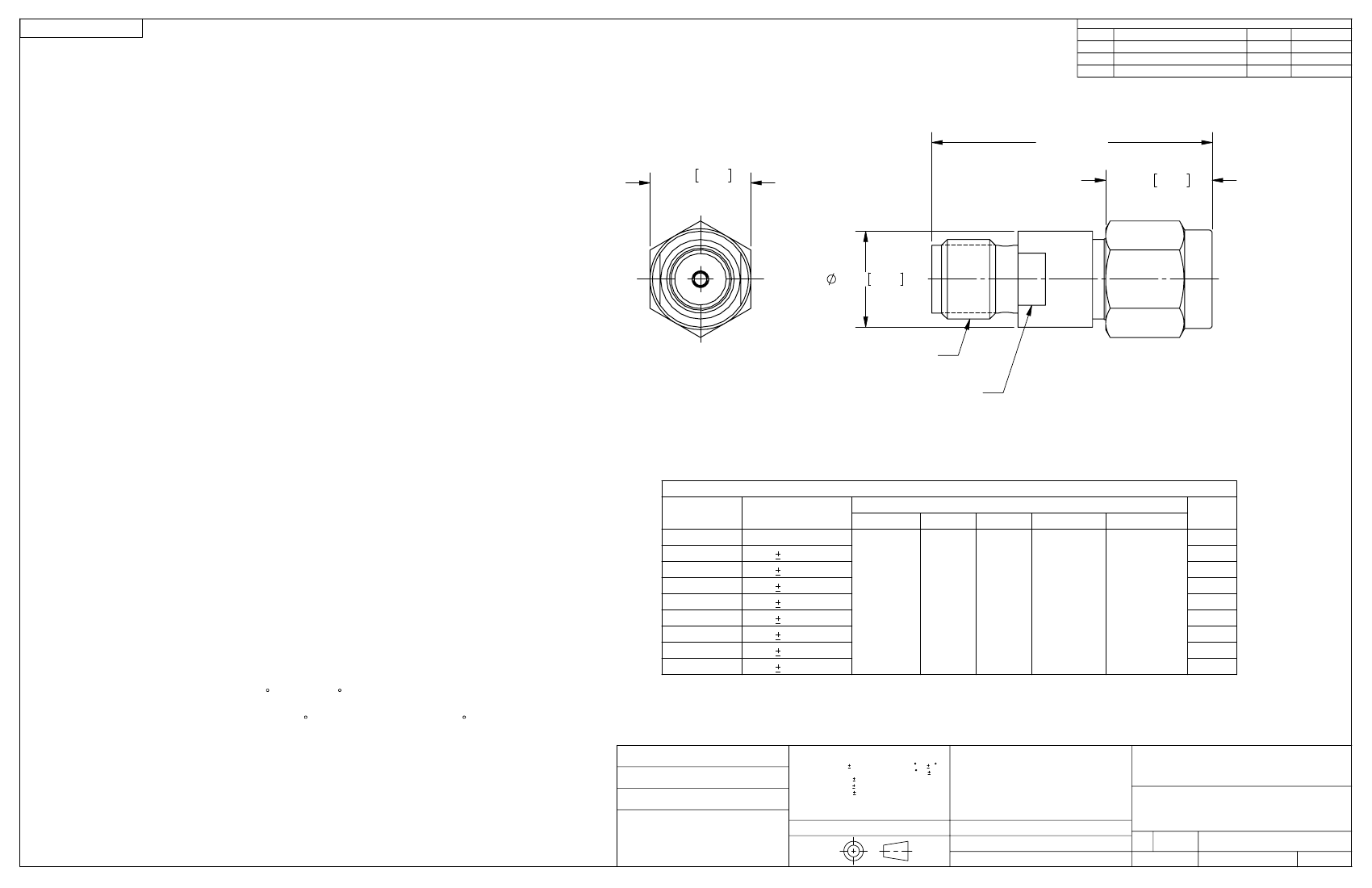

PRODUCT DATA DRAWING
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
DCN 38051
03/11
PJS
"A" MAX.
MATERIAL:
BODIES,
COUPLING NUT:
LOCK RINGS,
CONTACTS:
SLEEVE:
BELLOWS:
INSULATORS:
GASKETS:
RESISTOR ELEMENTS:
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1
BERYLLIUM COPPER PER ASTM B196,
ALLOY No. UNS C17300, TD04
BRASS PER ASTM B16, ALLOY UNS No. C36000
ELECTRO-DEPOSITED GOLD OVER NICKEL
PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B
SILICONE RUBBER PER
A-A-59588,
CLASS 2B, GRADE 50/60
ALUMINA SUBSTRATE WITH
TANTALUM NITRIDE RESISTOR
.312 7.92
HEX
.330 8.38
.298 7.56
1/4-36 UNS-2A
.250 [6.35]
ACROSS 2 FLATS
FINISH:
BODIES,
COUPLING NUT:
CONTACTS,
SLEEVE:
PASSIVATED PER AMS-2700, TYPE 2
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS 1.27; OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
dB VALUE
0 dB
0.5-6.5 dB
7-8.5 dB
9-14.5 dB
15-20 dB
21-29 dB
30-39 dB
40 dB
50 dB
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
VSWR:
OPERATING TEMP.:
AVG. POWER:
PEAK POWER:
ENGAGEMENT/
DISENGAGEMENT:
50 OHMS
DC TO 18.0 GHz
SEE TABLE 1
-55 C TO +125 C
2 WATT (POWER INPUT DERATED LINEARLY
FROM 25 C TO 0.5 WATTS AT 125 C)
500 WATTS (PEAK POWER FOR A DUTY CYCLE
OF 5X10
-4
MAXIMUM PULSE DURATION OF
5 MICROSECONDS)
2 IN-LBS
VSWR
ATTENUATION
ACCURACY
DC-2 GHz 2-4 GHz 4-8 GHz 8-12.4 GHz 12.4-18 GHz
+0 /-0.3 dB
0.3 dB
0.4 dB
0.5 dB
0.6 dB
1.10:1
1.15:1 1.20:1
1.25:1
1.35:1
1.0 dB
1.0 dB
1.0 dB
2.0 dB
TABLE 1
"A"
DIM.
.870
.870
.870
.870
.870
1.040
1.040
1.040
1.350
MATERIAL:
FINISH:
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
FED 03/07/11
PJS 03/07/11
PJS 03/07/11
SMA PLUG TO JACK MICRO
ATTENUATOR DC TO 18 GHz
95077
SIZE CAGE CODE DWG. NO.
B
SF0929-6200-XXX
SHEET 1 OF 2
SCALE: 4:1
ROHS COMPLIANT
PRODUCT DATA DRAWING
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
DCN 38051
03/11
PJS
MAY VARY FROM 1 CHARACTER
TO 3 CHARACTERS

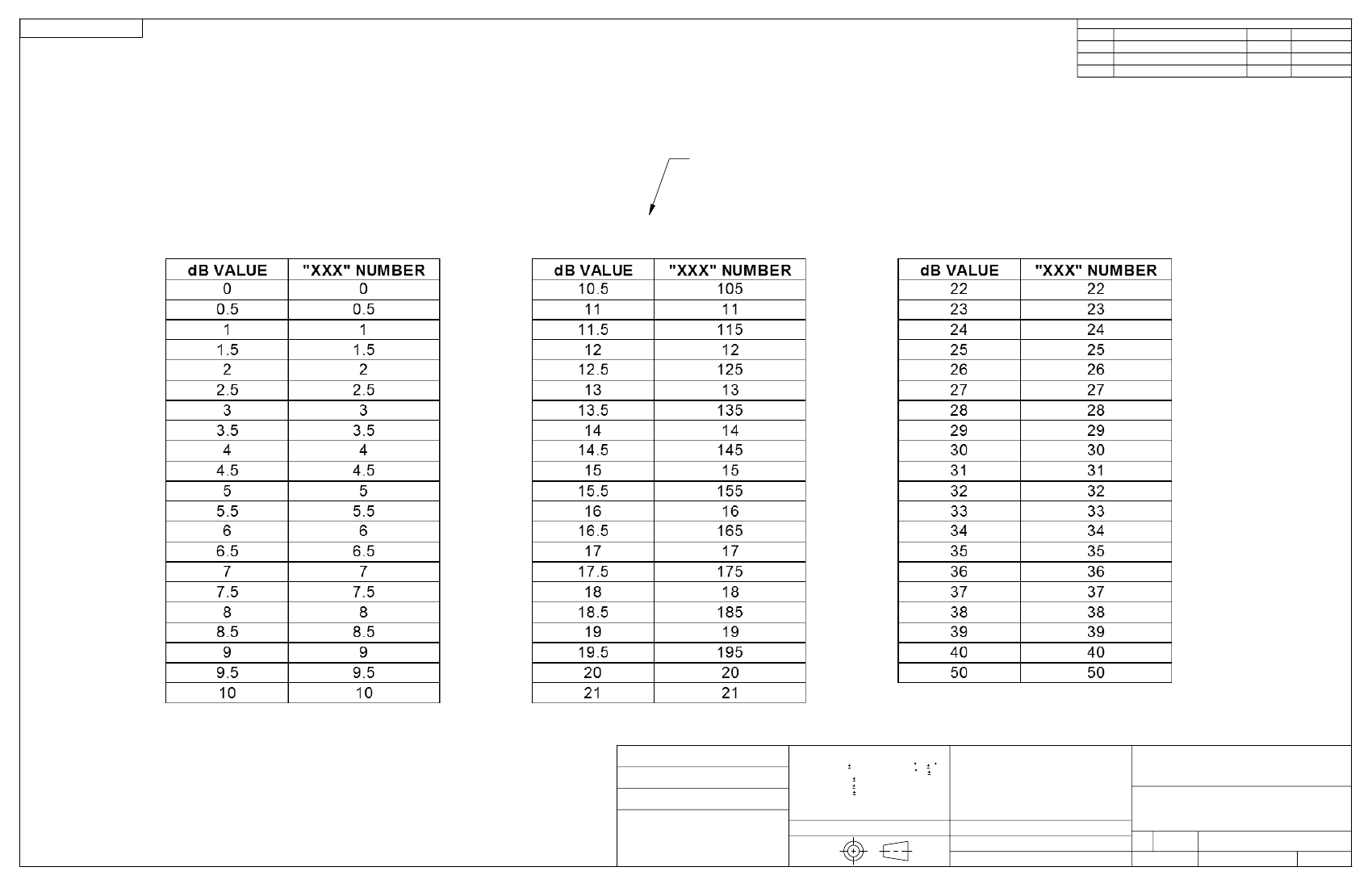

dB VALUE TO "XXX" NUMBER CHART
MATERIAL:
FINISH:
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
FED 03/07/11
PJS 03/07/11
PJS 03/07/11
SMA PLUG TO JACK MICRO
ATTENUATOR DC TO 18 GHz
95077
SIZE CAGE CODE DWG. NO.
B
SF0929-6200-XXX
SHEET 2 OF 2
SCALE: 4:1
