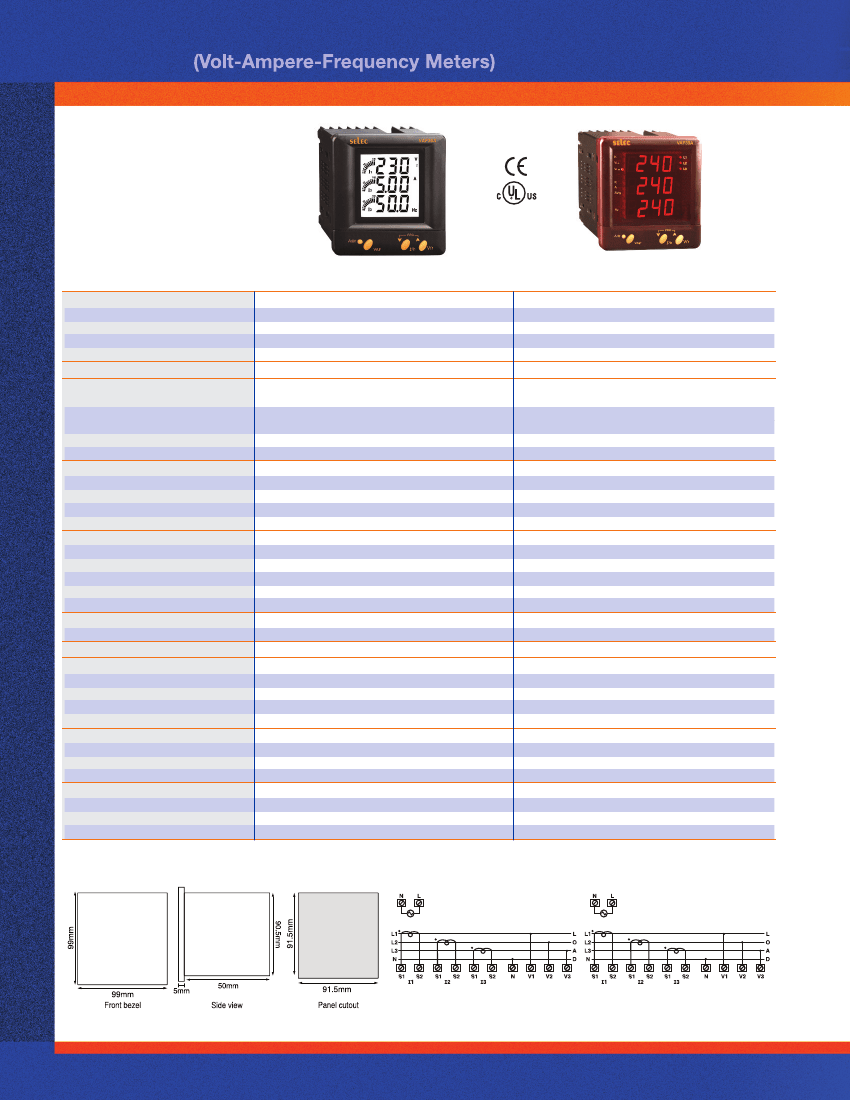

VAF Series
FEATURES
• Measurement Functions
•3 Ø Voltage (True RMS)
•3 Ø Current (True RMS)
•Frequency
•RPM
•Run Hour
• Programmable CT Primary, PT
Primary/Secondary
E253771
CAT. NO.
Display
Display Type
Digits
Bargraph
Display Scrolling
Supply Specification
Input Specification
Electrical Wire System
Input Voltage Range
Input Current Range
Frequency
Parameter Resolution
Current
Voltage
RPM
Run Hour
Accuracy Class
Voltage (L-N, L-L), Current
Average Voltage (L-N, L-L), Current
Frequency
RPM
Run Hour
Output Specifications
Pulse Output
Communication
Programmable Parameters
CT Primary
CT Secondary
PT Primary
PT Secondary
Environmental Specifications
Temperature
Humidity
Protection Level
Physical Specifications
Size
Weight
Terminal Size Acceptability and Torque
VAF36A-110V-CU
LCD Display with backlight
3 rows of 3 digits
Bargraph for current percentage
Automatic/ Manual
110 VAC +/- 20% (50/60Hz)
3 Phase (3/4 wires)
11 ~ 300 VAC (Phase to Neutral)
19 ~ 519 VAC (Phase to Phase)
20mA ~ 6A (External CT required for current >5A)
45 ~ 65Hz
0.01, 0.1, 1 A/KA
0.1 V/KV
0.1
0.1 hr (0~99999.9 hr)
+/- 0.5% of Full-Scale Value, +/- 2 digits
+/-0.5% of Full-Scale Value, +/- 2 digits
0.1 Hz
+/- 0.5%
+/- 1%
–
–
5A ~ 10,000A (Programmable for any value)
5A fixed (External CT must be connected for current >5A)
100V ~ 500 kV (any value)
100V ~ 500 VAC (any value)
Operating: -10°C~55°C, Storage: -20°C~ 75°C
Up to 85% RH
IP65 for Faceplate
1/4 DIN, 96 mm x 96 mm
0.79 lbs (357g)
20-14 AWG (0.5 - 2.5mm
2
), 6-7 lb-in. (0.68 - 0.79Nm)
VAF39A-110V-CU
7 Segment LED Display
3 rows of 3 digits
–
Automatic/ Manual
110 VAC +/- 20% (50/60Hz)
3 Phase (3/4 wires)
11 ~ 300 VAC (Phase to Neutral)
19 ~ 519 VAC (Phase to Phase)
20mA ~ 6A (External CT required for current >5A)
45 ~ 65Hz
0.01, 0.1, 1 A/KA
0.1 V/KV
0.1
0.1 hr (0~99999.9 hr)
+/- 0.5% of Full-Scale Value, +/- 2 digits
+/-0.5% of Full-Scale Value, +/- 2 digits
0.1 Hz
+/- 0.5%
+/- 1%
–
–
5A ~ 10,000A (Programmable for any value)
5A fixed (External CT must be connected for current >5A)
100V ~ 500 kV (any value)
100V ~ 500 VAC (any value)
Operating: -10°C~55°C, Storage: -20°C~ 75°C
Up to 85% RH
IP65 for Faceplate
1/8 DIN, 48 mm x 96 mm
0.79 lbs (357g)
20-14 AWG (0.5 - 2.5mm
2
), 6-7 lb-in. (0.68 - 0.79Nm)
DIMENSIONS
TERMINAL CONNECTIONS
VAF Series
8
VAF36A-110V-CU
VAF39A-110V-CU
