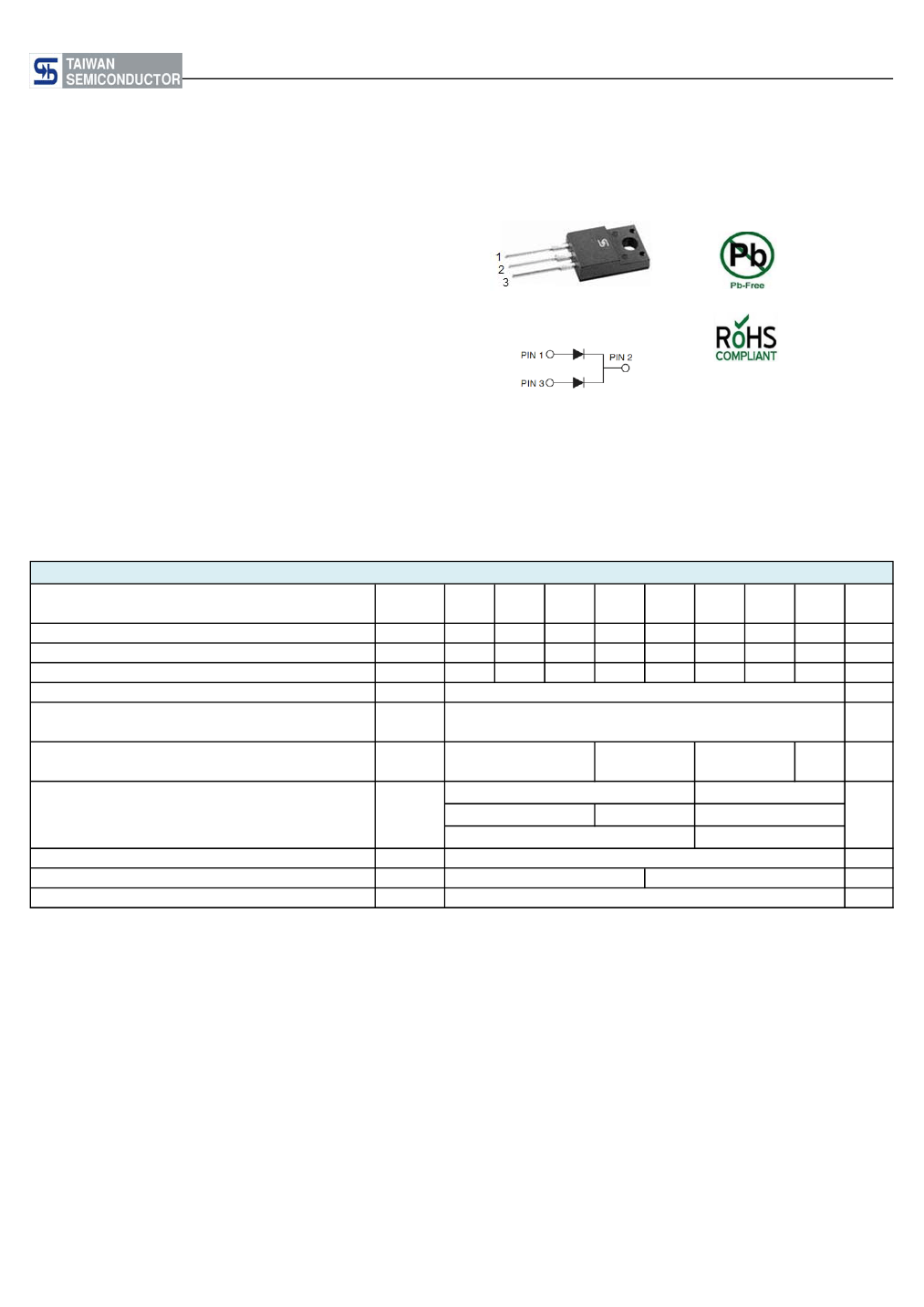

SRF2020 thru SRF20150
Taiwan Semiconductor
CREAT BY ART
FEATURES
- Low power loss, high efficiency
- Guardring for overvoltage protection
- High surge current capability
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Dual Common Cathode Schottky Rectifier
ITO-220AB
MECHANICAL DATA
Case:
ITO-220AB
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Polarity:
As marked
Mounting torque:
5 in-lbs maximum
Weight:
1.7 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum Instantaneous Forward Voltage (Note 1)
I
F
= 10 A
Maximum reverse current @ Rated VR T
J
=25
℃
T
J
=100
℃
T
J
=125
℃
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
0.55
0.5
I
R
R
θJC
T
J
T
STG
- 55 to +125
- 55 to +150
15
-
1.5
- 55 to +150
10
SRF
2020
20
14
20
SRF
2030
30
21
30
SRF
2040
40
28
40
SRF
2050
50
35
50
20
200
0.70
0.92
0.1
-
5
O
SRF
2060
60
42
60
SRF
90
63
90
SRF
100
70
100
SRF
150
105
150
2090 20100 20150
UNIT
V
V
V
A
A
1.02
V
mA
C/W
O
O
C
C
Document Number: DS_D1309023
Version: I13
SRF2020 thru SRF20150
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
SRF20xx
(Note 1)
AEC-Q101
QUALIFIED
Prefix "H"
C0
PACKING CODE
GREEN COMPOUND
CODE
Suffix "G"
ITO-220AB
50 / Tube
PACKAGE
PACKING
Note 1: "xx" defines voltage from 20V (SRF2020) to 150V (SRF20150)
EXAMPLE
PREFERRED P/N
SRF2060 C0
SRF2060 C0G
SRF2060HC0
PART NO.
SRF2060
SRF2060
SRF2060
H
AEC-Q101
QUALIFIED
PACKING CODE
C0
C0
C0
G
Green compound
AEC-Q101 qualified
GREEN COMPOUND
CODE
DESCRIPTION

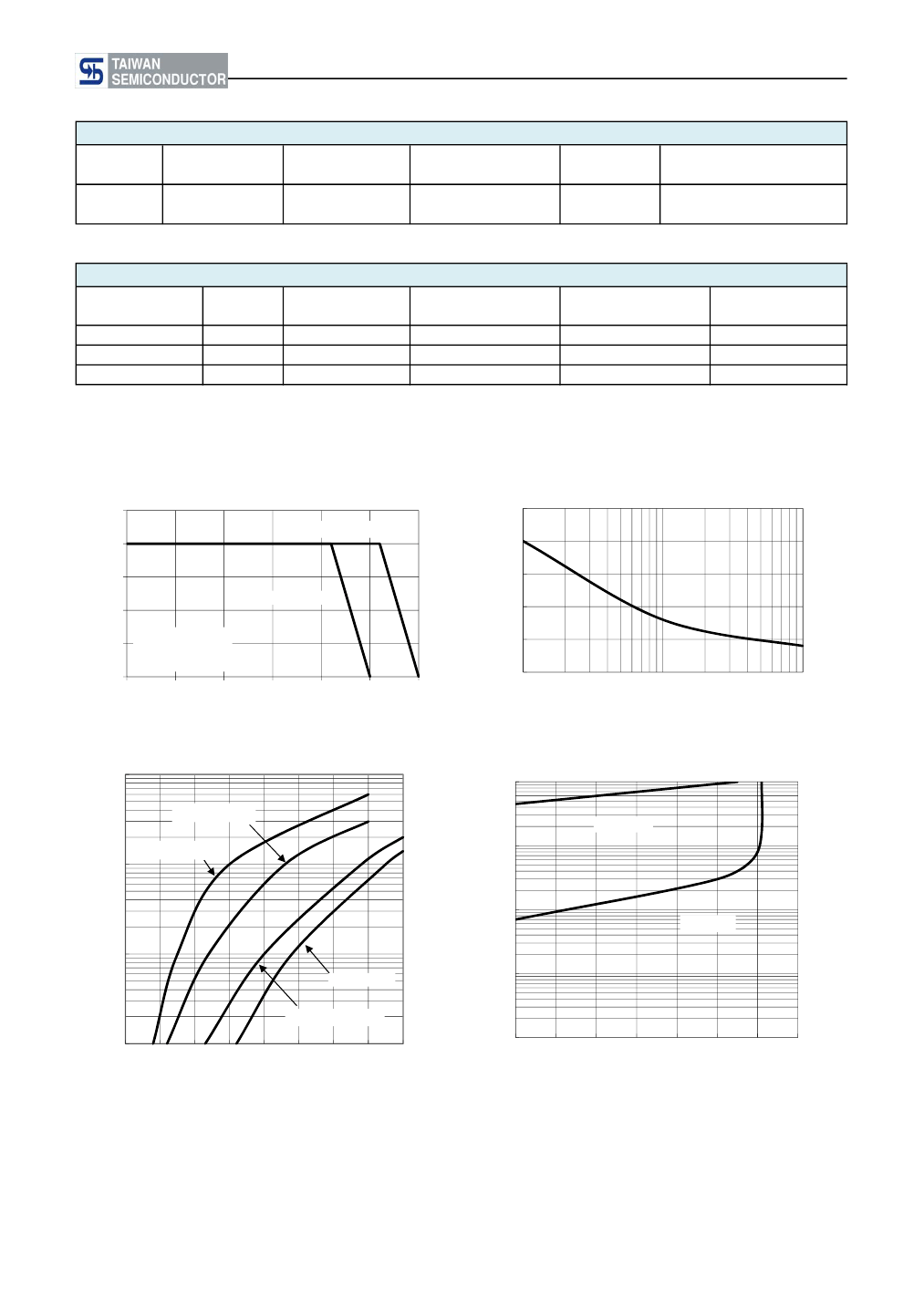

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG. 2 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT
(A)
250
200
150
100
50
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
FIG.1 FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD CURRENT (A)
25
SRF2060 - 20150
20
15
10
5
0
0
25
50
75
100
125
150
LEAD TEMPERATURE (
o
C)
RESISTIVE OR
INDUCTIVE LOAD
WITH HEATSINK
SRF2020 - 2050
FIG. 3 TYPICAL FORWARD CHARACTERISTICS
100
10
SRF2050-2060
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
INSTANTANEOUS FORWARD CURRENT (A)
INSTANTANEOUS REVERSE CURRENT. (mA)
TJ=100℃
1
SRF2020-2040
10
0.1
TJ=25℃
1
SRF20150
SRF2090-20100
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
FORWARD VOLTAGE (V)
0.01
0.001
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE.(%)
Document Number: DS_D1309023
Version: I13
SRF2020 thru SRF20150
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
TRANSIENT THERMAL IMPEDANCE (℃/W)
FIG. 6 TYPICAL TRANSIENT THERMAL
IMPEDANCE
100
10000
JUNCTION CAPACITANCE (pF)
f=1.0MHz
Vslg=50mVp-p
10
SRF2020-2040
SRF2050-2060
SRF2090-20150
1000
1
100
0.1
1
10
100
REVERSE VOLTAGE (V)
0.1
0.01
0.1
1
T-PILSE DURATION(s)
10
100
PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
4.30
2.50
2.30
0.46
6.30
9.60
3.00
0.95
0.50
2.40
14.80
-
12.60
-
2.41
Max
4.70
3.16
2.96
0.76
6.90
10.30
3.40
1.45
0.90
3.20
15.50
4.10
13.80
1.80
2.67
Unit (inch)
Min
0.169
0.098
0.091
0.018
0.248
0.378
0.118
0.037
0.020
0.094
0.583
-
0.496
-
0.095
Max
0.185
0.124
0.117
0.030
0.272
0.406
0.134
0.057
0.035
0.126
0.610
0.161
0.543
0.071
0.105
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
MARKING DIAGRAM
P/N
G
YWW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
