LEOPARD IMAGING INC
LI-AR0231-GMSL-xxxH
Data Sheet
Key Features
ON SEMI 2.3MP AR0231 RCCB
Sensor
Optical format: 1/2.7"
Maximum resolution: 1928H x 1208V
Pixel size: 3 um x 3 um
Full resolution @ 30fps
Output 12 bit Raw data
27MHz clock input
Support 4 V ~ 12V Power
Lens: FOV H 60 / 120 / 200
MAX96705 Serializer
Support Nvidia Drive PX2
Connector: FAKRA Z TYPE
Water proof: IP67 (Up to IP69K)
Operation Temp: -40 ~ 85 ℃
Storage Temp: -40 ~ 105 ℃
Size: 30 x 30 x 20.2 mm
Weight: 45 g
Part#:
LI-AR0231-GMSL-xxxH
Application
Automotive ADAS
1080p30 video applications
ADAS + Viewing Fusion

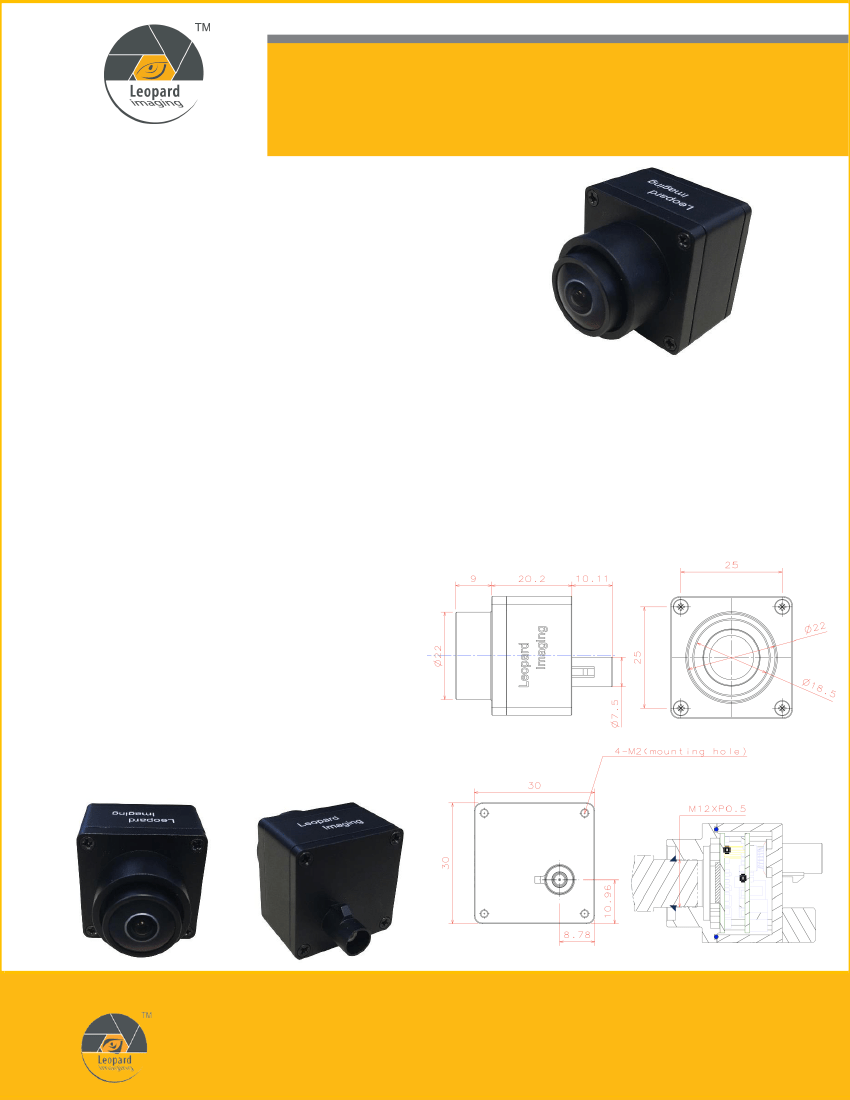

Dimensions
Leopard Imaging Inc.
1130 Cadillac Ct., Milpitas, CA 95035, USA
Phone: +1-408-263-0988
Fax: +1-408-217-1960
Email:sales@leopardimaging.com
Website: www.leopardimaging.com

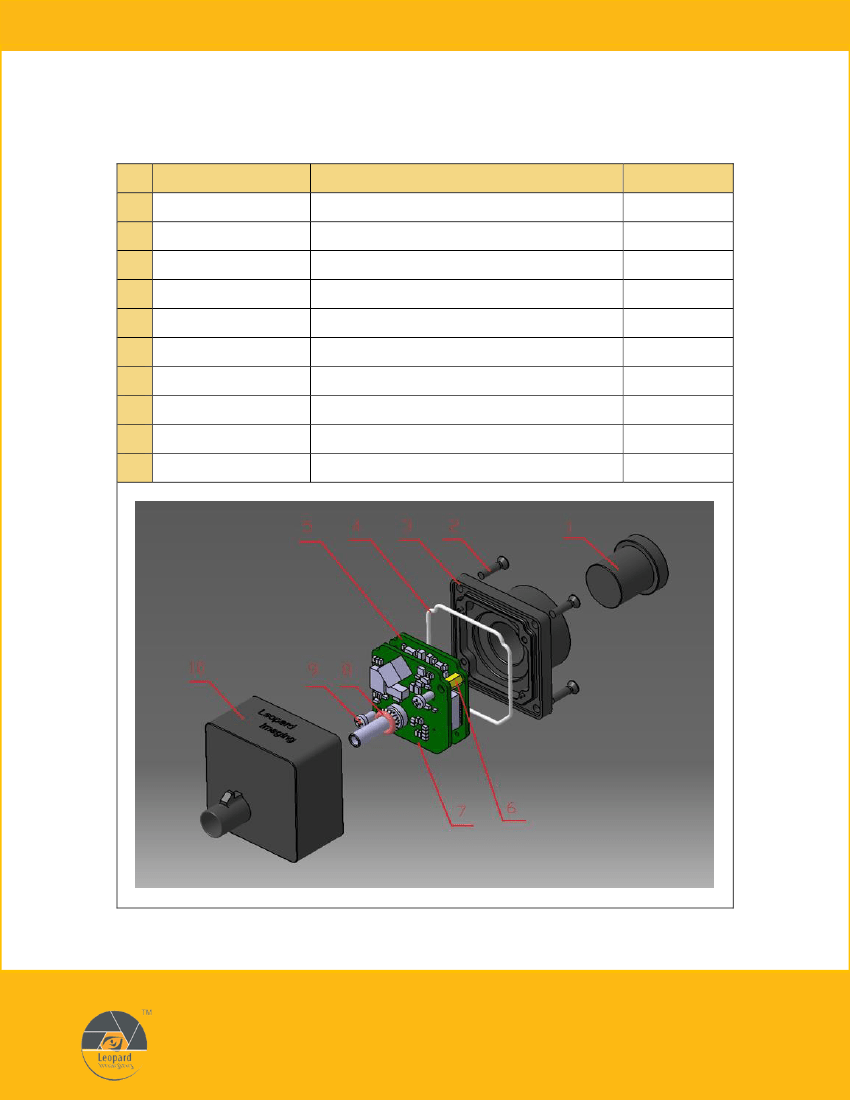

BOM
#
Name
SPEC
1
Lens
M12 lens
2
Screw
M2*8 cross flat head black ZINC
3
Shell 2
AL6061-T6 BLACK Anodizing
4
Sealing ring
Silicon rubber, White
5 LI-AR0231-CAM AR0231 sensor board
6
Copper pillar
M2*5+3
7
LI-GMSL-FKR GMSL board
8
O ring
6.5*1.5 Silicon rubber Red
9
Screw
M2*4 cross pan head black ZINC
10
Shell 1
AL6061-T6 BLACK Anodizing
QTY/SET
1
4
1
1
1
2
1
1
2
1
\\\\
\\\\\\\\\\\\\\\\\\
\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\
Leopard Imaging Inc.
1130 Cadillac Ct., Milpitas, CA 95035, USA
Phone: +1-408-263-0988
Fax: +1-408-217-1960
Email:sales@leopardimaging.com
Website: www.leopardimaging.com

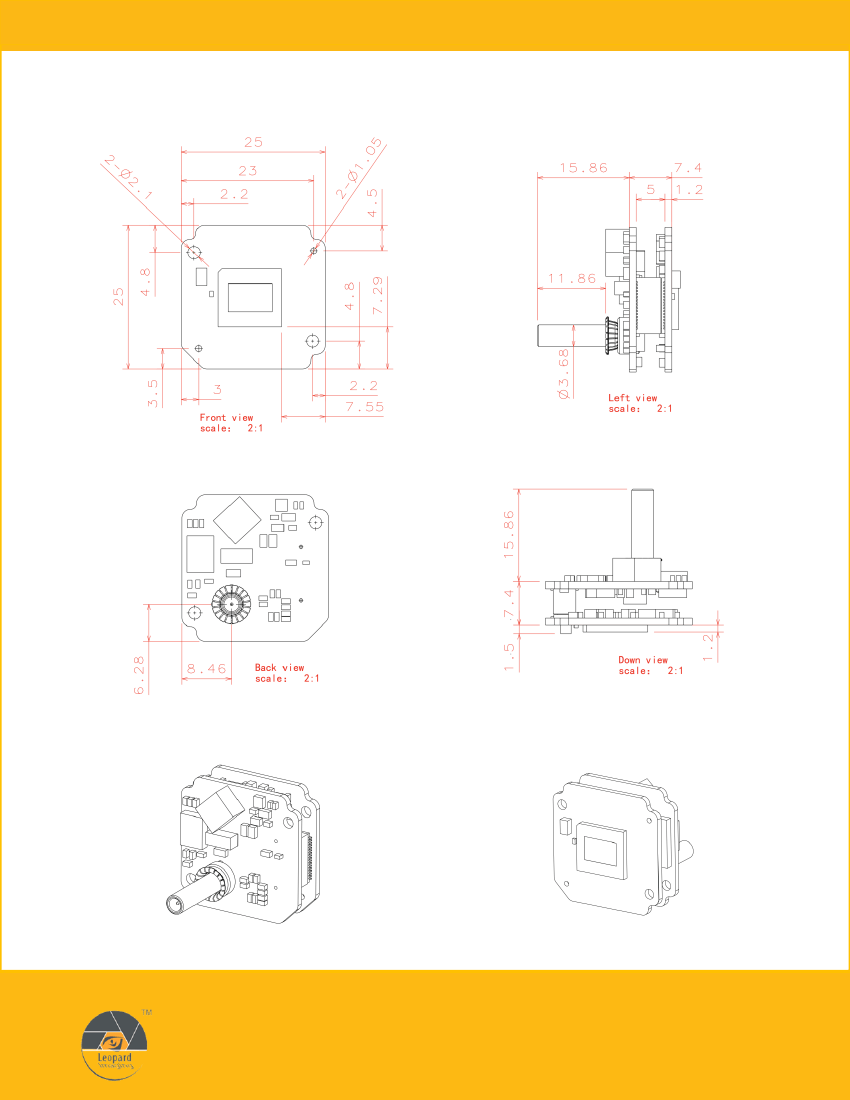

Camera boards Dimensions
Leopard Imaging Inc.
1130 Cadillac Ct., Milpitas, CA 95035, USA
Phone: +1-408-263-0988
Fax: +1-408-217-1960
Email:sales@leopardimaging.com
Website: www.leopardimaging.com

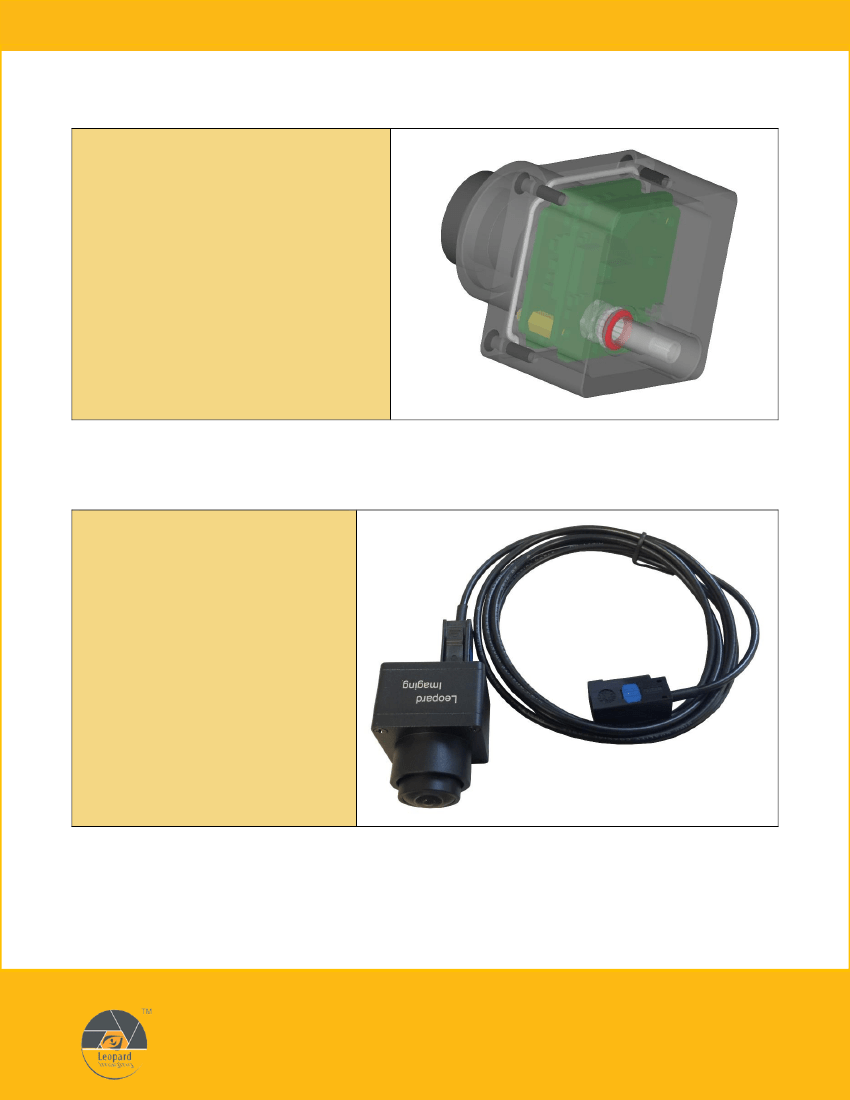

Water Proof
Metal Housing
Water-proof M12 lens
Sealed Gasket (White)
Sealed O-ring (Red)
Cable Connector
Housing Connector-
FAKRA Z Type
Cable length: 3 meters
Support single Coax Cable
transmit up to 15 meters
Cable Part#: FAK-
SMZSMZ-0008
FAKRA type connectors
Leopard Imaging Inc.
1130 Cadillac Ct., Milpitas, CA 95035, USA
Phone: +1-408-263-0988
Fax: +1-408-217-1960
Email:sales@leopardimaging.com
Website: www.leopardimaging.com
\\\\
\\\\\\\\\\\\\
Ordering Information
Part#: LI-AR0231-GMSL-xxxH
Note:

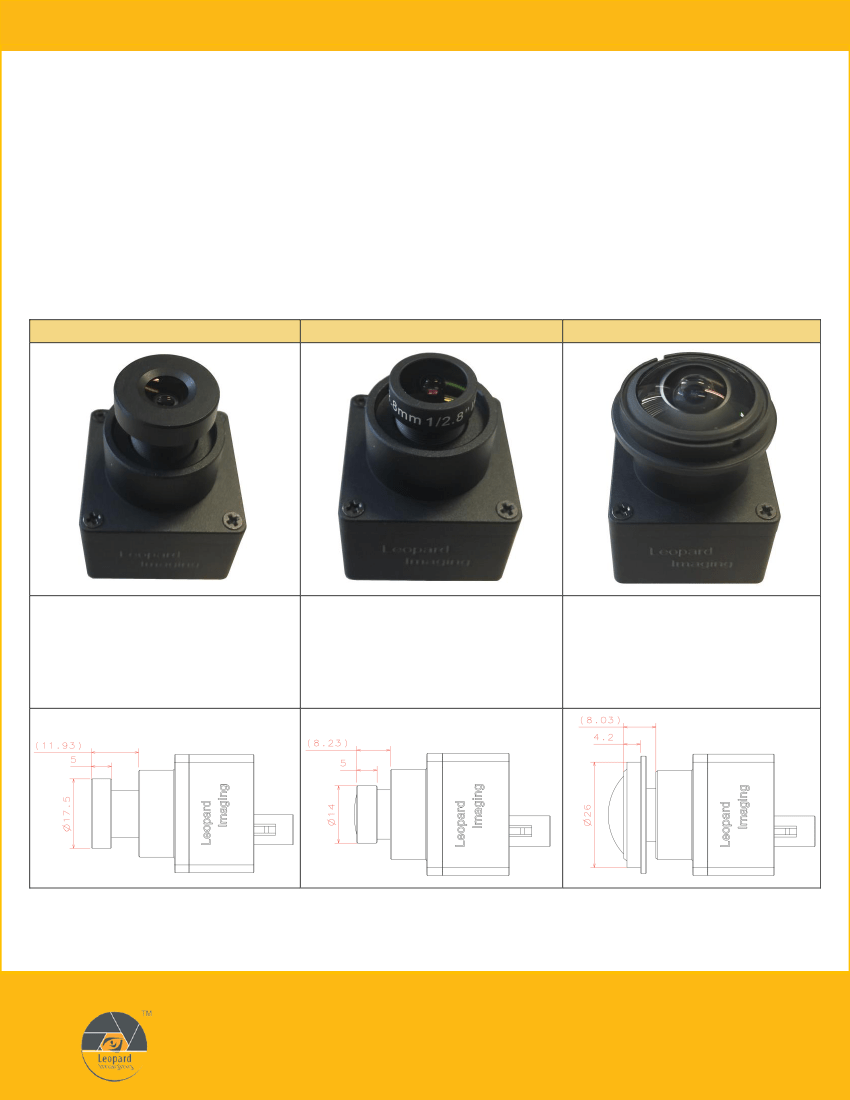

Sensor Revision 7: RCCB
xxxH - 060H: FOV H 60°
120H: FOV H 120°
200H: FOV H 200°
LI-AR0231-GMSL-060H
LI-AR0231-GMSL-120H
LI-AR0231-GMSL-200H
Lens: M127B0618W
Lens EFL: 6.0 mm
FOV(D): 74.5°
FOV(H): 60.6°
FOV(V): 36.1°
Lens: M128B02820WM12R1
Lens EFL: 2.8 mm
FOV(D): 148°
FOV(H): 122°
FOV(V): 74°
Lens: F132B0108WM12
Lens EFL: 1.08 mm
FOV(D): 200°
FOV(H): 200°
FOV(V): 200°
\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\
