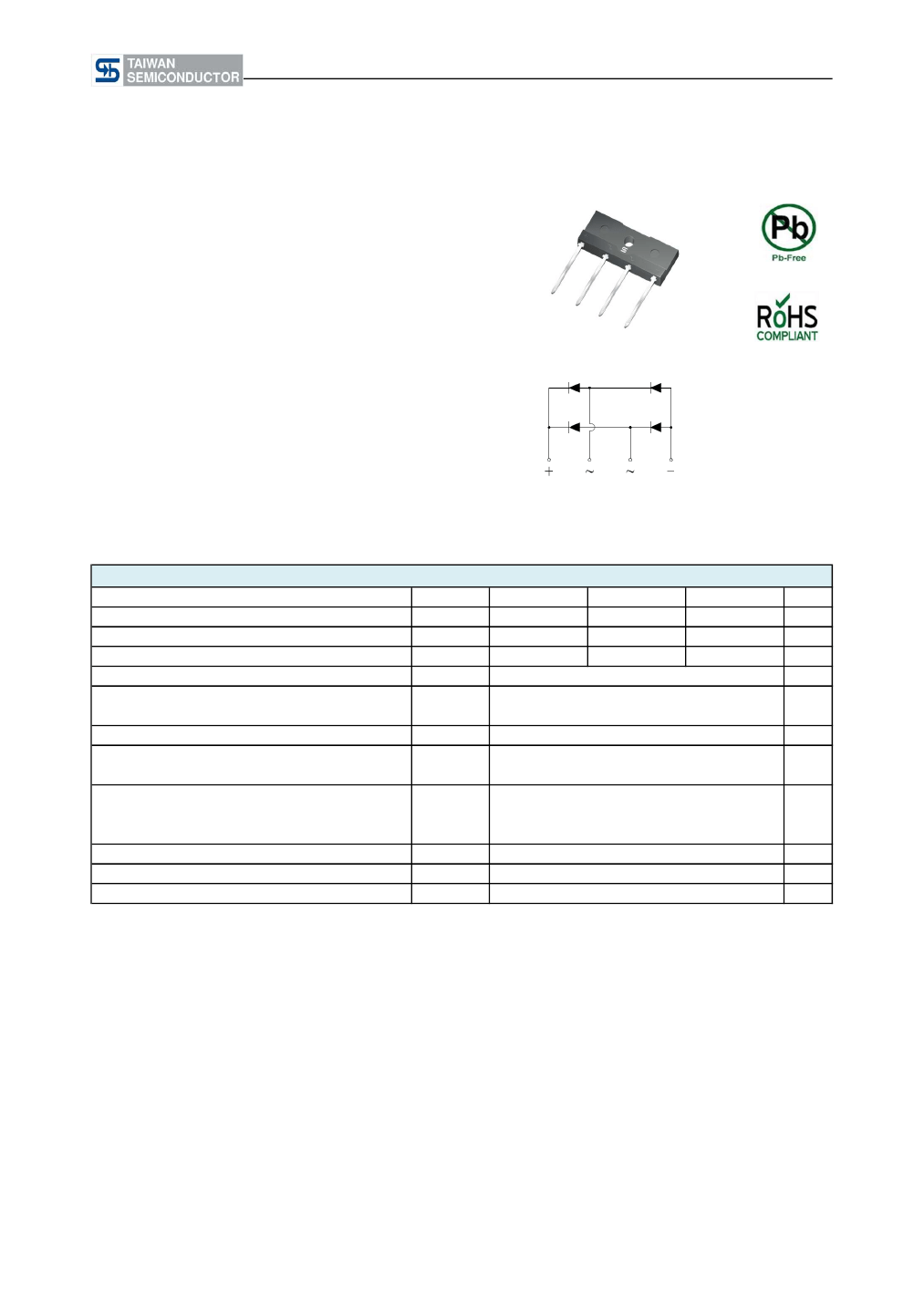

TS10KL60 - TS10KL100
Taiwan Semiconductor
CREAT BY ART
10A, 600V - 1000V Glass Passivated Single-Phase Bridge Rectifiers
FEATURES
- Thin Single in-line low profile package ideal for compact required circuit
- Glass passivated junction
- High surge current capability
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
MECHANICAL DATA
Case:
KBJL
Molding compound, UL flammability classification rating 94V-0
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
As marked
Mounting torque:
0.56 Nm max. (5 in-lbs. max.)
Weight:
2.5g (approximately)
KBJL
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
J
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half
sine-wave superimposed on rated load
Rating of fusing ( t<8.3ms)
Maximum instantaneous forward voltage (Note 1)
I
F
= 5 A
Maximum reverse current @ rated V
R
T
J
=25 °C
T
J
=100 °C
Typical thermal resistance (Note 2)
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300
μs,
1% duty cycle
Note 2: Mount on Heatsink size of 4" x 6" x 0.25" Al-Plate
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
t
V
F
TS10KL60
600
420
600
TS10KL80
800
560
800
10
180
134
1.0
TS10KL100
1000
700
1000
UNIT
V
V
V
A
A
A
2
s
V
I
R
R
θJC
T
J
T
STG
5
150
1.5
- 55 to +150
- 55 to +150
μA
°C/W
°C
°C
Document Number: DS_D1402001
Version: E15
TS10KL60 - TS10KL100
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
TS10KLXX
(Note 1)
*: Optional available
PART NO.
SUFFIX
H
PACKING
CODE
D3
PACKING CODE
SUFFIX
G
(*)
PACKAGE
KBJL
PACKING
20 / TUBE
Note 1: "xx" defines voltage from 600V (TS10KL60) to 1000V (TS10KL100)
EXAMPLE
PREFERRED P/N
TS10KL80HD3G
PART NO.
TS10KL80
PART NO.
SUFFIX
H
PACKING CODE
D3
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

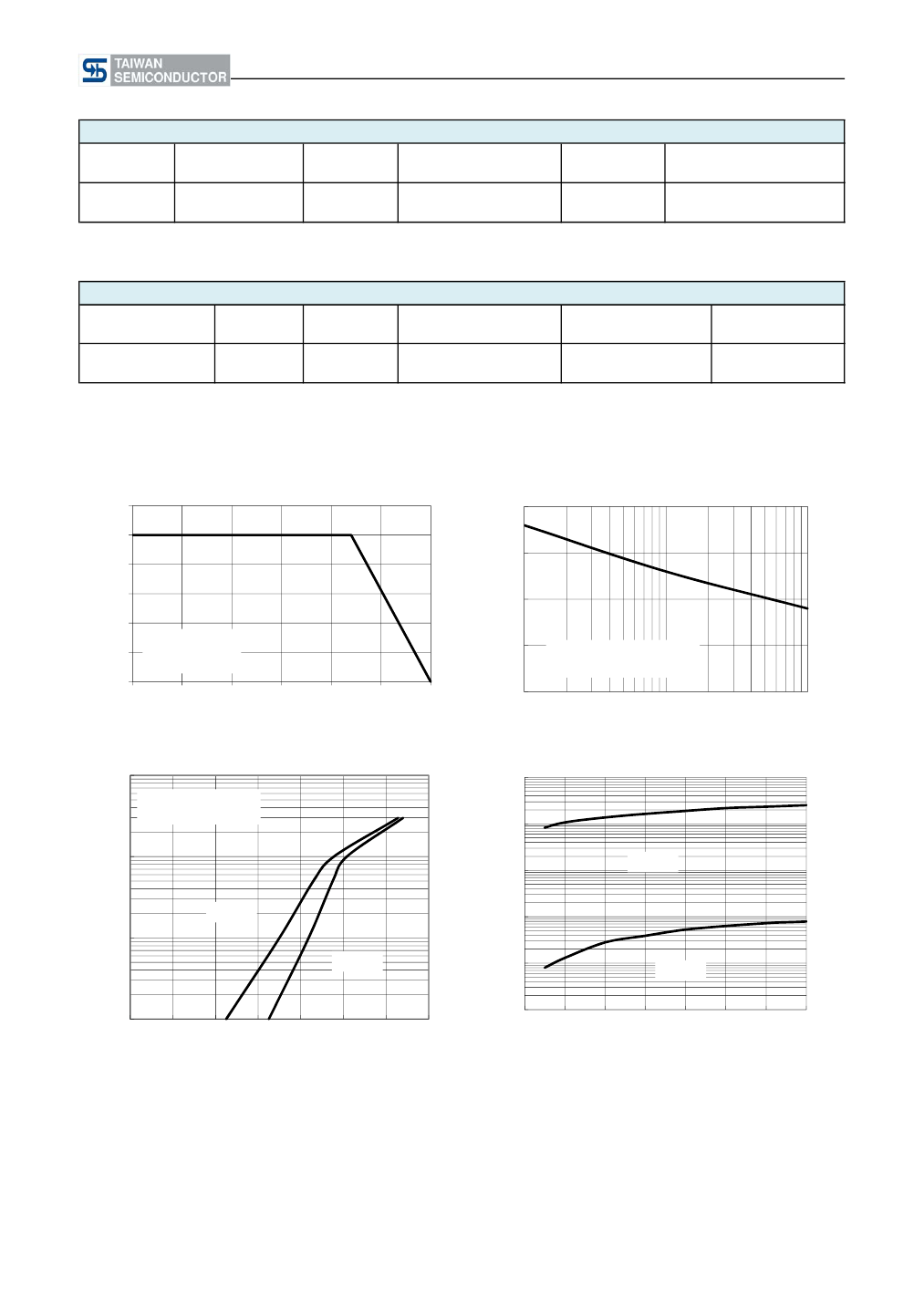

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG.1 FORWARD CURRENT DERATING CURVE
12
10
8
6
4
2
0
0
25
50
75
100
125
150
CASE TEMPERATURE (
°
C)
RESISTIVE OR
INDUCTIVELOAD
WITH HEATSINK
PEAK FORWARD SURGE
CURRENT (A)
200
FIG. 2 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
AVERAGE FORWARD
A
CURRENT (A)
150
100
50
8.3ms Single Half Sine Wave
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
FIG. 3 TYPICAL FORWARD CHARACTERISTICS
100
INSTANTANEOUS FORWARD CURRENT (A)
PULSE WIDTH-300μs
1% DUTY CYCLE
100
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
INSTANTANEOUS REVERSE CURRENT (μA)
10
10
1
T
J
=125°C
T
J
=125°C
0.1
1
T
J
=25°C
0.01
T
J
=25°C
0.1
0
0.2
0.4
FORWARD VOLTAGE (V)
0.001
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
0.6
0.8
1
1.2
1.4
Document Number: DS_D1402001
Version: E15
TS10KL60 - TS10KL100
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
160
f=1.0MHz
Vsig=50mVp-p
120
CAPACITANCE (pF)
80
40
0
0.1
1
10
100
REVERSE VOLTAGE (V)

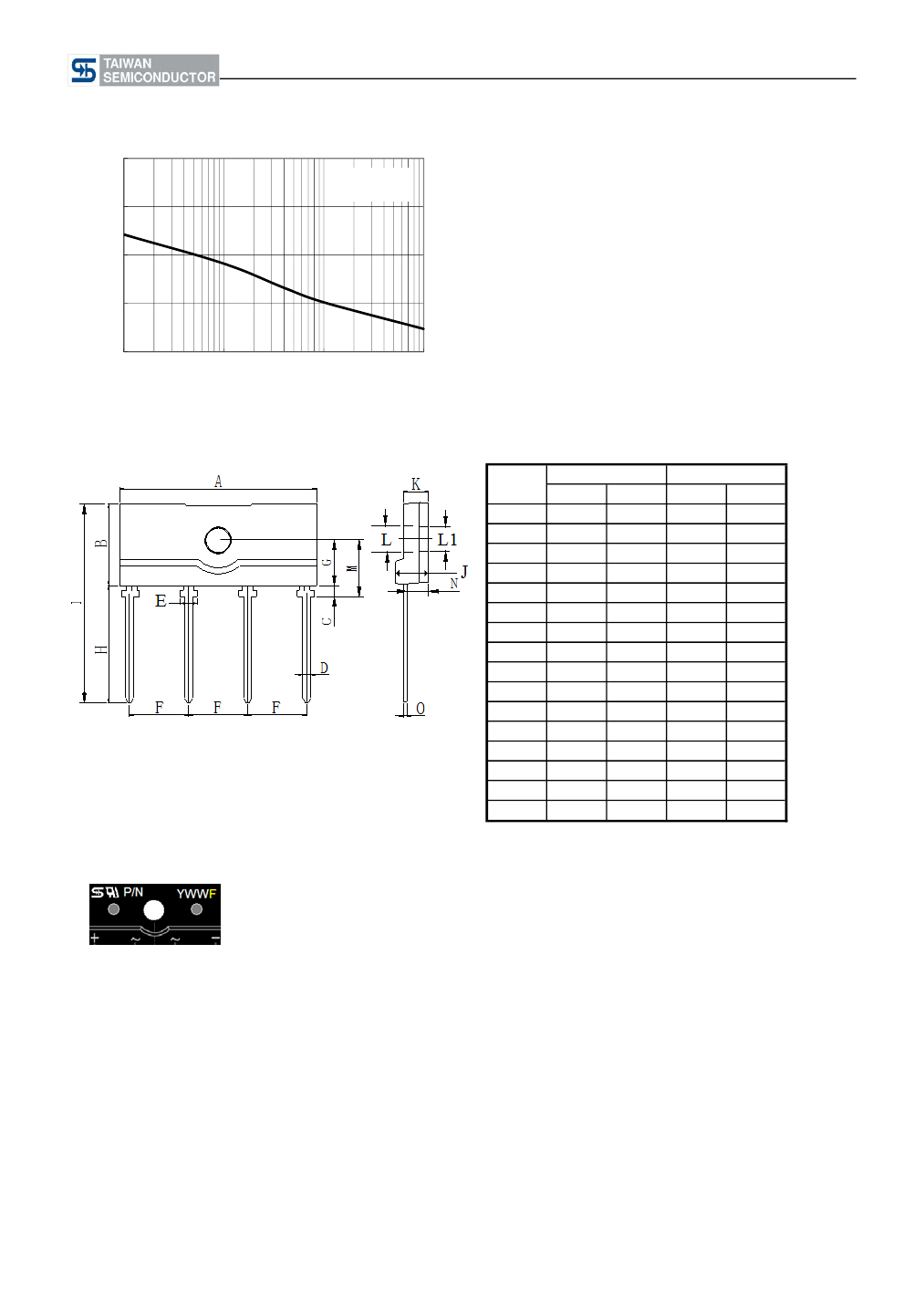

PACKAGE OUTLINE DIMENSIONS
KBJL
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
L1
M
N
O
Unit (mm)
Min
24.70
10.00
1.20
0.90
2.10
7.30
5.50
14.40
24.90
4.00
3.00
3.30
3.10
6.90
2.50
0.30
Max
25.30
10.60
1.60
1.10
2.30
7.70
5.90
15.40
25.50
4.40
3.40
3.50
3.30
7.30
2.90
0.70
Unit (inch)
Min
0.972
0.394
0.047
0.035
0.083
0.287
0.217
0.567
0.980
0.157
0.118
0.130
0.122
0.272
0.098
0.012
Max
0.996
0.417
0.063
0.043
0.091
0.303
0.232
0.606
1.004
0.173
0.134
0.138
0.130
0.287
0.114
0.028
MARKING DIAGRAM
P/N
YWW
F
= Specific Device Code
= Date Code
= Factory Code
Document Number: DS_D1402001
Version: E15
TS10KL60 - TS10KL100
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1402001
Version: E15
