The HS35 combines the rugged, heavy-duty features usually associated with shafted encoders into a hollow shaft style. Its design includes dual
bearings and shaft seals for NEMA 4, 13 and IP65 environmental ratings, a rugged metal housing, and a sealed connector or cable gland. The HS35
accommodates shafts up to 1” in diameter. With optional insulating inserts, it can be mounted on smaller diameter shafts. It can be mounted on a
through shaft or a blind shaft with a closed cover to maintain its environmental rating. The HS35 is also available with a dual output option (inset) to
provide redundant encoder signals, dual resolutions, or to supply two separate controllers from a single encoder. Applications include motor feedback
and vector control, printing industries, robotic control, oil service industries, and web process control.
SPECIFICATIONS

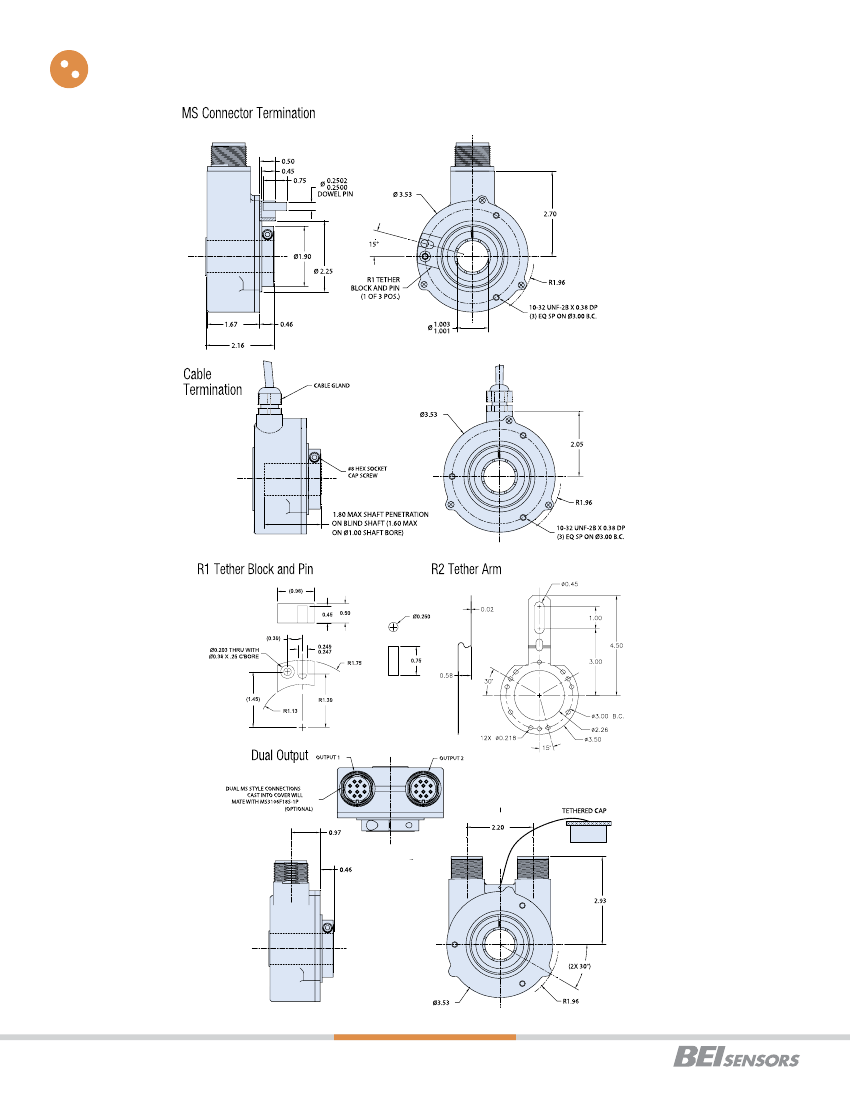

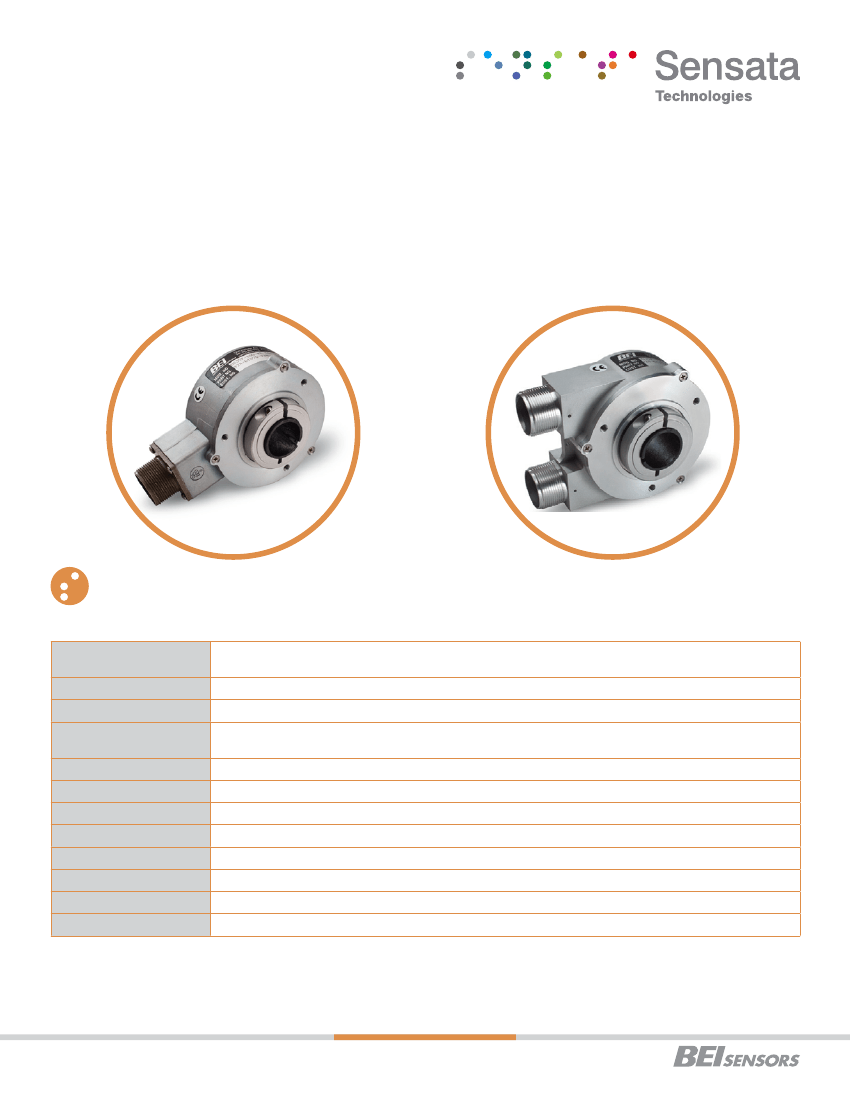

The HS35 Dual Output Encoder
Mechanical Specifications
Shaft Bore
Allowable Misalignments
Bore Runout
Starting Torque at 25°C
Bearings
Shaft Material
Bearing Housing
Cover
Bearing Life
Maximum RPM
Moment of Inertia
Weight
1.00”, 0.875”, 0.750”, 0.625”, 0.500”.
All are supplied with insulating sleeves.
0.005” T.I.R. on mating shaft 0.75” from shaft end
For interpolation please specify the multiplied output (up to 80,000 for the HS35) in the model number, i.e. 80,000-T16. Other resolutions available–consult factory.
