Multilayer Organic (MLO®) Band Pass Filters
BP Series
GENERAL DESCRIPTION
The BP series of MLO® High Performance Band Pass Filters exhibit low
insertion loss, steep roll-offs, and very high rejection of out of band
frequencies. MLO® Band Pass Filters support many frequency bands and
multiple wireless standards, and are less than 1.0mm in thickness.
MLO components are low profile devices with best in class performance
based on AVX’s patented multilayer organic high density interconnect
technology. MLO components utilize high dielectric constant and low loss
materials to realize high Q passive printed elements, such as inductors and
capacitors, in a multilayer stack. All MLO components are expansion
matched to most organic PCB materials, thereby resulting in improved
reliability over standard Si and ceramic devices.
FEATURES
•
•
•
•
•
•
•
Low insertion loss
High rejection out-of-band
Steep roll-off
50Ω Impedance
Expansion matched to PCB
Surface Mount
RoHS Compliant
APPLICATIONS
•
•
•
•
•
•
•
Wireless Communications
Systems
Military Radios
EMS Radios
UAVs
Basestations
Wireless access points and
terminals
Instrumentation
LAND GRID ARRAY
ADVANTAGES
•
•
•
•
Inherent Low Profile
Excellent Solderability
Low Parasitics
Better Heat Dissipation
HOW TO ORDER
BP
Series
Band Pass
Filters
0F
Case Size
0A = 2616
0B = 3116
0C = 3416
0D = 4016
0E = 4617
0F = 5021
A
Type
1100
Center
Frequency
In MHz
A
Standard
Testing
7
Termination
7 – Gold
00
Package Code
00 – Waffle Pack
TR – 1000 pcs Tape & Reel
TR\250 – 250 pcs Tape & Reel
QUALITY INSPECTION
Finished
Parts
electrically tested
are
100%
TERMINATION
All finishes are compatible with
automatic soldering technologies: Pb
free reflow, wave soldering, vapor
phase, and manual soldering.
OPERATING
TEMPERATURE
-55°C to +85°C
LEAD-FREE COMPATIBLE
COMPONENT
For RoHS compliant products,
please select correct termination style.
08/30/2017
1
Multilayer Organic (MLO®) Band Pass Filters
BP Series
ELECTRICAL SPECIFICATIONS
AVX PN
Fc
(GHz)
Typical
Insertion
Loss @ Fc
(dB)
1.28
1.18
1.37
1.43
1.56
1.1
0.96
0.85
0.96
1.19
1.24
1.13
0.97
1.13
1
0.98
0.96
0.99
Passband
(GHz)
Insertion Loss
(dB)
Typ.
BP0CA0770A7**
BP0CA1100A7**
BP0FA1100A7**
BP0FA1130A7**
BP0FA1190A7**
BP0CA1610A7**
BP0EA1950A7**
BP0EA1980A7**
BP0EA2090A7**
BP0EA2500A7**
BP0EA2540A7**
BP0EA2620A7**
BP0EA3180A7**
BP0EA3310A7**
BP0EA3430A7**
BP0EA4440A7**
BP0EA4600A7**
BP0EA4680A7**
0.77
1.1
1.1
1.13
1.19
1.61
1.95
1.98
2.09
2.5
2.54
2.62
3.18
3.31
3.43
4.44
4.6
4.68
0.62 - 0.97
0.86 - 1.39
0.87 - 1.39
0.89 - 1.44
0.99 - 1.44
1.27 - 2.05
1.44 - 2.64
1.47 - 2.68
1.54 - 2.84
2.02 - 3.10
2.02 - 3.21
2.09 - 3.28
2.45 - 4.14
2.62 - 4.19
2.64 - 4.46
3.49 - 5.66
3.66 - 5.78
3.70 - 5.93
1.96
1.97
2.41
2.25
2.26
1.88
2.03
1.89
1.94
2.03
2.12
1.92
1.81
1.79
1.57
1.83
2.12
2.01
Max
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
-20dB
0.5
0.7
0.69
0.71
0.8
1.07
1.24
1.26
1.33
1.76
1.76
1.81
1.88
1.99
2.04
2.99
3.1
3.16
-30dB
0.48
0.68
0.67
0.68
0.76
1.04
1.19
1.21
1.28
1.69
1.7
1.74
1.81
1.91
1.95
2.89
2.99
3.05
Stopband Rejection (GHz)
Low Band (DC - F3)
-40dB
0.46
0.66
0.64
0.66
0.74
1.02
1.16
1.17
1.23
1.64
1.64
1.68
1.75
1.86
1.89
2.79
2.9
2.96
-20dB
1.15 - 9.00
1.63 - 9.00
High Band (F4 - Fn)
-30dB
1.19 - 4.50
1.68 - 5.00
-40dB
1.23 - 4.00
1.73 - 4.50
(W)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Rated RF
Power
1.67 - 18.00 1.72 - 16.70 1.78 - 11.11
1.71 - 18.00 1.76 - 15.54
1.79 - 11.7
1.68 - 18.00 1.74 - 18.00 1.78 - 16.29
2.42 - 9.00
3.04 - 9.00
3.14 - 9.00
3.28 - 9.00
3.60 - 9.00
3.70 - 9.00
3.79 - 9.00
2.50 - 9.00
3.14 - 9.00
3.27 - 9.00
3.4 - 9.00
3.71 - 9.00
3.80 - 8.31
3.91 - 7.81
2.57 - 6.26
3.22 - 7.50
3.37 - 7.62
3.6 - 7.92
3.80 - 7.51
3.89 - 7.8
3.96 - 7.7
5.46 - 15.5
4.97 - 20.00 5.25 - 18.43
4.99 - 20.00 5.22 - 19.05 5.41 - 15.94
5.32 - 20.00 5.59 - 20.00 5.83 - 16.01
6.72 - 20.00 7.06 - 13.82
6.81 - 20.00
6.99 - 20.00
7.15 - 9.68
7.37 - 9.86
7.39 - 9.26
7.50 - 9.55
7.73 - 8.40
Click on part number to see full specifications.
**Packaging: 00 = waffle pack, TR = 1000pcs T&R, TR\250 = 250pcs T&R
MECHANICAL DIMENSIONS
inches (mm)
Case Size
A
2616
B
3116
C
3416
D
4016
E
4617
F
5021
Length
0.259±0.010 (6.579±0.254)
0.306±0.010 (7.785±0.254)
0.342±0.010 (8.674±0.254)
0.401±0.010 (10.198±0.254)
0.460±0.010 (11.684±0.254)
0.512±0.010 (12.992±0.254)
Width
0.157±0.010 (3.975±0.254)
0.156±0.010 (3.975±0.254)
0.157±0.010 (3.975±0.254)
0.156±0.010 (3.975±0.254)
0.170±0.010 (4.318±0.254)
0.207±0.010 (5.245±0.254)
Varies -
Varies -
Varies -
Varies -
Varies -
Varies -
Height
see part specification
see part specification
see part specification
see part specification
see part specification
see part specification
2
Multilayer Organic (MLO®)

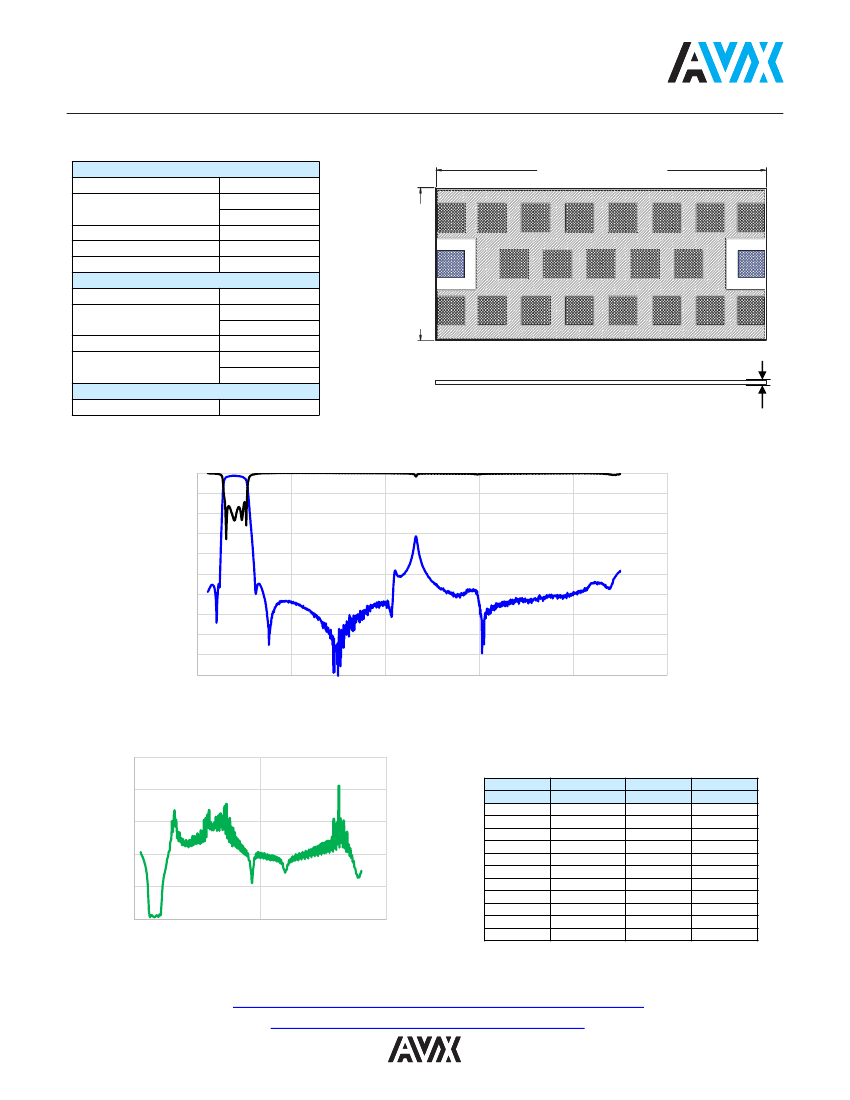

AVX PN: BP0CA0770A7**
ELECTRICAL SPECIFICATIONS
Passband
Passband Frequency
Passband IL
Center Frequency
Center Frequency IL
Power
Stopband
Low Stopband Frequency
Rejection Low Band
High Frequency
Rejection High Band
Dimension
Thickness
0.62 - 0.97 GHz
1.96 dB typ.
5 dB max
0.77 dB
1.28 dB
1W
DC - 0.46 GHz
40 dB typ.
35 dB min.
1.23 - 4.00 GHz
40 dB typ.
35 dB min.
<0.022 in Max.
DIMENSIONS – CASE SIZE C
inches (mm)
0.342±0.010 (8.674±0.254)
0.157±0.010
(3.975±0.254)
<0.022 in
Bottom View
Side View
Typical Frequency Response
0
-10
-20
-30
-40
dB
-50
-60
-70
-80
-90
-100
0
2
4
6
8
10
Frequency (GHz)
VSWR
100000
10000
TYPICAL PERFORMANCE AT 25°C
Frequency
(GHz)
0.46
0.48
0.50
0.62
0.77
0.97
1.15
1.19
1.23
4.00
4.50
Insertion Loss
(dB)
-54.61
-52.50
-33.72
-1.96
-1.28
-1.94
-29.34
-40.50
-57.84
-65.01
-45.94
VSWR
(:1)
33.13
26.87
18.77
1.08
1.16
1.25
17.72
25.38
36.26
122.71
96.37
Return Loss
(dB)
-0.52
-0.65
-0.93
-28.19
-22.82
-19.20
-0.98
-0.68
-0.48
-0.14
-0.18
VSWR
1000
100
10
1
0
5
10
Frequency (GHz)
[GO
TO DETAILED MECHANICAL SPECIFICATIONS AND PAD LAYOUT]
[RETURN
TO GENERAL ELECTRICAL SPECIFICATIONS]
3
Multilayer Organic (MLO®)

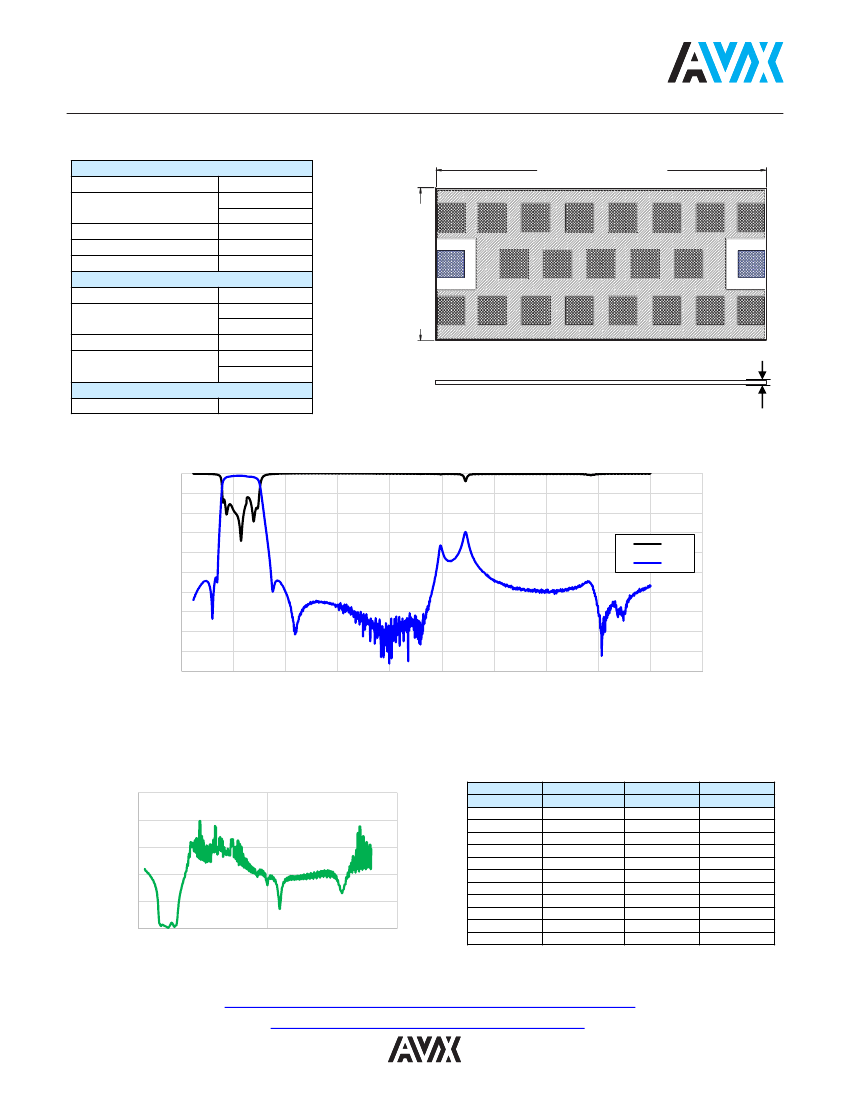

AVX PN: BP0CA1100A7**
ELECTRICAL SPECIFICATIONS
Passband
Passband Frequency
Passband IL
0.86 - 1.39 GHz
1.97 dB typ.
5 dB max
1.10 GHz
1.18 dB
1W
DIMENSIONS – CASE SIZE C
inches (mm)
0.342±0.010 (8.674±0.254)
Center Frequency
Center Frequency IL
Power
Stopband
Low Stopband Frequency DC - 0.66 GHz
40 dB typ.
Rejection Low Band
35 dB min.
High Frequency
1.73 - 4.50 GHz
40 dB typ.
Rejection High Band
35 dB min.
Dimension
Thickness
<0.022 in. Max.
0.157±0.010
(3.975±0.254)
<0.022 in
Bottom View
Side View
Typical Frequency Response
0
-10
-20
-30
-40
S11
S21
dB
-50
-60
-70
-80
-90
-100
0
1
2
3
4
5
6
7
8
9
10
Frequency (GHz)
VSWR
100000
10000
TYPICAL PERFORMANCE AT 25°C
Frequency
(GHz)
0.66
0.68
0.70
0.86
1.10
1.39
1.63
1.68
1.73
4.50
5.00
Insertion Loss
(dB)
-67.20
-54.87
-44.36
-1.97
-1.18
-1.97
-30.10
-41.86
-56.31
-82.71
-38.95
VSWR
(:1)
47.97
30.46
23.59
1.20
1.13
1.14
24.50
40.14
55.01
148.10
59.80
Return Loss
(dB)
-0.36
-0.57
-0.74
-20.72
-24.44
-23.50
-0.71
-0.43
-0.32
-0.12
-0.29
VSWR
1000
100
10
1
0
5
10
Frequency (GHz)
[GO
TO DETAILED MECHANICAL SPECIFICATIONS AND PAD LAYOUT]
[RETURN
TO GENERAL ELECTRICAL SPECIFICATIONS]
4
Multilayer Organic (MLO®)

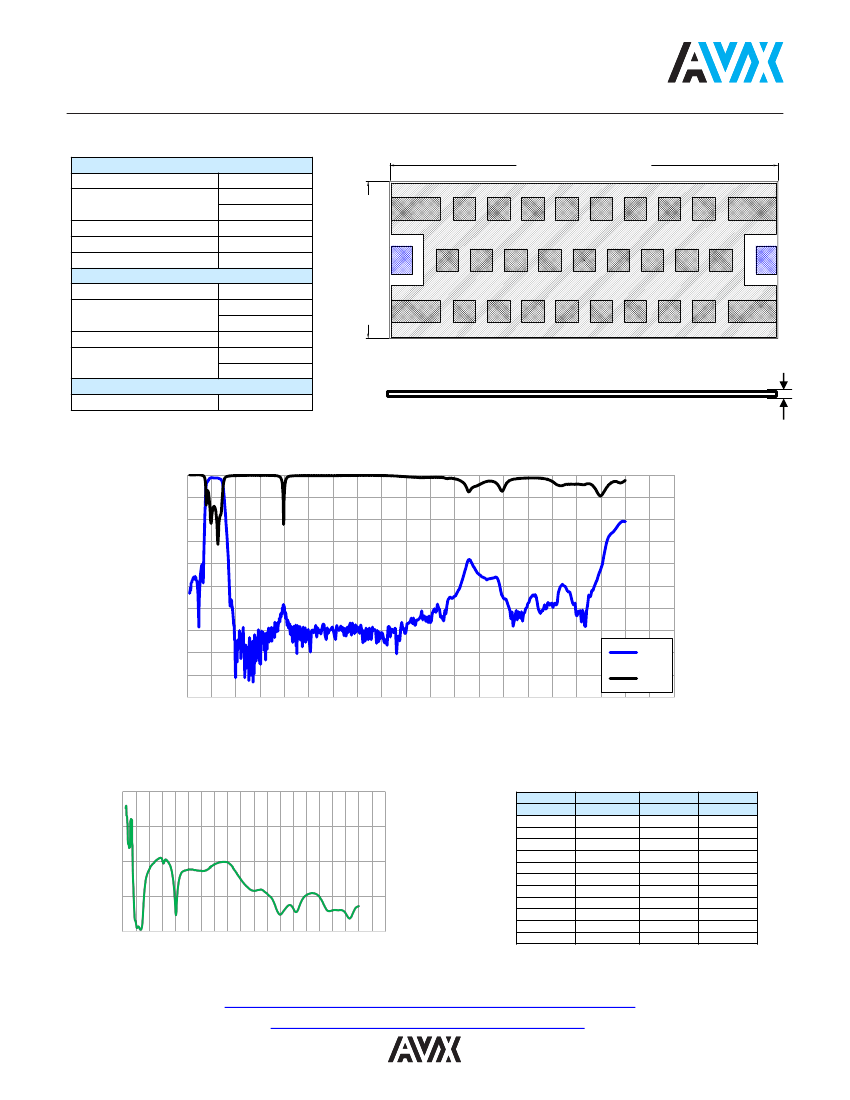

AVX PN: BP0FA1100A7**
ELECTRICAL SPECIFICATIONS
Passband
Passband Frequency
Passband IL
0.87 - 1.39 GHz
2.41 dB typ.
5 dB max
1.10 GHz
1.37 dB
1 Watt
DIMENSIONS – CASE SIZE F
inches (mm)
0.512±0.010 [12.992±0.254]
Center Frequency
Center Frequency IL
Power
Stopband
Low Stopband Frequency DC - 0.64 GHz
40 dB typ.
Rejection Low Band
35 dB min.
High Frequency
1.78 - 11.1 GHz
40 dB typ.
Rejection High Band
35 dB min.
Dimension
Thickness
<0.022 in. Max
0.207±0.010 [5.245±0.254]
<0.022 In
Bottom View
Side View
Typical Frequency Response
0
-20
-40
dB
-60
-80
-100
0
2
4
6
8
10
12
Frequency (GHz)
14
16
18
20
S21
S11
10000
1000
VSWR
TYPICAL PERFORMANCE AT 25°C
Frequency
(GHz)
0.68
0.69
0.71
0.85
0.87
1.41
1.44
1.60
1.66
1.71
4.00
Insertion Loss
(dB)
-40.70
-33.99
-23.81
-2.85
-2.41
-2.30
-2.88
-21.19
-31.44
-41.61
-59.62
VSWR
(:1)
43.35
30.12
15.46
2.60
2.33
1.41
1.74
20.26
27.41
35.11
2.41
Return Loss
(dB)
-0.40
-0.58
-1.13
-7.05
-7.96
-15.43
-11.34
-0.86
-0.63
-0.49
-7.67
VSWR
100
10
1
0
2
4
Frequency (GHz)
6
8
10 12 14 16 18 20
[GO
TO DETAILED MECHANICAL SPECIFICATIONS AND PAD LAYOUT]
[RETURN
TO GENERAL ELECTRICAL SPECIFICATIONS]
5
