RoHS Compliant
Serial ATA Flash Drive
SFD25A -M Product Specifications
December 16
th
, 2013
Version 1.2
Apacer Technology Inc.
1F, No.32, Zhongcheng Rd., Tucheng Dist., New Taipei City, Taiwan, R.O.C
Tel: +886-2-2267-8000
www.apacer.com
Fax: +886-2-2267-2261
Serial ATA Flash Drive
APS25AXXxxxx-XTM
Features:
Compliance with SATA Revision 3.1
–
Serial ATA Revision 3.1
–
SATA 6.0 Gbps interface
–
Backward compatible with SATA 1.5 and
3.0 Gbps interfaces
–
ATA-8 command set
Capacities
–
Standard type: 16, 32, 64, 128, 256 GB
–
High-speed type: 32, 64, 128, 256 GB
Performance*
–
Burst read/write:
600
MB/sec
Standard type:
–
Sustained read: up to 385 MB/sec
–
Sustained write: up to 170 MB/sec
High-speed type:
–
Sustained read: up to 450 MB/sec
–
Sustained write: up to 430 MB/sec
–
Random read (4K): up to 63,000 IOPS
–
Random write (4K): up to 63,000 IOPS
Flash Management
–
Built-in hardware ECC, enabling up to 40
bit correction per 1K bytes
–
Static/dynamic wear leveling
–
Flash bad-block management
–
S.M.A.R.T.
–
Power Failure Management
–
ATA Secure Erase
–
TRIM
NAND Flash Type:
MLC
Endurance (in Terabytes Written: TBW)
–
16GB: 34 TBW
–
32GB: 68 TBW
–
64GB: 136 TBW
–
128GB: 272 TBW
–
256 GB: 545 TBW
Temperature ranges
–
Operating: 0° to 70° (32 ~ 158°
C
C
F)
–
Storage: -40° to 100°C (-40° ~ 212°
C
F)
Supply voltage
–
5.0 V
5%
Power consumption (typical)*
Standard type:
–
Active mode: 385 mA
–
Idle mode: 105 mA
High-speed type:
–
Active mode: 665 mA
–
Idle mode: 70 mA
Form factor
–
2.5”
–
Dimensions with 7mm enclosure:
100.00 x 69.85 x 6.90, unit: mm
–
Dimensions with 9.5mm enclosure:
100.00 x 69.84 x 9.30, unit: mm
Connector
–
7-pin SATA signal connector
–
15-pin SATA power connector
Shock & Vibration**
–
Shock: 1500 G
–
Vibration: 15 G
DRAM cache for enhanced random
performance (for high-speed type only)
SATA power management modes
Device Sleep mode (optional)
RoHS compliant
*The
values addressed here are typical and may vary depending on settings and platforms.
**Non-operating
1
©2013 Apacer Technology Inc.
Rev. 1.2
±
Serial ATA Flash Drive
APS25AXXxxxx-XTM
Table of Contents
1.
Product Description ............................................................................................... 3
1.1 Introduction .................................................................................................................................................3
1.2 Capacity Specification ................................................................................................................................3
1.3 Performance.................................................................................................................................................3
1.4 Pin Assignments ..........................................................................................................................................4
2. Software Interface ..................................................................................................... 6
2.1 Command Set ..............................................................................................................................................6
2.2 S.M.A.R.T....................................................................................................................................................6
3.
Flash Management ................................................................................................. 8
3.1 Error Correction/Detection ........................................................................................................................8
3.2 Bad Block Management .............................................................................................................................8
3.3 Wear Leveling .............................................................................................................................................8
3.4 Power Failure Management.......................................................................................................................8
3.5 ATA Secure Erase.......................................................................................................................................8
3.6 TRIM ...........................................................................................................................................................9
3.7 SATA Power Management ........................................................................................................................9
4.
Reliability Specifications ..................................................................................... 10
4.1 Environmental ..........................................................................................................................................10
4.2 Mean Time Between Failures (MTBF)....................................................................................................10
4.3 Certification and Compliance ..................................................................................................................10
4.4 Endurance..................................................................................................................................................10
5.
Electrical Characteristics..................................................................................... 11
5.1 Operating Voltage .....................................................................................................................................11
5.2 Power Consumption .................................................................................................................................11
6.
Mechanical Specifications ................................................................................... 12
6.1
6.2
7mm Type Dimensions .............................................................................................................................12
9.5mm Type Dimensions ..........................................................................................................................13
7.
Product Ordering Information ............................................................................. 14
7.1
7.2
Product Code Designation........................................................................................................................14
Valid Combination....................................................................................................................................15
2
©2013 Apacer Technology Inc.
Rev. 1.2
Serial ATA Flash Drive
APS25AXXxxxx-XTM
1. Product Description
1.1 Introduction
Apacer’s SFD25A-M is a well-balanced solid-state disk (SSD) drive with standard form factor and great
performance. Designed in SATA 6.0 Gbps interface, the SSD is able to deliver exceptional read/write speed,
making it the ideal companion for heavy-loading industrial or server operations.
For data efficiency, the internal controlling unit of the SSD is engineered with DRAM for enhanced random
performance (for high-speed type only). In regard of reliability, the drive comes with various implementations
including powerful hardware ECC engine, power saving modes, wear leveling, flash block management,
S.M.A.R.T., TRIM, and power failure management.
1.2
Capacity Specification
Table 1-1
Capacity specification
Capacity
16 GB
32 GB
64 GB
128 GB
256 GB
Total Bytes*
16,013,942,784
32,017,047,552
64,023,257,088
128,035,676,160
256,060,514,304
Cylinders
16,383
16,383
16,383
16,383
16383
Heads
16
16
16
16
16
Sectors
63
63
63
63
63
Max LBA*
31,277,232
62,533,296
125,045,424
250,069,680
500,118,192
*Display of total bytes varies from file systems.
**Cylinders, heads or sectors are not applicable for these capacities. Only LBA addressing applies.
LBA count addressed in the table above indicates total user storage capacity and will remain the same throughout the lifespan of
the device. However, the total usable capacity of the SSD is most likely to be less than the total physical capacity because a small
portion of the capacity is reserved for device maintenance usages.
1.3
Performance
Table 1-2
Performance (standard type)
Capacity
Performance
Sustained Read
(MB/s)
Sustained Write
(MB/s)
16 GB
200
22
32 GB
370
42
64 GB
350
80
128 GB
385
170
256 GB
385
170
Note: Performance varies from flash configurations or host system settings. The result of 256GB is based on estimation.
3
©2013 Apacer Technology Inc.
Rev. 1.2
Serial ATA Flash Drive
APS25AXXxxxx-XTM
Table 1-3
Performance specification (high-speed type)
Capacity
Performance
Sustained Read
(MB/s)
Sustained Write
(MB/s)
Random Read IOPS
(4K)
Random Write IOPS
(4K)
32 GB
370
80
43,000
18,000
64 GB
450
145
63,000
31,000
128 GB
450
300
63,000
63,000
256 GB
450
430
63,000
63,000
Note: Performance varies from flash configurations or host system settings.
IOPS: measured on 8GB span (16777216 sectors Disk Size), 32 Outstanding I/Os (QD=32), Full Random Data pattern,
4KB Align I/Os and test durations 15minutes.
1.4 Pin Assignments
Table 1-4 describes the SFD signal segment, and Table1-5, power segment.

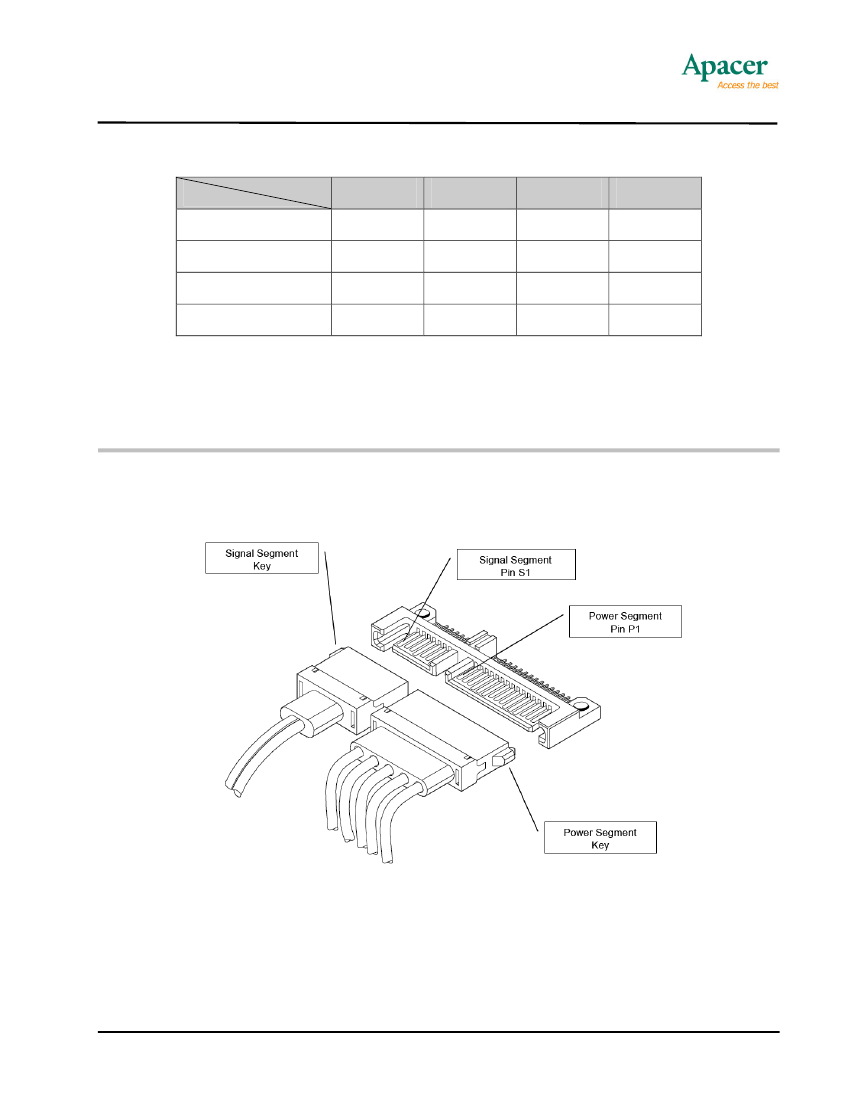

Figure 1-2
SATA Connectors
4
©2013 Apacer Technology Inc.
Rev. 1.2
