FPM-5151G-R3BE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Embedded solution> Display module> FPM-5151G-R3BE

FPM-5151G-R3BE: DescriptionDisplay Module 15" XGA Ind. Monitor w/ Resistive TS (Combo); CategoryEmbedded solution Display module; File Size360KB，3 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

FPM-5151G-R3BE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FPM-5151G-R3BE	-	-	View	Buy Now

FPM-5151G-R3BE Overview

Display Module 15" XGA Ind. Monitor w/ Resistive TS (Combo)

FPM-5151G-R3BE Parametric

Parameter Name	Attribute value
Maker	Advantech
Product Category	display module
Shipping restrictions	Mouser does not currently sell this product.
series	FPM-5151G/-5171G/5191G
product	LCD Displays
type	Resistive
Display resolution—pixels	1024 x 768
diagonal	15 in
Backlight type	LED
Interface Type	Serial
Working power voltage	100 VAC to 240 VAC, 10 VDC to 30 VDC
size	449.92 mm x 315.63 mm x 50.5 mm
Factory packaging quantity	1

Preview

Download Datasheet

View All

FPM-5191G

FPM-5171G

FPM-5151G

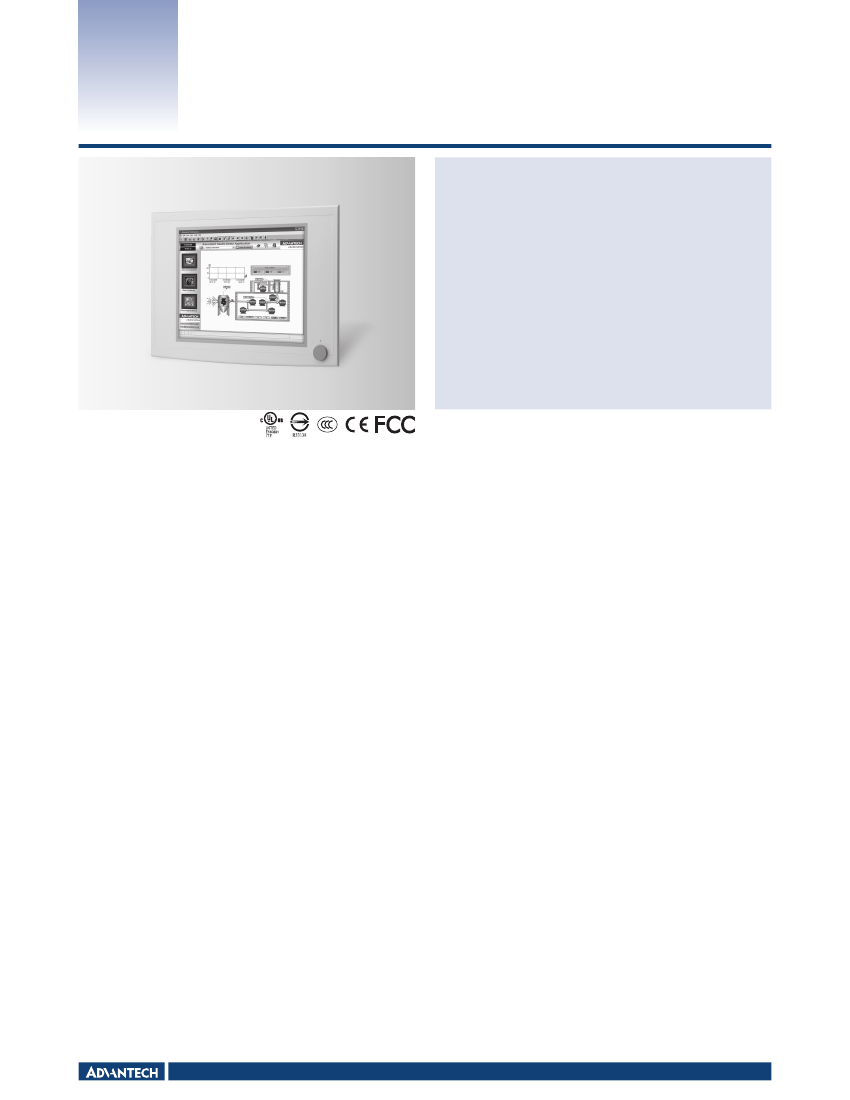

15" XGA/17" SXGA/19" SXGA Industrial

Monitors with Resistive Touchscreens,

Direct-VGA, and DVI Ports

Features

15" XGA or 17" / 19" SXGA TFT LED LCD with 50,000 backlight life time

Direct VGA & DVI-D input interface

Lockable OSD keys with 2 user-defined contrast/brightness control

Flat-sealed and IP65 certified front panel

Robust design with anti-rust chassis and aluminum die-cast front panel

Front accessible USB connector

Combo RS-232 & USB interface for touchscreen function (switchable)

Supports industrial 10-30 V

power input with Phoenix jack

Supports panel, wall, desktop, rack or VESA arm mounting

Introduction

The FPM-5000G series provides 15", 17", and 19" flat panel color monitors. These TFT LCD displays with LED backlights are specifically designed for industrial applications. With

LCD size from 15" to 19", they present ample display areas as well as sharp, vivid images. They feature Direct-VGA and DVI-D signal transmission, which allow VGA control cards to

be used in your system. The onscreen displays allow users to adjust display output with two user-defined settings. The front-accessible USB connector provides easy access to the

controller, and the industrial, 10-30 VDC, wide-range power support makes this product an excellent option for factory and machine automation display solutions.

Specifications

General

Button Controls

Lockable OSD control buttons on rear panel

Certification

BSMI, CCC, CE, FCC Class A, UL

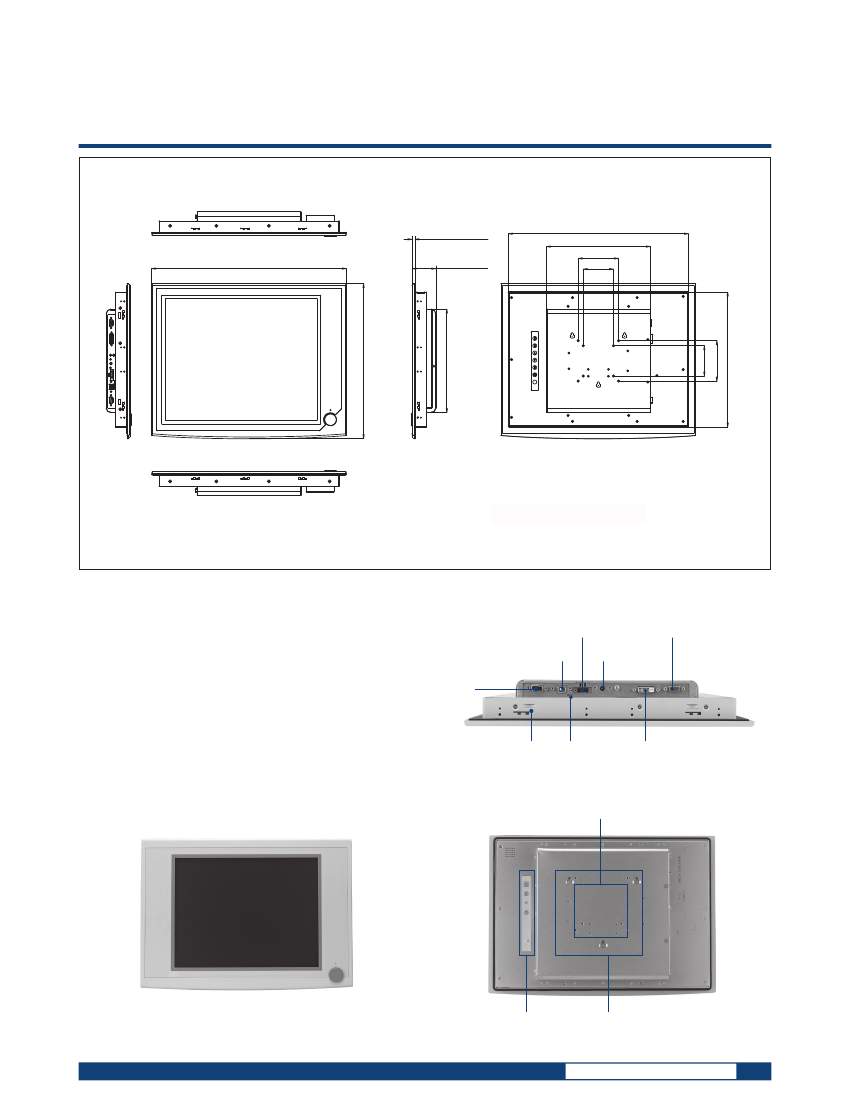

Dimensions (W x H x D)

5151G: 449.92 x 315.63 x 50.5 mm

(17.71" x 12.43" x 1.99")

5171G: 481.93 x 355.87 x 55 mm

(18.97" x 14.01" x 2.17")

5191G: 481.93 x 384.6 x 59 mm

(18.97" x 15.14" x 2.32")

Enclosure

Front panel: Aluminum and flat-sealed

Rear cover: Anti-rust coating

Mounting

Panel, wall, desktop, VESA arm, or 19" rackmount

Power Input

Phoenix Jack: 10 ~ 30 V

input

Optional external 57 W power adapter, with AC

100 V ~ 240 V input and DC +12 V @ 4.7A output

Power Consumption

18 W + 20%/31 W + 20%/32 W + 20%

USB

Front side USB access for extension

Video Port

VGA & DVI-D

Weight (Net)

6 kg (13.22 lb)/7 kg (17.63 lb)/9 kg (22.04 lb)

Touchscreen

Sensor

Driver

Type

Interface

Lifespan

Light Transmission

OS Support

Power Consumption

Touch Resolution

AMT

Penmount 6000

5-wire Resistive

RS-232 & USB

10/10/36 million with R8 silicone rubber finger,

2 250g presses per second

> 80%

Windows XP, Vista,7, 8,10,XPe and Linux

+5 V @ 100 mA

Linearity

Environment

Operation Temperature

Storage Temperature

Humidity (Storage)

Waterproof

Vibration

0 ~ 50°C (32 ~ 122°F)

-20 ~ 60°C (-4 ~ 140°F)

10 ~ 90% non-condensing

Front panel is compliant with IP65

5 ~ 500 Hz, 1 Grms (Operating, Random)

LCD Display

Display Type

Display Size

Max. Resolution

Max. Color

Viewing Angle (H/V°)

Luminance (cd/m

)

Backlight Life (hrs)

Contrast Ratio

XGA/SXGA/SXGA TFT LCDs

15"/17"/19"

1024 x 768/1280 x 1024/1280 x 1024

16.2M / 16.7M / 16.7M

160/140, 160/140, 170/160

400/350/350

50,000

700:1 / 800:1 / 1000:1

Ordering Information

FPM-5191G-R3BE

FPM-5171G-R3BE

FPM-5151G-R3BE

19"SXGA Ind. Monitor w/Resistive TS(RS-232,USB)

17"SXGA Ind. Monitor w/Resistive TS(RS-232,USB)

15"XGA Ind. Monitor w/Resistive TS(RS-232,USB)

Industrial monitors

All product specifications are subject to change without notice

Last updated : 2-Mar-2017

FPM-5151G-R3BE Related Products

	FPM-5151G-R3BE	FPM-5171G-R3BE	FPM-5191G-R3BE
Description	Display Module 15" XGA Ind. Monitor w/ Resistive TS (Combo)	Display Module 17" SXGA Ind.LED Monitor w/ Resistive TS (Combo)	Display Module 19" SXGA Ind.LED Monitor w/ Resistive TS (Combo)
Maker	Advantech	Advantech	Advantech
Product Category	display module	display module	display module
series	FPM-5151G/-5171G/5191G	FPM-5151G/-5171G/5191G	FPM-5151G/-5171G/5191G
product	LCD Displays	LCD Displays	LCD Displays
type	Resistive	Resistive	Resistive
Display resolution—pixels	1024 x 768	1280 x 1024	1280 x 1024
diagonal	15 in	17 in	19 in
Backlight type	LED	LED	LED
Interface Type	Serial	Serial	Serial
Working power voltage	100 VAC to 240 VAC, 10 VDC to 30 VDC	100 VAC to 240 VAC, 10 VDC to 30 VDC	100 VAC to 240 VAC, 10 VDC to 30 VDC
size	449.92 mm x 315.63 mm x 50.5 mm	481.93 mm x 355.87 mm x 55 mm	481.93 mm x 384.6 mm x 59 mm
Factory packaging quantity	1	1	1
Shipping restrictions	Mouser does not currently sell this product.	Mouser does not currently sell this product.	-
