FWM7BLZ20-109049 datasheet, PDF

Datasheet> All Categories > Embedded solution> Wireless rf module with> The bluetooth module (802.15.1)> FWM7BLZ20-109049

Preview

FWM7BLZ20-109049: DescriptionBluetooth module (802.15.1) BLE 4.2 Single Mode S w/Ant; CategoryEmbedded solution Wireless rf module with The bluetooth module (802.15.1); File Size178KB，3 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

FWM7BLZ20-109049 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FWM7BLZ20-109049	-	-	View	Buy Now

FWM7BLZ20-109049 Overview

Bluetooth module (802.15.1) BLE 4.2 Single Mode S w/Ant

FWM7BLZ20-109049 Parametric

Parameter Name	Attribute value
Maker	FUJITSU
Product Category	Bluetooth module (802.15.1)
kind	Class 2
Working power voltage	1.7 V to 3.6 V
Output Power	4 dBm
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C
Sensitivity	- 94 dBm
Interface Type	ADC, GPIO, NFC, nRESET, SPI, SWDLCK, SWIDO, TWI, U
series	FWM7BLZ
frequency	2.4 GHz
high	1.7 mm
length	15.7 mm
product	Bluetooth Modules
width	9.3 mm
Installation style	SMD/SMT
Factory packaging quantity	1000
Receive supply current	5.4 mA, 11.7 mA
Transmit supply current	5.3 mA, 11.6 mA
model	Bluetooth 4.2

Preview

Download Datasheet

View All

Data Sheet

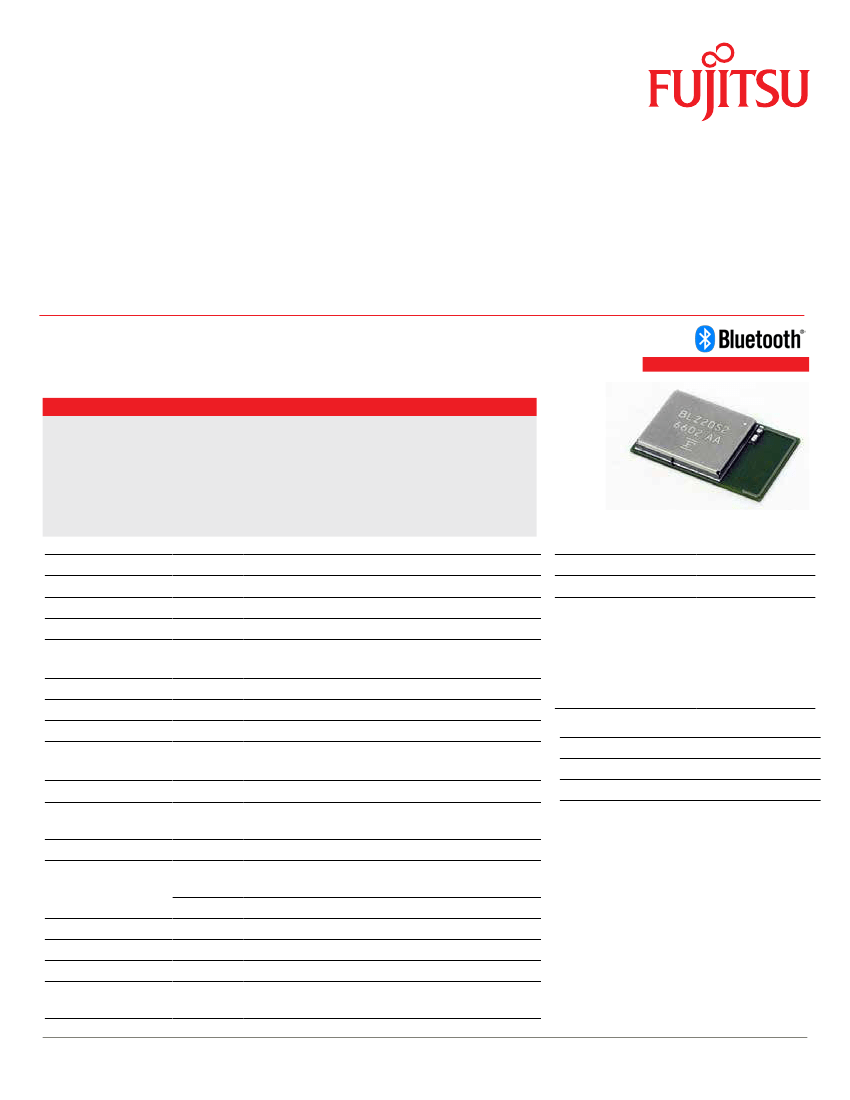

FUJITSU Component Wireless Modules FWM7BLZ20-109049

FWM7BLZ20-109062

FUJITSU Component Wireless Modules

Bluetooth

Version 4.2 (low energy)

(Blank Version & Central/Peripheral)

FWM7BLZ20-1090xx

Overview

Compact

Bluetooth

Low energy module with high performance processor, half the power

consumption than its predecessor and double the transmission distance.

Features

■

Bluetooth

specification Version 4.2 (LE single mode) compliant

■

Based on Nordic Semiconductor nRF52832

(ARM Cortex-M4F, 512KB flash, and 64KB RAM embedded)

■

Complete

Bluetooth

protocol stack provided by Nordic Semiconductor

■

External interface: 30 GPIO pins for NFC, SPI, TWI, UART, and ADC

■

Out-of-Band pairing by use of NFC-A Tag interface

Item

Part number

Antenna

Softdevice

Bluetooth

technology

RAM

Transmit power

Receiver sensitivity

Interface

Crystal oscillator

Operating tempera-

ture

Operating voltage

Tx mode

Power consumption

Rx mode

Number of GPIO

Dimensions

Mounting method

Certifications

Note:

Page 1 of 2

RoHS compliant

FWM7BLZ20-109049

Evaluation kit

Part number

FWM7BLZ20-EB2-KIT-2

Contains:

- MBH-FUJI2-E1

(USB cable is included)

- FWM7BLZ20-DAU2-EB2

Evaluation board

Module mounted on

daughter board

Specifications

FWM7BLZ20-1090xx

Pattern antenna

S132 (ver. 3.0.0 or later)

Conforms to

Bluetooth

Core Specification Version 4.2

(single mode low energy radio)

64KB

+4 dBM max.

-94 dBM typical

NFC (via external antenna), UART, SPI, GPIO, SWDCLK,

SWIDO, nRESET, TWI, ADC

Embedded

-400C

to +850C

1.7 ~ 3.6VDC

LDO mode: 11.6 mA typical (at 0dBm), DC/DC mode:

5.3mA typical (at 0dBm)

LDO mode: 11.7 mA typical DC/DC mode: 5.4mA typical

15.7 x 9.3 x 1.7 mm

Surface mount (SMD)

Bluetooth qualification (QDID) /

Radio Act (Japan) / FCC / IC / CE

Details

Evaluation kit

Part number

FWM7BLZ20-109049

FWM7BLZ20-109062

Softdevice version

S132 ver. 3.0.0

S132 ver. 3.1.0

Bluetooth

SIG registration is required to use this module’s QDID.

ASIA PACIFIC: www.fujitsu.com/sg/products/devices/components

EMEA: www.fujitsu.com/uk/components

AMERICAS: http://us.fujitsu.com/components

FWM7BLZ20-109049 Related Products

	FWM7BLZ20-109049	FWM7BLZ20-DAU2-EB2
Description	Bluetooth module (802.15.1) BLE 4.2 Single Mode S w/Ant	Bluetooth Development Tool (802.15.1) MBH7BLZ07 Daughter Brd use w/FUJI2 brd
Maker	FUJITSU	FUJITSU
Product Category	Bluetooth module (802.15.1)	Bluetooth development tools (802.15.1)
Working power voltage	1.7 V to 3.6 V	1.7 V to 3.6 V
series	FWM7BLZ	FWM7BLZ
product	Bluetooth Modules	Daughter Boards
Factory packaging quantity	1000	1
model	Bluetooth 4.2	Version 4.2
