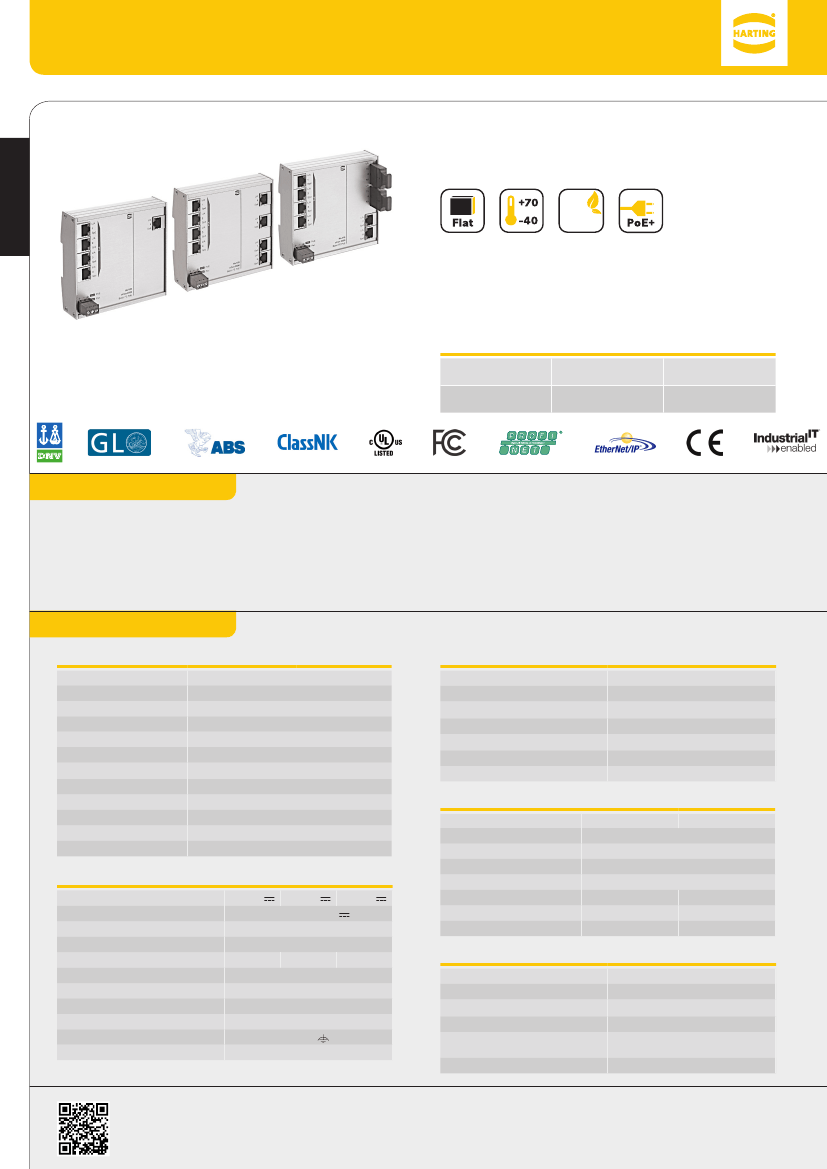

Ha-VIS eCon 2000 Fast Ethernet Basic PoE / PoE+
5 to 8 Ethernet ports RJ45, FOC, and PoE / PoE+
Unmanaged Plug and Play Ethernet switches for DIN rail assembly in control
cabinets
Commercial temp.: 0 °C ... +55 °C / Industrial temp.: -40 °C ... +70 °C
English
Energy
Efficient
Ethernet
■
Energy supply of up to 4 terminal devices via PoE+ (137 watts) in
■
Fast Ethernet Non-Blocking Switch architecture in accordance with IEEE 802.3
■
Variants with industrial temperature range of -40 °C ... +70 °C
■
Surge
protection and reverse polarity protection
■
Minimum energy consumption due to energy-efficient Ethernet
Target markets
Machinery & Robotics
Wind Energy,
Solar Energy
Automation
Transportation
Industrial network
infrastructures
Shipbuilding
accordance with IEEE 802.3at
General Description
The Ha-VIS eCon 2000 Fast Ethernet PoE family of unmanaged Ethernet
switches is equipped with up to 8 Fast Ethernet ports and allow for
cost-efficient and quick expansion and/or reconstruction of network
infrastructures. The switches work as power sourcing equipment (PSE) and
are capable of simultaneously providing the full PoE output of 34.2 watts
on up to four ports. Due to the extremely flat design, these switches can
be accommodated in installations where space is restricted towards the
cable connection at the front. The selection includes various combinations
of variants with RJ45 and fibre optic ports. Automatic detection of the
transmission rate (auto-negotiation) and of the wiring of the twisted pair data
cable (auto-polarity and auto-MDI(X)) allow for simple plug and play. All variants
are available with the temperature ranges "Industrial" and "Commercial".
Technical characteristics
Switch features
Enclosure width
Number of ports
Switching technology
Supported standards
Frame Size
MAC table size
Packet buffer size
Non-blocking
Quality of Service
Energy Efficient Ethernet
PROFINET compatible
EthernetIP compatible
Power supply
Nominal voltage
Permissible voltage range
Surge protection
Reverse polarity proof
Starting current
Overcurrent protection at input
Max. power consumption @ 24 VDC
Conductor cross-section
Type of connection
Pinout
Supply circuit (according to 60950)
3.20 A
24 VDC
48 VDC
9 VDC ... 60 VDC
Yes
Yes
6.40 A
Yes (4 A)
1.2 W ... 3.36W
0.08 mm² ... 2.5 mm² (28 AWG ... 12 AWG)
3-pole, pluggable screw type terminal block
+/-/
SELV (circuit breaker 10 A)
7.20 A
54 VDC
120 mm
5, 7, 8
Store and Forward
IEEE 802.3
1552 bytes
1k entries
448 kbit
Yes
Yes
Yes
Yes
Yes
Ethernet ports 10BASE-Te / 100BASE-TX EEE
Type of connection
Auto-negotiation
Auto-polarity
Auto-MDI(X)
Transfer conditions
Transfer speed
Transfer length
Ethernet ports 100BASE-FX
Type of fibre
Type of connection
Transfer conditions
Wavelength
Transfer speed
Transfer length
Output power
Input sensitivity
Environmental conditions
Commercial temperature range
Industrial temperature range
Storage temperature range
Relative humidity (operation)
Relative humidity (storage and
transport)
Air pressure
0 °C ... +55 °C
-40 °C ... +70 °C
-40 °C ... +85 °C
0% ... 95 % (not-condensing)
0% ... 95 % (not-condensing)
2000 m (795 hPa)
2 km
-19 dBm ... -14 dBm
≤ -32 dBm
Multi-mode (MM)
FOC
1310 nm
100 Mbit/s
15 km
-15 dBm ... -8 dBm
≤ -34 dBm
Single-mode (SM)
RJ45
Yes
Yes
Yes
Twisted pair
10 / 100 Mbit/s
100 m (twisted pair, Cat 5)
SC Duplex
HARTING Technology Group
P.O.Box 1473, D-32325 Espelkamp
Wilhelm-Harting-Straße 1, D-32325 Espelkamp, Germany
ICPN-Service@harting.com | Service
hotline: +49 5772 47-9479
Fax: +49 5772 47-495 | www.HARTING.com/de/ethernet-switches
Note:
We reserve the right to make technical changes to the products and to the content of this
document at any time without prior notification. The HARTING Technologiegruppe does not ac-
cept any responsibility for possible errors or incompletions in this document. We reserve all the
rights to this document and the topics and illustrations contained within it. Copying, disclosure to
third parties or use of its content - even partially - is forbidden without the prior written consent
of the HARTING Technologiegruppe.
PoE
Number of PoE ports
Standard
PoE type
Supported mode
Power supply PSE
Maximum Power consumption
Maximum output power PSE
Supported cabling
PoE pinout
Status and diagnostic displays
Power ("Pwr")
illuminated green
Supply voltage is applied
No link
Link is active
Link is active and data is transferred
10 Mbit/s
100 Mbit/s
PoE is inactive / low voltage
Voltage in PoE range
Voltage in PoE+ range
Fault
48 VDC
375 mA
15.4 W per port
61.6 W total
4
IEEE 802.3af / IEEE 802.3at
PSE
Alternative A
54 VDC
638 mA
34.2 W per port
136.8 W total
Enclosures
Enclosure width
Dimensions H x W x D (without
pluggable screw type terminal
block and holding bracket)
Weight
Type of installation
Material enclosures
Protection class (with pluggable
screw type terminal block)
Protection class
120 mm
113.5 mm x 120 mm x 27.3 mm
364 g ... 420 g
35 mm DIN rail acc. to EN 60 715
Anodised aluminium
IP30
III
See 802.3at, section 33.1.4
Alternative A, MDI-X (1/2 = V-, 3/6 = V+)
Approvals
CE, FCC CFR 47 Part 15, cUL US 508 listed, DNV, GL, ABS, NK, ABB IIT
EMC and environmental conditions
EMC interference immunity (EN 61000-6-1, 61 000-6-2 55024)
Electrostatic discharge (ESD) EN 61 000-4-2
Electromagnetic field EN 61 000-4-3
Rapid transients (burst) EN 61 000-4-4
Surge voltages EN 61 000-4-5
Conducted interference voltages EN 61 000-4-6
EMC interference emission (EN 61000-6-4, EN 55 022, FCC CFR 47 Part 15)
Mechanical stability (EN 60721-3)
IEC 60068-2-6 Vibration
IEC 60068-2-6 Resonance search
IEC 60068-2-27 Shock test
Included in delivery
■ Pluggable
screw type terminal block for power supply
■
Installation instructions
Link/Activity ("L/A") off
Link/Activity ("L/A") illuminated green
Link/Activity ("L/A") flashes green
Link speed ("Spd") off
Link speed ("Spd") illuminated yellow
PoE status off
PoE status illuminated green
PoE status illuminated blue
PoE status illuminated red

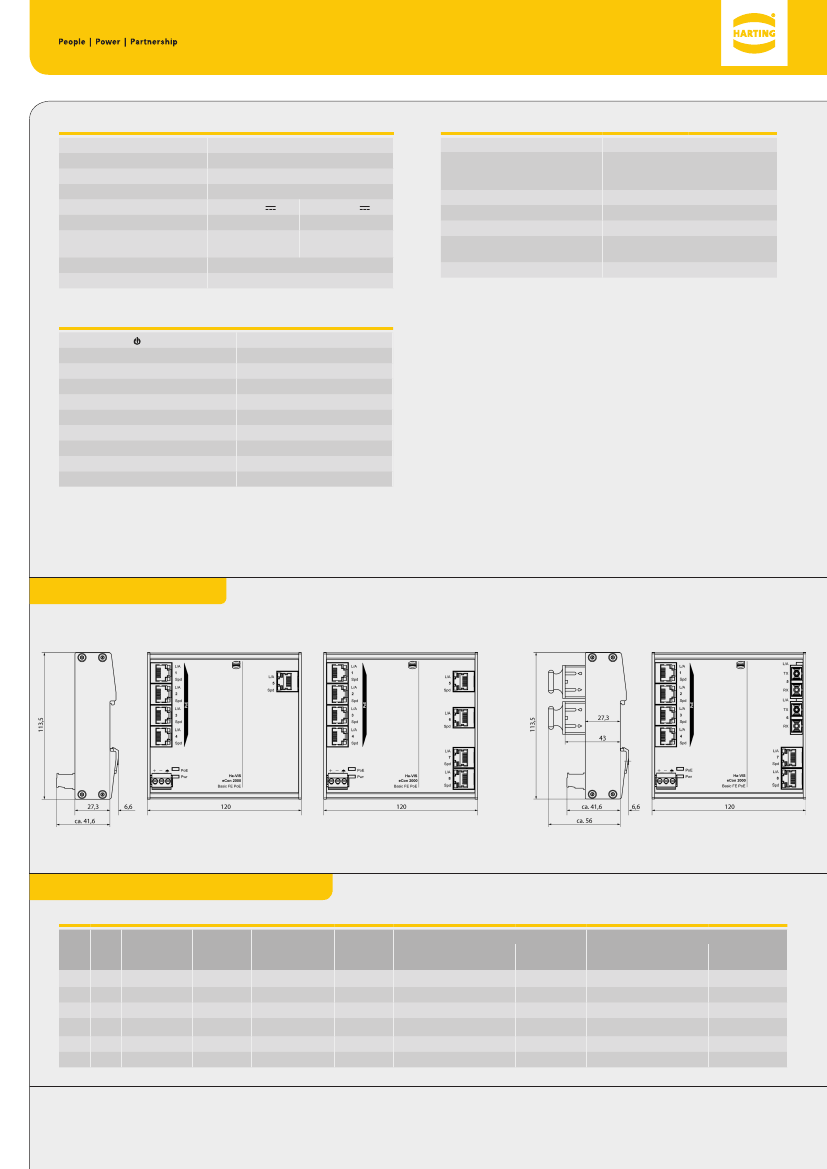

Drawings
Technical characteristics / order information
Ports / order information
Power consump-
tion @ 24 VDC
without PoE
0.05 A
0.10 A
0.09 A
0.14 A
0.12 A
0.07 A
Commercial temp.: 0 °C ... +55 °C
MTBF
in million h
0.84
0.78
0.79
0.76
0.78
0.73
Industrial temp.: -40 °C ... +70 °C
Switch
Part no.
24 02 005 0020
24 02 006 1120
24 02 006 1220
24 02 006 2120
24 02 006 2220
24 02 008 0020
RJ45
5
6
6
6
6
8
SFP
-
-
-
-
-
-
SC
-
1x MM (2 km)
1x SM (15 km)
2x MM (2 km)
2x SM (15 km)
Enclosure
width
120 mm
120 mm
120 mm
120 mm
120 mm
120 mm
Switch
Ha-VIS eCon 2050B-A-P
Ha-VIS eCon 2061B-AD-P
Ha-VIS eCon 2061B-AF-P
Ha-VIS eCon 2062B-AD-P
Ha-VIS eCon 2062B-AF-P
Ha-VIS eCon 2080B-A-P
Part no.
24 02 005 0030 Ha-VIS eCon 2050BT-A-P
24 02 006 1130 Ha-VIS eCon 2061BT-AD-P
24 02 006 1230 Ha-VIS eCon 2061BT-AF-P
24 02 006 2130 Ha-VIS eCon 2062BT-AD-P
24 02 006 2230 Ha-VIS eCon 2062BT-AF-P
24 02 008 0030 Ha-VIS eCon 2080BT-A-P
-
Copyright
©
2014
HARTING Technology Group
All rights reserved
Date of issue 02.2015
ICPN Datasheet 0836/01
