WAFER-BT-E38251W2-R10 datasheet, PDF

Datasheet> All Categories > Embedded solution> To calculate> Single board computer> WAFER-BT-E38251W2-R10

WAFER-BT-E38251W2-R10: Description单板计算机 Thin Mini-ITX SBC supports Intel 6th Generation Mobile Core i3-6100U (15W) on-board Processor (ULT), 9~36V DC input, Dual HDMI, LVDS, eDP, SATA 6 Gb/s, Dual Intel GbE, USB3.0,Mini PCIe, eMMC 5.0, HD audio and RoHS; CategoryEmbedded solution To calculate Single board computer; File Size754KB，2 Pages; ManufacturerIEI; Environmental Compliance

Download Datasheet Parametric Compare View All

WAFER-BT-E38251W2-R10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	WAFER-BT-E38251W2-R10	-	-	View	Buy Now

WAFER-BT-E38251W2-R10 Overview

单板计算机 Thin Mini-ITX SBC supports Intel 6th Generation Mobile Core i3-6100U (15W) on-board Processor (ULT), 9~36V DC input, Dual HDMI, LVDS, eDP, SATA 6 Gb/s, Dual Intel GbE, USB3.0,Mini PCIe, eMMC 5.0, HD audio and RoHS

WAFER-BT-E38251W2-R10 Parametric

Parameter Name	Attribute value
Maker	IEI
Product Category	single board computer
series	WAFER-BT
Factory packaging quantity	1

Preview

Download Datasheet

View All

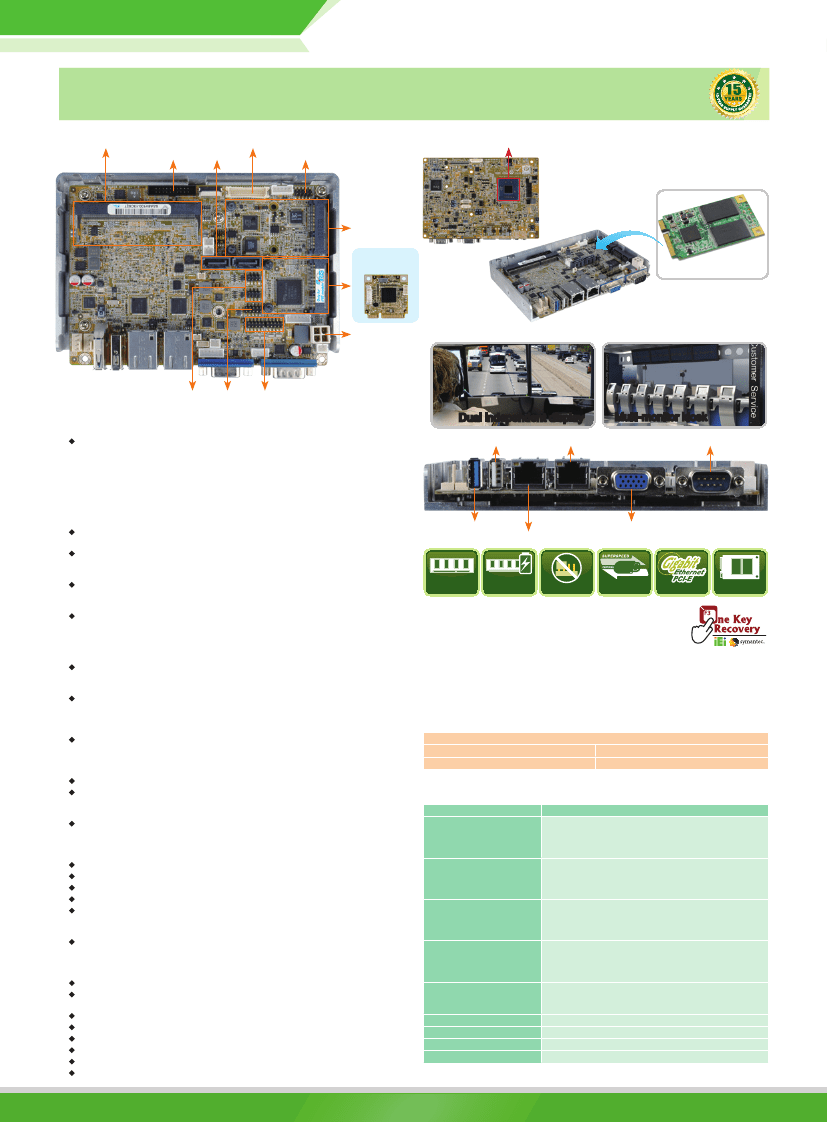

Single Board Computer

Embedded Board

w w w.ieiworld.com

WAFER-BT-i1

One 204-pin 1066/1333 MHz

single-channel DDR3L SO-DIMM

LVDS

iDP 2 x SATA 3Gb/s

Audio

3.5” SBC with Intel® 22nm Atom™/Celeron® on-board SoC,

VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s,

mSATA, COM, Audio and RoHS

Intel® Atom™ Bay Trail SoC

processor on solder side

1 x Full-size PCIe Mini slot for Wi-Fi expansion

2 x SATA connector for storage

Full-size PCIe

Mini card slot

Slot for iRIS-1010

module

Full-size PCIe

Mini Card

12V DC input

Dual independent display (max. support 1920x1200@60Hz)

4 x USB 2.0

DIO

2 x RS-232

Specifications

SoC

Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)

Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)

Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)

Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)

Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)

Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)

Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W)

Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)

BIOS

AMI UEFI BIOS

Memory

One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM slot supports up to 8 GB

(J1900, N2930, E3845, E3827, E3826, E3825, E3815) or 4 GB (N2807)

Graphics Engine

Intel® HD Graphics Gen 7 Engine with 4 execution units, supports DX11.1, OpenGL 4.2

and OpenCL1.2

Display Output

Dual independent display

1 x VGA (up to 2560x1600@60Hz)

1 x 24-bit dual-channel LVDS connector (up to 1920x1200@60Hz)

1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)

Ethernet

LAN1: Intel® I210-AT PCIe controller with NCSI support

LAN2: Intel® I211-AT PCIe controller

External I/O Interface

1 x RS-232

1 x USB 2.0

1 x USB 3.0

Internal I/O Interface

1 x KB/MS (1x6 pin)

2 x SATA 3Gb/s with 5V SATA power connector

1 x RS-422/485 (1x4 pin, P=2.0)

4 x USB 2.0 (2x4 pin, P=2.0)

2 x RS-232 (2x5 pin, P=2.0)

SMBus: 1 x SMBus (1x4 pin)

Audio

Realtek ALC662 HD codec

1 x Front audio (2x5 pin)

Front Panel

1 x Power LED & HDD LED (1x6 pin)

1 x Power button (1x2 pin)

1 x Reset button (1x2 pin)

LAN LED: 2 x LAN LED (1x2 pin)

Expansion: 1 x Full-size PCIe Mini card slot (supports mSATA, colay with SATA port 2)

iRIS Remote Management Module: 1 x iRIS-1010 slot

Digital I/O: 8-bit digital I/O (2x5 pin)

Fan Connector

1 x CPU smart fan (1x4 pin)

1 x System smart fan (1x4 pin)

Power Supply

12V only DC input

1 x Internal power connector (2x2 pin)

Support AT/ATX mode

Watchdog Timer: Software programmable, supports 1~255 sec. system reset

Power Consumption

12V@1.45A (Intel® Celeron® J1900 with one 8 GB 1333 MHz DDR3 memory)

Operating Temperature: -20°C ~ 60°C

Storage Temperature: -30°C ~ 70°C

Operating Humidity: 5% ~ 95%, non-condensing

Dimensions: 146mm x 102mm

Weight: GW: 600g / NW: 250g

CE/FCC compliant

Dual independent display

USB 2.0

LAN2

Multi-monitor kiosk

COM

USB 3.0

Combo RJ-45: LAN1 / IPMI

VGA

DDR3

1333

1.35V

DDR3L

USB

Jumper-less

USB 3.0

PCIe GbE

mSATA

Features

● 3.5” SBC supports Intel® 22nm Atom™ on-board SoC

● Dual independent display support

● 1333/1066 MHz 1.35V DDR3L SDRAM up to 8 GB

● COM, USB 3.0, SATA 3Gb/s, PCIe Mini, mSATA and Audio support

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Packing List

1 x WAFER-BT-i1 single board computer

1 x Audio cable

1 x Power cable

1 x SATA with power cable kit

1 x QIG

Ordering Information

Part No.

WAFER-BT-i1-J19001-R10

Description

3.5” SBC supports Intel® 22nm quad-core Celeron® J1900

2.0GHz on-board SoC with VGA/LVDS/iDP, Dual PCIe

GbE, USB 3.0, PCIe Mini, SATA 6Gb/s, mSATA, COM,

Audio, iRIS-1010 and RoHS

3.5” SBC supports Intel® 22nm dual-core Celeron®

N2807

1.58GHz (4.3W) on-board SoC with VGA/LVDS/iDP, Dual

PCIe GbE, USB 3.0, PCIe Mini, SATA 6Gb/s, mSATA,

COM, Audio, iRIS-1010 and RoHS

3.5” SBC supports Intel® 22nm quad-core Celeron®

N2930 1.86GHz (7.5W) on-board SoC with VGA/LVDS/iDP,

Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 6Gb/s, mSATA,

COM, Audio, iRIS-1010 and RoHS

3.5” SBC supports Intel® 22nm Atom™ E38XX on-board

SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe

Mini, SATA 6Gb/s, mSATA, COM, Audio, iRIS-1010 and

RoHS

Intel® 22nm Quad-Core Celeron® J1900 2.0GHz on-board

SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 2.0, PCIe

Mini, SATA, mSATA , COM, Audio, ECO packing and RoHS

RS-232 cable, 300mm, P=2.0

PS/2 KB/MS cable, 135mm/110mm, P=2.0

Dual-port USB cable, 210mm, P=2.0

RS-422/485 cable, 200mm, P=2.0

WAFER-BT-i1-N28071-R10

WAFER-BT-i1-N29301-R10

WAFER-BT-i1-E38XX1-R10**

WAFER-BT-J19001-

ECO-R10

19800-000300-100-RS

32000-023800-RS

32001-008600-200-RS

32205-003800-300-RS

**By

order production, MOQ: 100

WAFER-BT-i1-2018-V11
