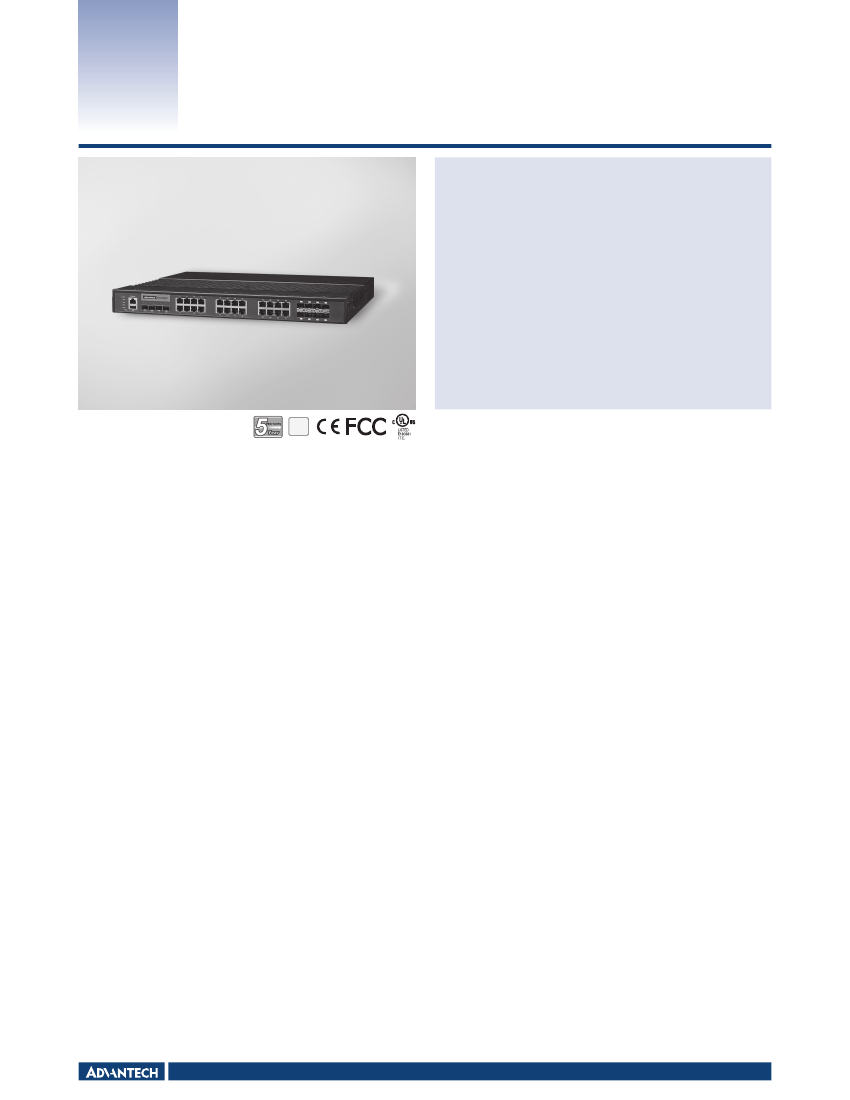

EKI-9228G-8CMI
EKI-9228G-8COI
Ind. Rackmount L2 Managed Switch with
48V
DC
Ind. Rackmount L2 Managed Switch with
AC/DC
Features
16 x Gigabit RJ-45 ports + 4 Gigabit x SFP ports + 8 x Gigabit combo ports
SFP socket for easy and flexible fiber expansion
Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
Security:802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption),HTTPS,SSH
and SNMPv3
Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms),
RSTP/STP (802.1w/1D),MSTP
Dual power input and 2 relay output
-40 ~ 85˚C wide-range operating temperature
RoHS
2002/95/EC
COMPLIANT
Introduction
The EKI-9228G series are designed for power substation automation applications which meet IEC 61850-3 certification. Thanks to its -40 ~ 85°C wide operating temperature it can
operate reliably in extremely harsh environments. Designed with 16 Gigabit ports, 4 Gigabit SFP ports, and 8 Gigabit ports it provides abundant and flexible connection. Finally, the
EKI-9228G series contain dual power inputs to ensure system stability and 2 relay outputs for greater user flexibility.
Specifications
Communications
IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w,
802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab
LAN
10/100/1000Base-T (X), Optional 100Base-FX,
1000Base-SX/LX/LHX/XD/ZX/EZX
Transmission Distance
Ethernet: Up to 100 m (4- wire Cat.5e, Cat.6 RJ45
cable suggested for Gigabit port)
SFP: Up to 110 km (depends on SFP)
Transmission Speed
Ethernet: 10/100 Mbps Auto-Negotiation
Gigabit Copper: 10/100/1000 Mbps, Auto-Negotiation
Gigabit Fiber: Up to 1000 Mbps
Standard
Power
Power Consumption
Power Input
Fault Output
EKI-9228G-8CMI: 19.21 W @ 48V
EKI-9228G-8COI: 19.24 W @ 110V
AC
EKI-9228G-8CMI: 48V
DC
EKI-9228G-8COI: 90 ~ 264AC/88 ~ 370V
DC
2 Relay Outputs
Present
Present
-40 ~ 85°C (-40 ~ 185°F)
-40 ~ 85°C (-40 ~ 185°F)
10 ~ 95% (non-condensing)
10 ~ 95% (non-condensing)
UL 60950
CE FCC EN55022 Class A
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6
IEC 61850-3
Protection
Power Reverse
Overload Current
Interface
Connectors
16 x RJ45 (Ethernet)
8 x RJ45/SFP (mini-GBIC) combo ports
4 x SFP Ports
3-pin removable screw terminal (Power)
4-pin removable screw terminal (Relay)
10/100T (X): Link/Activity, Duplex/Collision
Gigabit Copper: Link/Activity, Speed (1000 Mbps)
SFP: Link/Activity
RS-232 (RJ45)
Environment
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Certification
Safety
EMI
EMS
LED Indicators
Console
Mechanism
Enclosure
IP30, metal shell with solid mounting kits
Dimensions (W x H x D)
442 x 44 x 352 mm (17.4" x 1.73" x 13.85")
Mounting
1U 19" Rack mount
Shock
Freefall
Vibration
Power Automation
Industrial Ethernet Soultions
All product specifications are subject to change without notice
Last updated: 13-Feb-2017
EKI-9228G-8CMI
EKI-9228G-8COI
Dimensions
442
Unit: mm
482
44
Ø6.8x10.3 OB Hole
465
L2 Features
L2 MAC Address
Jumbo Frame
VLAN Group
VLAN
16K
9KB
4093 (VLAN ID 1~4093)
Mac based VLAN, Protocol based VLAN, IP subnet
based VLAN, Port based VLAN, GVRP
Per port, Multi-source port
IGMP Snooping v1/v2/v3, MLD Snooping, IGMP
Immediate leave
Broadcast, Multicast, Unknown unicast
IEEE 802.1D-STP, IEEE 802.1s-MSTP, IEEE
802.1w-RSTP, X-Ring Pro
Ordering Information
EKI-9228G-8CMI-AE
EKI-9228G-8COI-AE
Ind. Rackmount L2 Managed Switch with 48VDC
Ind. Rackmount L2 Managed Switch with AC/DC
Port Mirroring
IP Multicast
Storm Control
Spanning Tree
QoS
Priority Queue
Scheduling
Class of Service
Rate Limiting
Link Aggregation
WRR (Weighted Round Robin), SP (Strict Priority)
IEEE 802.1p based CoS, IP TOS, DSCP based CoS
Egress Rate limit, Ingress Rate limit
IEEE 802.3ad Dynamic Port Trunking, Static Port
Trunking
Security
Port Security
Authentication
ACL
Advanced Security
Static, Dynamic
802.1x (Port-Based), RADIUS, TACACS+
550 rules
IP Source Guard
Management
DHCP
Access
Security Access
Software Upgrade
NTP
Client, Server, Relay, Option 66/67
SNMP v1/v2c/v3, WEB, Telnet, RMON, Standard MIB,
Private MIB
SSH 2.0, SSL
TFTP, HTTP, Dual Image
NTP client
Online Download
www.advantech.com/products
12.70 5.90
6.20
352
