AP-125M/5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Audio and video connectors> Phone connector> AP-125M/5

AP-125M/5: Descriptionphone connector; CategoryThe connector Audio and video connectors Phone connector; File Size154KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

AP-125M/5 Overview

phone connector

AP-125M/5 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Product Category	phone connector
Type	Female
Number of locations	5 Position
Installation style	Cable
Termination type	Solder
direction	Straight
Factory packaging quantity	1

Preview

Download Datasheet

View All

ITEM #

PART #

QTY

DESCRIPTION

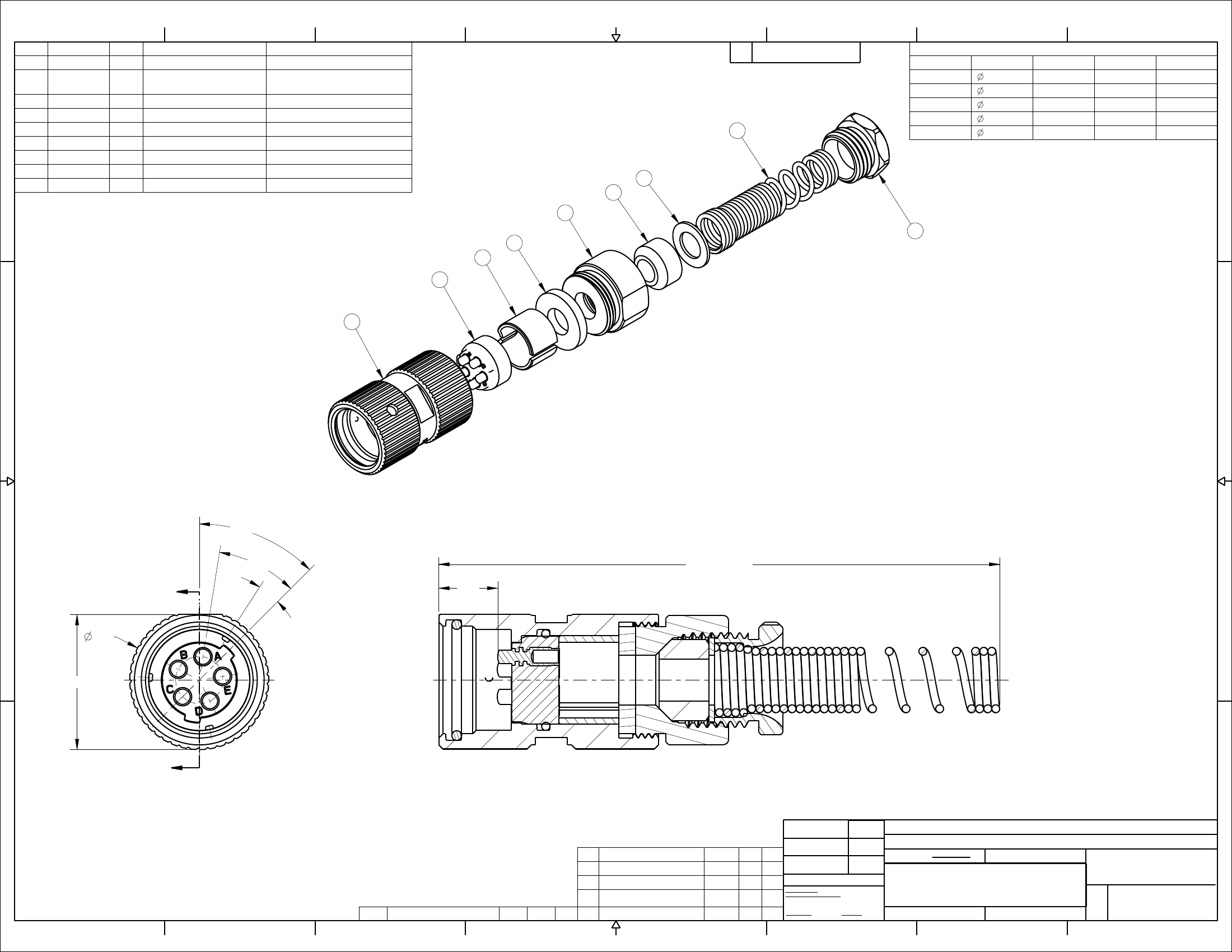

SHELL ASS'Y

INSERT ASS'Y

STRAIN RELIEF

WASHER

NUT ADAPTER

BUSHING

WASHER

SPRING

STUD

MATERIAL

303 SS & NEOPRENE

DIALLYPHTHALATE, TYPE SDGF

& GOLD PLATED BRASS

NYLON

RUBBER

ALUMINUM ALLOY ANODIZED

RUBBER

STAINLESS STEEL

302 STAINLESS STEEL

ANODIZED, ALUMINUM ALLOY

AP-145-1M

AP-125-6

AP-105-5

AP-116-3

AP-116-7

SEE TABLE #1

AP-116-6

AP-125M-CP

PART #

AP-125M-1

AP-125M-2

AP-125M-3

AP-125M-4

CABLE SIZE

.165 ± .010

.228 ± .010

.250 ± .010

.290 ± .010

.320 ± .010

TABLE #1

BUSHING

AP-116-17

AP-116-18

AP-116-8

AP-116-19

AP-116-20

WASHER

AP-116-2

AP-116-22

SPRING

AP-116-4

AP-116-21

AP-125M-5

NOTES:

1) UNLESS OTHERWISE SPECIFIED, THIS CONNECTOR MEETS ALL

GENERAL REQUIREMENTS & SPECIFICATIONS OF MIL-C-55116

2) MATES WITH U-183/U PANEL MOUNT CONNECTOR & U-228/U

INLINE CONNECTOR

45°

REF

36°

3-11/32 REF

.35

.83

12°

.80

SECTION Y-Y

SCALE 3.000

THIS DOCUMENT CONTAINS PROPRIETARY INFOR-

MATION OF NEXUS,INCORPORATED AND SUCH

INFORMATION MAY NOT BE DISCLOSED TO OTHERS

FOR ANY PURPOSE OR USED FOR ANY PURPOSE

WITHOUT THE WRITTEN CONSENT OF NEXUS.

DWN.BY

GPH

DATE

5/14/10

MATERIAL

FINISH

WEIGHT

TITLE

SCALE = 1.00 :1

CHECKED BY

DATE

5/14/10

DATE

APPR.BY

5/14/10

LET

REVISION

CN #

DATE

CHK

LET.

DEL: 36° , ADD: 48 °

REF; 36 °

226

8/24

2015

5/14

2010

CHK

NEW RELEASE

REVISION

CN #

DATE

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN INCHES & OR [mm]

TOLERANCES:

DECIMAL:

±.XX[X.X]

±.XXX[X.XX]

±.XXXX[X.XXX]

± .0X[0.X]

± .00X[0.0X]

± .000X[0.0XX]

FRACTION: ±X/XX

ANGLES:±.X °

± X/XX

±.X °

AUDIO PLUG

DO NOT SCALE DWG.

SHEET 1 OF 1

NEXUS

STAMFORD,CONN

SIZE

DWG. NO.

AP-125M-CP

AP-125M/5 Related Products

	AP-125M/5	AP-125M/3	AP-125M/4	AP-125M/2
Description	phone connector	phone connector	phone connector	phone connector
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	phone connector	phone connector	phone connector	phone connector
Type	Female	Female	Female	Female
Number of locations	5 Position	5 Position	5 Position	5 Position
Installation style	Cable	Cable	Cable	Cable
Termination type	Solder	Solder	Solder	Solder
direction	Straight	Straight	Straight	Straight
Factory packaging quantity	1	1	1	1
