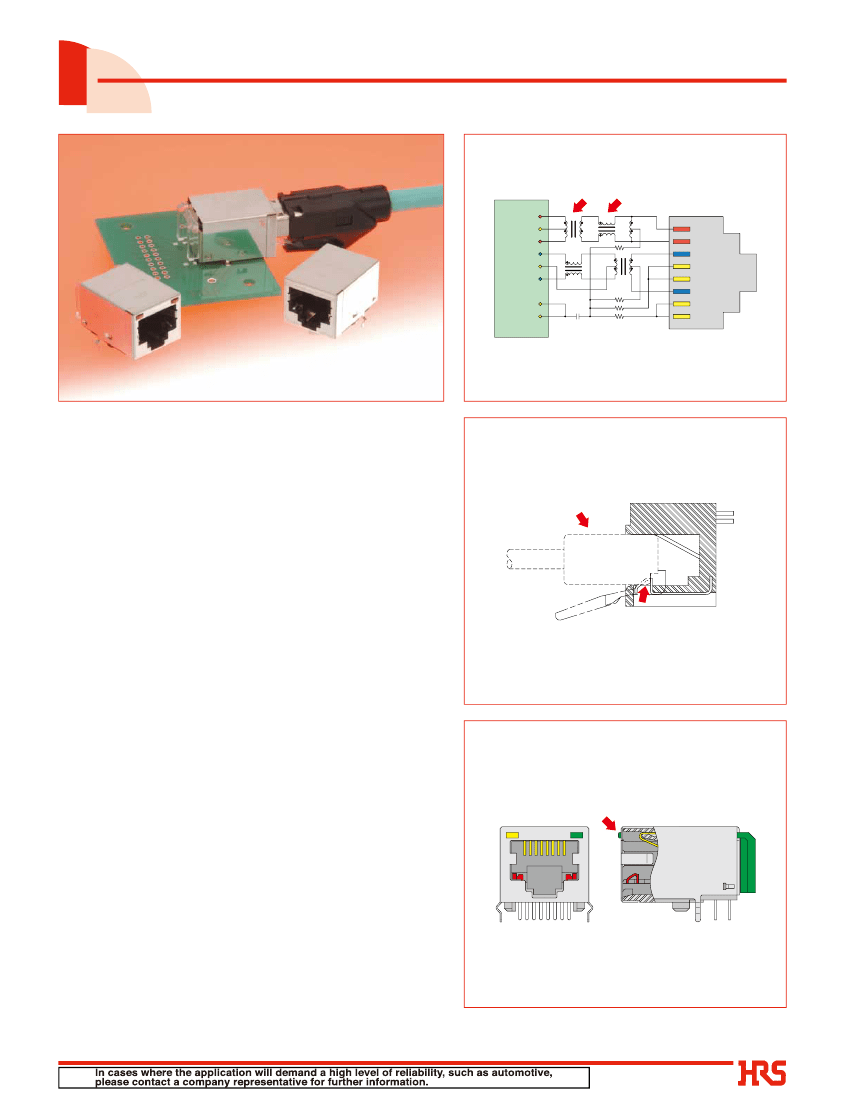

Light pipe
*
Light colors are determined by the color of LED's used.
2006.8
1
■Product
Specifications
Ratings
Voltage rating 125V AC
Item
1.Insertion resistance
2.Insulation resistance
3.Withstanding voltage
Pulse transformer
4.Insertion resistance
Specification
-2dB min.
100M ohms min.
No flashover or insulation breakdown.
-1dB min.
-20 dB max.
-16 dB max.
-12 dB max.
-10 dB max.
350μH min.
-40 dB max.
-35 dB max.
-30 dB max.
-30 dB max.
-20 dB max.
Operating temperature range: -25
ç
to +80
ç
(Note)
Conditions
1 to 65MHz
100V DC
Basic terminal between 123-45-768
500V AC / one minute
Primary (RJ45 side) to secondary (PCB side) 1500V AC / one minute
Terminal to shield
1500V AC / one minute
1 to 65MHz
1 to 10 MHz
10 to 30 MHz
30 to 60 MHz
60 to 80 MHz
0.1V
,
100KHz
,
8mADC
1 to 30 MHz
30 to 60 MHz
60 to 100 MHz
1 to 50 MHz
50 to 150 MHz
Connector
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
5.Return loss
6.Inductance
7.Cross talk
(Reference)
8.Common mode rejection ratio
(Reference)
Note: Includes temperature rise caused by current flow.
■Materials
Component
Insulator
Contacts
Shield
Incorrect insertion prevention key
Pulse transformer
Optical pipe
Material
PBT
Copper alloy
Copper alloy
Stainless
----------
Polycarbonate
----------
Clear
UL94V--0
Finish/Color
Black
Contact area
: Gold plated
Termination area: Tin plated
Tin plated
Remarks
UL94V-0
■Ordering
information
1
Series name
2
Connector type
3
Direction of locking lever
4
5
6
7
8
9
10
(mating plug)
Jack suffix number
Transformer
Transformer type
Incorrect insertion prevention key
Jack opening code
Number of inserted contacts
Optical pipe
: TM11
R: Jack
D: Down
:5
T: With transformer
A: Transformer circuit type
NA-A: With built-in key
8: 8 contacts
8: 8 contacts
LP: With optical pipe inserted
Blank: Without optical pipe
TM11 R D - 5 T A NA - A - 8 8 - LP
1
2
3
4 5 6
7
8 9
10
2
■

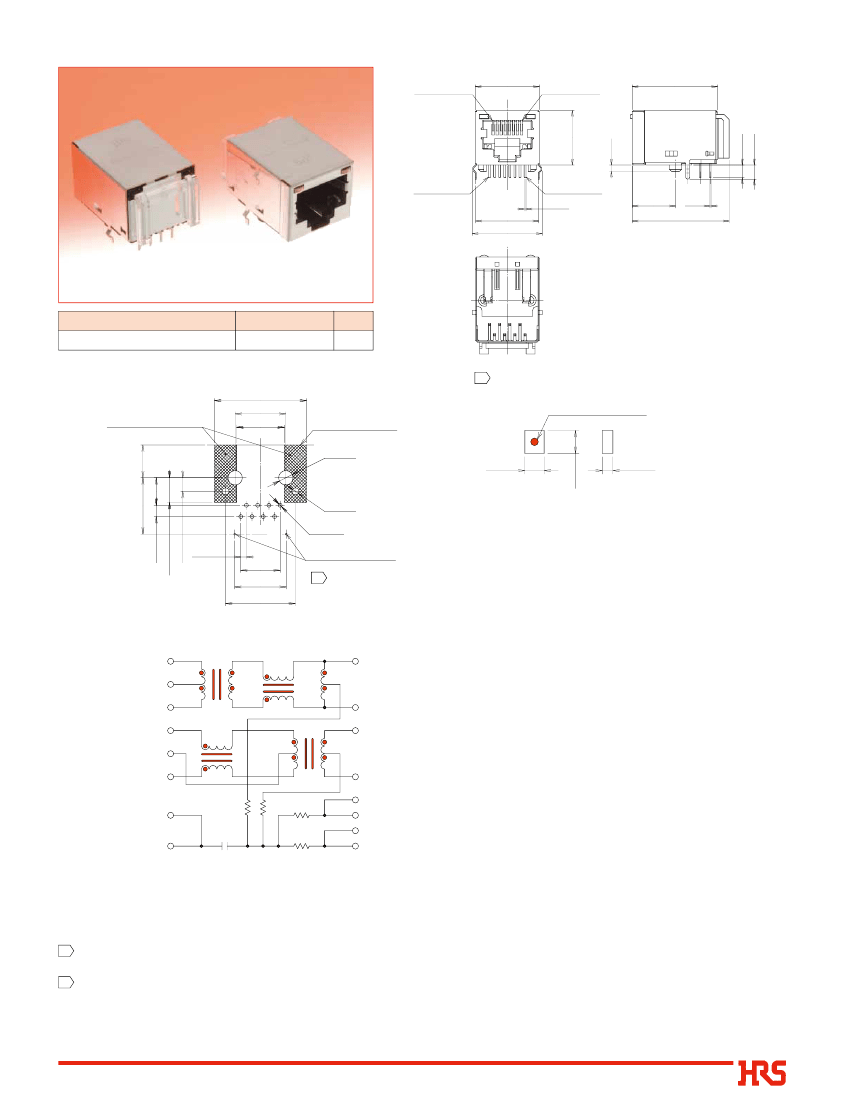

Modular Jack Connectors (With built-in optical pipe)
Contact No.1
16
Contact No.8
21.3
13.6
Contact No.1
15.75
17.5
Contact No.8
0.48
10.8
0.3
24.2
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Part Number
TM11RD-5TANA-A-88-LP
CL No.
CL222-2936-3
RoHS
YES
4
Suggested dimensions of LEDs
LED light emitting center
Printed board edge
Ø
3.25
BRecommended
PCB mounting pattern
20.75MIN
No conductive traces
11.43
10.75MAX
7.4
2.7MAX
7 5 3 1
8 6 4 2
3.2MAX
1.6
1.5MAX
12.7
6.2
Ø
1.63
8-
Ø
0.9
5.55MIN
3.05
2.54
1.27
8.89
11.6
15.75
LED center position
5
BPulse
Transformer Circuit Diagram
TD+ 1
CT
TD-
Board side
3
2
1CT:1CT
2 TX-
3 RX+
Cable side
1 TX+
RD+ 7
CT
6
1CT:1CT
75ø
0.001μF
75ø 75ø
75ø
RD- 8
6 RX-
4
5
7
8
4
CHS GROUND 5
●
Precautions
1
2
3
4
5
6
7
Hirose Electric did not check the compatibility with the PHY chip. When replacing other manufacturers jack it is recommended to verify the
compatibility with the actual equipment.
This connector is mounted on the board using wave or manual soldering. Do not use reflow soldering.
Recommended board thickness: 1.6mm
To assure correct operation of the indicator light pipes LED's must be installed directly on the PCB, within recommended dimensions and with light emitting
center in upward direction.
Mount the LED so that the center of the light emitting center aligns with the center point as dimensioned on the Recommended PCB mounting pattern above.
Verify the actual LED's mounting pattern with it's manufacturer, then add it to the PCB mounting pattern, assuring the correct placement of the center point.
IPA cleaning at room temperature is recommended for the cleaning of this product.
When an aqueous cleaning agent is to be used, there is a concern that the light pipe (made of polycarbonate resin) may change color; therefore, please
make a selection based on a table showing the effects on the resin.These tables are issued by the various manufacturers of cleaning agents.
3.18
3.56
3
■

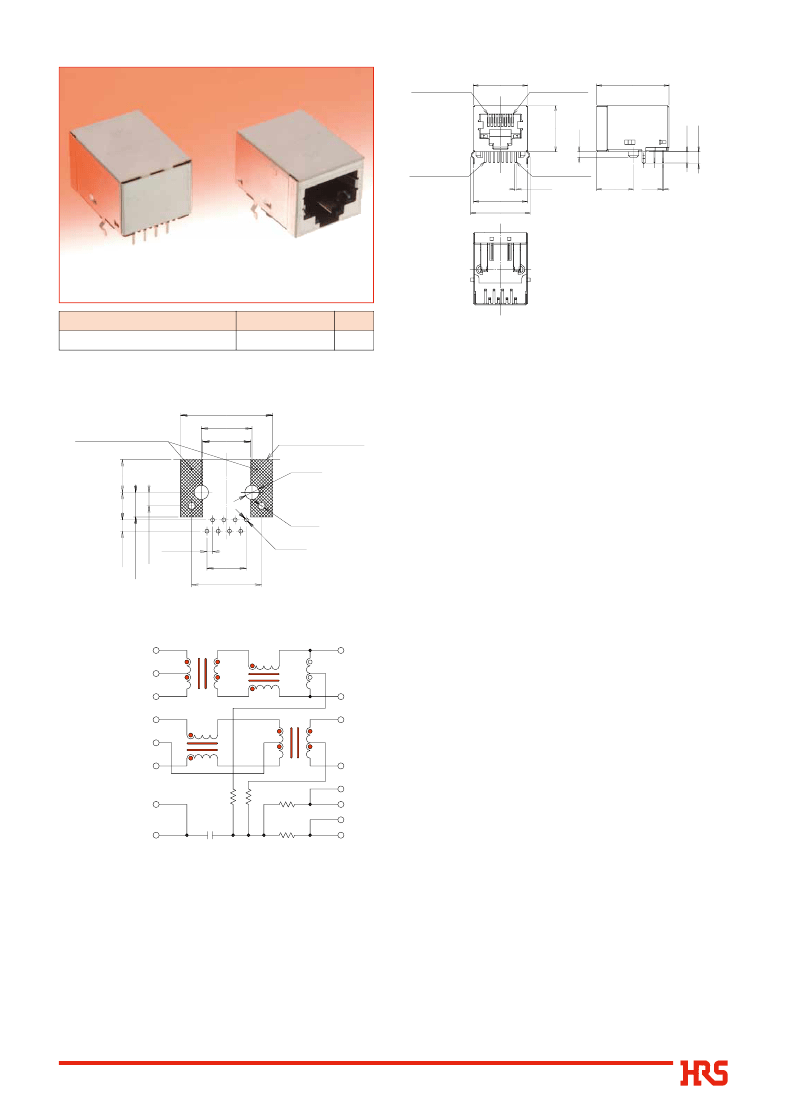

Modular Jack Connectors (Without built-in optical pipe)
Contact No.1
16
Contact No.8
21.3
13.6
Contact No.1
15.75
17.5
Contact No.8
0.48
1.6
10.8
0.3
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Part Number
TM11RD-5TANA-A-88
CL No.
CL222-2932-2
RoHS
YES
BRecommended
PCB mounting pattern
20.75MIN
11.43
10.75MAX
No conductive traces
Printed board edge
Ø
3.25
6.2
7.4
7 5 3 1
8 6 4 2
Ø
1.63
2.54
5.55MIN
3.05
1.27
8.89
15.75
8-
Ø
0.9
BPulse
Transformer Circuit Diagram
TD+ 1
CT
TD-
Board side
3
2
1CT:1CT
2 TX-
3 RX+
Cable side
1 TX+
RD+ 7
CT
6
1CT:1CT
75ø
0.001μF
75ø 75ø
75ø
RD- 8
6 RX-
4
5
7
8
4
CHS GROUND 5
●
Precautions
1
2
3
4
Hirose Electric did not check the compatibility with the PHY chip. When replacing other manufacturers jacks it is
recommended to verify the compatibility with the actual equipment.
This connector is mounted on the board using wave or manual soldering.Do not use reflow soldering.
Recommended board thickness: 1.6mm
IPA cleaning at room temperature is recommended for the cleaning of this product.
When an aqueous cleaning agent is to be used, there is a concern that the light pipe (made of polycarbonate resin) may
change color; therefore, please make a selection based on a table showing the effects on the resin.These tables are
issued by the various manufacturers of cleaning agents.
3.18
3.56
4
■

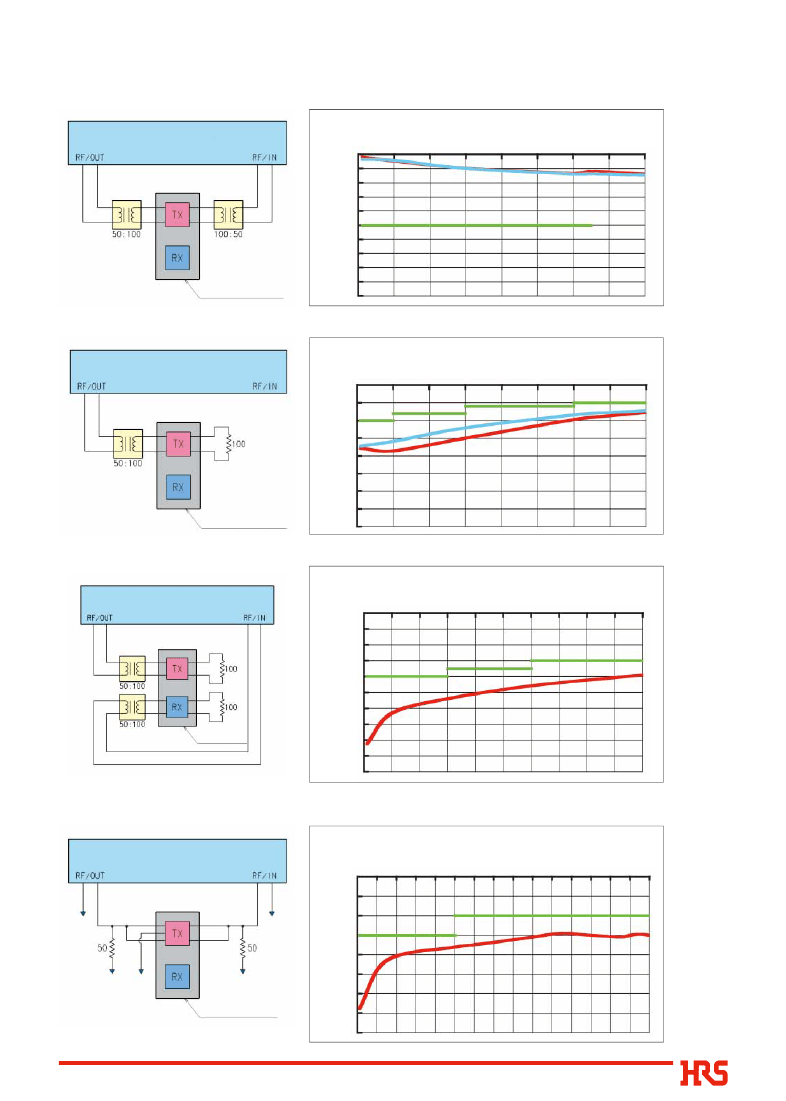

Technical Data
Measurement results of electrical characteristics
●
Insertion Loss
Insertion Loss
Network analyzer
0
-0.2
-0.4
-0.6
dB
-0.8
-1
-1.2
-1.4
-1.6
-1.8
-2
0
10
20
30
MHz
40
50
60
70
80
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
