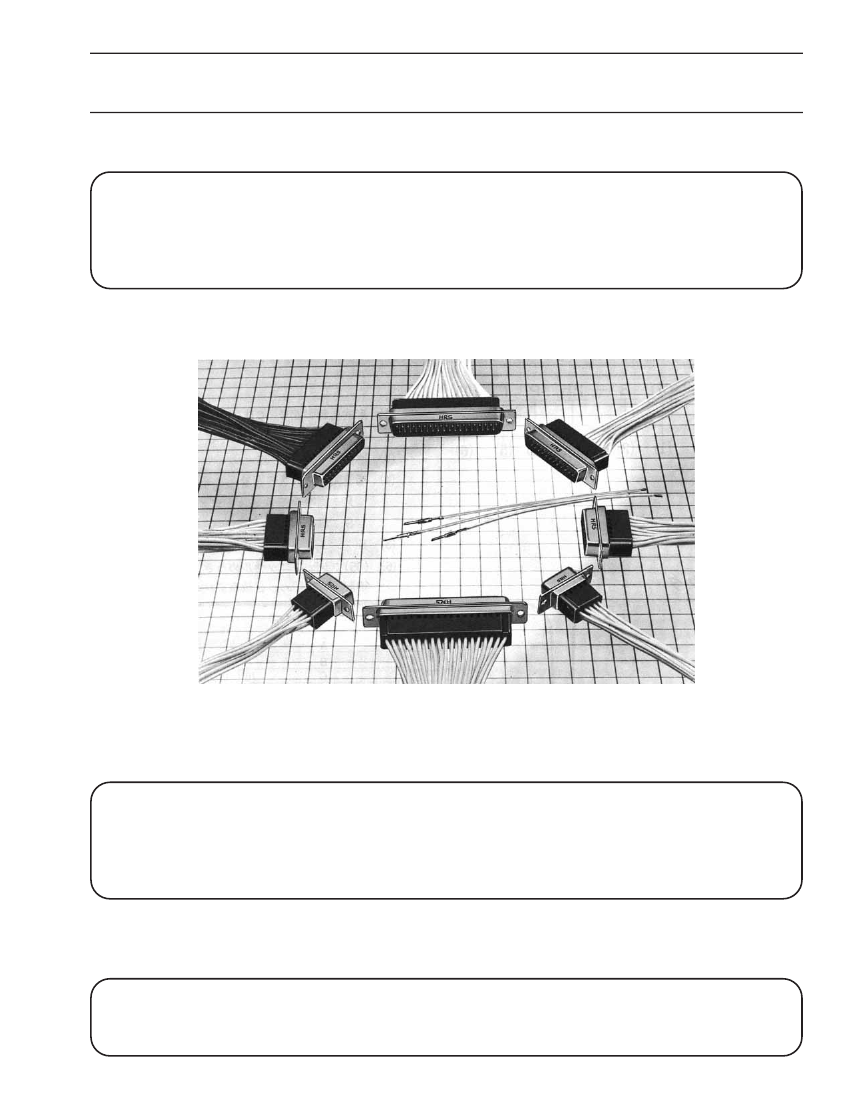

miniature Connectors for Discrete Wire Terminations.
Available in 9, 15, 25 and 37 way. Terminals available
for AWG28 through AWG20. Plug with Grounding dim-
ples is introduced now.
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Features
(1) Compact and sturdy due to metal shell.
(2) Can be mounted on the front or back of a panel or
chasis as necessary.
(3) Requires no special withdrawal jig (push the retain-
ers from the connector sides to insert/withdraw the
connector).
(4) Uses insulation made from highly heat-resistant
and chemical-resistant UL synthetic resin.
Application
Suitable for modems in communications equipment such as computers, peripherals and terminals, control equip-
ment, measuring instruments, and export equipment.
04/2009
61
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
Electrical and Environmental
Electrical and Environmental Characteristics
Current capacity
Rated voltage
Insulation
resistance
Contact
resistance
Withstand
voltage
3A
350V AC
Insulator
5000mΩ min.
at 500V DC
25mΩ max.
at 100mA DC
1250Vrms AC for 1 minute
Contacts
PBT
（GE Valox） Black
*
Phosphor bronze Nickel plating + Gold plating
*UL94V-0
Shell
Steel
Material and finish
Nickel plating
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Connector Housing
CD
B
−
25
P
F
（05）
Series Name CD: Crimping type
Shell Size E.A.B.C.
No. of Pin 9, 15, 25, 37
Type of Housing
P: Plug Housing
S: Receptance Housing
(5) Type of Shell
F: With Grounding dimples
(6) Specification contents
(05): Nickel plated shell
(1)
(2)
(3)
(4)
(1)
(2)
(3) (4) (5) (6)

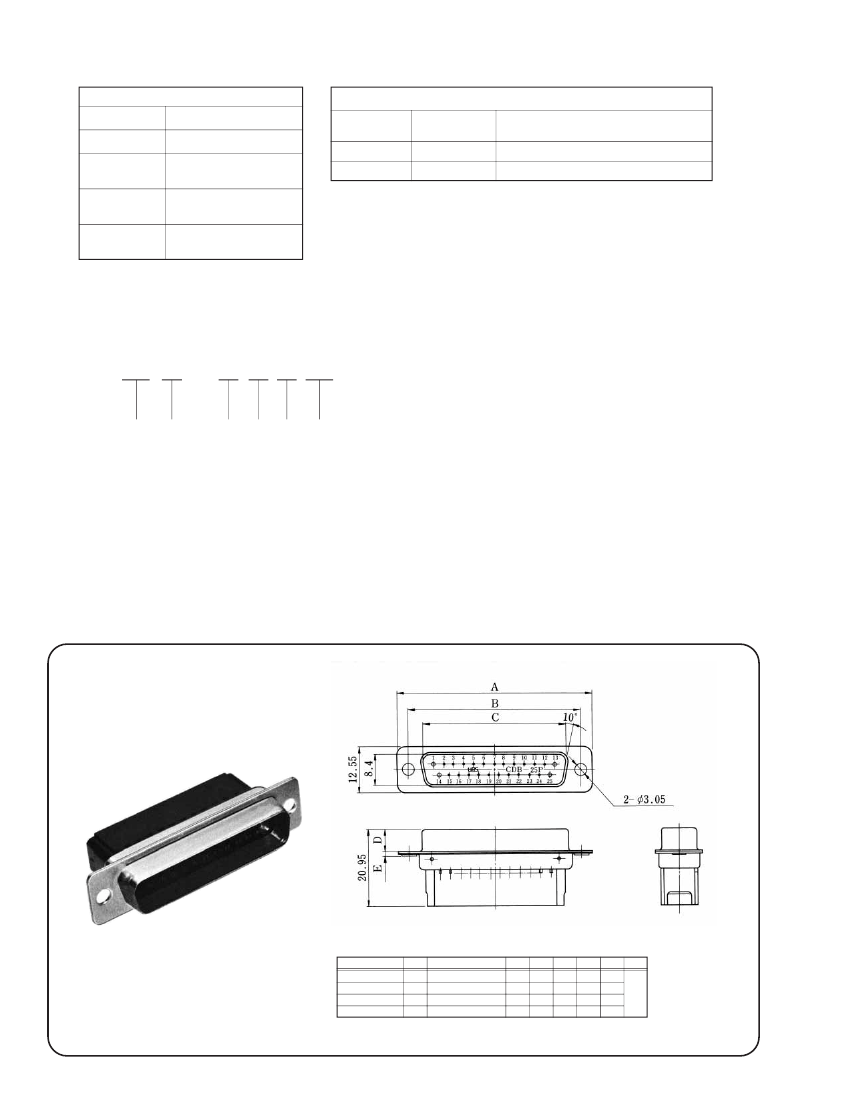

Male Connector
Unit: mm
CDB-25P
（05）
HRS No
CL211-0186-0-05
CL211-0279-0-05
CL211-0211-6-05
CL211-0281-1-05
No.of pin
9
15
25
37
Part No.
CDE-9P
（05）
CDA-15P
（05）
CDB-25P
（05）
CDC-37P
（05）
A
B
C
16.9
D
5.99
5.99
5.87
5.87
E
1.2
1.2
1.3
1.4
RoHS
30.81 24.99
39.14 33.32 25.24
53.04 47.04 39.01
69.32
63.5
55.47
YES
62
04/2009
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.

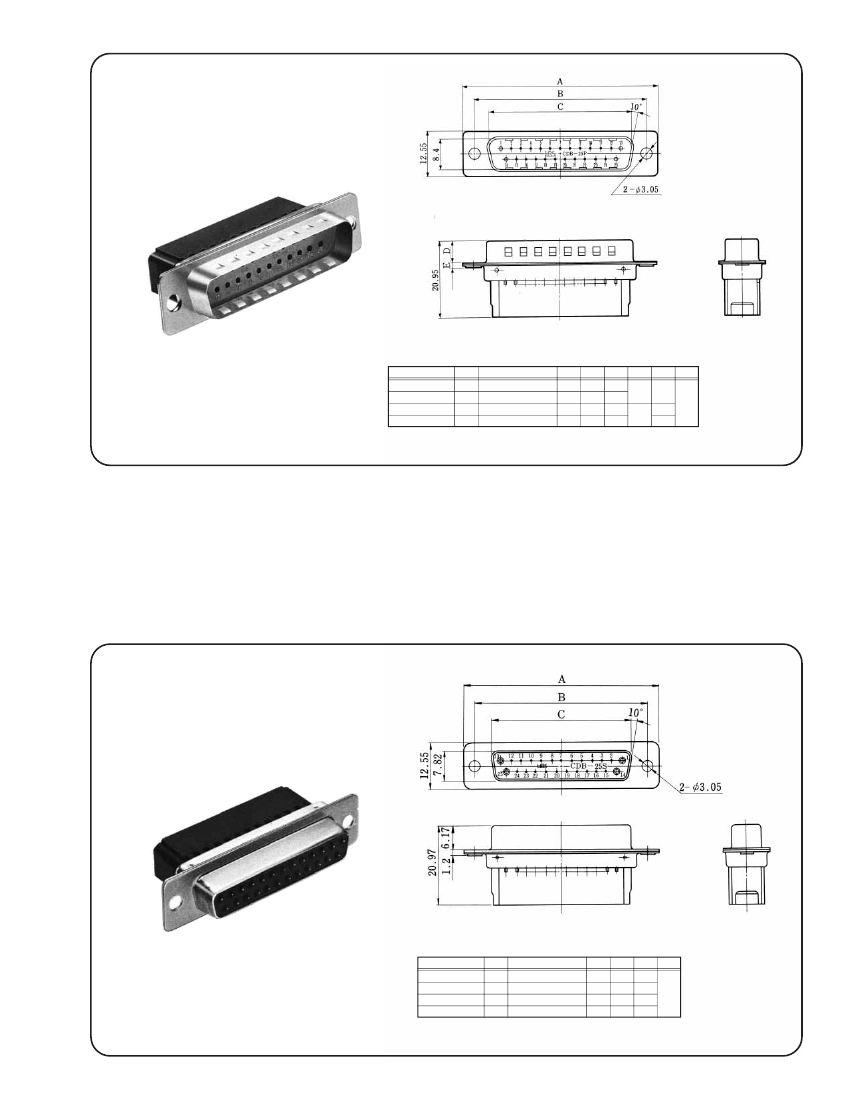

Unit: mm
CDB-25PF
（05）
HRS No
CL211-0600-8-05
CL211-0601-0-05
CL211-0602-3-05
CL211-0603-6-05
No.of pin
9
15
25
37
Part No.
CDE-9PF
（05）
CDA-15PF
（05）
CDB-25PF
（05）
CDC-37PF
（05）
A
B
C
D
5.99
5.87
E
1.2
1.3
1.4
RoHS
30.81 24.99 16.9
39.14 33.32 25.24
53.04 47.04 39.01
69.32
63.5
55.47
YES
Female Connector
Unit: mm
HRS No
No.of pin
9
15
25
37
Part No.
CDE-9S
（05）
CDA-15S
（05）
CDB-25S
（05）
CDC-37S
（05）
A
B
C
RoHS
CDB-25S
（05）
CL211-0207-9-05
CL211-0280-9-05
CL211-0212-9-05
CL211-0282-4-05
30.81 24.99 16.4
39.14 33.32 24.59
YES
53.04 47.04 38.3
69.32
63.5
54.76
04/2009
63
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

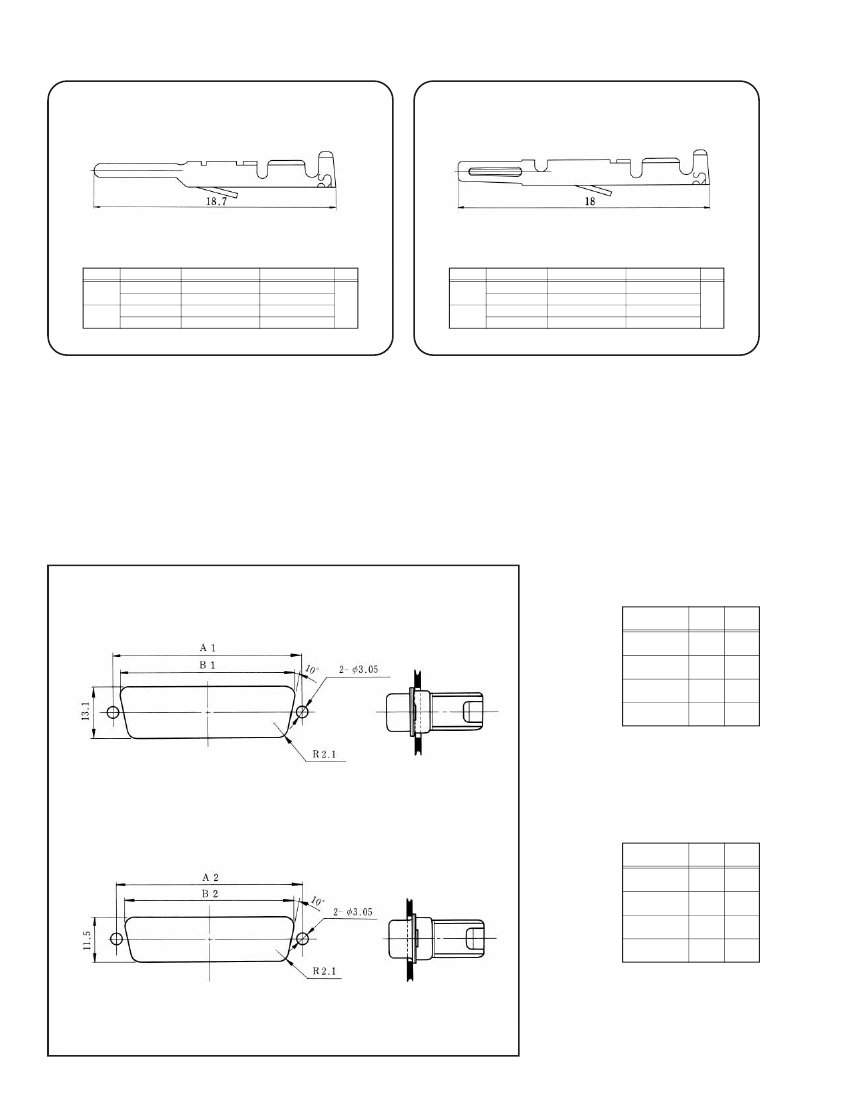

Contact
Male Contact
Female Contact
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
種類
Loose
contact
Chain
contact
HRS No
CL211-0185-8
CL211-0202-5
CL211-0200-0
CL211-0201-2
Part No.
CD-PC-111
CD-PC-121
CD-PC-211
CD-PC-221
Applicable wire
AWG#20∼24
AWG#24∼28
AWG#20∼24
AWG#24∼28
RoHS
種類
Loose
contact
Chain
contact
HRS No
CL211-0205-3
CL211-0206-6
CL211-0203-8
CL211-0204-0
Part No.
CD-SC-111
CD-SC-121
CD-SC-211
CD-SC-221
Applicable wire
AWG#20∼24
AWG#24∼28
AWG#20∼24
AWG#24∼28
RoHS
YES
YES
Note : Loose-Piece terminals are available in Packs. Each Pack
contains 100 terminals. Strip terminals are available in
reels. Each contains 10,000 terminals
Connector Mounting Method and Mounting Dimensions
Connector mounted on the face of the panel (front mounting)
Shell size
E
A
B
C
A2
Unit: mm
B2
22
30.3
44
60.5
24.99
33.32
47.04
63.5
Connector mounted on the back of the panel (rear mounting)
Shell size
E
A
B
C
A2
Unit: mm
B2
20.2
28.6
42.5
59.2
24.99
33.32
47.04
63.5
64
04/2009
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

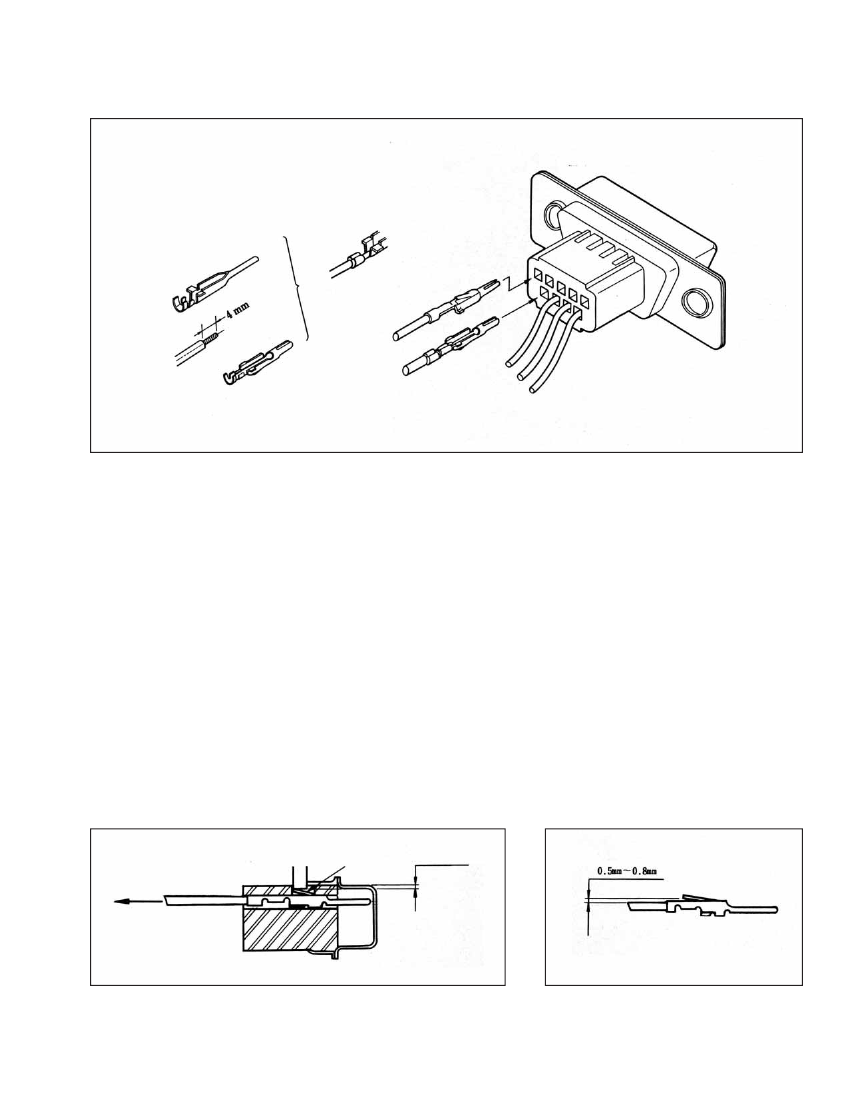

Assembling Procedure of Crimp Contact
Assembly Steps
Female housing
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Male Contact
Female Contact
After assembling, pull
the wire slightly and
make sure if the
contact is mounted.
Procedure for Contact Extraction
In case of extracting a contact from the housing in insertion error or in circuit change,
follow the steps as shown below:
(1) How to extract a contact
Insert a 1.1×0.5 mm thick board
into the lance-fixed-hole of the
housing as shown in Fig. 1 and
extract the contact by pulling
the wire.
(2) How to raise up a lance
When the extracted contact is in-
stalled again in the housing, please
raise up the contact lance as
shown in Fig. 2 and then insert it to
the housing.
1.1×0.5mm thick board
Pulling direction
Lance
about 1mm
Fig. 1
Fig. 2
Figure 1 illustrates a female contact. This also applies for a mate contact.
