• FEP insulation is compatible with most insulation
displacement connectors
• .050 inch pitch parallel conductors for mass
termination
• Low dielectric constant
• Excellent abrasion and chemical resistance
• Excellent mechanical durability
• Nonflammable
• UL Recognized to 200°C
• See the Regulatory Information Appendix
(RIA) in the “RoHS compliance” section of
www.3Mconnectors.com for compliance
information (RIA E1 & C1 apply)
Date Modified: October 30, 2013
3601 Series
TS-0553-C
Sheet 1 of 3
Physical
Insulation:
Material: Flourinated Ethylene Propylene (FEP)
Color: Blue
Marking:
Conductors:
28 AWG, 7
×
36 AWG [ 7
×
Ø
0.127 ] Silver Plated Stranded Copper
Standard: None
Electrical
Unbalanced
Characteristic Impedance:
131
Ω
Voltage Rating:
USA: 300V
EU: <50V
Insulation Resistance:
> 1 × 10
10
Ω/10
ft. [ 3 m ]
9.9 pF/ft [ 32.5 pF/m ]
Capacitance:
Inductance:
Propagation Delay:
Velocity of Propagation:
0.17 μH/ft [ 0.56 μH/m ]
1.29 ns/ft [ 4.23 ns/m ]
79%
Note: Unbalanced is measured between ground-signal-ground conductors.
Environmental
Temperature Rating:
-55°C to +200°C
Flammability Rating:
USA: VW-1
UL File No.: E42769, Style No: 20424
3
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

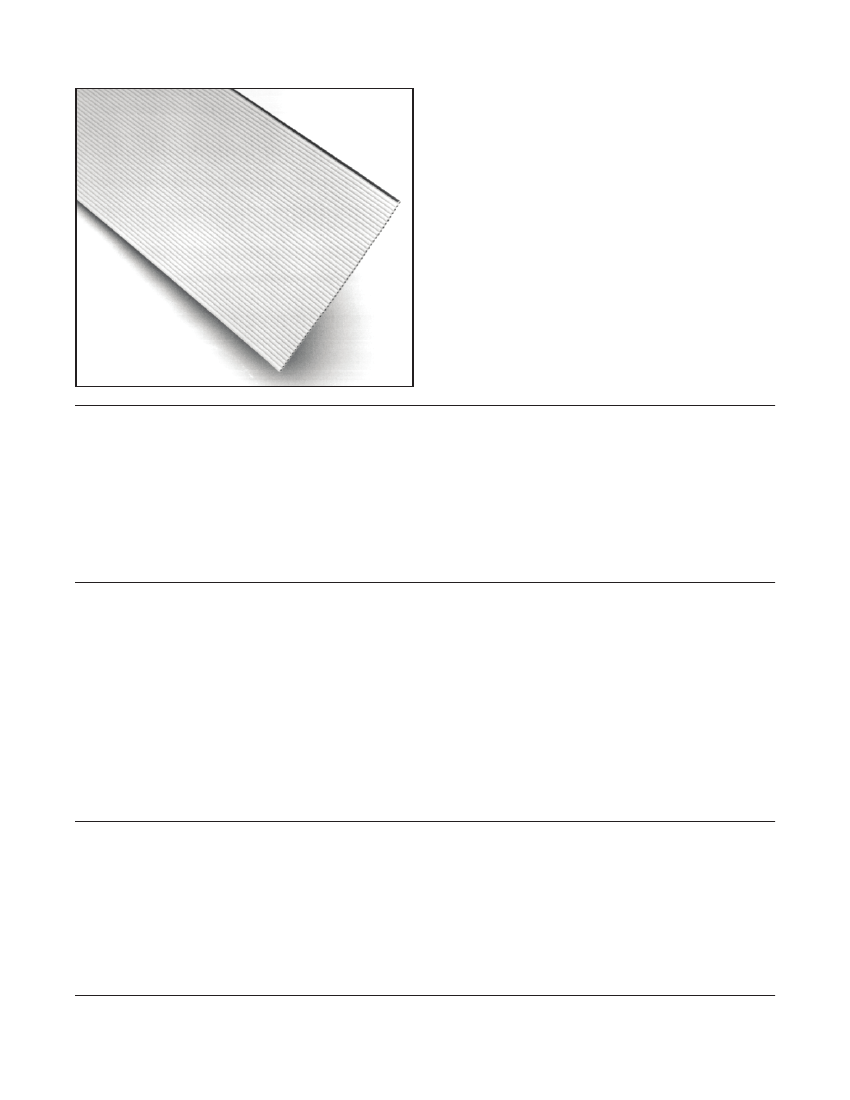

Round Conductor Flat Cable
.050" 28 AWG Stranded, FEP
Number of
Conductors
04
06
08
10
12
14
15
16
20
25
26
30
34
40
50
60
64
3M Part
Number
3601/04
3601/06
3601/08
3601/10
3601/12
3601/14
3601/15
3601/16
3601/20
3601/25
3601/26
3601/30
3601/34
3601/40
3601/50
3601/60
3601/64
A
B
.025
±
.007
[0.64]
.050
±
.002 Typ
[1.27]
3601 Series
Dimension A
Dimension B
0.150 ± .007 [3.81]
0.250 ± .007 [6.35]
0.350 ± .007 [8.89]
0.450 ± .007 [11.43]
0.550 ± .007 [13.97]
0.650 ± .007 [16.51]
0.700 ± .007 [17.78]
0.750 ± .007 [17.78]
0.950 ± .011 [24.13]
1.200 ± .011 [30.48]
1.250 ± .011 [31.75]
1.450 ± .011 [36.83]
1.650 ± .015 [41.91]
1.950 ± .015 [49.53]
2.450 ± .015 [62.23]
2.950 ± .015 [74.93]
3.150 ± .015 [40.01]
0.200 ± .008 [5.08]
0.300 ± .008 [7.62]
0.400 ± .008 [10.16]
0.500 ± .010 [12.70]
0.600 ± .010 [15.24]
0.700 ± .010 [17.78]
0.750 ± .010 [19.05]
0.800 ± .010 [19.05]
1.000 ± .015 [25.40]
1.250 ± .015 [31.75]
1.300 ± .015 [33.02]
1.500 ± .015 [38.10]
1.700 ± .020 [43.18]
2.000 ± .020 [50.80]
2.500 ± .020 [63.50]
3.000 ± .020 [76.20]
3.200 ± .020 [81.28]
.029
±
.003
[0.74]
28 AWG, 7X 36 AWG [7X Ø 0.127]
Silver Plated Stranded Copper
Conductors
Inch
[mm]
Tolerance Unless Noted
.0
.00
±.01
.000
±.005
Inch
±.1
Note: Blue marking on one edge of cable designates wire #1.
[ ] Dimensions for Reference Only
Ordering Information
3601/XX
Number of Conductors
(See Table)
Note: Available in standard 100 ft rolls, contact 3M for availability of additional
conductor counts and/or custom roll lengths.
TS-0553-C
Sheet 2 of 3
3
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
