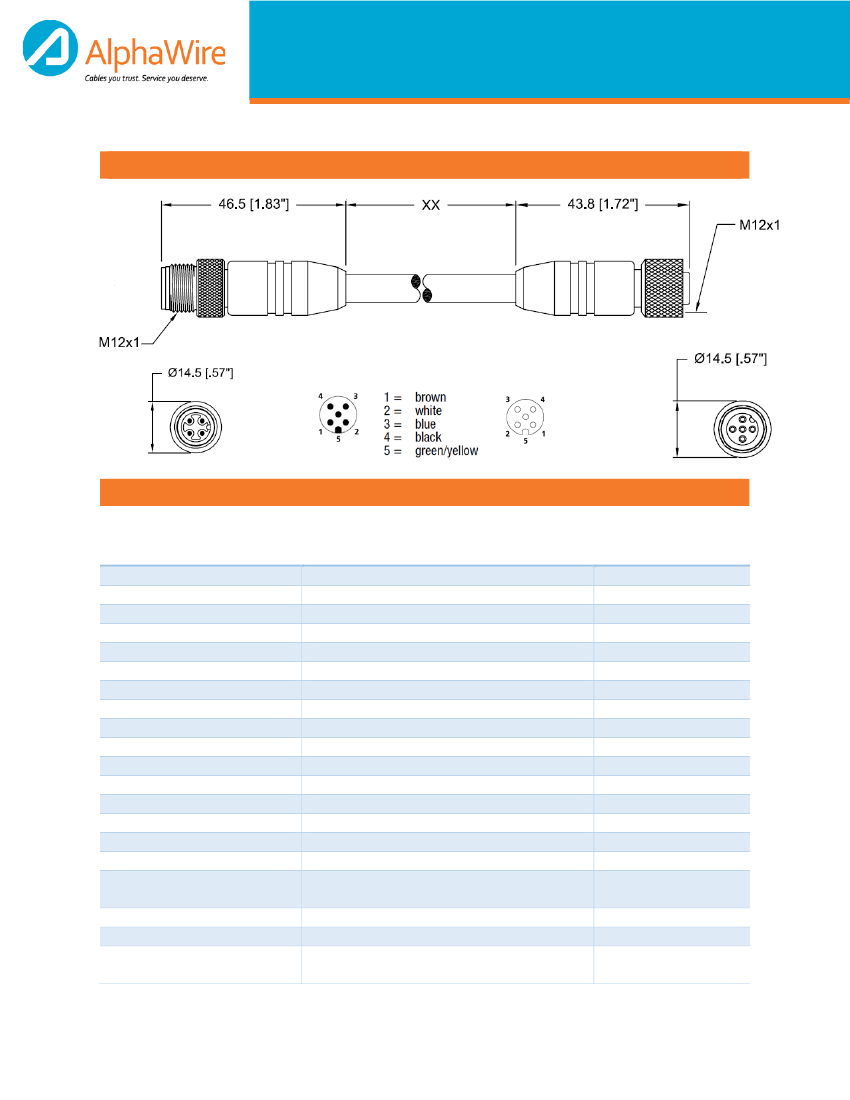

Customer Specification
PART NO: DR05AR106
M12-A Male to M12-A Female
Drawings
Technical Data
Issue: 1 Issue Date: 7/29/2016 Effective Date: 7/29/2016
Cordage Construction
Cordage Part Number
Component 1
a) Conductor
b) Insulation
Insulation Colors
Jacket
a) Color(s)
Cord Configuration
End 1
End 2
Insert
Mold Color
Contact
O-Ring
Coupling Nut
Available Lengths
Applicable Specifications-
Cable
UL
CSA International
Applicable Specifications-
Cord Set
Diameters (In)
106
5 COND
22 (26/36) AWG Bare Copper
0.011” Wall, Nom. SR-PVC
Black, White, Brown, Blue & Green/Yellow
0.040” Wall, Nom. PVC
SLATE
M12-A Male
M12-A Female
Black TPU
Black TPU
Copper Alloy, Gold plated
FKM
Copper Alloy, Nickel plated
0.6, 1, 3, 5, 10, 15, 20 Meters
AWM/STYLE 2661
C(RU) AWM I/II A/B FT1
105°C / 300 V
RMS
105°C / 300 V
RMS
0.027
0.049
0.220
•••••••••••••••••••••••••••••••••••••••
Alpha Wire | 711 Lidgerwood Ave, Elizabeth, NJ 07207
www.alphawire.com | 1-800-52 ALPHA
1
Customer Specification
PART NO: DR05AR106
M12-A Male to M12-A Female
UL
CSA
ANSI/UL 2238, Cable Assembly Extension
RU, UL File Number E485156
CSA-C22.2 No. 182.3, Special Use
Attachment Plugs, Receptacles and
Connectors
cRU, UL File Number E485156
60 V
63 V
IP67/NEMA 6P
All materials used in the manufacture of
this part meet the requirements of
European Directive 2011/65/EU regarding
the restriction of use of certain hazardous
substances in electrical and electronic
equipment. Exemption used; 6a.
This product does not contain Substances
of Very High Concern (SVHC) listed on the
European Union’s REACH candidate list in
excess of 0.1% mass of the item.
-40 to 105°C(static), -15 to 105°C (dynamic)
-25°C to +80°C
7X Cable Diameter (static), 10X Cable
Diameter (dynamic)
26 Lbs, Maximum
2.5 Amps @ 50°C
0.6 Meters
1.0 Meters
3.0 Meters
5.0 Meters
10.0 Meters
15.0 Meters
20.0 Meters
Each
Nominal Voltage
Rated Voltage
Ingress Protection
Environmental Compliance
CE
REACH Regulation (EC
1907/2006)
Physical & Mechanical
Properties
Temperature Range, Cord
Temperature Range,
Connector
Bend Radius
Pull Tension
Current Rating
Ordering Information
DR05AR106 SL355
DR05AR106 SL356
DR05AR106 SL357
DR05AR106 SL358
DR05AR106 SL359
DR05AR106 SL400
DR05AR106 SL401
Standard Package
