M12B-05PFFC-SF8C15 datasheet, PDF

Datasheet> All Categories > Wire/cable> Cable package> Sensor/actuator cable> M12B-05PFFC-SF8C15

M12B-05PFFC-SF8C15: DescriptionSensor Cable/Actuator Cable M12Panelw/Wire Harns 5PIN F CONN F PIN; CategoryWire/cable Cable package Sensor/actuator cable; File Size294KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

M12B-05PFFC-SF8C15 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M12B-05PFFC-SF8C15	-	-	View	Buy Now

M12B-05PFFC-SF8C15 Overview

Sensor Cable/Actuator Cable M12Panelw/Wire Harns 5PIN F CONN F PIN

M12B-05PFFC-SF8C15 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Product Category	Sensor cable/actuator cable
Shipping restrictions	Mouser does not currently sell this product.
series	X-Lok
Factory packaging quantity	10

Preview

Download Datasheet

View All

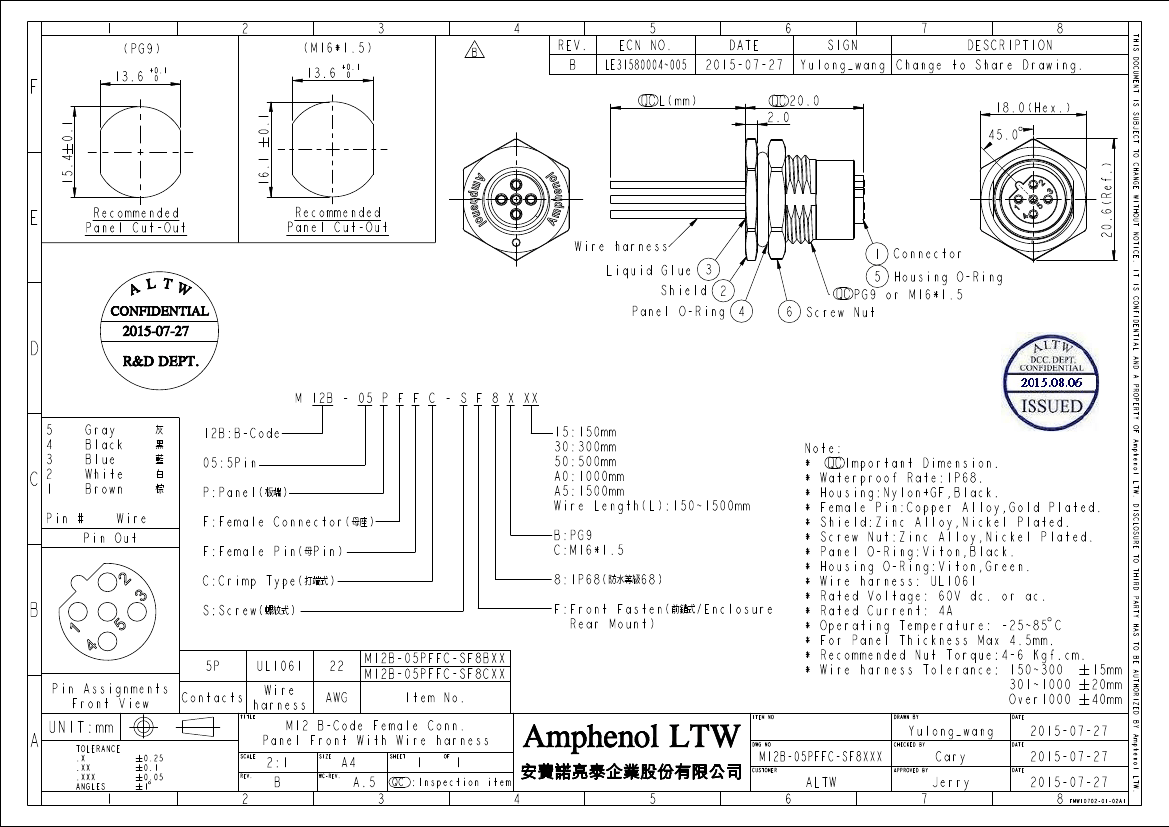

(PG9)

+0.1

(M16*1.5)

13.6

+0.1

REV.

ECN NO.

LE31580004~005

DATE

2015-07-27

SIGN

Yulong_wang

DESCRIPTION

Change to Share Drawing.

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A

13.6

L(mm)

20.0

0.1

2.0

18.0 （Hex.）

45.0 $

20.6 （Ref.）

15.4

16.1

Recommended

Panel Cut-Out

Recommended

Panel Cut-Out

Wire harness

Shield

Panel O-Ring

Connector

Liquid Glue

CONFIDENTIAL

5 Housing O-Ring

PG9 or M16*1.5

Screw Nut

2015-07-27

R&D DEPT.

M 12B - 05 P F F C - S F 8 X XX

Gray

Black

Blue

White

Brown

灰

黑

藍

棕

12B:B-Code

05:5Pin

P:Panel(板端)

F:Female Connector(母座)

F:Female Pin(母Pin)

C:Crimp Type(打端式)

B:PG9

C:M16*1.5

8:IP68(防水等級68)

F:Front Fasten(前鎖式/Enclosure

Rear Mount)

AWG

M12B-05PFFC-SF8BXX

M12B-05PFFC-SF8CXX

Item No.

15:150mm

30:300mm

50:500mm

A0:1000mm

A5:1500mm

Wire Length(L):150~1500mm

PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY

Pin #

Wire

Pin Out

S:Screw(螺紋式)

Pin Assignments

Front View

Contacts

TITLE

UL1061

Wire

harness

Note:

* Important Dimension.

* Waterproof Rate:IP68.

* Housing:Nylon+GF,Black.

* Female Pin:Copper Alloy,Gold Plated.

* Shield:Zinc Alloy,Nickel Plated.

* Screw Nut:Zinc Alloy,Nickel Plated.

* Panel O-Ring:Viton,Black.

* Housing O-Ring:Viton,Green.

* Wire harness: UL1061

* Rated Voltage: 60V dc. or ac.

* Rated Current: 4A

* Operating Temperature: -25~85 $ C

* For Panel Thickness Max 4.5mm.

* Recommended Nut Torque:4-6 Kgf.cm.

* Wire harness Tolerance: 150~300

# 15mm

301~1000 # 20mm

Over1000 # 40mm

ITEM NO

DRAWN BY

DATE

UNIT:mm

TOLERANCE

# 0.25

.XX

# 0.1

.XXX

# 0.05

ANGLES

# 1 $

M12 B-Code Female Conn.

Panel Front With Wire harness

2:1

SIZE

SCALE

A.5

SHEET

Amphenol LTW

Yulong_wang

DWG NO

CHECKED BY

DATE

2015-07-27

DATE

Amphenol LTW.

M12B-05PFFC-SF8XXX

CUSTOMER

APPROVED BY

Cary

Jerry

REV.

WC-REV.

QC :Inspection item

ALTW

2015-07-27

FMW10702-01-02A1

M12B-05PFFC-SF8C15 Related Products

	M12B-05PFFC-SF8C15	M12B-05PFFC-SH8C15	M12B-05PFFC-SF8B15	M12B-05PFFC-SH8B15
Description	Sensor Cable/Actuator Cable M12Panelw/Wire Harns 5PIN F CONN F PIN	Sensor Cable/Actuator Cable M12Panelw/Wire Harns 5PIN F CONN F PIN	Sensor Cable/Actuator Cable M12Panelw/Wire Harns 5PIN F CONN F PIN	Sensor Cable/Actuator Cable M12Panelw/Wire Harns 5PIN F CONN F PIN
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	Sensor cable/actuator cable	Sensor cable/actuator cable	Sensor cable/actuator cable	Sensor cable/actuator cable
Shipping restrictions	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.
series	X-Lok	X-Lok	X-Lok	X-Lok
Factory packaging quantity	10	10	10	10
