ABS Plastic Hand Held Enclosures
1553 Series
Soft Sided, Ergonomic Comfort, Battery Compartments
Key Features
Ergonomically designed for hand-held comfort.
Choice of five sizes and six color combinations.
Choice of two versions in the three larger sizes (ie...with or without battery door &
compartment)
Molded in general purpose ABS plastic with an overmold, soft plastic grip.
Top cover is recessed for membrane display or keypad.
P.C. board standoffs are molded into case (see drawings or photos for more details).
Includes removable front panel (for easy modifications) and assembly hardware (except
for smallest 1553A units).
Battery door & compartment version includes 4 battery clips (for 2 - AA batteries) and a 9
volt (PP3) battery clip.
Gray 1553 series enclosures include nickel plated screws. All other color use black
screws. Refer to product datasheets for correct part numbers.
For similar enclosures designed for water-tight applications, try series
1553W

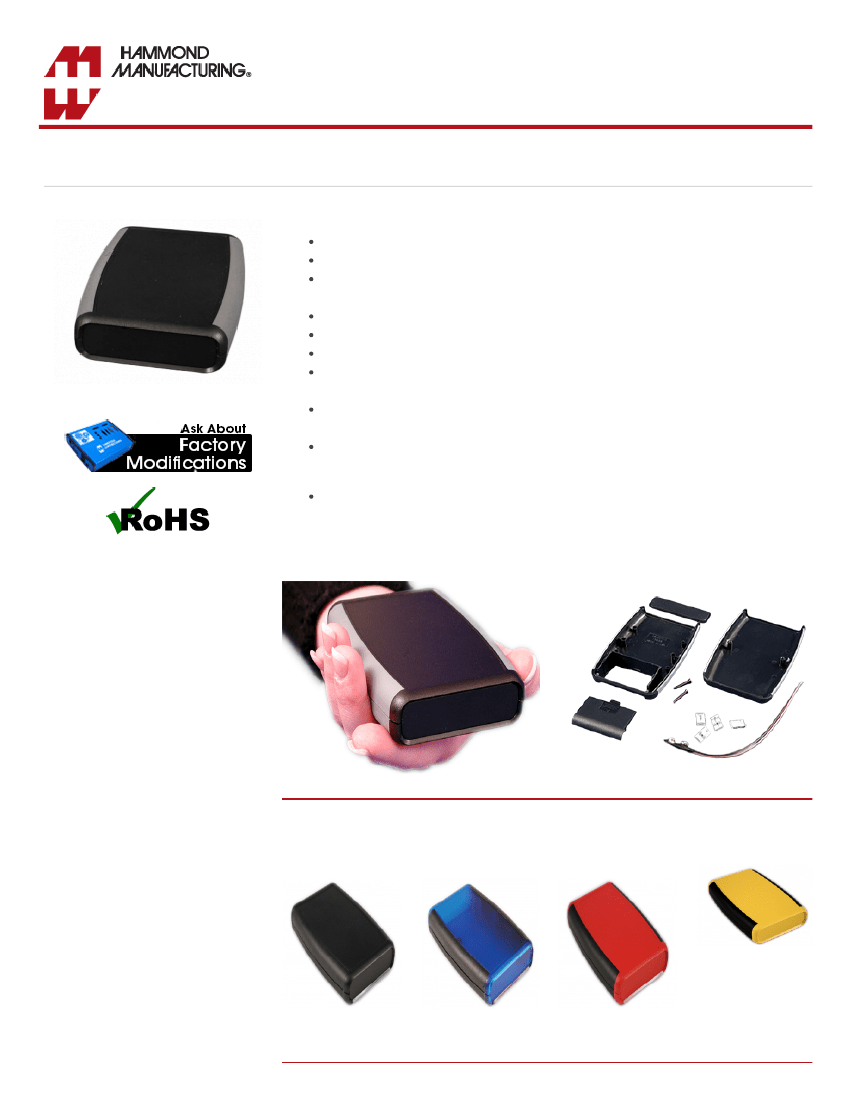

Photo Features
Perfect for handheld use.
Battery version comes with clips for AA for 9V.
Additional Color Combinations Available
https://www.hammfg.com/electronics/small-case/plastic/1553
1/3
11/8/2018
ABS Plastic Hand Held Enclosures (1553 Series) - Hammond Mfg.

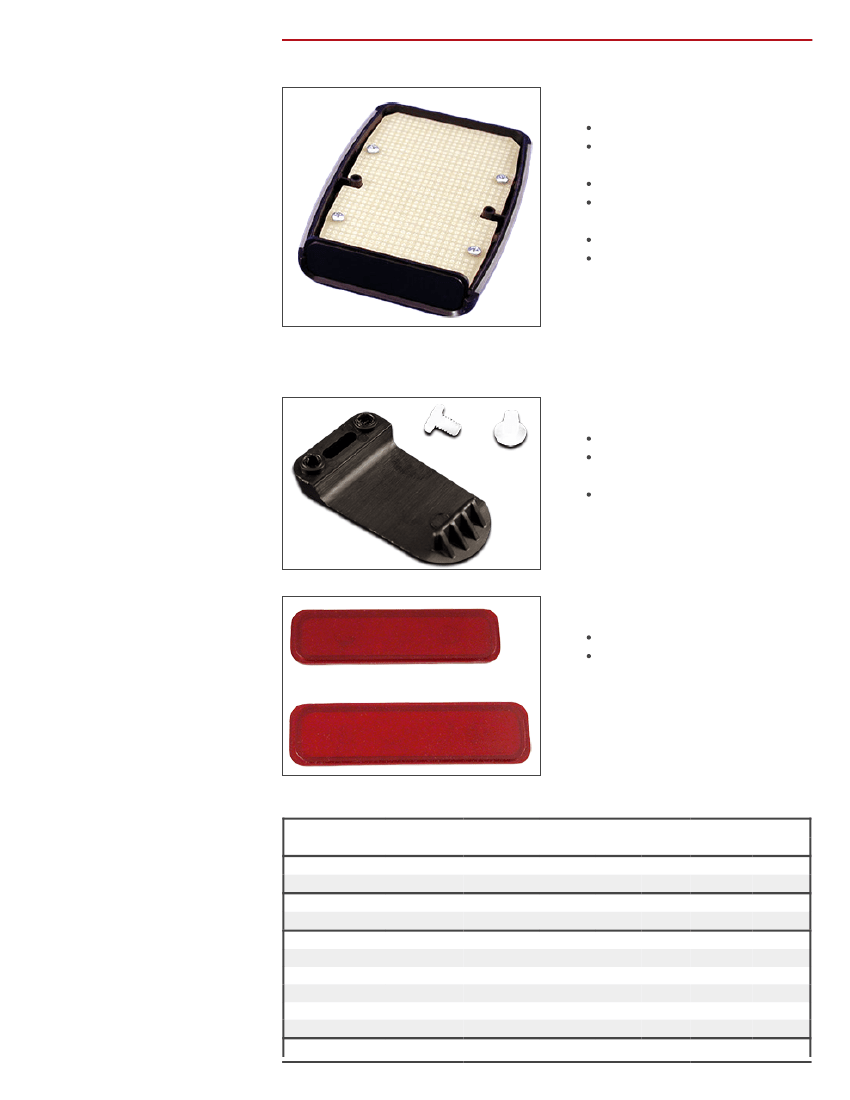

Accessories
ProtoBoard Printed Circuit Boards
High quality FR4 glass epoxy board
Specifically designed to fit enclosures
shown in the table below
Mounting screws included
Lead free etched copper PCB with a
flux coating for easy soldering
0.042" holes drilled on 0.1" centers
For more information link to the BPS
(BusBoard Prototype Systems)
website www.busboard.com
1553BPCB
- works with 1553 sizes "B" and
"C"
1553DBPCB
- works with 1553 size "D"
Belt/ Pocket Clip Option
Molded from touch nylon
Includes 2 nylon screws (insulated to
avoid interference)
Mounting Template Included (user
drilling required)
1599CLIP
(black)
1599CLIPGY
(gray)
IR End Panels
Replaces existing front plastic panel.
Dark red plastic filter (transparent to
IR).
For all 1553 "B" sized enclosures - Part
Number
1553BIR-BULK
For all 1553 "D" sized enclosures - Part
Number
1553DIR-BULK
Without Battery Doors & Compartments
Enclosure
Part Number
1553AABK
1553AAGY
1553ABK
1553AGY
1553BBK
1553BGY
1553BBKBK
1553BTBUBK
1553BRDBK
1553BYLBK
1553CBK
Color
Black
Grey
Black
Grey
Black
Grey
Black
Trans Blue
Red
Yellow
Black
Overmold
Color
Gray
Gray
Gray
Gray
Gray
Gray
Black
Black
Black
Black
Gray
Overall Dimensions
Length
2.95
2.95
3.94
3.94
4.62
4.62
4.62
4.62
4.62
4.62
4.62
Width
1.97
1.97
2.41
2.41
3.11
3.11
3.11
3.11
3.11
3.11
3.11
Depth
0.67
0.67
0.67
0.67
0.95
0.95
0.95
0.95
0.95
0.95
1.30
Max. P.C. Board
Length
2.73
2.73
3.73
3.73
4.30
4.30
4.30
4.30
4.30
4.30
4.30
Width
1.65
1.65
1.90
1.90
2.40
2.40
2.40
2.40
2.40
2.40
2.40
https://www.hammfg.com/electronics/small-case/plastic/1553
2/3
11/8/2018
ABS Plastic Hand Held Enclosures (1553 Series) - Hammond Mfg.
Enclosure
Part Number
1553CGY
1553DBK
1553DGY
1553DBKBK
1553DTBUBK
1553DRDBK
1553DYLBK
Color
Grey
Black
Grey
Black
Trans Blue
Red
Yellow
Overmold
Color
Gray
Gray
Gray
Black
Black
Black
Black
Overall Dimensions
Length
4.62
5.80
5.80
5.80
5.80
5.80
5.80
Width
3.11
3.50
3.50
3.50
3.50
3.50
3.50
Depth
1.30
0.98
0.98
0.98
0.98
0.98
0.98
Max. P.C. Board
Length
4.30
5.48
5.48
5.48
5.48
5.48
5.48
Width
2.40
2.65
2.65
2.65
2.65
2.65
2.65
With Battery Doors & Compartments
Enclosure
Part Number
1553BBKBAT
1553BGYBAT
1553BBKBKBAT
1553BTBUBKBAT
1553BRDBKBAT
1553BYLBKBAT
1553CBKBAT
1553CGYBAT
1553DBKBAT
1553DGYBAT
1553DBKBKBAT
1553DTBUBKBAT
1553DRDBKBAT
1553DYLBKBAT
Color
Black
Grey
Black
Trans Blue
Red
Yellow
Black
Grey
Black
Grey
Black
Trans Blue
Red
Yellow
Overmold
Color
Gray
Gray
Black
Black
Black
Black
Gray
Gray
Gray
Gray
Black
Black
Black
Black
Overall Dimensions
Length
4.62
4.62
4.62
4.62
4.62
4.62
4.62
4.62
5.80
5.80
5.80
5.80
5.80
5.80
Width
3.11
3.11
3.11
3.11
3.11
3.11
3.11
3.11
3.50
3.50
3.50
3.50
3.50
3.50
Depth
0.95
0.95
0.95
0.95
0.95
0.95
1.30
1.30
0.98
0.98
0.98
0.98
0.98
0.98
Max. P.C. Board
Length
3.08
3.08
4.30
4.30
4.30
4.30
4.30
4.30
4.20
4.20
4.20
4.20
4.20
4.20
Width
2.40
2.40
2.40
2.40
2.40
2.40
2.40
2.40
2.65
2.65
2.65
2.65
2.65
2.65
Data subject to change without notice
© 2018. Hammond Manufacturing Ltd. All rights reserved.
https://www.hammfg.com/electronics/small-case/plastic/1553
3/3
