101-012-91: DescriptionCovers, boxes and shell products TGABS2516-9-toS, 252x162x90mm; Categoryaccessories Cover, box and shell products; File Size303KB，2 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Parametric Compare View All

101-012-91 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	101-012-91	-	-	View	Buy Now

101-012-91 Overview

Covers, boxes and shell products TGABS2516-9-toS, 252x162x90mm

101-012-91 Parametric

Parameter Name	Attribute value
Maker	Altech
Product Category	Covers, boxes and shell products
Shipping restrictions	Mouser does not currently sell this product.
product	Enclosures
type	NEMA Rated Enclosure
Material	Acrylonitrile Butadiene Styrene (ABS)
color	Transparent
IP rating	IP67
NEMA Rating	4X
series	TG
Features	?with Standard Screws
Factory packaging quantity	1

Preview

Download Datasheet

View All

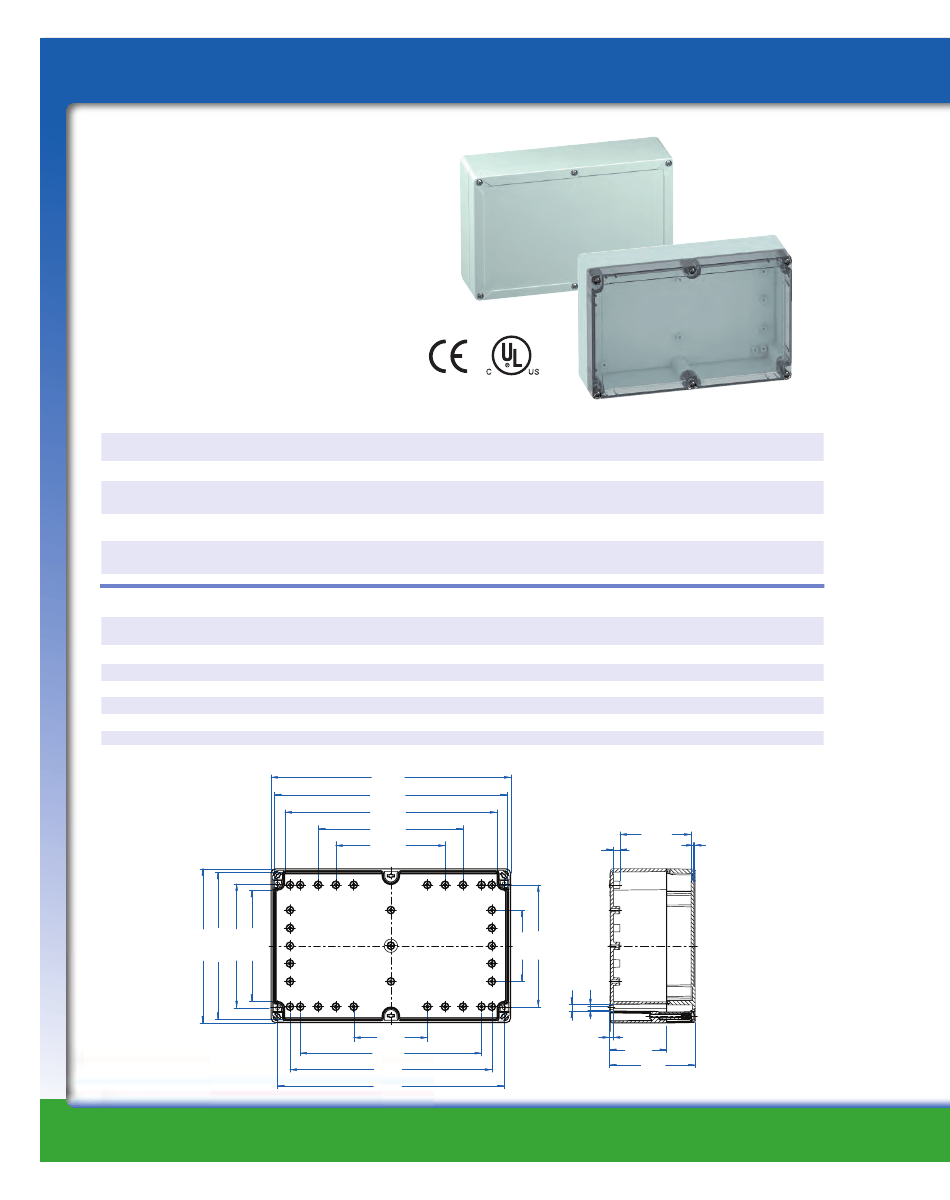

TG2516-9 – ABS and Polycarbonate

– 252 x 162 x 90 mm (9.92 x 6.38 x 3.54 in.)

Standard Features

•

Protection Level:

•

Technical:

IP67 (NEMA 4X)

Smooth Sidewalls

Gray or Transparent Cover

Standard or Quick Turn Screws

225 x 135 x 0.4 mm Recess in Cover

Integrated Cover Retainer

ABS or Polycarbonate

Polycarbonate

Polyurethane

Light Gray

ABS

-40˚C to 80˚C (-40˚F to 176˚F)

Polycarbonate

-40˚C to 120˚C (-40˚F to 248˚F)

See section below

Cat. No.

w/ Quick Turn Screws

•

UL Recognized

•

Enclosure Materials:

Transparent Cover

Material:

Gasket Material:

Color:

Material

Temperature Range:

E254144

Polycarbonate with

standard screws Only

•

Accessories:

TG

Ordering

Information

ABS

Cat. No.

w/ Standard Screws

Type

Length

Dimensions mm (in)

Width

Height

Std.

Pk.

Gray cover

Transparent cover

Polycarbonate

100-412-91

101-012-91

100-412-01

101-012-01

TGABS2516-9-o

TGABS2516-9-to

252 mm (9.92 in.)

162 mm (6.38 in.) 90 mm (3.54 in.)

1

Gray cover

Transparent cover

200-412-91

201-012-91

200-412-01

201-012-01

TGPC2516-9-o

TGPC2516-9-to

252 mm (9.92 in.)

162 mm (6.38 in.) 90 mm (3.54 in.)

1

Accessories

Ordering

Information

Cat. No.

Type

Std.

Pk.

Mounting Plate (plastic)

186-012

TGMPI-2516

1

Mounting Plate (steel)

187-012

TGMPS-2516

1

DIN Rail – TS35-222

198-222

NS35-222

1

DIN Rail - TS15-222

197-222

TS15-222

1

Internal Hinge Kit Set

182-001

TGISS

1

Mounting Tab Kit

182-002

TGABL

1

Please refer to pages 149-152 additional accessories and detailed information

252 mm

(9.92 in)

245 mm

(9.65 in)

223 mm

(8.78 in)

154 mm

(6.06 in)

114 mm

(4.49 in)

74.7 mm

(2.94 in)

7 mm

(0.28 in)

4 mm

(0.02 in)

162 mm

(6.38 in)

155 mm

(6.10 in)

130 mm

(5.12 in)

117 mm

(4.61 in)

75 mm

(2.95 in)

128 mm

(5.04 in)

Ø7.2 mm

(0.28 in)

74 mm

(2.91 in)

190.5 mm

(7.50 in)

212 mm

(8.35 in)

238 mm

(9.37 in)

4 mm

(0.16 in)

Ø4.2 mm

(0.17 in)

60 mm

(2.36 in)

90 mm

(3.54 in)

60

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

101-012-91 Related Products

	101-012-91	201-012-91	100-412-01	101-012-01	200-412-91	201-012-01
Description	Covers, boxes and shell products TGABS2516-9-toS, 252x162x90mm	Covers, boxes and shell products TGPC2516-9-toS, 252x162x90mm	Covers, boxes and shell products TGABS2516-9-o, 252x162x90mm	Covers, boxes and shell products TGABS2516-9-to, 252x162x90mm	Covers, boxes and shell products TGPC2516-9-oS, 252x162x90mm	Covers, boxes and shell products TGPC2516-9-to, 252x162x90mm
Maker	Altech	Altech	Altech	Altech	Altech	Altech
Product Category	Covers, boxes and shell products	Covers, boxes and shell products	Covers, boxes and shell products	Covers, boxes and shell products	Covers, boxes and shell products	Covers, boxes and shell products
Shipping restrictions	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.
product	Enclosures	Enclosures	Enclosures	Enclosures	Enclosures	Enclosures
type	NEMA Rated Enclosure	NEMA Rated Enclosure	NEMA Rated Enclosure	NEMA Rated Enclosure	NEMA Rated Enclosure	NEMA Rated Enclosure
Material	Acrylonitrile Butadiene Styrene (ABS)	Polycarbonate	Acrylonitrile Butadiene Styrene (ABS)	Acrylonitrile Butadiene Styrene (ABS)	Polycarbonate	Polycarbonate
color	Transparent	Transparent	Gray	Transparent	Gray	Transparent
IP rating	IP67	IP67	IP67	IP67	IP67	IP67
NEMA Rating	4X	4X	4X	4X	4X	4X
series	TG	TG	TG	TG	TG	TG
Features	?with Standard Screws	?with Standard Screws	with Quick Turn Screws	with Quick Turn Screws	?with Standard Screws	with Quick Turn Screws
Factory packaging quantity	1	1	1	1	1	1
